lighted monitor lamp will indicate a system failure.
Such as the exhaust solenoid operated for 120

610

seconds but the height sensor did not move to the
low position. See Diagnostic Chart 4.

(5) The compressor relay output is activated to re-

turn the vehicle to the neutral (leveled) position. The
maximum operation time of the relay output is 150
610 seconds. If the expected position is not obtained.
The control module ceases self-diagnostics and any
further operation. The monitor lamp is continuously
lighted until the ignition is cycled from OFF to ON
or 60

61 minutes has elapsed after ignition is turned

off.

The sensor will move to the neutral position. If not,

a continuously lighted monitor lamp will indicate a

system failure. Such as the compressor relay output
operated for 150

610 seconds but the sensor did not

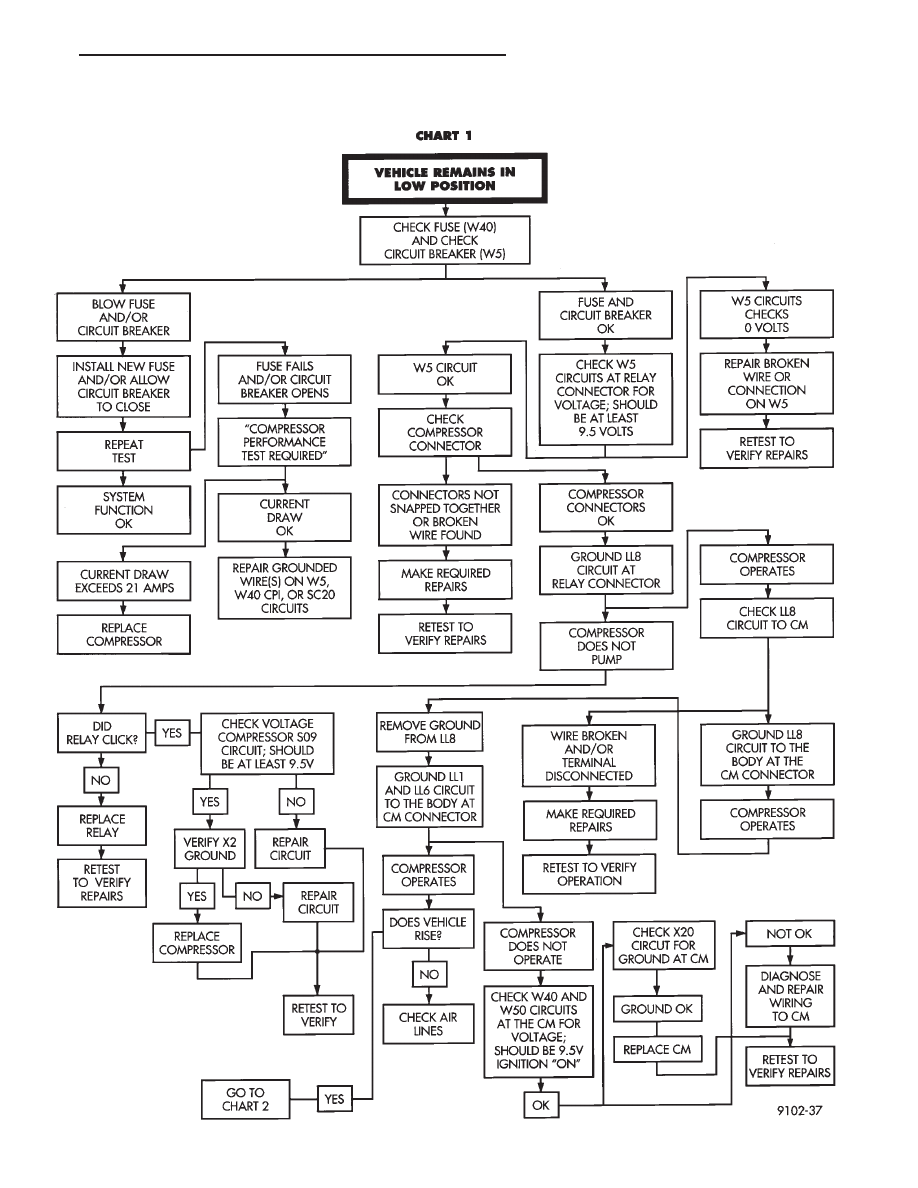

move to or sense the neutral position. See Diagnostic
Chart 1.

(6) Completion of diagnostics, is when self diagnostic

procedure is successfully completed and control module
resumes normal operation. The diagnostic test is now
complete. Throughout the testing the vehicle load must
be maintained at a specific level. No loads are allowed
to be added/removed to/from the vehicle once the self
diagnosis tests have been initiated.

The Diagnostic connector cover must be in-

stalled after completion of the test.

2 - 66
