 M162 ENGINE ELECTRICAL  1E1-7

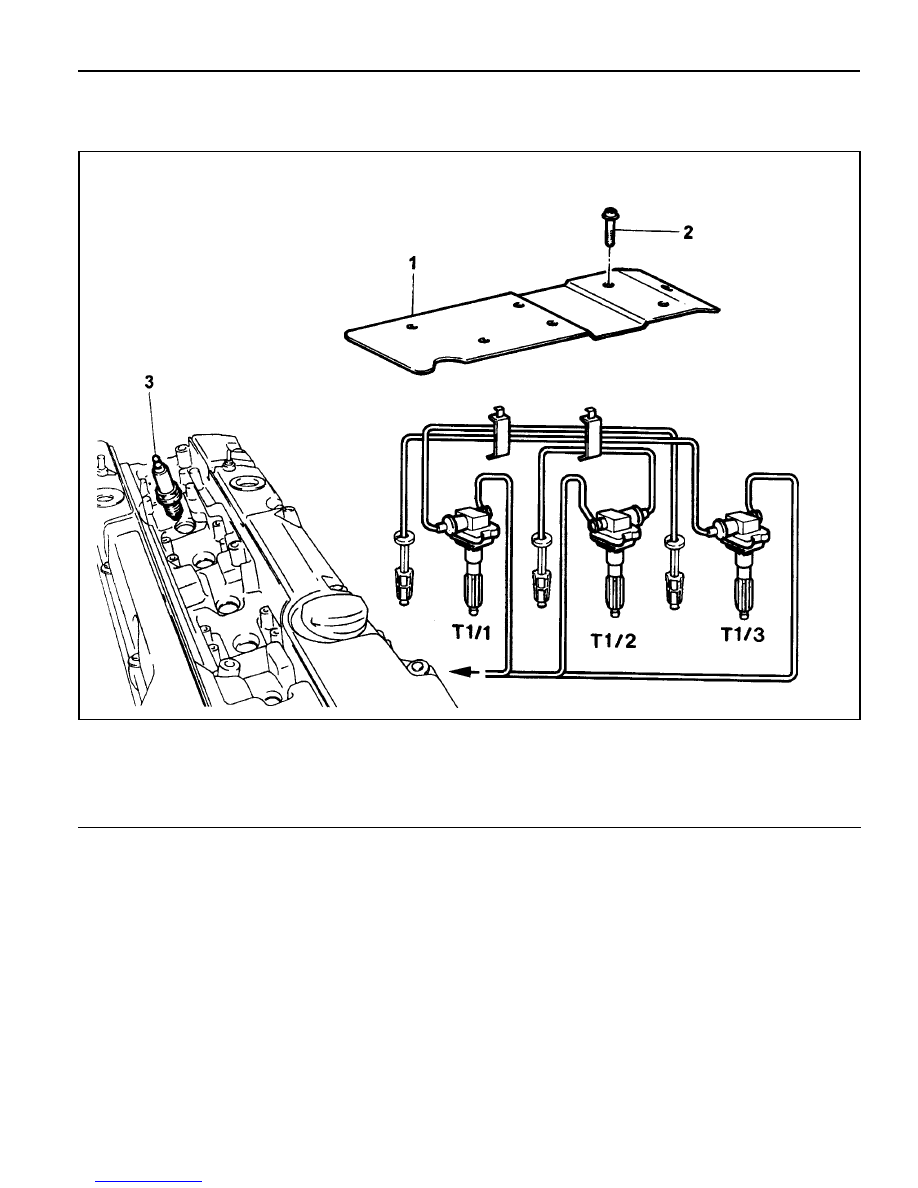

1 Ignition Coil Cable Cover
2 Bolt (M6 X 60, 7 pieces) ......................... 9-11 Nm
3 Spark Plug

SPARK PLUG

Preceding Work : Removal of intake air duct

T1/1 Ignition Coil : Cylinder 2 and 5
T1/2 Ignition Coil : Cylinder 3 and 4
T1/3 Ignition Coil : Cylinder 1 and 6

1E1-8  M162 ENGINE ELECTRICAL

Tools Required

120 589 09 00  Spark Plug Wrench

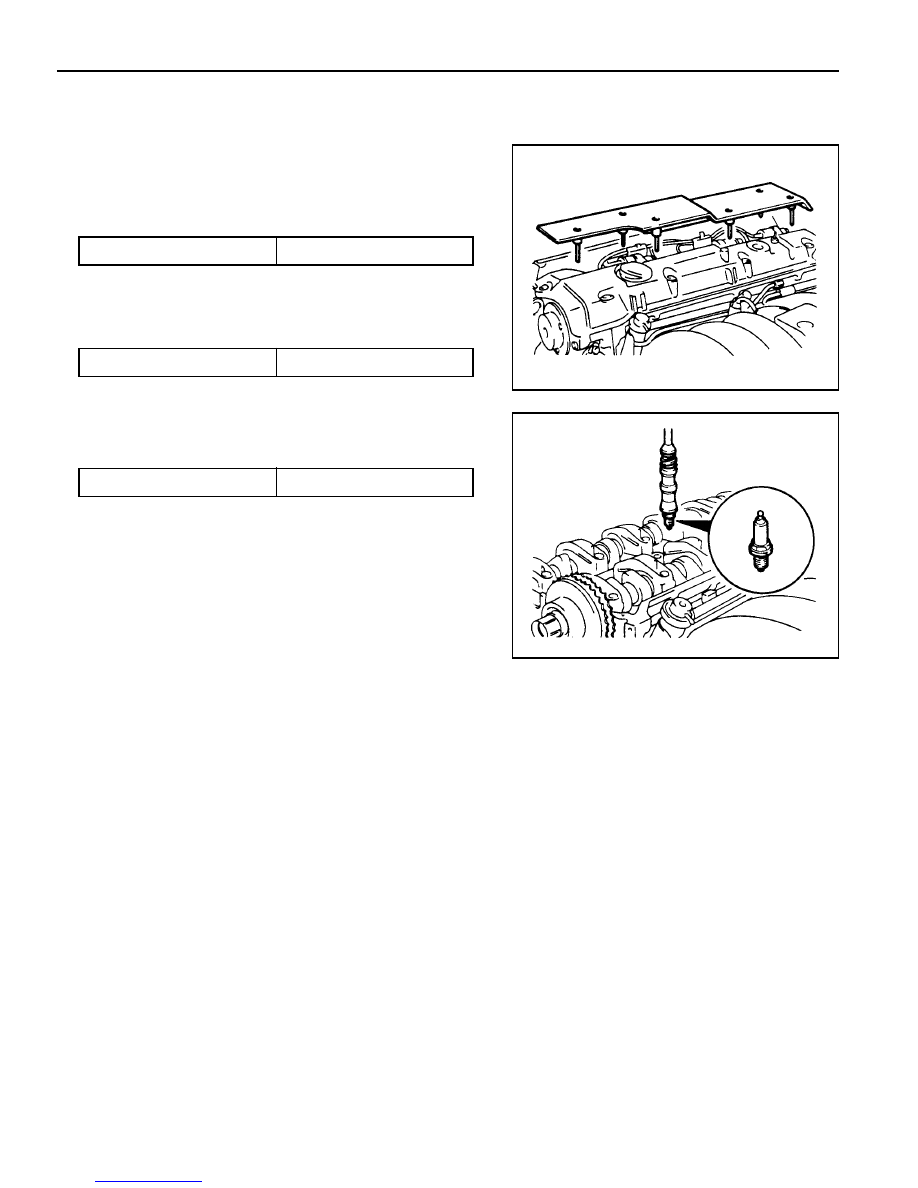

Replacement Procedure

1. Remove the seven bolts (2) and remove the ignition cable

cover.

Installation Notice

Tightening  Torque

9 - 11 Nm

Tightening  Torque

9 - 11 Nm

Tightening  Torque

9 - 11 Nm

2. Remove the two bolts (M6 X 25) from each ignition cable

and remove the ignition cable.

Installation Notice

3. Remove the spark plug using the special tool.

Installation Notice

Spark Plug Wrench    120 589 02 09 00

 M162 ENGINE ELECTRICAL  1E1-9

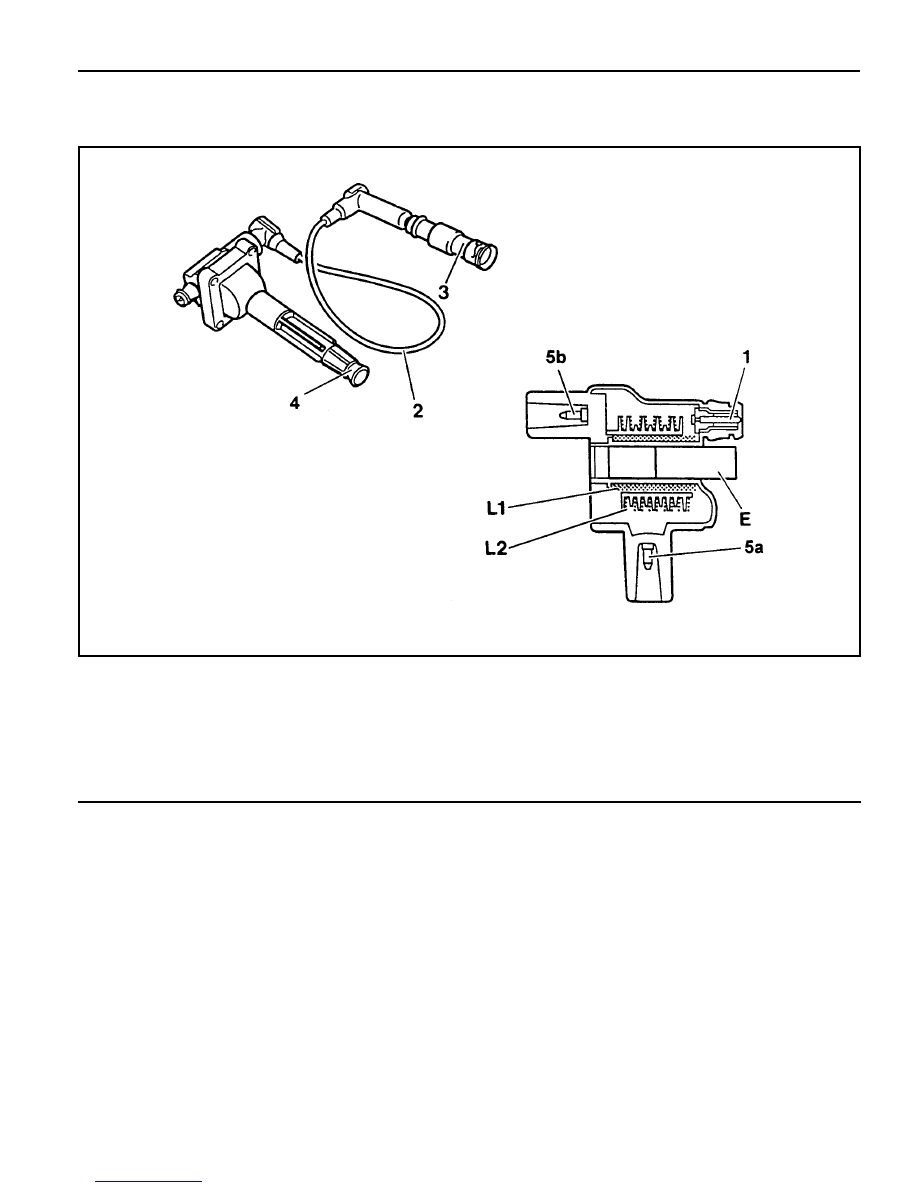

IGNITION CABLE

Preceding Work : Removal of intake air duct

1 Control Cable Connection
2 Ignition Cable
3 Spark Plug Connector
4 Coupling Plug

5a, 5b

Secondary Voltage Connection

E

Iron Core

L1

Secondary Ignition Coil

L2

Primary Ignition Coil

1E1-10  M162 ENGINE ELECTRICAL

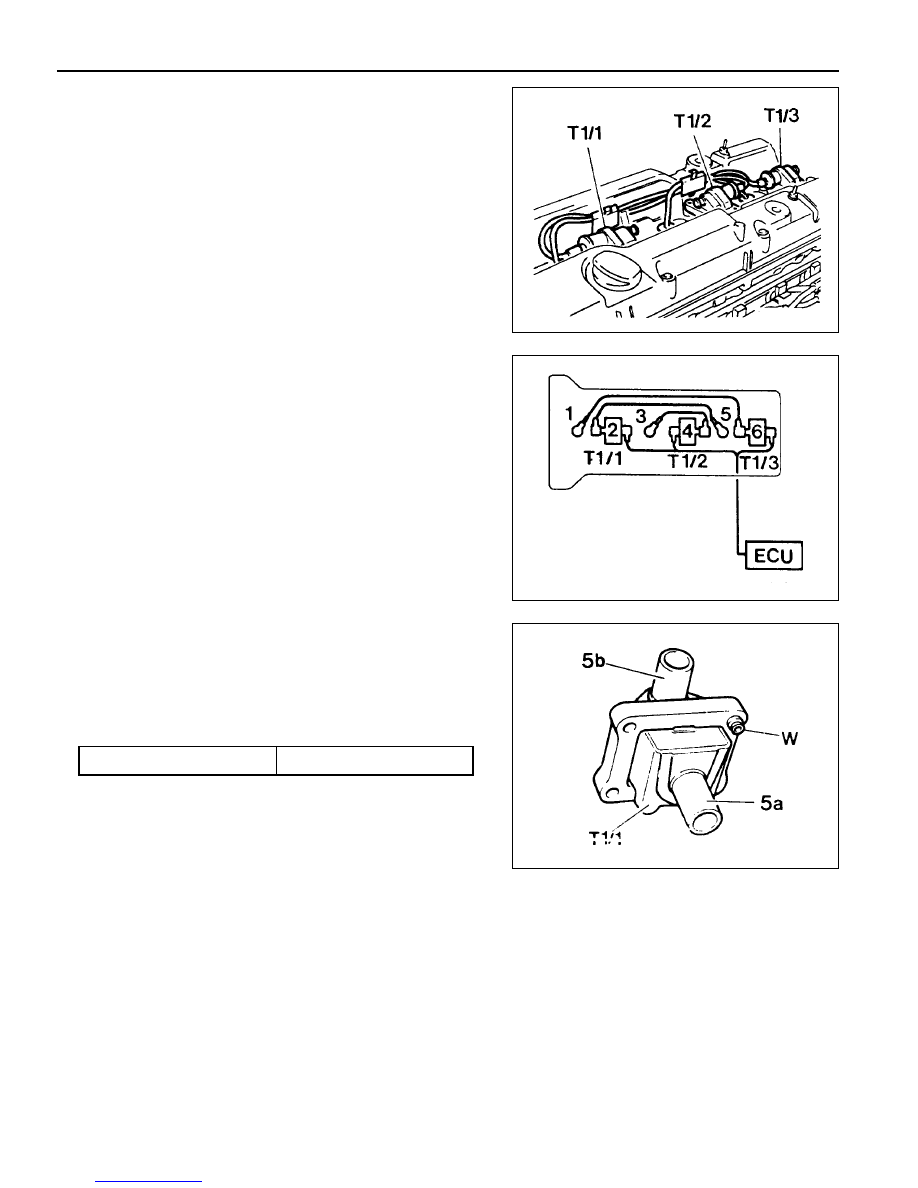

Functions

1. Firing order : 1-5-3-6-2-4

2. The ignition cables are located on the cylinder head cover.

Each ignition coil provides the high voltage to two spark
plugs simultaneously.

-

T1/1 : cylinder 2 and 5

-

T1/2 : cylinder 3 and 4

-

T1/3 : cylinder 1 and 6

Removal & Installation Procedure

1. Disconnect the negative battery cable (1).

2. Remove the ignition cable connector from the ignition cable.

3. Disconnect the secondary spark plug connectors from the

each spark plugs and remove the ignition cable.

Installation Notice

3. The secondary output voltage (5a) is supplied to the No.2

cylinder spark plug through the spark plug connector. The
secondary output voltage (5b) is supplied to the No.5 cylinder
spark plug through the ignition cable. The guide pin (W)
acts as a ground while the ignition cable is operated.

l

Make sure that the ignition cables are correctly routed.

l

Exactly install the ignition cable guide pin into the vehicle

to be grounded.

4. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

9 - 11 Nm
