 M162 ENGINE ELECTRICAL  1E1-3

SPECIAL TOOLS

SPECIAL TOOLS TABLE

120 589 02 09 00

Spark Plug Wrench

1E1-4  M162 ENGINE ELECTRICAL

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

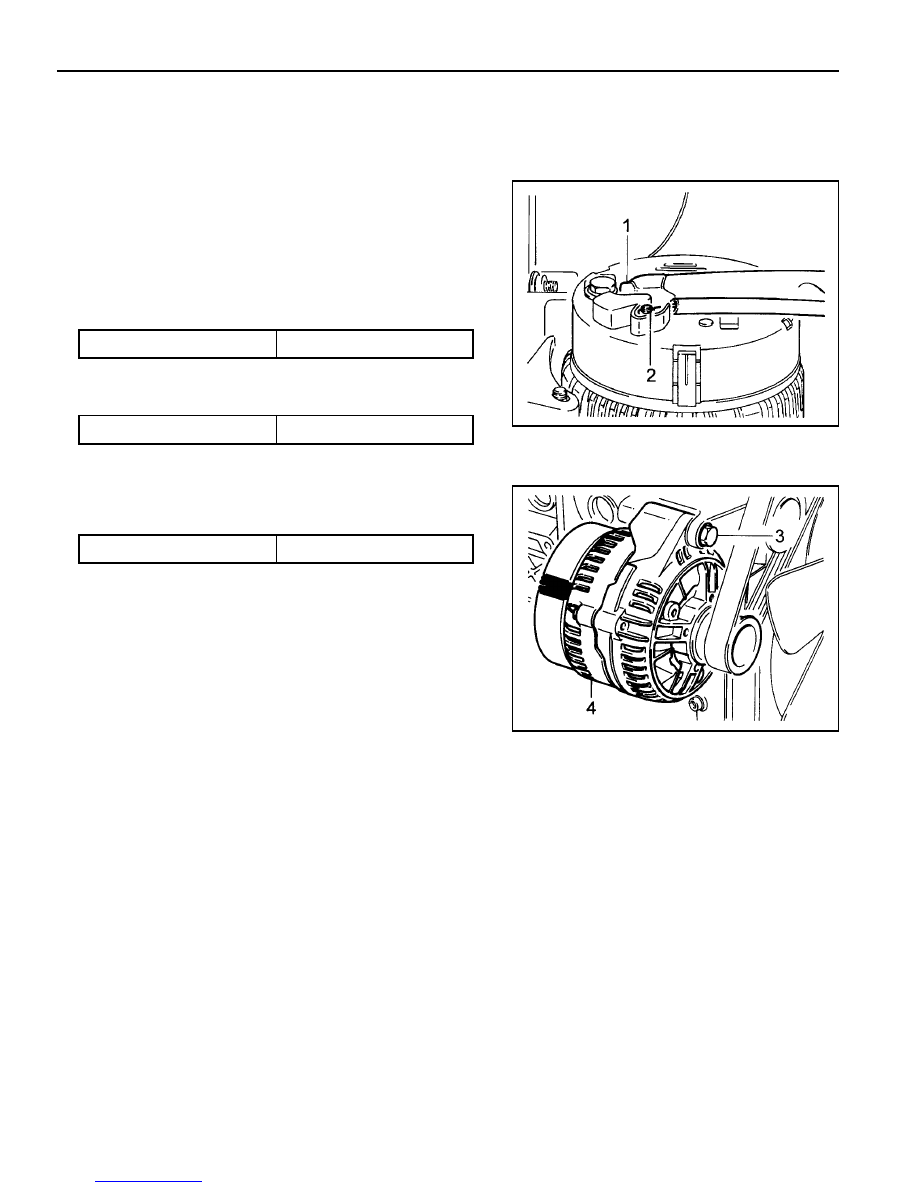

ALTERNATOR

Preceding Work : Removal of the drivebelt

Removal & Installation Procedure

1. Disconnect the negative battery terminal.

2. Unscrew the nut and disconnect the terminal (1).

Installation Notice

1

Terminal (B+)

2

Terminal (D+)

3

Combination Bolt

4

Alternator

3. Unscrew the nut and disconnect the terminal (2).

Installation Notice

Tightening  Torque

14 - 18 Nm

4. Unscrew the combination bolt (3).

Installation Notice

Tightening  Torque

4 - 5 Nm

5. Remove the alternator.

6. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

42 - 50 Nm

 M162 ENGINE ELECTRICAL  1E1-5

3

Fixing Bolt

4

Starting Motor

4. Unscrew the mounting bolts (3) of starting motor.

Installation Notice

5. Remove the starting motor.

6. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

35 - 48 Nm

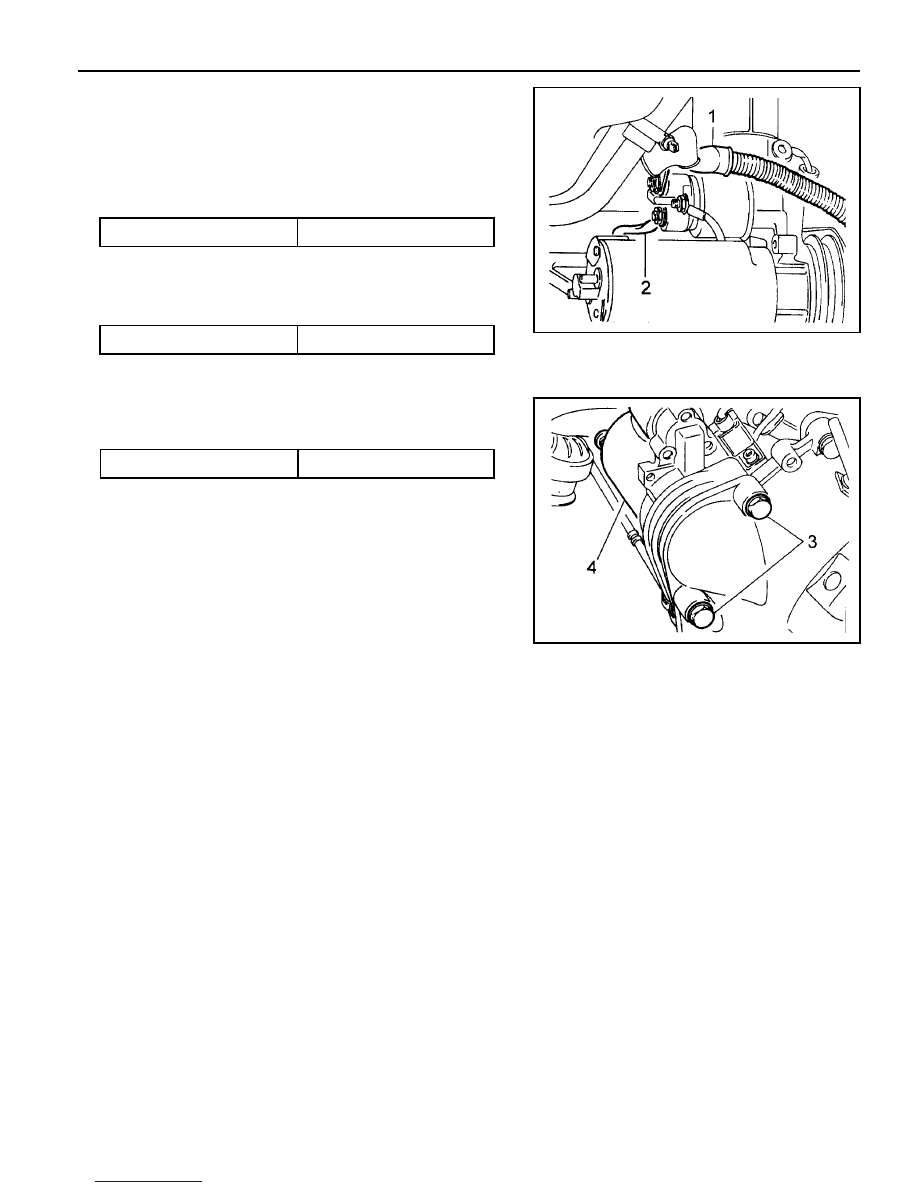

STARTING MOTOR

Removal & Installation Procedure

1. Disconnect the ground cable.

2. Unscrew the nut and disconnect the battery cable(1).

Installation Notice

1

Battery Cable

2

Engine Electric Wire

3. Unscrew the nut and disconnect the engine electric wire

(2).

Installation Notice

Tightening  Torque

12 - 15 Nm

Tightening  Torque

6 - 7 Nm

1E1-6  M162 ENGINE ELECTRICAL

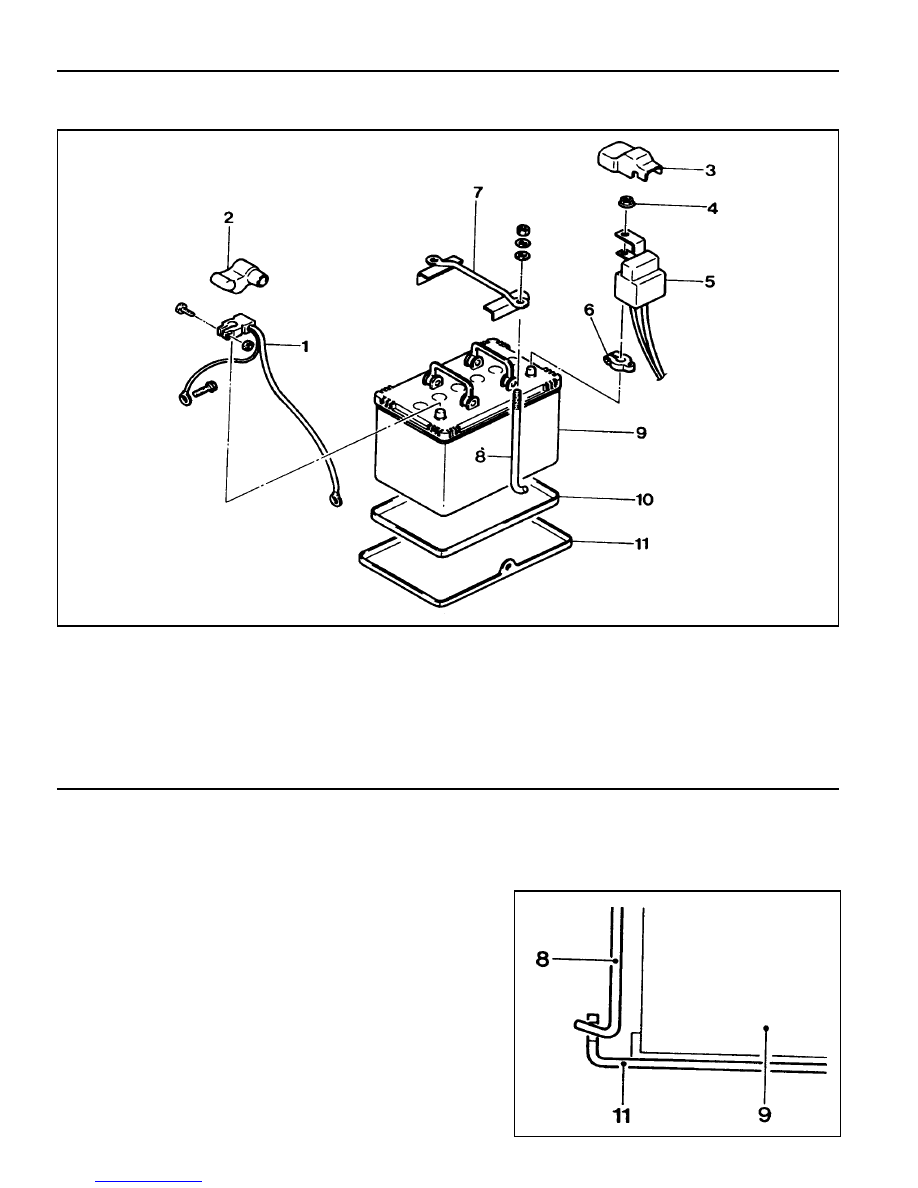

BATTERY

1 Cable Terminal (-)
2 Cable Terminal Cap (-)
3 Cable Terminal Cap (+)
4 Nut
5 Fuseblink Box
6 Terminal (+)

7 Battery holddown Bracket
8 Battery Clamp Bolt
9 Battery

10 Sub Tray

11 Battery Tray

Removal & Installation Procedure

Notice

l

Disconnect the battery negative cable first.

l

Insert the clamp bolt (8) into the battery tray hole (11)

from inside when installing.
