Daewoo Tacuma: Body Repair Manual - part 31

 SEALING, CAULKING AND DEADNER   9–15

1

DEADNER - FLOOR PANEL FRT, LH

4.0

778x428(30.63x16.85)

2

DEADNER - FLOOR PANEL FRT, RH

4.0

778x428

3

DEADNER - FLOOR PANEL FRT, TUNNEL

4.0

740x360

4

DEADNER - FLOOR PANEL RR, LH

2.2

620x520

5

DEADNER - FLOOR PANEL RR, RH

2.2

620x520

6

DEADNER - FLOOR PANEL RR, TUNNEL

4.0

625x340

7

DEADNER - A PILLAR LH

1.5

140x80

8

DEADNER - A PILLAR RH

1.5

140x80

9

DEADNER - A PILLAR UPPER LH

1.5

70x50

10

DEADNER - A PILLAR UPPER RH

1.5

70x50

11

DEADNER - FRT WHEEL HOUSING LH

3.2

264x165

12

DEADNER - FRT WHEEL HOUSING RH

3.2

264x165

13

DEADNER - A PILLAR LH

1.5

140x80

14

DEADNER - A PILLAR RH

1.5

140x80

15

DEADNER - TRUNK SIDE, LH

3.2

300x200

RECTANGULAR

NO

DESCRIPTION

REMARKS

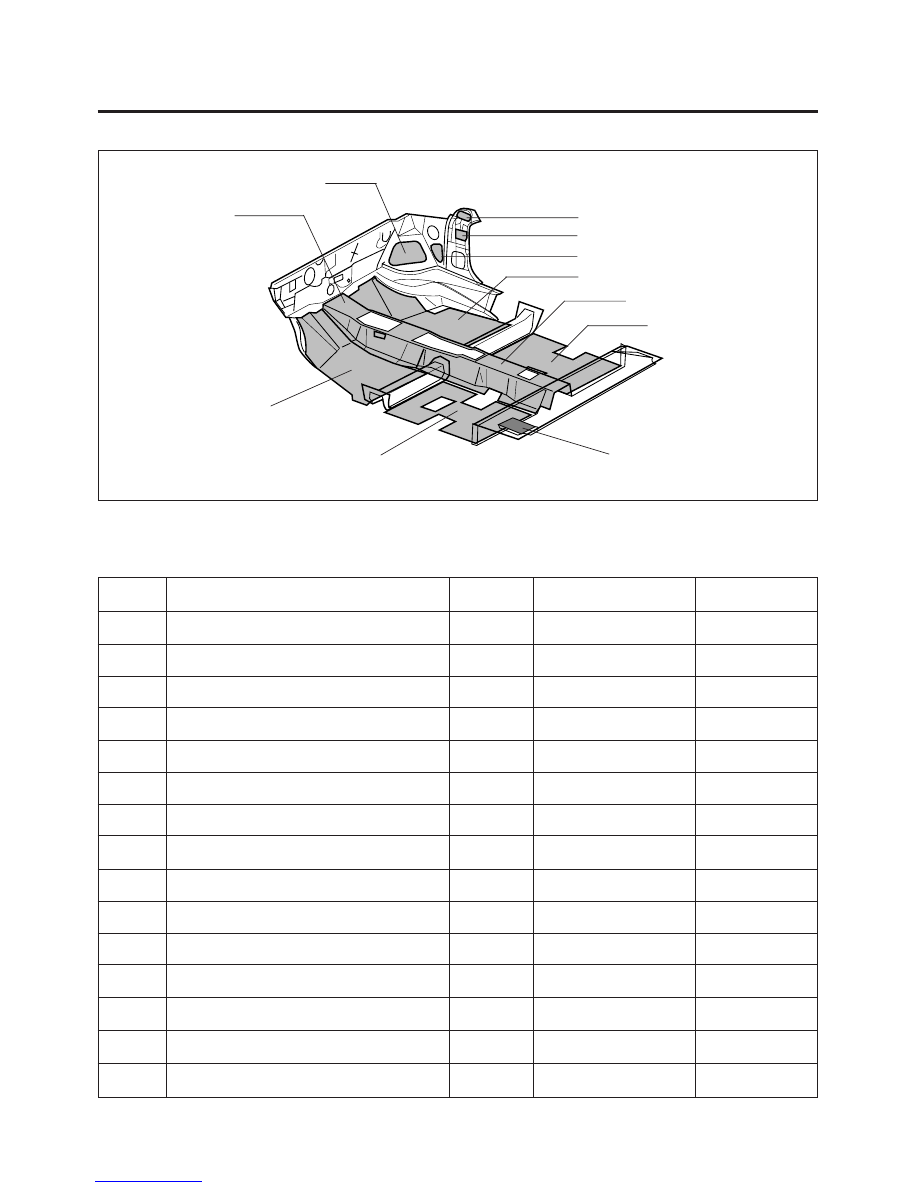

DEADNER CHART

Fig. 15  Deadner Chart

11,12

1

4

15

5

6

13,14

7,8

9,10

2

3

Unit : mm

THICKNESS

MAX AREA
