 SEALING, CAULKING AND DEADNER   9–11

Fig. 10

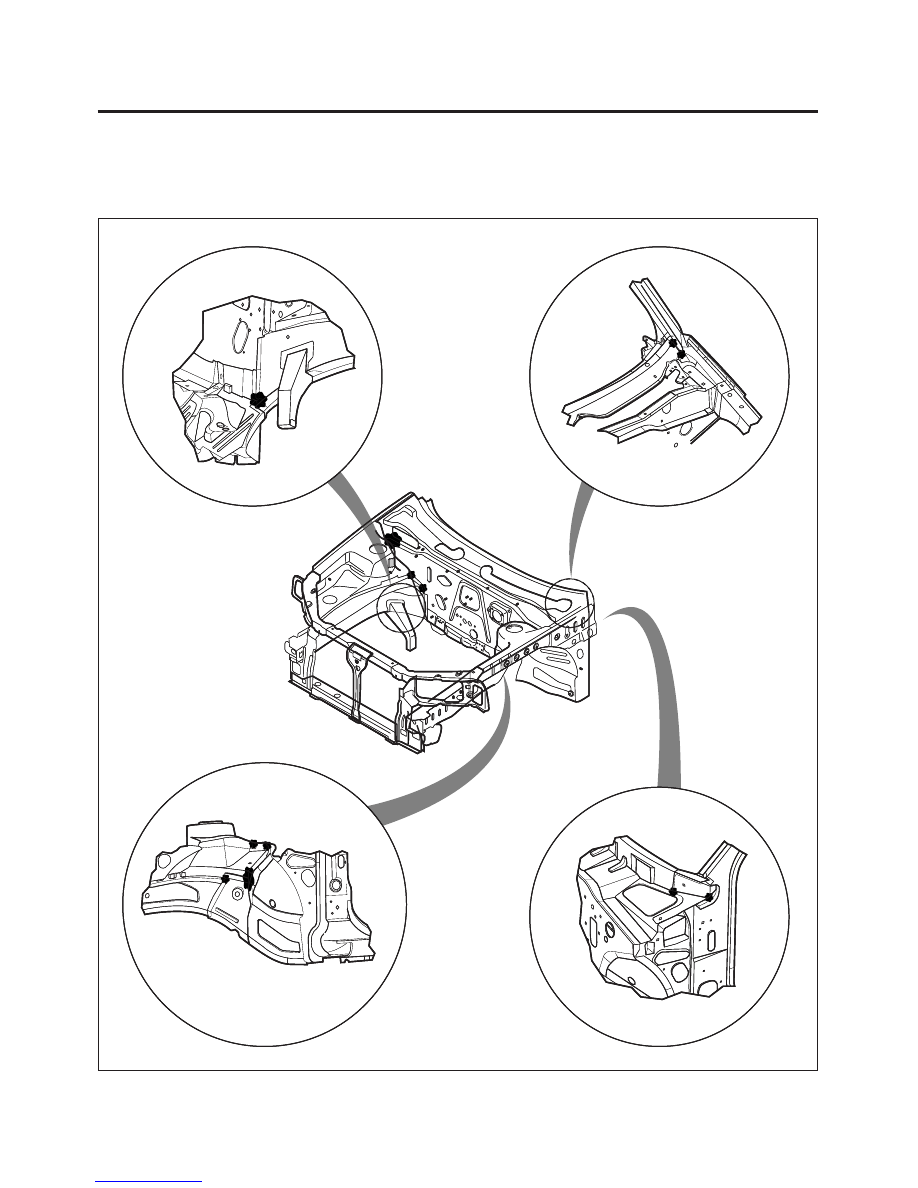

1-2. CAULKING

ENGINE ROOM

9–12   SEALING, CAULKING AND DEADNER

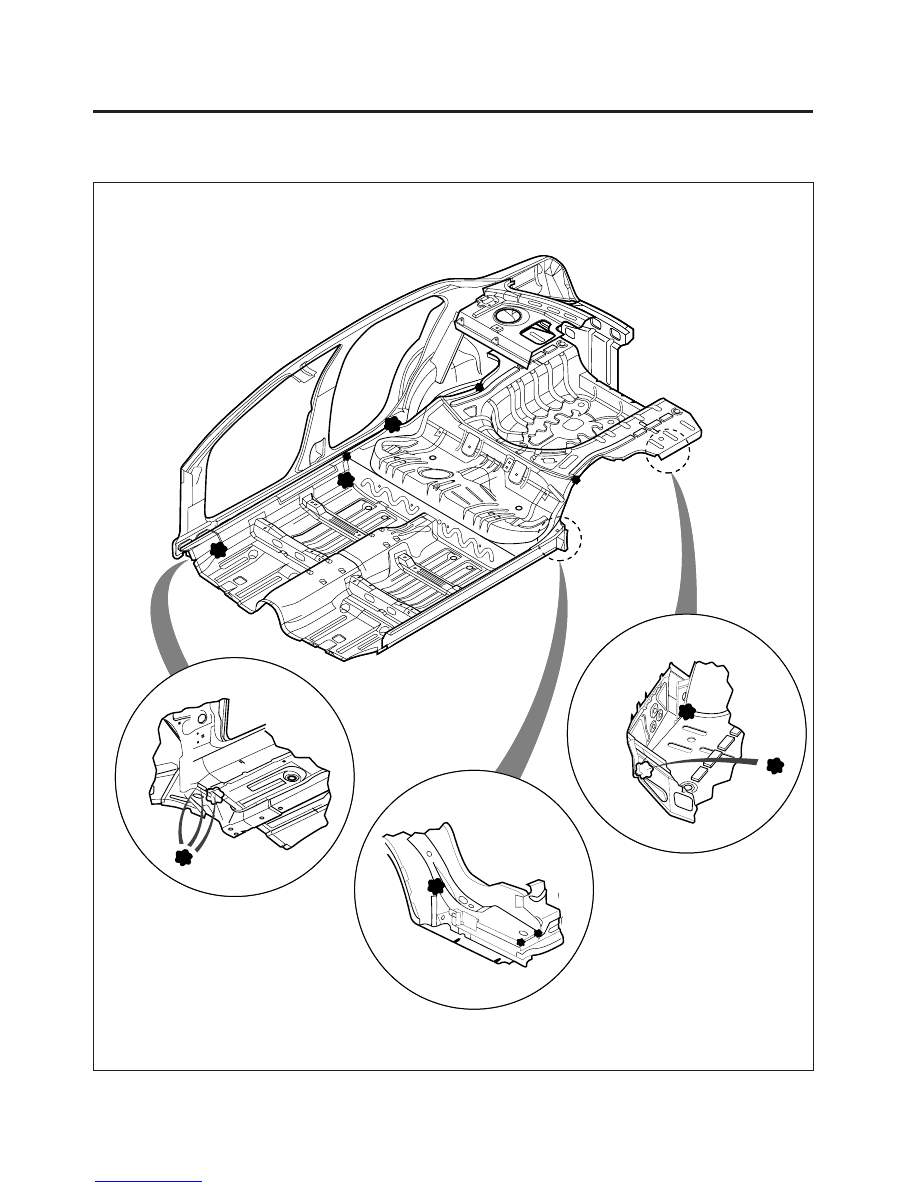

UNDER BODY

Fig. 11

 SEALING, CAULKING AND DEADNER   9–13

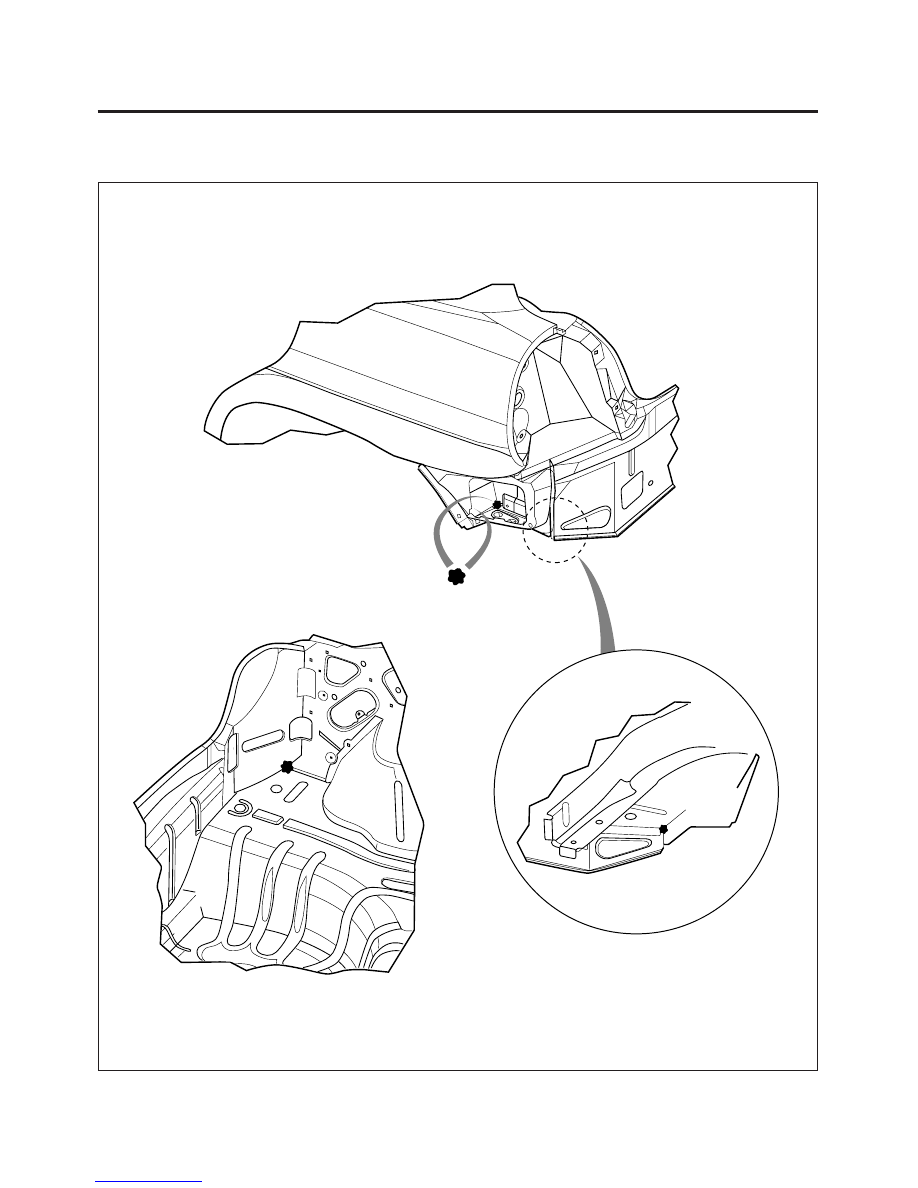

BACK PANEL

Fig. 12

9–14   SEALING, CAULKING AND DEADNER

Fig. 13

6. Install the related parts.

•

Install in the reverse order in which they were re-

moved.

Fig. 14

2. DEADNER

2-1. GENERAL DESCRIPTION

Deadner is properly designed and applied for reduce the
vibration and noise. Also, it plays in maintaining the struc-
tural rigidity of the panel.

2-2. REPAIR PROCEDURE

1. Remove the related parts.

•

Seats, carpet.

•

Trims, others.

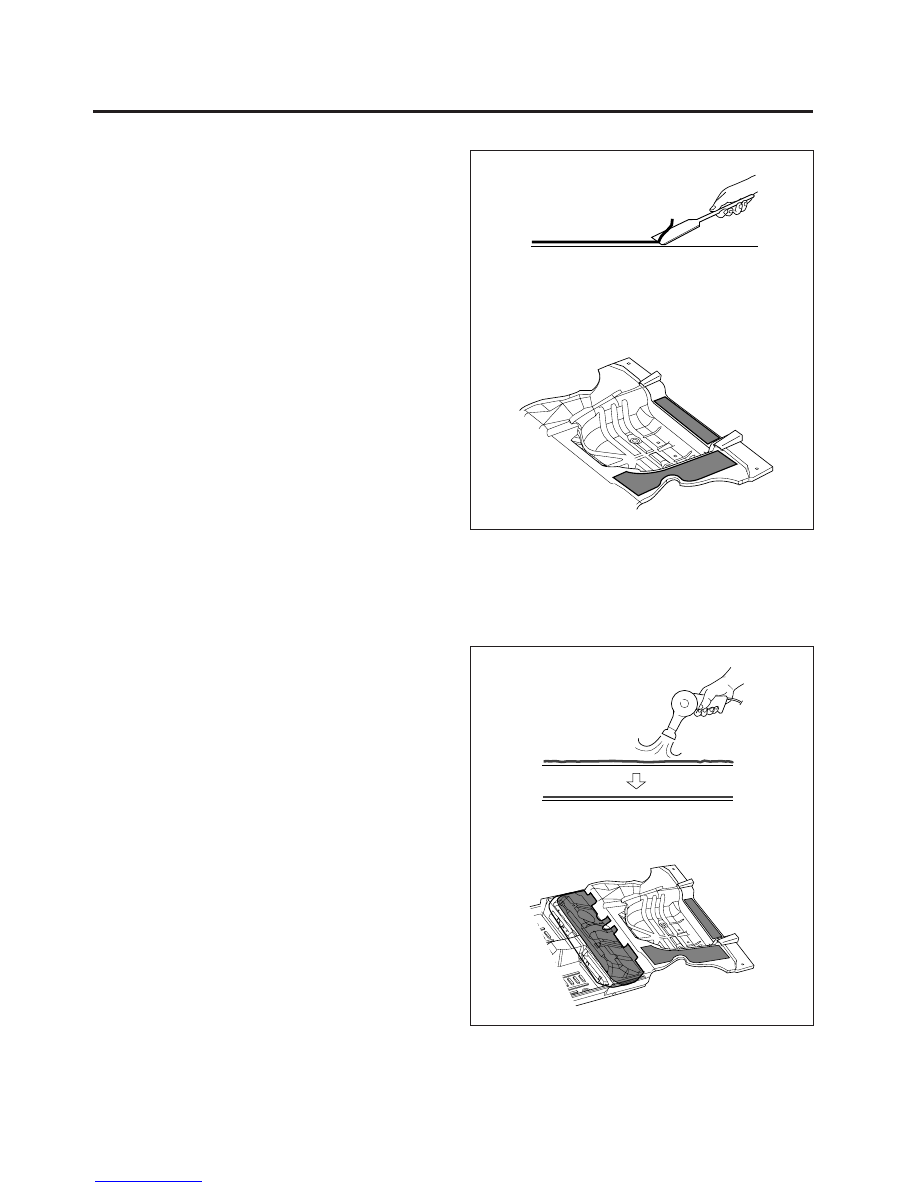

2. Removal of the damaged deadner.

•

Peel off the damaged deadner with a steel spatula,

carefully.

3. Clean and dry.

•

Before applying the deadner, thoroughly clean and

dry the areas to be applied.

4. Prelocation the new deadner.

•

Prelocation the new deadner on the panels to be

applied.

NOTE: Avoid the parts mounting holes and service
holes.

5. Adhension of deadner.

•

Heat the surface of deadner with a torch or heat-

ing gun until it adheres itself.

•

Push and adhere to the panel with a rubber

spatula.

NOTE: In order to take full advantage of the deadner,
its face must adhere and contact the panels perfectly.

CAUTION: Be careful not to burn the composite parts
when beating.
