FRAME DOOR OPENING, DOOR AND SIDE PANEL OUTER  6–11

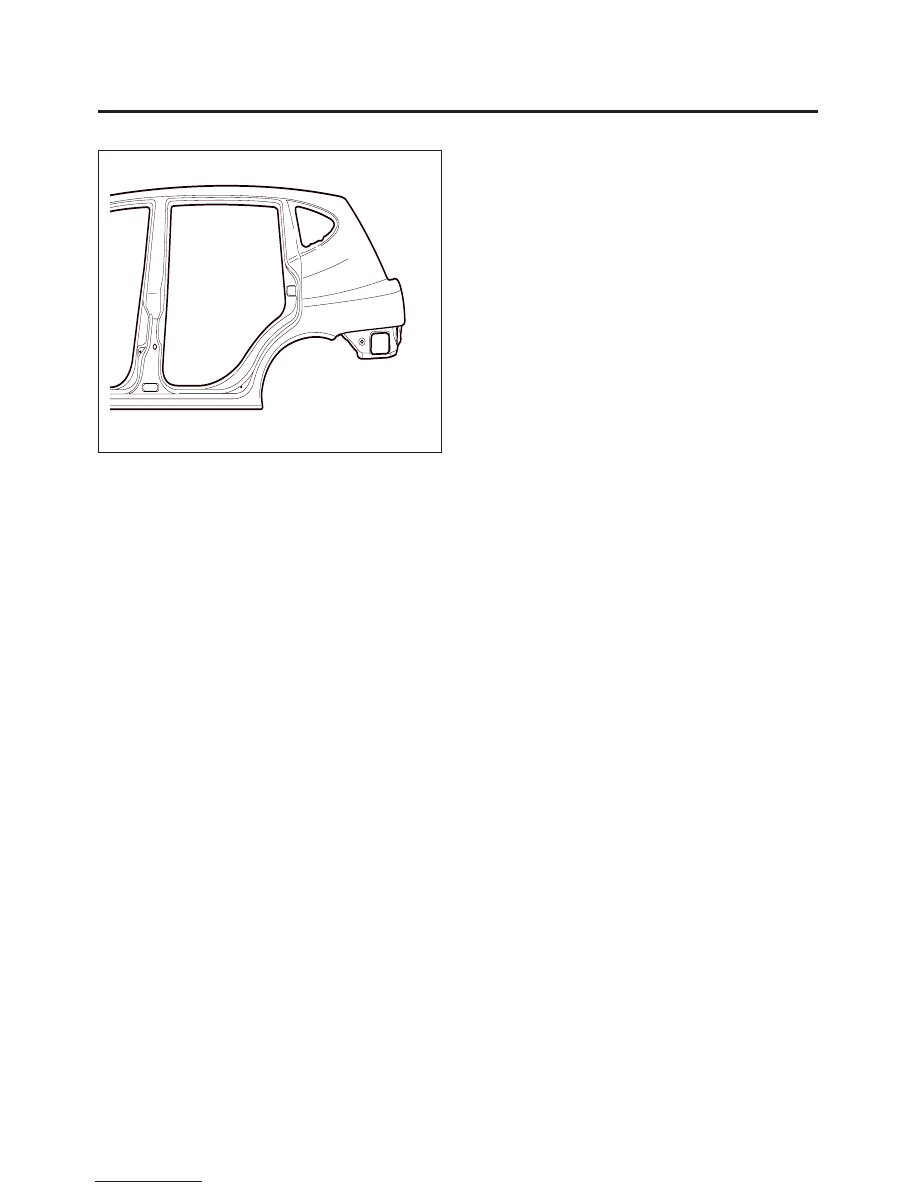

Fig. 13

13.Install the related parts.

•

Clean the passengers compartment.

•

Wiring harness and related parts.

•

Seat belt assembly and carpet.

•

Trims and weather strips.

•

Door and others.

•

Install in the reverse order in which they were re-

moved.

14.Check and adjust.

•

Check clearances and level differences.

•

Check the door locking and unlocking condition.

•

Check for water leaks in the passenger compart-

ment.

FENDER, HOOD AND TRUNK LID  7–1

SECTION 7

FENDER, HOOD  AND TRUNK LID

CONTENTS

1.  FENDER ........................................................................................................................................... 7-2

•  Repair procedure ........................................................................................................................... 7-2

2.  HOOD ............................................................................................................................................... 7-4

•  Repair procedure ........................................................................................................................... 7-4

3.  TRUNK LID ...................................................................................................................................... 7-6

•  Repair procedure ........................................................................................................................... 7-6

7–2   FENDER, HOOD AND TRUNK LID

1. FENDER

1-1. REPAIR PROCEDURE

1. Remove the related parts.

•

Radiator grill and front bumper.

•

Mud guard and fender liner.

2. Remove the fender

3. Preparation of the new fender.

•

Preparation of the new fender and check dam-

aged areas.

4. Apply the paint.

CAUTION

•

Ventilate when spraying paint. Most paint contains

substances that are harmful if inhaled or swal-
lowed. Read the paint label before opening paint
container.

•

Avoid contact with skin. Wear an approved res-

pirator, gloves, eye protection and appropriate
clothing when painting.

•

Paint is flammable. Store in a safe place, and

keep it away from sparks, flames or cigarettes.

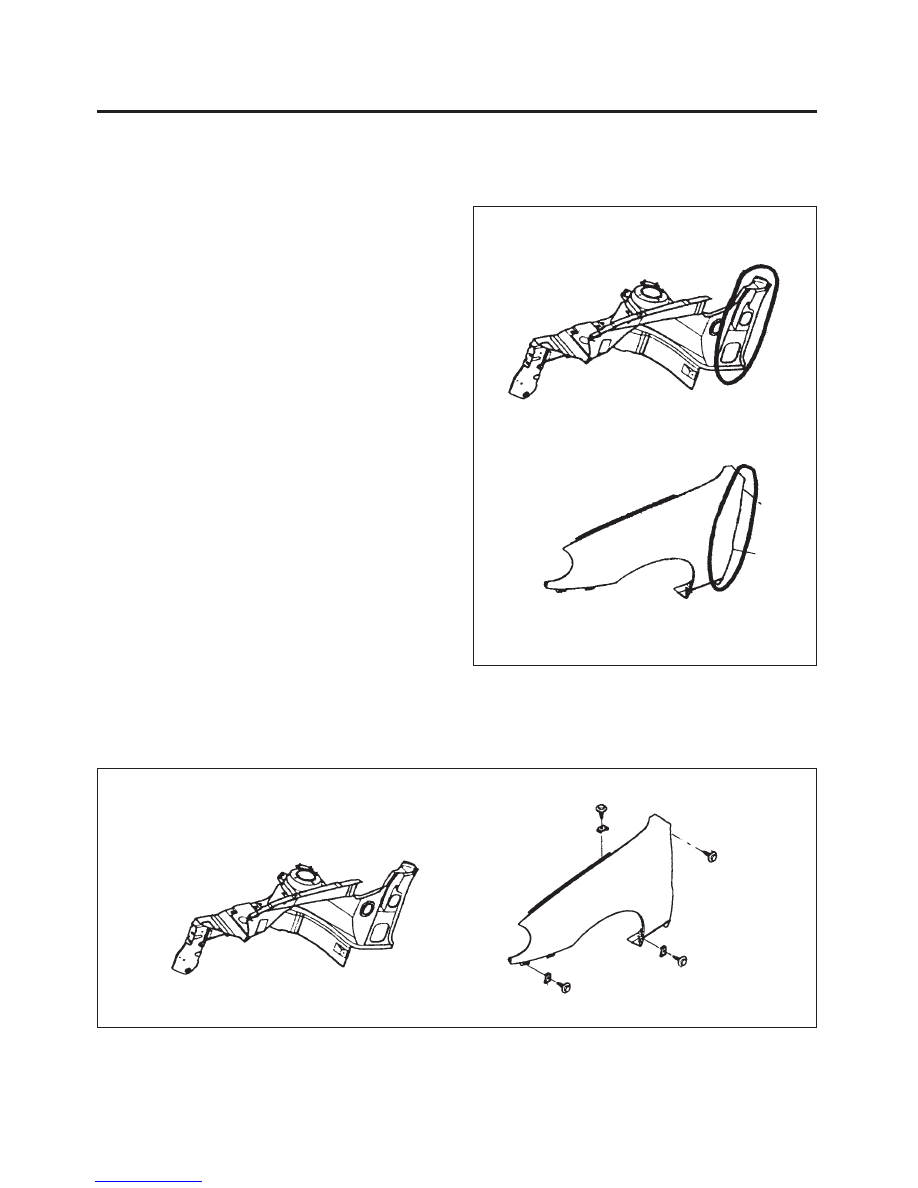

Fig. 1

5. Coating the anti-rust agents.

•

Coating the anti-rust agents to door hinge areas.

Fig. 2

FENDER, HOOD AND TRUNK LID  7–3

6. Apply the mastic sealer.

•

Apply the mastic sealer to the mounting bolts.

NOTE: Before apply the new sealer, check the cur-
rent sealer status.

 7. Preinstall the fender.

•

Fasten to the wheelhouse at two places with bolts.

Close the hood and check the front and rear clear-
ances and level differences of the hood and door.

Fig. 4

 8. Tighten fully.

•

After checking and adjusting the mounting posi-

tion, tighten all bolts fully.

 9. Install the related parts.

•

Install in the reverse order in which they were re-

moved.

10.Check clearance

•

Check clearance of front bumper.

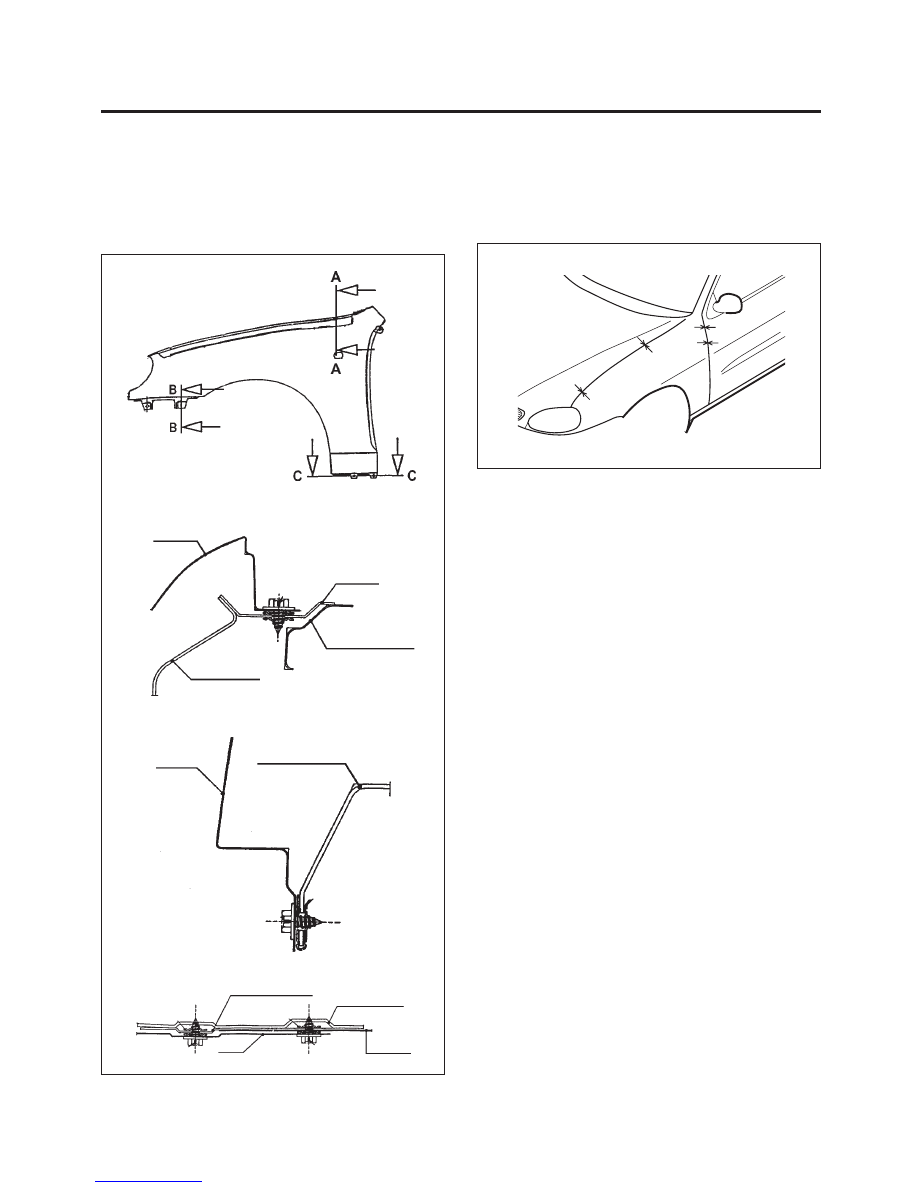

Fig. 3

FENDER

   SECT AA

FENDER

DASH-TOP

REINF-HOOD, HINGE

BRACE-W/HOUSE

   SECT BB

B R A C K E T - F E N D E R

F E N D E R

   SECT CC

REINF-FRT PILLAR LWR
