  GENERAL INFORMATION  1–7

1. Panel Side Outer

2. Panel Side Lower

3. Cap Fuel Filler

4. Panel Tail Lamp Housing Lower

5. Panel Tail Lamp Housing Center

6. Panel Tail Lamp Housing Upper

7. Door Striker

8. Front Filler Lower

9. Reinforce Rocker

10.Center Filler Inner

11.Rail Roof Side

12.Extension Side Inner Front

13.Panel Side Inner Rear

14.Bracket Trim Mounting Rear Upper

15.Reinforce "D" Filler Rear

16.Reinforce "C" Filler

17.Reinforce Retract Rear

18.Rear Seat Belt Upper

19.Patch Wheel House Inner

20.Patch Wheel House Inner

21.Front Door Hinge

22.Front Door Hinge Upper

23.Front Filler Upper

24.Rocker Front

25.Seat Belt Front

26.Rear Door Hinge

27.Patch Center Filler

28.Reinforce Center Filler

1–8  GENERAL INFORMATION

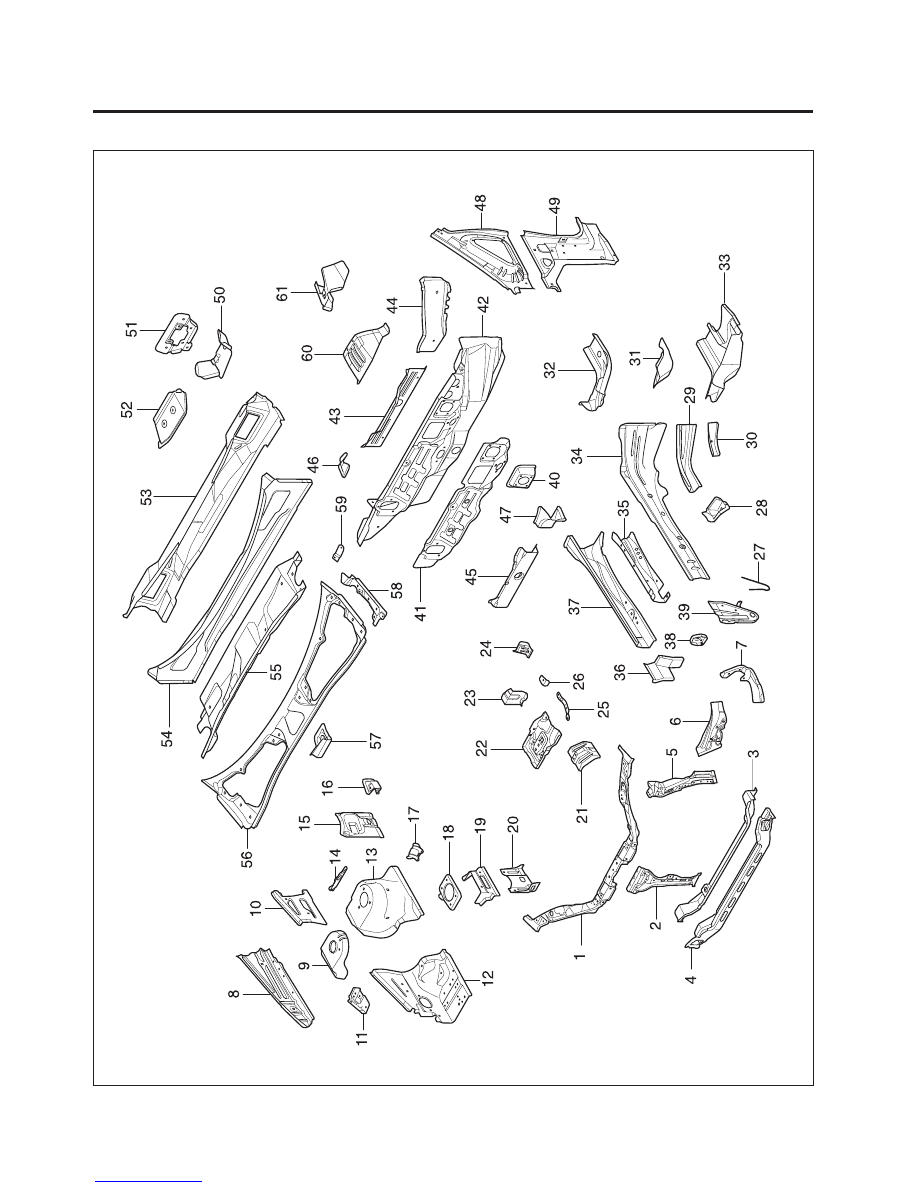

Fig. 4

  GENERAL INFORMATION  1–9

1. Front Panel Upper

2. Support Front Panel Center

3. Crossmember Radiator Rear

4. Crossmember  Radiator Front

5. Support Front Panel Side Inner

6. Support Front Panel Side Outer

7. Reinf Front Panel Side

8. Brace Wheel House

9. Rocator S/Absorber

10.Extension Wheel House Front

11.Bracket Fender

12.Wheel House Front

13.Wheel House Rear

14.Pannel Dash Upper Side

15.Stiffener Torque

16.Bracket Torque

17.Bracket Aircleaner

18.Bracket Engine Upper

19.Bracket Engine Rear

20.Bracket Power Steering Reserver

21.Support Tray Battery Inner

22.Tray Battery

23.Bracket Fuse Box Lower

24.Bracket Fuse Box Upper

25.Reinf Tray Battery

26.Bracket T/M

27.Bar Towing Front

28.Support Wheel Carrier Front

29.Reinf Front Longitudinal Outer Rear

30.Patch Reinf Longitudinal Outer

31.Reinf W/Carrier Rear

32.Extension Front Longitudinal

33.Brace Front Longitudinal

34.Longitudinal Front Inner

35.Reinf Front Longitudinal Inner

36.Support Crossmember Radiator Inner

37.Longitudinal Front Inner

38.Reinf Stay Front Bumper

39.Support Crossmember Radiator Outer

40.Cap Brake Booster

41.Panel Dash Lower Inner

42.Panel Dash Lower

43.Crossmember Dash Inner Lower Center

44.Crossmember Dash Inner Lower Side

45.Crossmember Dash Outer Lower Center

46.Reinf Wiper Motor

47.Crossmember Dash Outer Lower Side

48.Panel Front Filler Inner Center

49.Panel Front Filler Inner Lower

50.Bracket Steering Column Lower

51.Bracket Steering Column Rear

52.Bracket Steering Column Upper

53.Crossmember Dash Upper

54.Head Dash Upper

55.Panel Dash Upper

56.Panel Dash Top

57.Bracket Surgetank

58.Reinf Hinge Hood

59.Reinf Wiper Center

60.Patch Dash Lower Center

61.Reinf Tunnel Upper Front

1–10  GENERAL INFORMATION

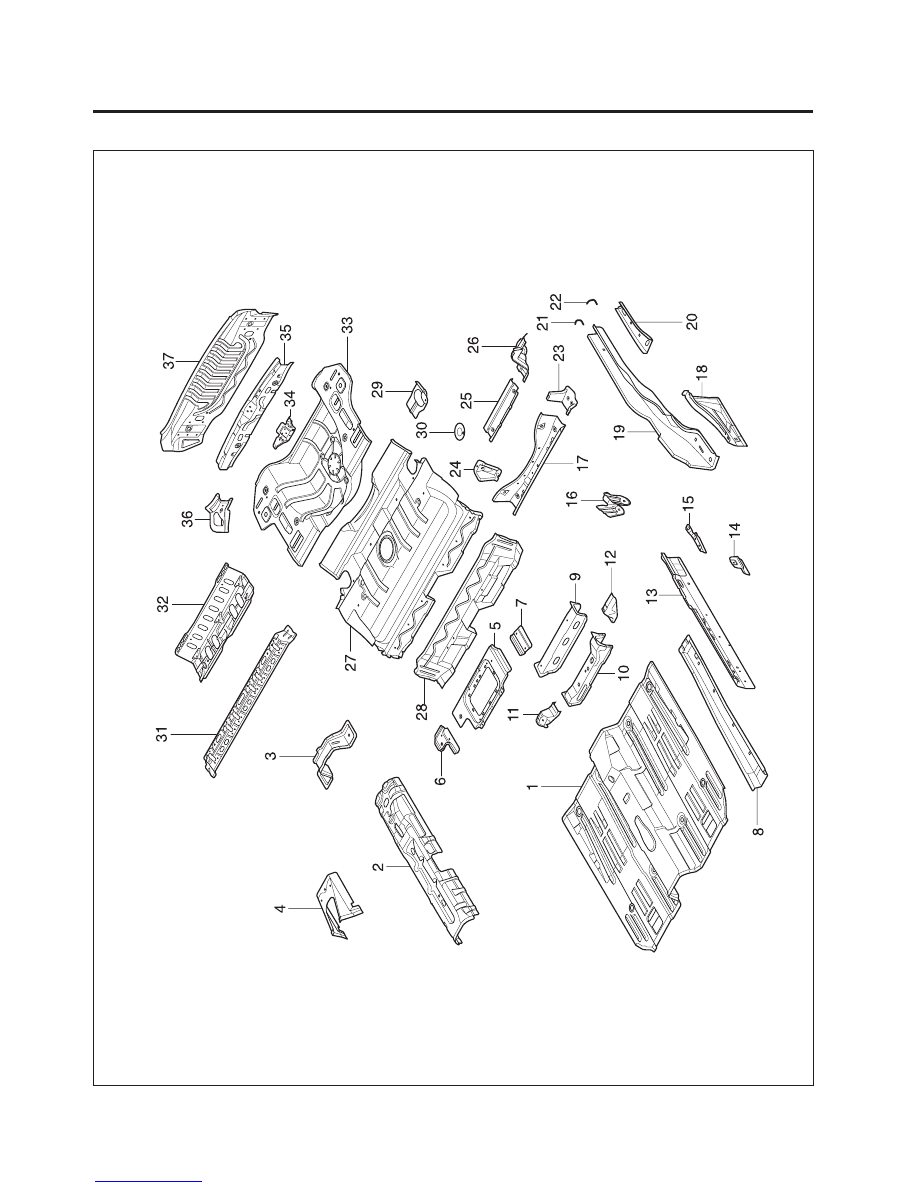

Fig. 5
