SWITCHES  9V-5

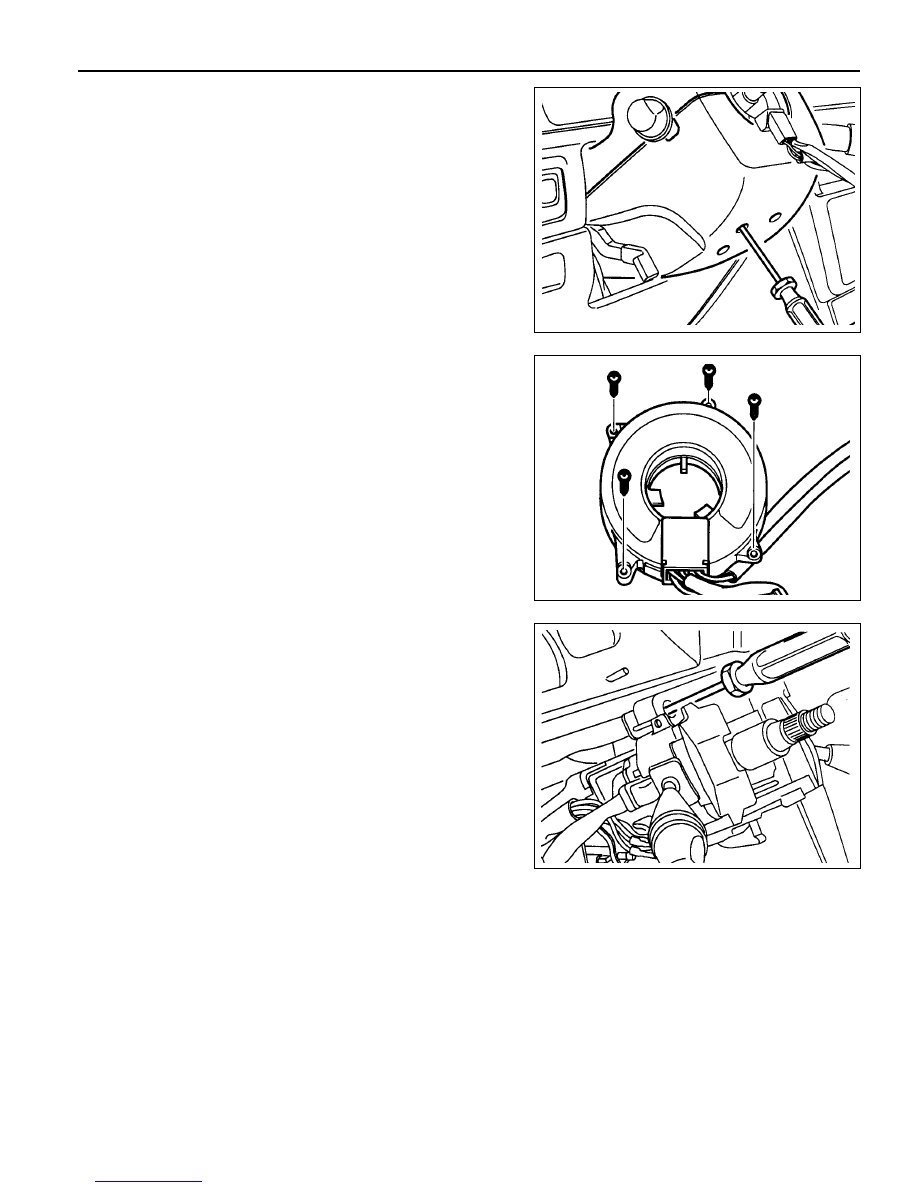

5. Unscrew the 3 screws from the steering column shaft lower

cover and remove both upper and lower covers.

6. Unscrew the 4 screws of clock spring and remove the clock

spring.

Notice

Refer to clock spring removal for its installation notes.

7. Unscrew the 3 screws and remove the multifunction switch.

8. Installation should follow the removal procedure in the

reverse order.

9V-6  SWITCHES

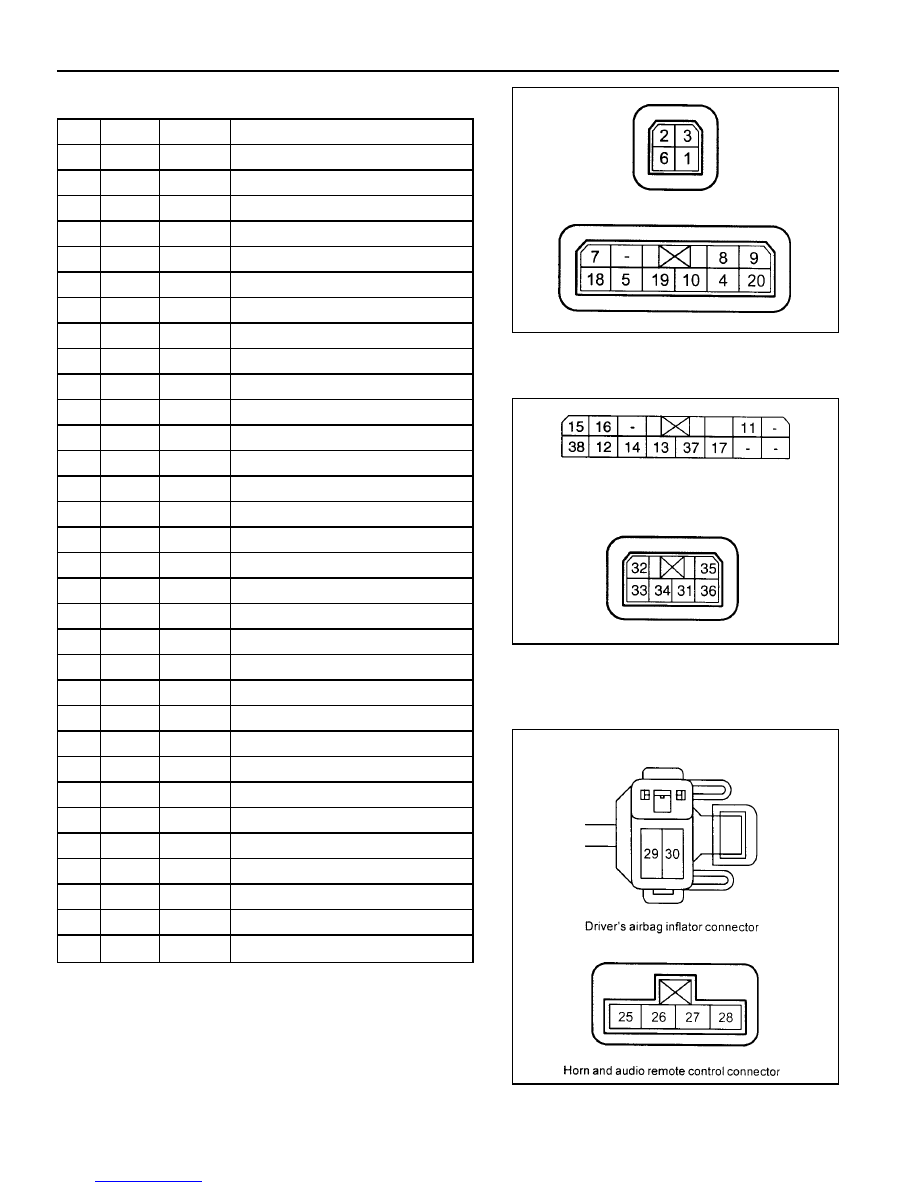

(Light switch connector)

(Wiper and washer switch connector)

0.3R

Connector Terminal Number & Circuit

NO. Circuit

Wiring

Item

1

EB

2.0B

Head lamp beam ground

2

HU

2.0RL

Head Lamp Upper Beam Power

3

HL

2.0R

Head Lamp Lower Beam Power

4

TS

0.3R

Tail Lamp Switch

5

HS(1)

0.3LW

Head Lamp Switch

6

HS(2)

1.25LW

Head Lamp Switch Passing

7

TB

0.85GR

Flasher Unit Power

8

TL

0.5W

Turn Signal Lamp (LH)

9

TR

0.5Y

Turn Signal Lamp (RH)

10

ES

0.3B

Head lamp Switch Ground

11

HO

0.5BW

Horn

12

WA

0.5LY

Washer

13

P

0.85GB

Wiper Parking

14

HI

0.85RB

Wiper High Speed

15

INT

0.5G

Intermittent Wiper

16

LO

0.85GR

Wiper Speed (LO)

17

ES

0.85B

Wiper and Washer Ground

18

-

-

-

19

F(2)

0.3Br

Front Fog Lamp

20

FR

0.3G

Front fog Lamp Ground

21

-

-

-

22

-

-

-

23

-

-

-

24

-

-

-

25

HO

0.5GR

Horn

26

ES

0.5BW

Remote Control Ground

27

AUD

0.5Y

Remote Control Signal

28

ACC

0.5L

Remote Control Switch

29

DSL

0.5f L

Driver’s Inflator (LOW)

30

DSH

0.5f Br

Driver’s Inflator (HIGH)

37

E(T)

0.3BY

Intermittent Wiper Ground

38

INT(T)

Intermittent Wiper

SWITCHES  9V-7

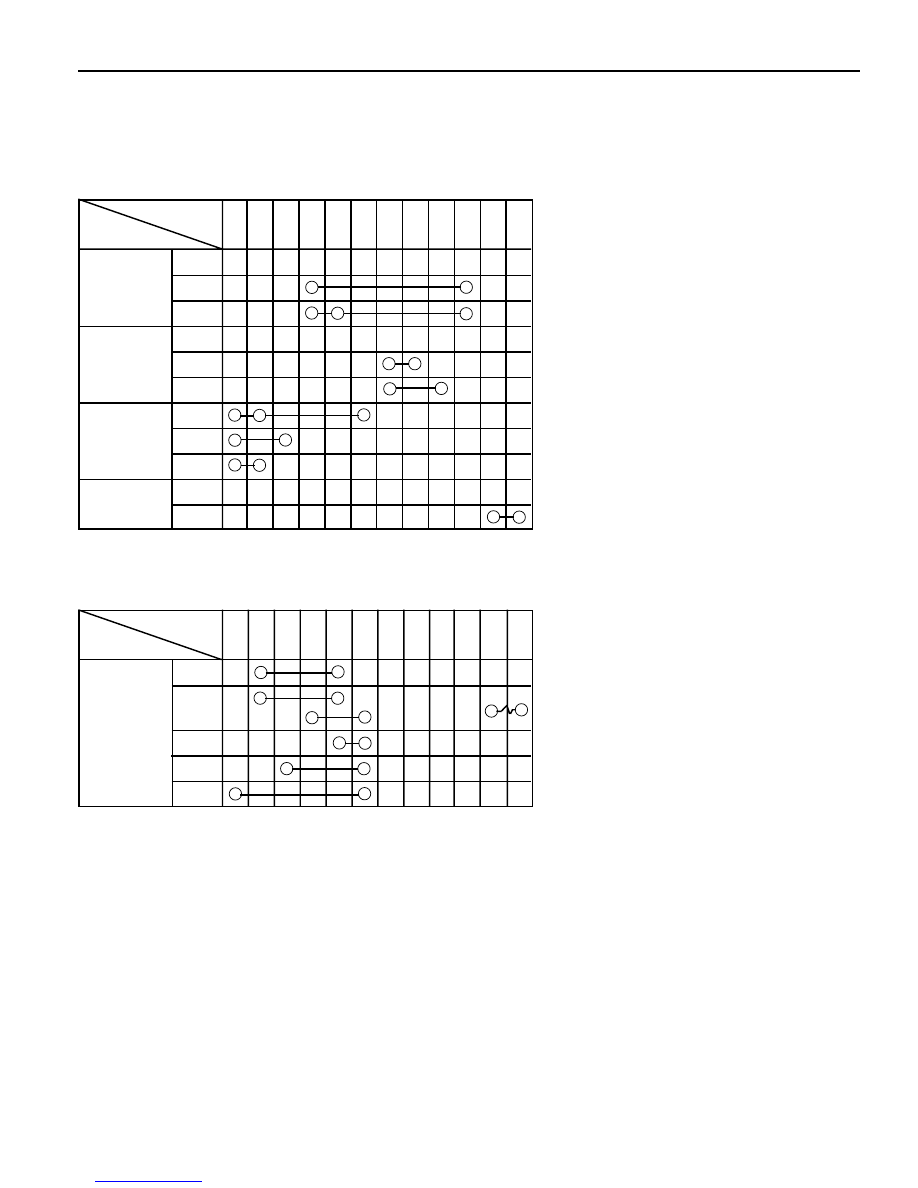

Check and Service

After disconnecting the connectors, operate the multifunction
switch and check each terminals for current flow.

Light Switch

Head Lamp

Terminal No.

1

2

3

4

5

6

7

8

9

10 19 20

OFF

Tail

Head

OFF

LH

RH

Passing

LOWER

UPPER

OFF

ON

Turn Signal

Dimmer and

Passing

Front Fog

Lamp

Front Wiper

and Washer

Switch

Terminal No.

12 13 14 15 16 17 21 22 23 24

OFF

AUTO

LO

HI

Washer

Wiper and Washer Switch

Switch

Switch

37 38

®

9V-8  SWITCHES

OTHER SWITCHES

Maintenance and repair

(Tailgate Glass Defogger)

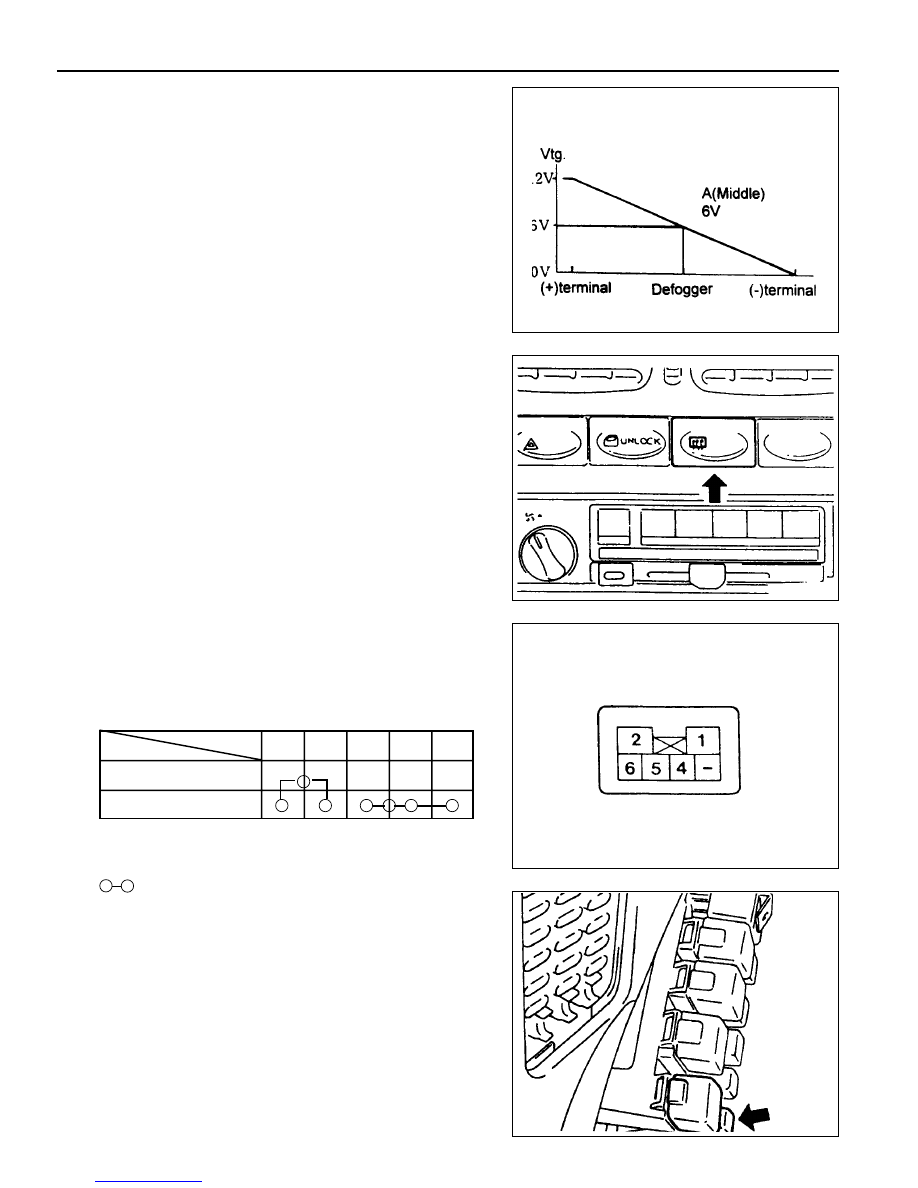

1. Check the defogger

Before checking the electric equipment’s, usually disconnect
the battery negative(-) terminal.

1) Check the tailgate defogger after battery is fully charged

by running the engine at idle speed.

2) Check the heated wire voltage at tailgate glass center

position “A” by using circuit tester when the tailgate glass
defogger switch is “ON”. If the voltage is approx. 6V, the
system is normal.

3) If the voltage indicates 12V at point “A” , it is considered

that there is a short between “A” and (-) terminal.

4)Find out where the voltage abruptly changes to the 0V by

moving tester bar to the (-) terminal side slightly.

5) If the voltage indicates 0V at point “A”, it is considered

that there is a short between “A” and (+) terminal.

6) Find out where the voltage abruptly changes to the 12V

by moving tester bar to the (-) terminal side slightly.

2. Checking the switch

1) Remove the tailgate glass defogger switch wire from

instrument panel.

2) Turn on the switch and carry out the continuity test

between terminals.

Notice

       :

It means the electrical continuity between
terminals.

3. Checking the relay

Remove the tailgate glass defogger relay from the relay
box.

Switch position

OFF

ON

1

4

2

5

6

Terminal NO.
