Daewoo Korando. Manual - part 357





SECTION 9V

SWITCHES

Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise
noted.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . .  9V-1

General Specifications . . . . . . . . . . . . . . . . . .  9V-1

Component Locator . . . . . . . . . . . . . . . . . . .  9V-2

Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9V-2

Maintenance and Repair . . . . . . . . . . . . . . .  9V-4

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . .  9V-4

Combination Switch . . . . . . . . . . . . . . . . . . . .  9V-4

Other Switches . . . . . . . . . . . . . . . . . . . . . . . .  9V-8

SPECIFICATIONS

GENERAL SPECIFICATIONS

Description

each 0.2 - 0.3A

0.8 - 1.7Kgf·Cm

Axial:less than 1.0mm, Radial:less than 1.5mm

each 6.1 - 6.7A

Less than 2.5mm in width from the lever end

HU:15A, HL:10A, P:20A

INT:0.25±0.05A

LO:6A, HI:8A, LOCK:max. 23A

Less than 2.5mm in width from the lever end

4A

Max. : 7A

0.2 - 0.3A

Max. : 25mA

Load Rating (relay load)

Operating Force (knob rotation)

Free Play

Load Rating (Lamp Load)

Free Play

Load Rating(Each Lamps Load)

Load Rating(Relay Load)

Load Rating(Motor Load)

Free Play

Light Switch

Turn Signal

lamp Switch

Dimmer and

Passing Switch

Wiper Switch

Washer Switch (Motor Load Rating)

Horn Contact Load Rating

Front Fog Lamp Switch Load Rating

Variable INT Volume Switch

Application

9V-2  SWITCHES

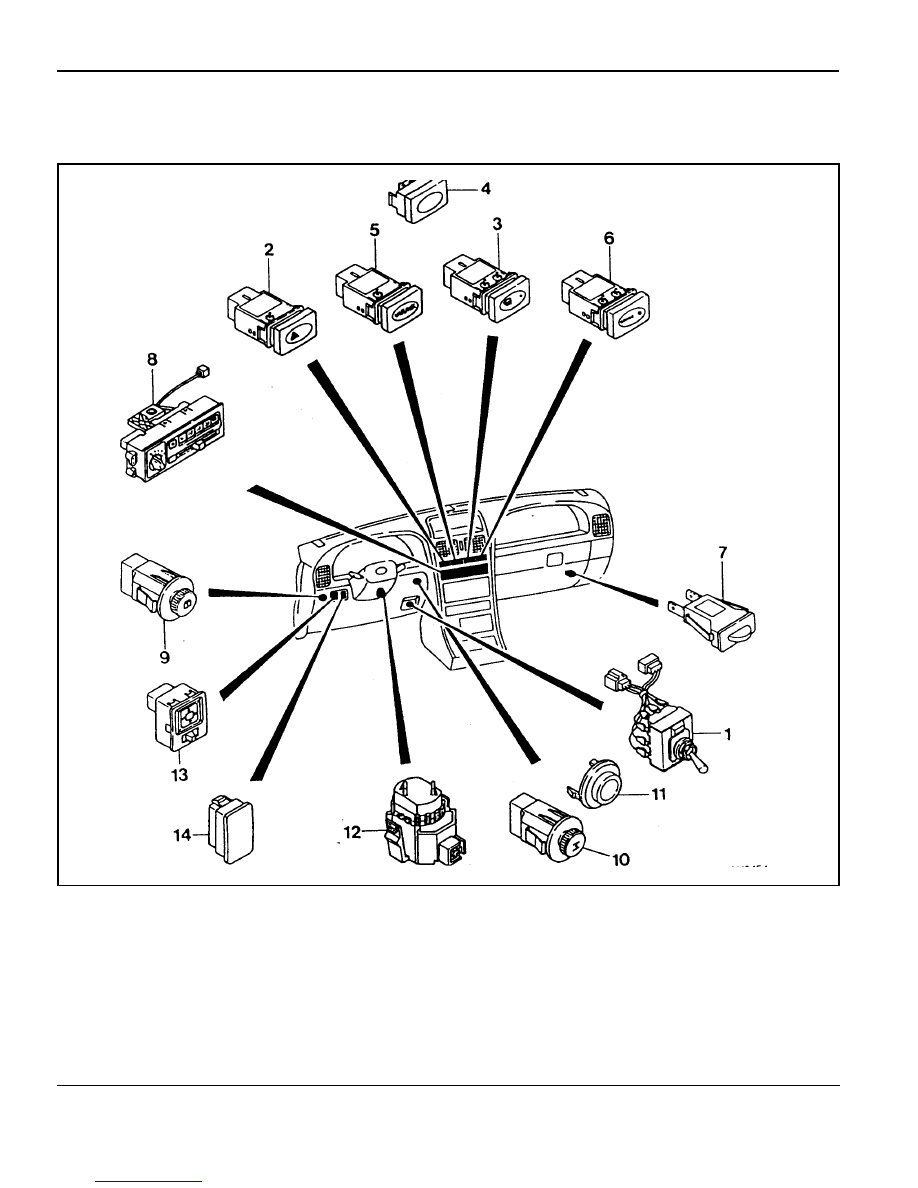

COMPONENT LOCATOR

SWITCHES

1 -
2 Hazard Switch
3 Rear Heated Window Switch
4 Center Fascia Switch Cover
5 -
6 ECS Switch
7 Glove Box Switch
8 Air-Conditioner Panel Assembly

9 Rear Wiper And Washer Switch

10 4WD Switch

11 4WD Switch Cover

12 Kick Down Switch(4P)
13 Outside Mirror Switch
14 Head Lamp Leveling Switch Assembly

(Optional Item)

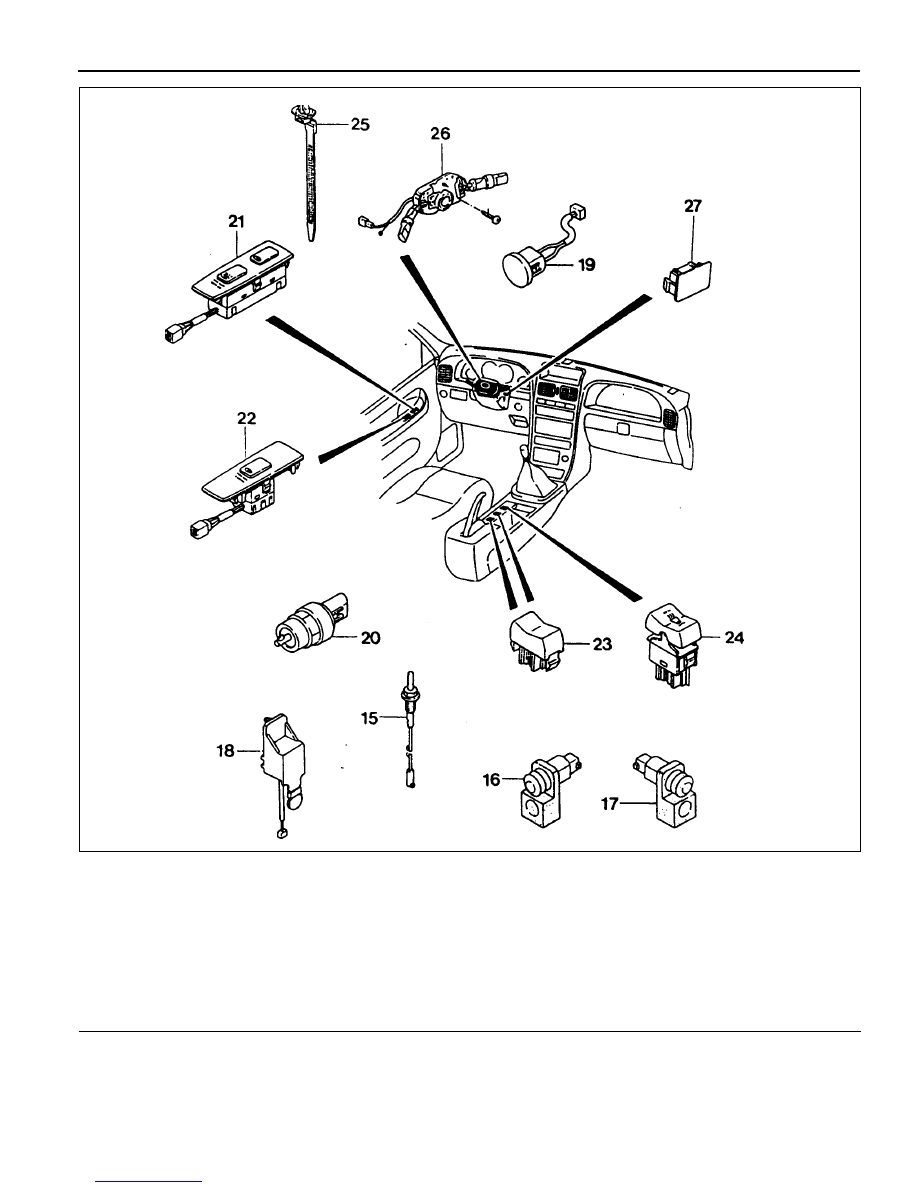

SWITCHES  9V-3

15 Hood Switch
16 Door Switch
17 Tail Gate Switch
18 Atmospheric Sensor
19 Sun Light Sensor Assembly
20 Speed Sensor Assembly
21 Power Window Main Switch

22 Power Window Sub Switch
23 Band
24 Multi-Function Switch Assembly
25 Blanking Cover

9V-4  SWITCHES

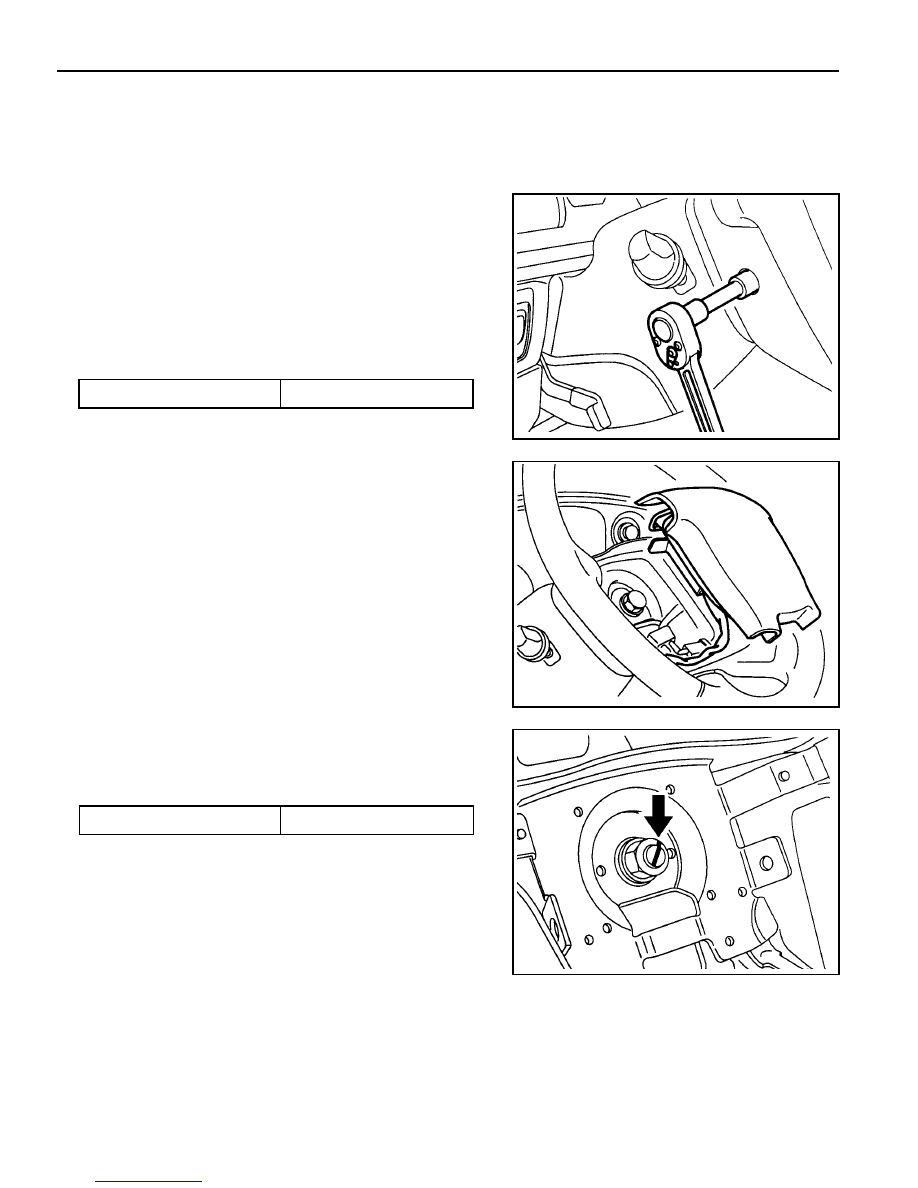

COMBINATION SWITCH

Removal & Installation Procedure

1. Turn the ignition switch to ‘OFF’ position, disconnect the

negative battery cable and go next step after waiting at least
30 seconds.

2. Separate both left and right covers from the steering wheel

and unscrew 2 bolts(10mm)

Installation Notice

3. Disconnect steering wheel audio remote control connector,

horn connector and airbag module connector and remove
the airbag module.

Notice

Refer to airbag module removal.

4. Mark the alignment marks on the steering nut and upper

column shaft and unscrew nut (22mm).

Installation Notice

Tightening Torque

7 - 11 Nm

Tightening Torque

50 - 80 Nm

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE
