WIPERS/WASHER SYSTEM  9D-3

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

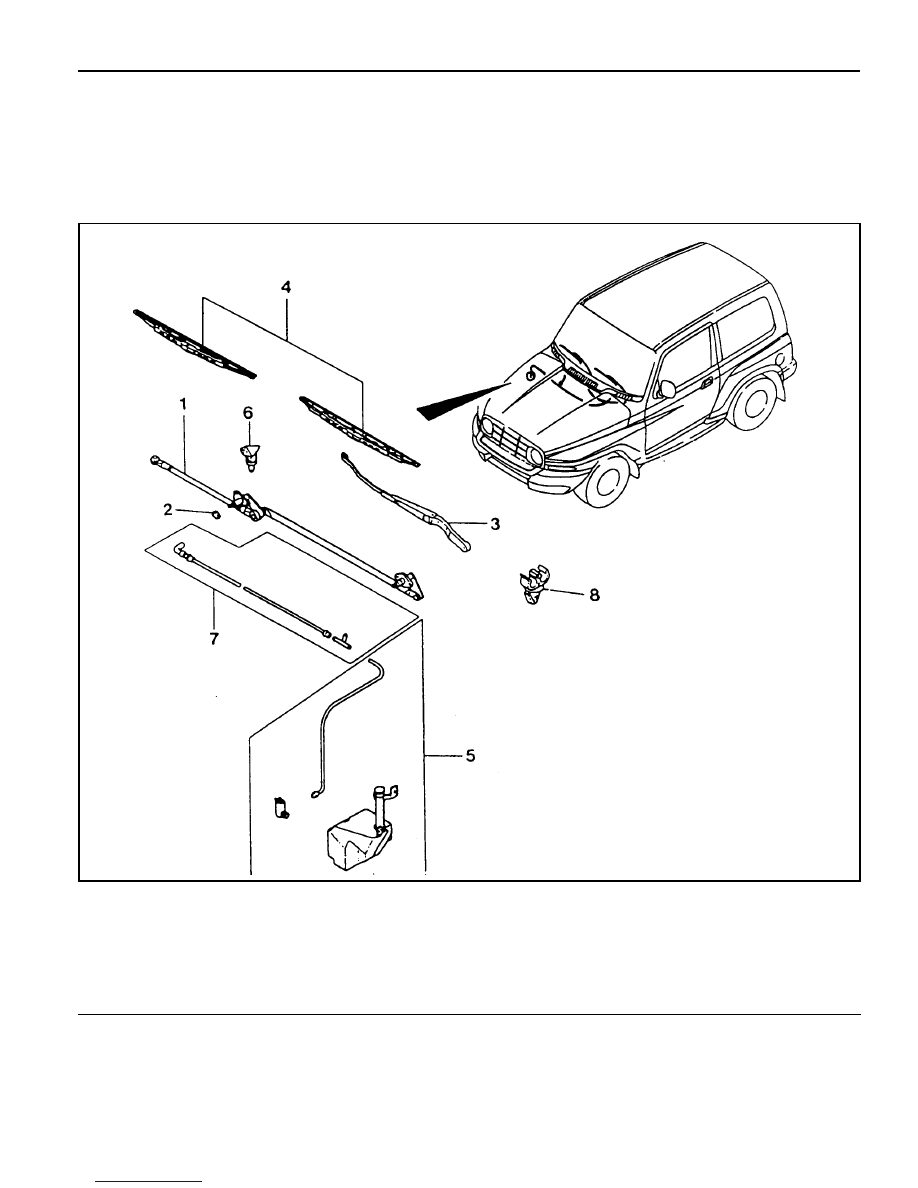

FRONT WIPER AND WASHER

1 Windshield Wiper Linkage
2 Nut
3 Wiper Arm
4 Blade

5 Windshield Washer Reservir Assembly
6 Washer Nozzle
7 Washer Hose
8 Mounting Holder

9D-4  WIPERS/WASHER SYSTEM

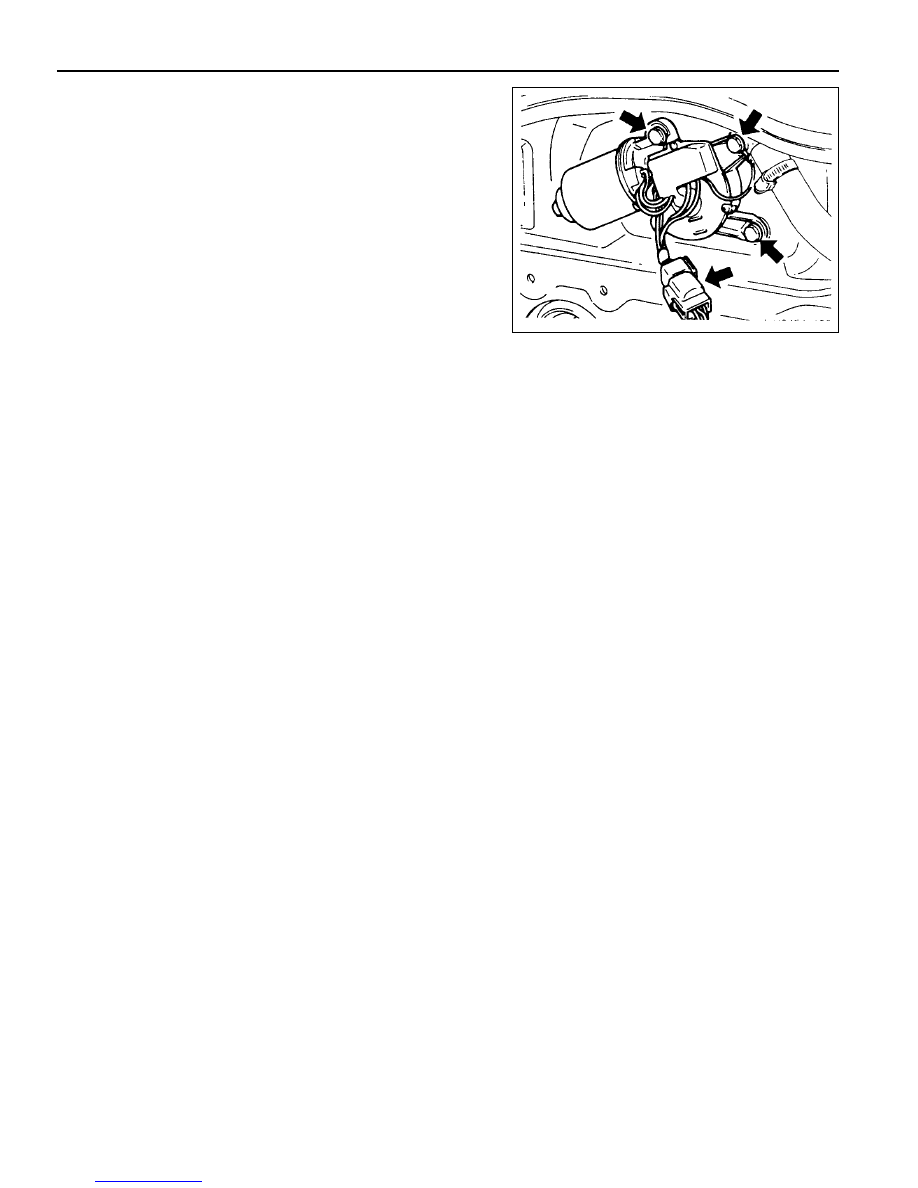

Removal & Installation Procedure

1. Remove the wiper arm and blade.

2. Remove the linkage connected to the wiper motor.

3. Disconnect the connector from the wiper motor.

4. Unscrew the locking bolts from wiper motor.

5. Installation should follow the removal procedure in the

reverse order.

WIPERS/WASHER SYSTEM  9D-5

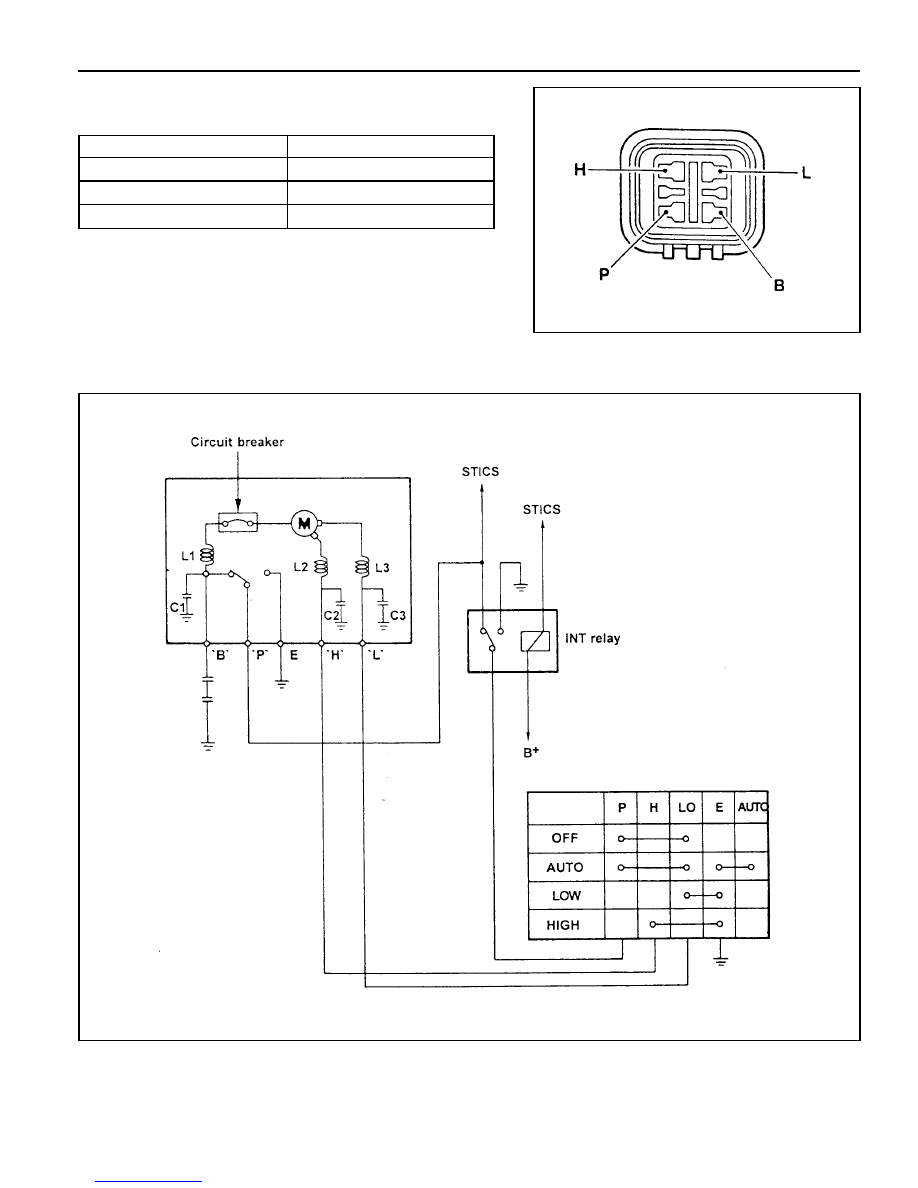

Connector Appearance and Connecting Circuit

Connector Terminal

H

P

B

L

HI(high speed)

Intermittent

Ground

Low(low speed)

Diagram for Connecting Circuit

9D-6  WIPERS/WASHER SYSTEM

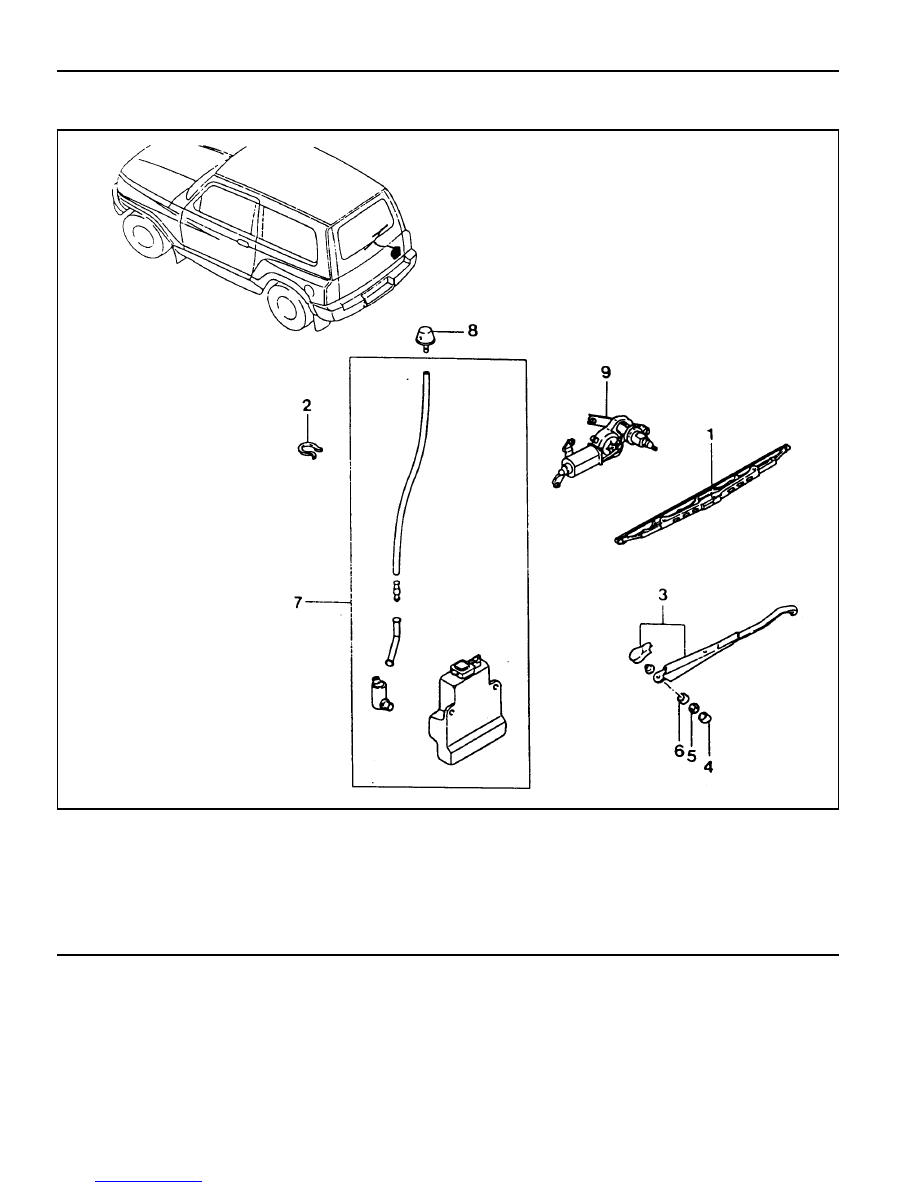

REAR WIPER AND WASHER

1 Blade
2 Clip
3 Wiper Arm Assembly
4 Wiper Cap
5 Wiper Cap Mounting Nut

6 Wiper Cap
7 Washer Reservoir Assembly
8 Washer Nozzle
9 Wiper Motor
