LIGHTING SYSTEM  9B-7

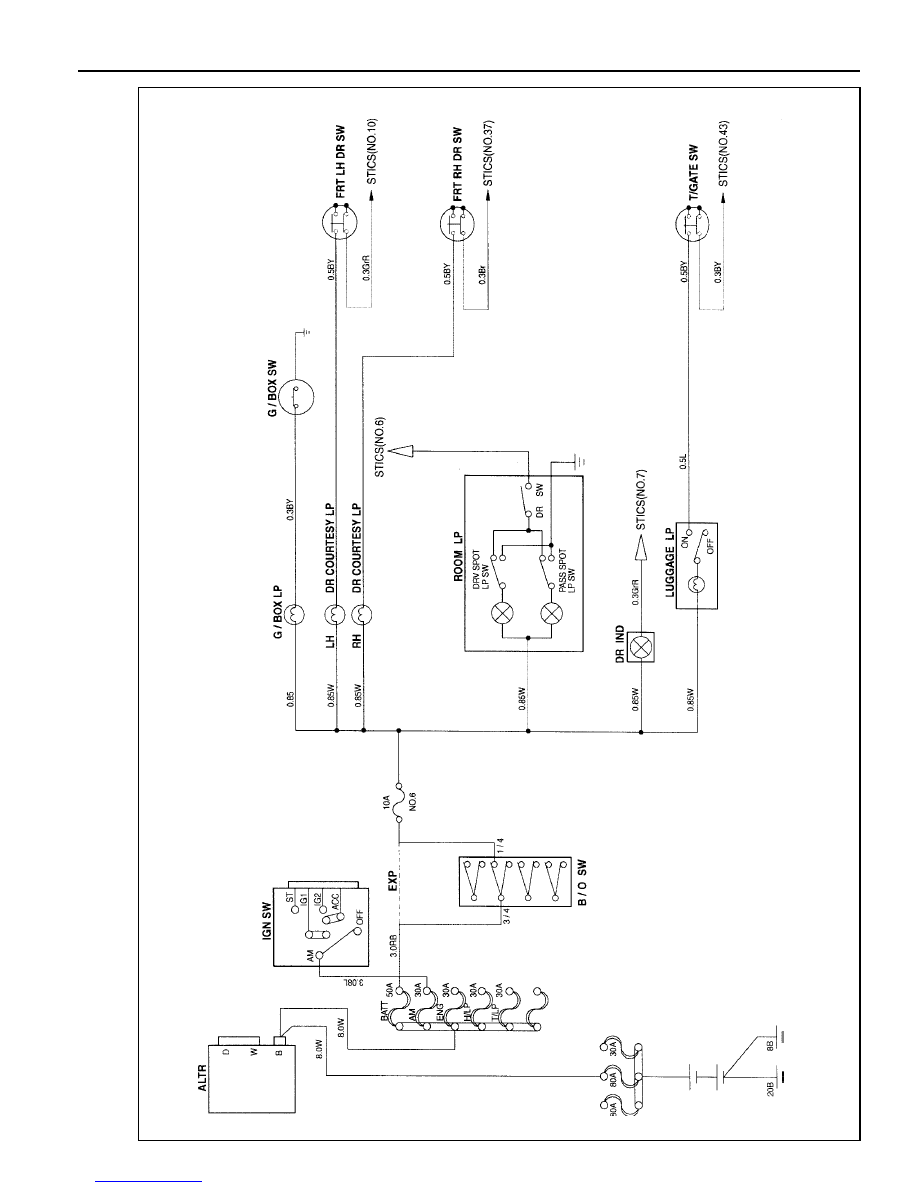

ROOM LAMP

9B-8  LIGHTING SYSTEM

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

LAMPS

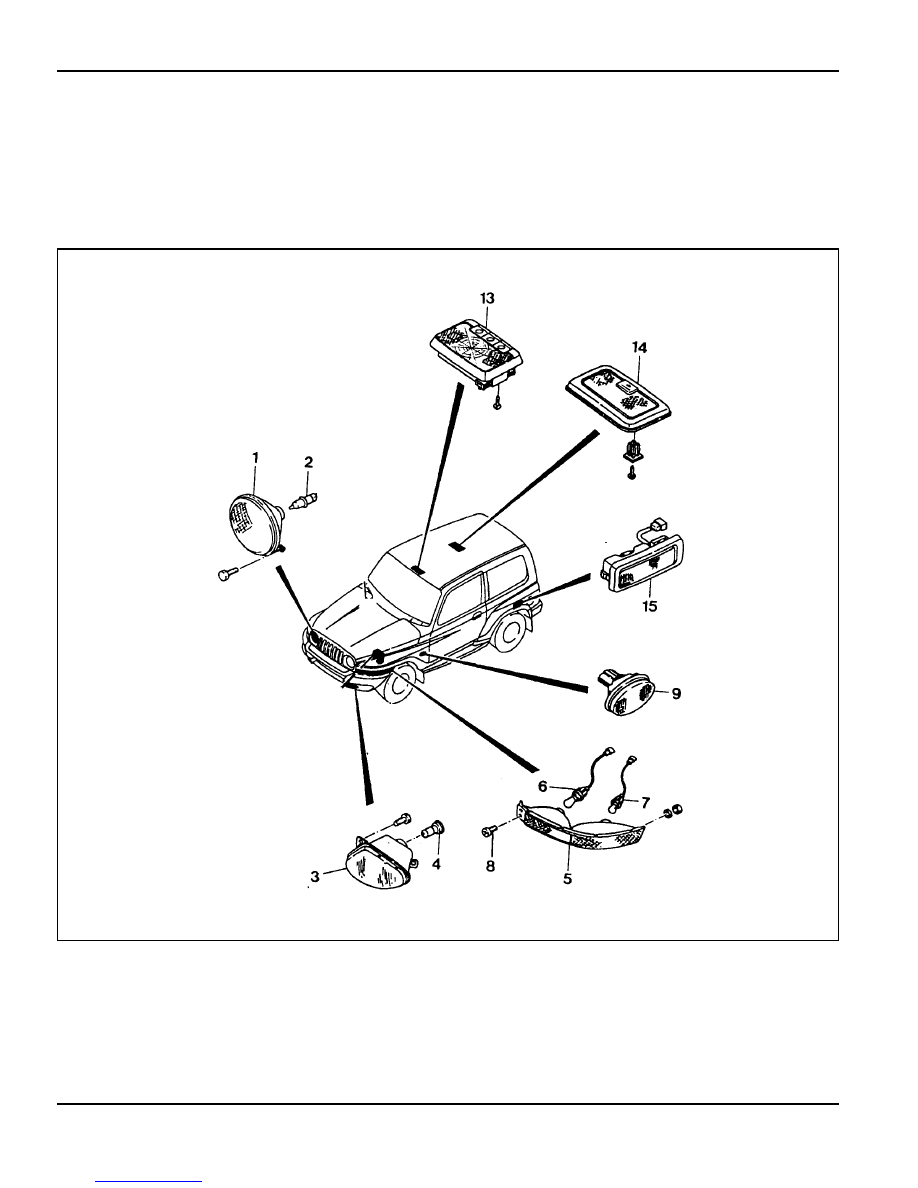

Front and Room Lamps

1 Head Lamp
2 Bulb
3 Front Fog Lamp
4 Bulb
5 Front Turn Signal & Position Lamp
6 Bulb

7 Bulb
8 Screw
9 Side Repeater Lamp

13 Front Room Lamp
14 Center Room Lamp
15 Luggage Room Lamp

LIGHTING SYSTEM  9B-9

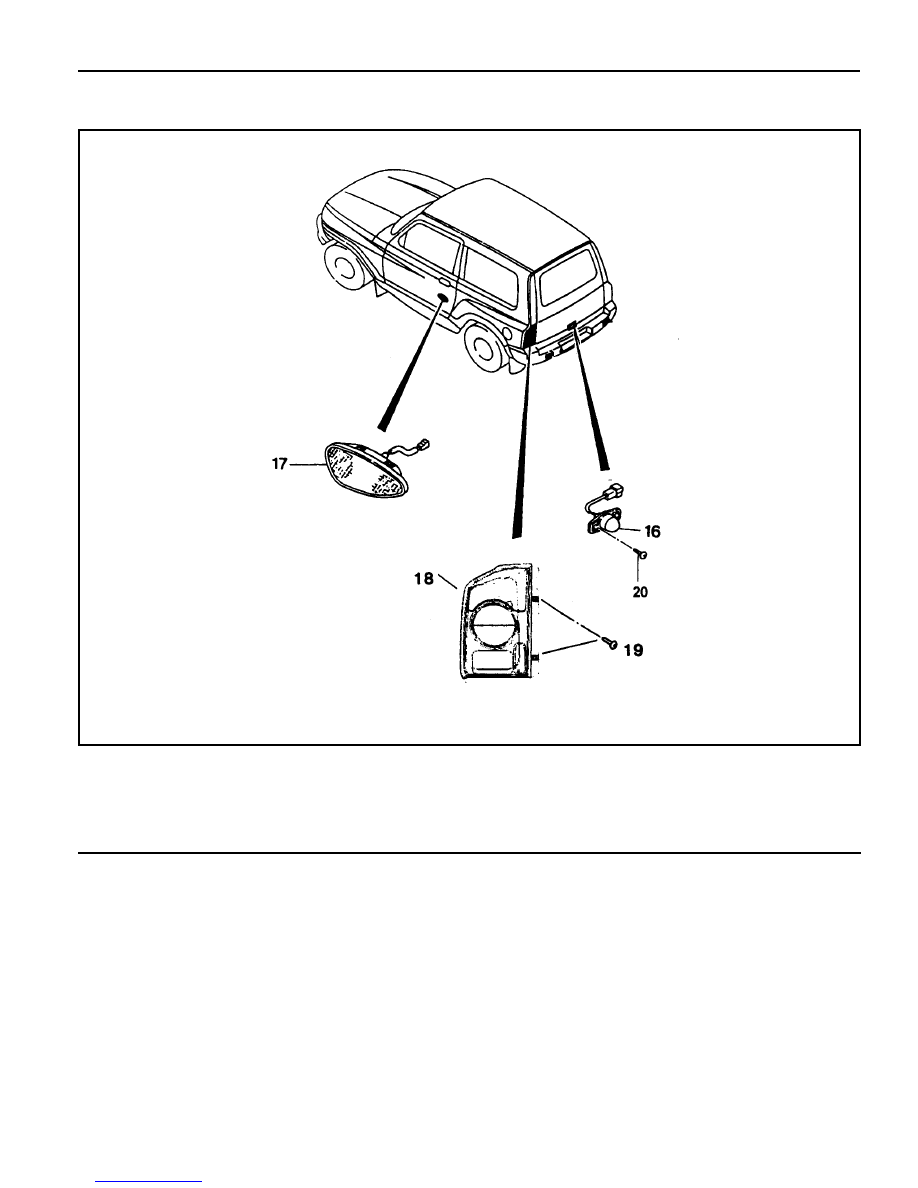

Rear Lamps

16 License Plate Lamp
17 Door Courtesy Lamp
18 Rear Combination Lamp

19 Screw
20 Screw

Notice

Removing and installing order is followed by the nos on
the above picture.

9B-10  LIGHTING SYSTEM

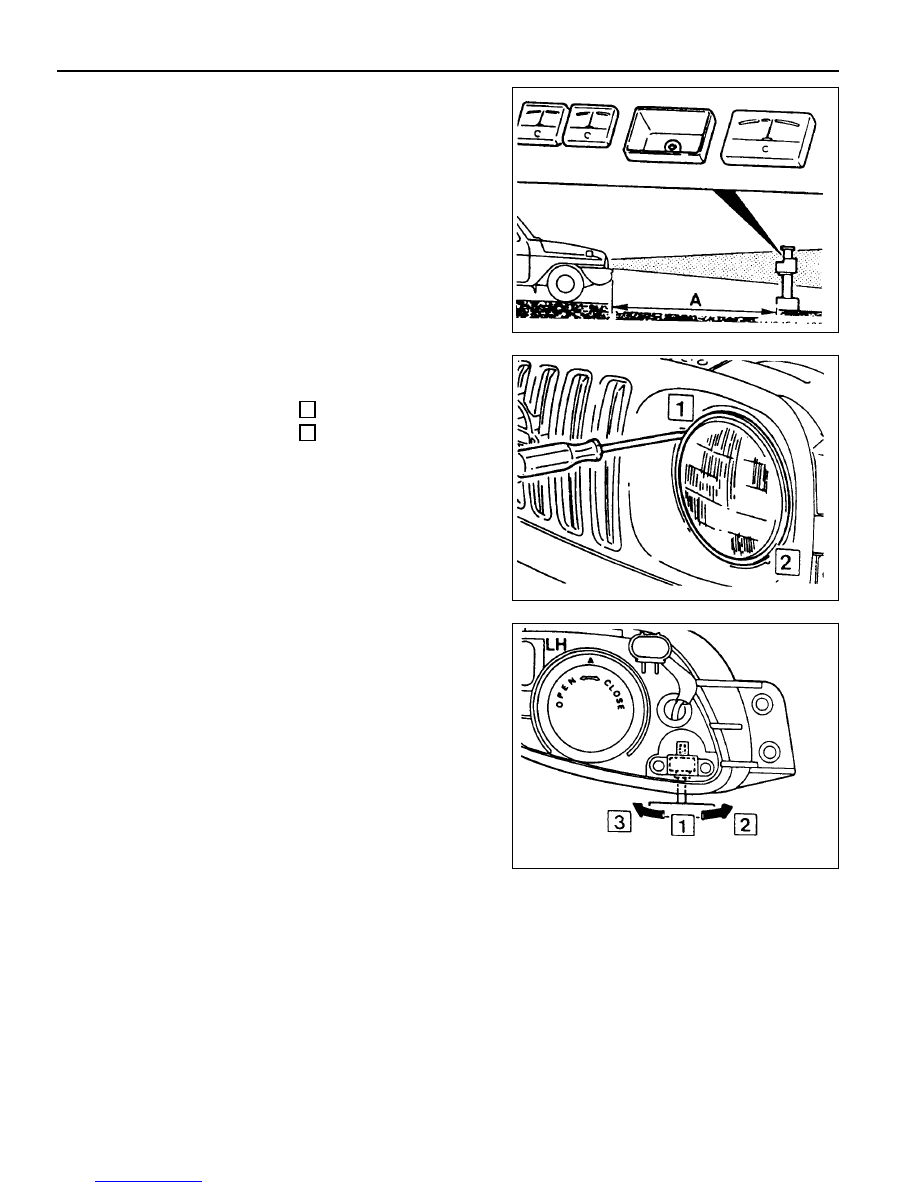

Alignment for Head Light Angle

1. Adjust the tire pressure as specified and unload the all

luggages from the vehicle except driver and spare tire.

2. Set the vehicle onto the flat ground and adjust the

distance(A) from tester to vehicle.

Distance A: 10m

3. Turn on the head light switch during engine is idling.

4. Align the head light angle by turning the adjusting screw.

l

Horizontal adjustment screw   1

l

Vertical adjustment screw       2

5. Adjust the head light angle to 150mm - 25mm at the tester

by turning the adjusting screw.

Alignment for Fog Lamp

1. Set the vehicle onto the flat ground and adjust the

distance(25m) from fog lamp tester to vehicle.

2. Adjust the vertical angle of fog lamp to maximum 50mm by

using adjusting knob.

l

Adjusting knob

l

Clockwise : Downward

l

Counter clockwise : Upward
