2C-10   FRONT SUSPENSION

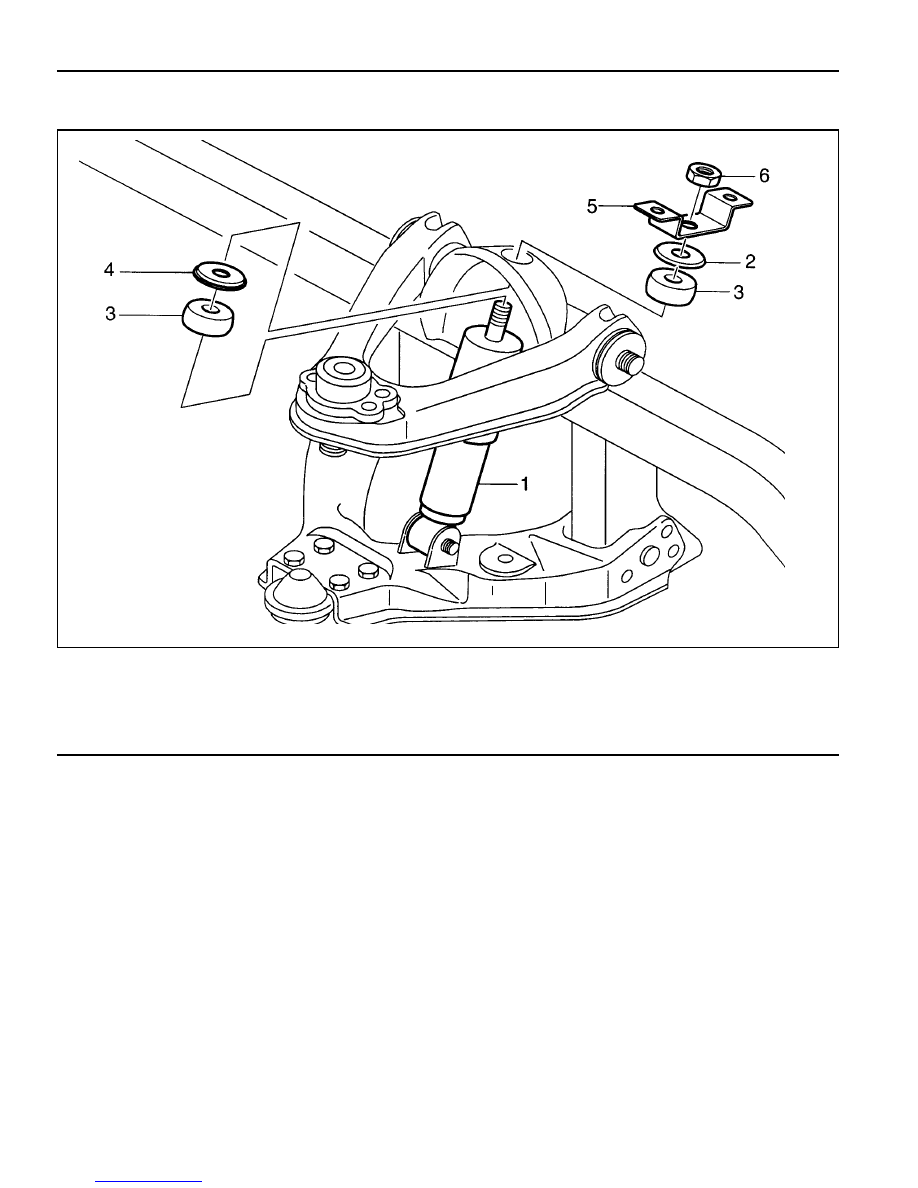

FRONT SHOCK ABSORBER

1 Front Shock Absorber
2 Washer
3 Bush

4 Center Washer
5 Actuator Mounting Bracket
6 Nut ........................................................ 40-60Nm

FRONT SUSPENSION  2C-11

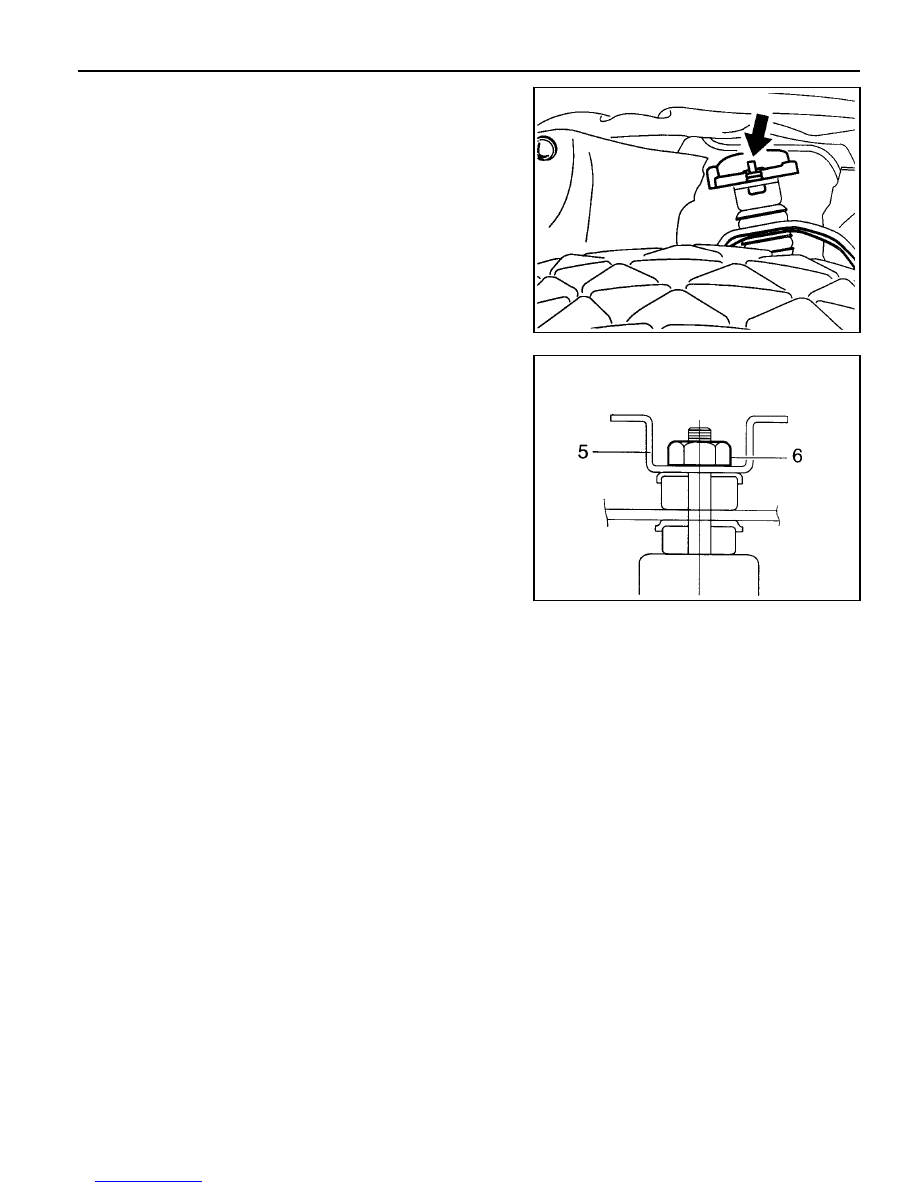

Removal & Installation Procedure

1. Disconnect actuator connector and unscrew bolt and remove

actuator assembly.

Notice

When installing the actuator to the mounting bracket, the
wiring should face the front of the frame.

2. Unscrew the upper nut (6).

Notice

When screwing the nut, actuator contacting surface of the
mounting bracket and rod end should be 0.5 - 1.5mm.

3. Remove the mounting bracket (5).

Notice

When installing the bracket, it should be vertical to the frame
side member.

4. Remove the bush and check for damage and replace if

necessary.

5. Unscrew shock absorber lower bolt and nut and remove

the shock absorber.

Notice

Shock absorber is filled with gas, never attempt to cut or
heat.

6. Installation should follow the removal procedure in the

reverse order.

2C-12   FRONT SUSPENSION

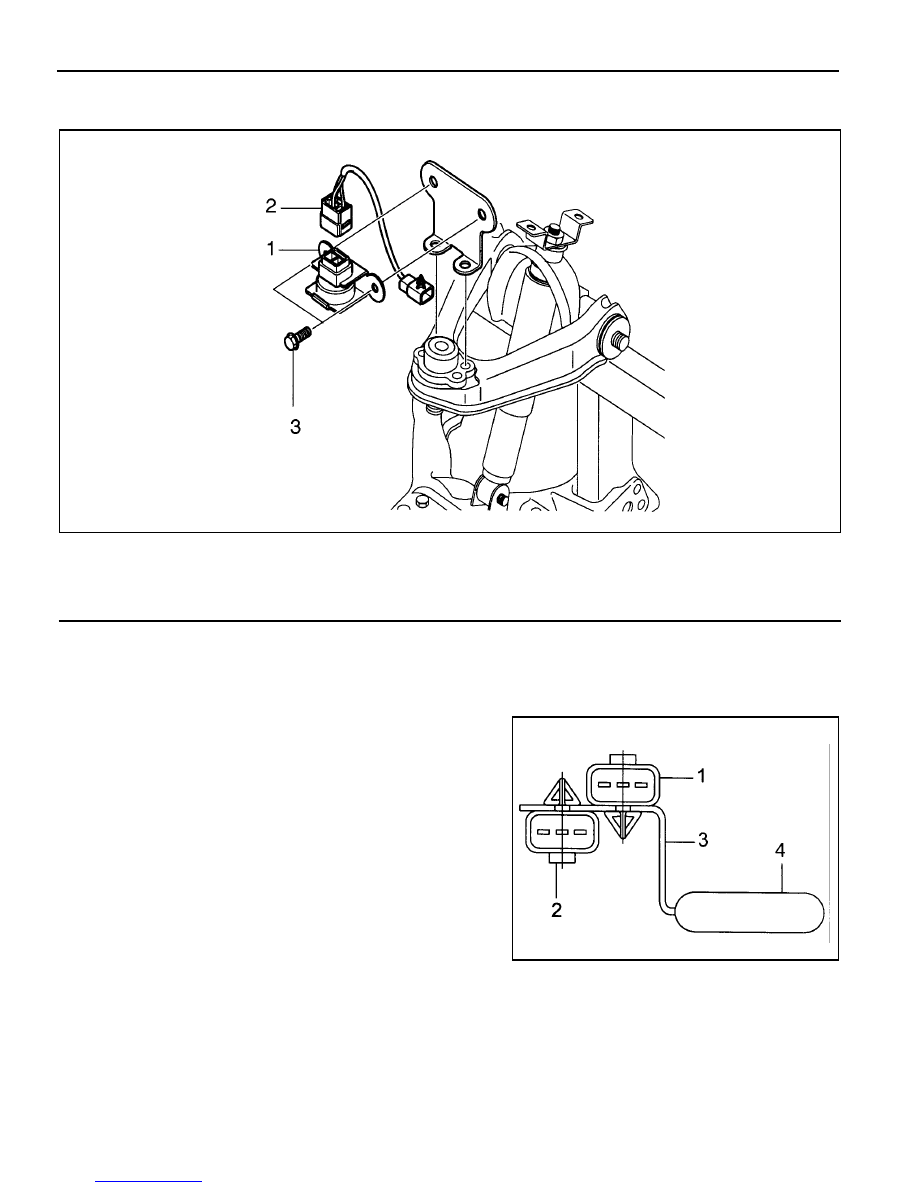

1 Axle Vertical Acceleration Sensor (wheel G

sensor)

Removal & Installation Procedure

1. Disconnect extension wiring connector (2) from the axle

vertical acceleration sensor.

Notice

Installation of wiring connector should be as shown in the
right drawing.

2. Unscrew bolts (3) and remove the axle vertical acceleration

sensor (1).

Notice

When installing the sensor to the bracket, the sensor wiring
should be upward.

3. Installation should follow the removal procedure in the

reverse order.

1

Actuator Connector

2

Axle Vertical Acceleration Sensor Connector

3

Front Hose Mounting Bracket

4

Frame Side Member

AXLE VERTICAL ACCELERATION SENSOR (WHEEL G SENSOR)

2 Extension Wiring
3 Bolt (M6) ............................................. 20 - 30Nm

 FRONT SUSPENSION  2C-13

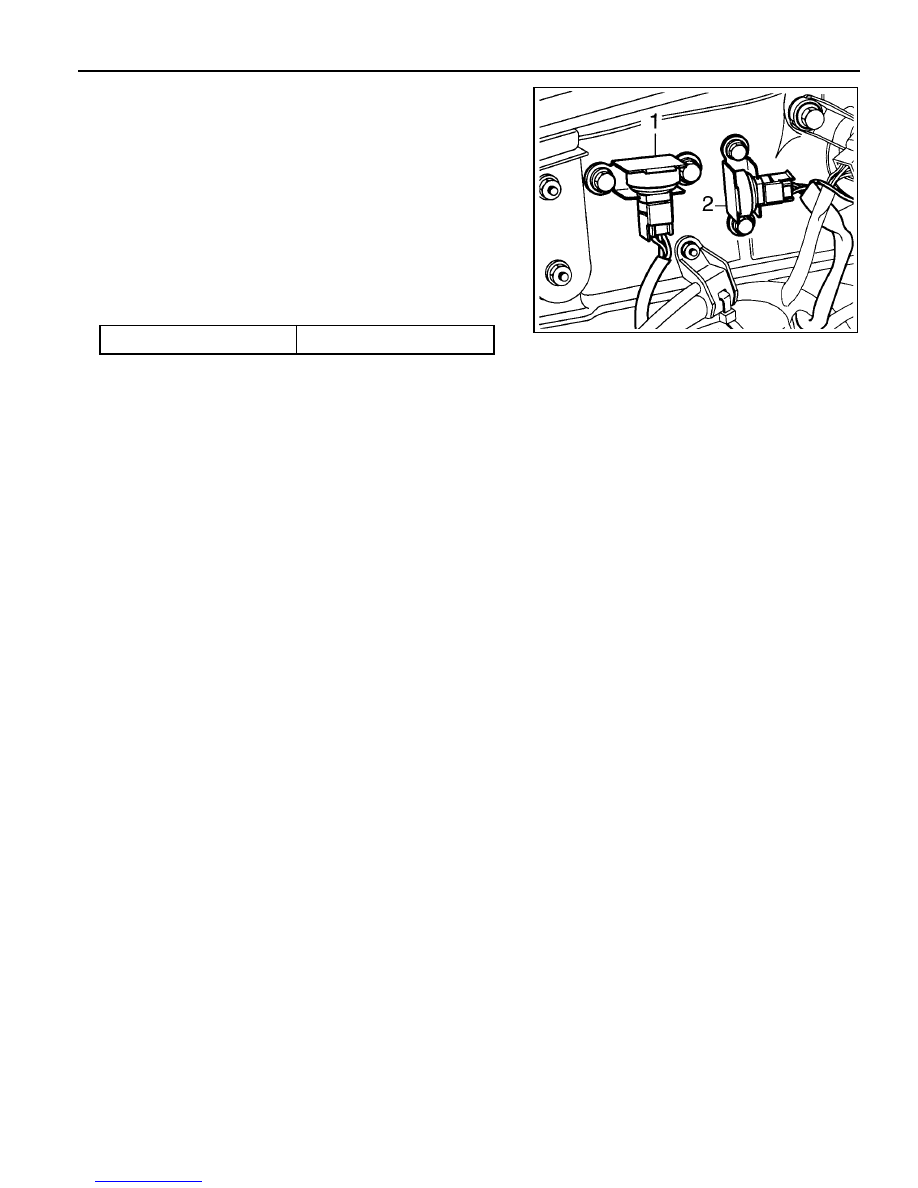

VERTICAL AND LATERAL SENSOR

Removal & Installation Procedure

1. Disconnect vertical sensor and lateral sensor connectors.

Notice

When connecting the connectors, connector connection of
the lateral sensor (2) should be in the right and connector
connection of the vertical sensor (1) should face downward.

2. Unscrew bolts and remove vertical sensor and lateral sensor.

Installation Notice

1

Body Vertical Acceleration Sensor(Vertical Sensor)

2

Body Lateral Acceleration Sensor (Lateral Sensor)

3. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

20 - 30 Nm
