M162 ENGINE COOLING  1D1-11

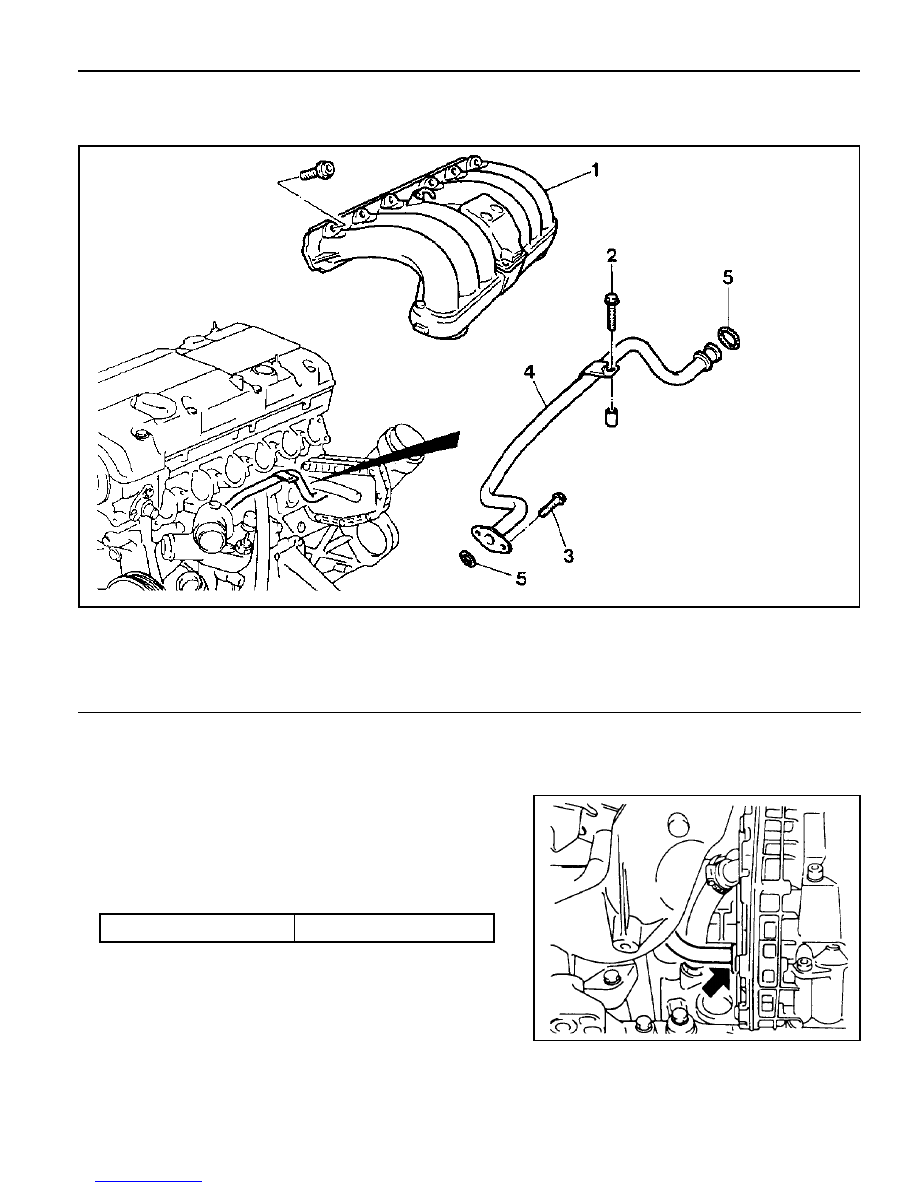

OIL COOLER PIPE LINE

Preceding Work : Removal of upper intake manifold

Tightening  Torque

9 - 11 Nm

1 Upper Intake Manifold
2 Bolt (M6 X 35, 1 piece) ........................... 9-11 Nm
3 Bolt (M6 X 16, 2 pieces) ......................... 9-11 Nm

4 Oil Cooler Pipe Line
5 O-ring .................................................... Replace

Removal & Installation Procedure

1. Drain the coolant.

2. Unscrew the bolts (2, 3) and remove the oil cooler pipe line (4).

Replace the O-ring with new one.

Installation Notice

3. Installation should follow the removal procedure in the

reverse order.

4. Fill up the coolant as specified.

5. Check the leaks in the cooling system.

1D1-12  M162 ENGINE COOLING

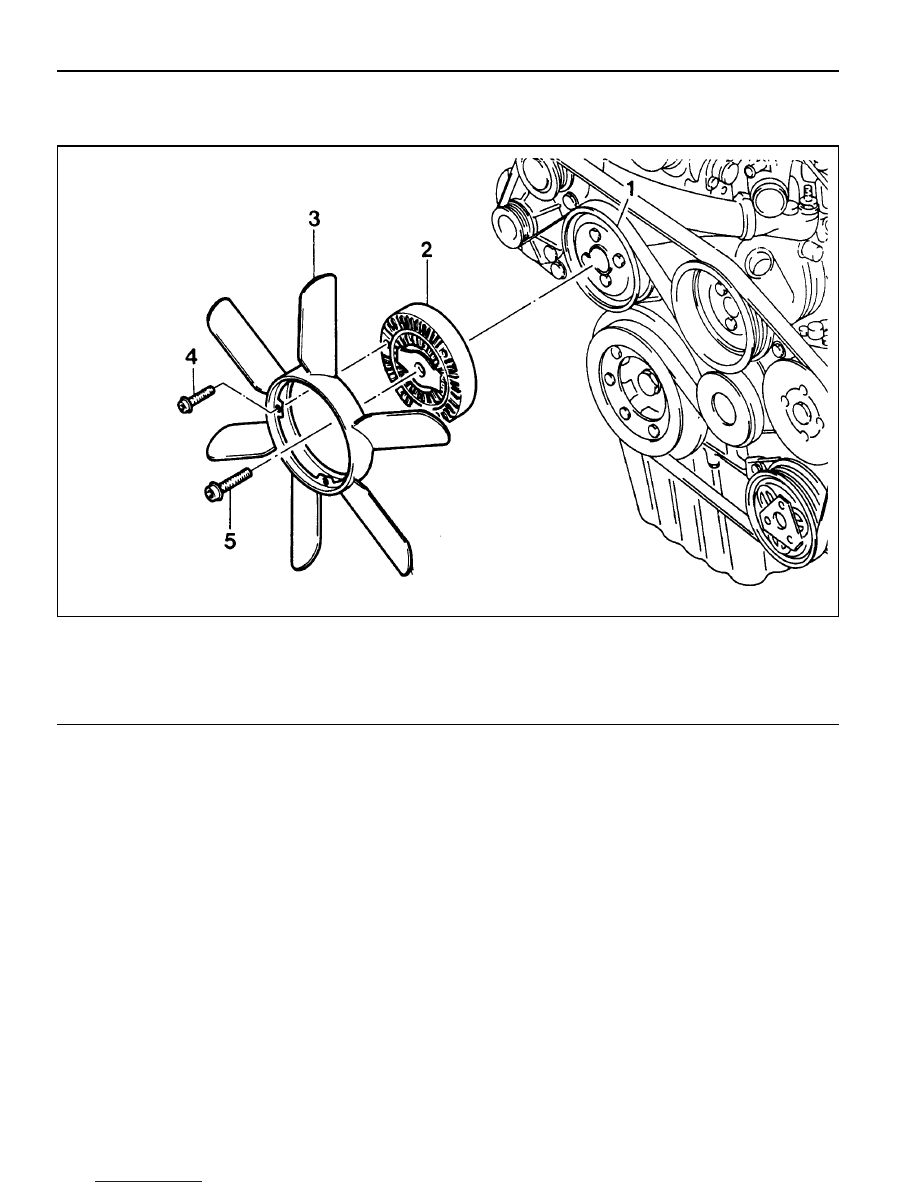

COOLING FAN AND VISCOUS CLUTCH

Preceding Work : Removal of cooling fan shroud

1 Cooling Fan Pulley
2 Viscous Clutch
3 Cooling Fan

4 Bolt (M6 X 12, 4 pieces) ......................... 9-11 Nm
5 Bolt (M10 X 45, 1 piece) ................. 40.5-49.5 Nm

M162 ENGINE COOLING  1D1-13

Tools Required

603 589 00 40 00  Counter Holder

Removal & Installation Procedure

1. Hold the cooling fan pulley using the counter holder (special

tool : 603 589 00 40 00) and remove the cooling fan after
unscrewing the four bolts (4).

Installation Notice

2. Remove the bolt (5) from the viscous clutch and remove

the viscous clutch from the cooling fan pulley.

Installation Notice

Tightening  Torque

9 - 11 Nm

Tightening  Torque

40.5 - 49.5 Nm

3. Installation should follow the removal procedure in the

reverse order.

1D1-14  M162 ENGINE COOLING

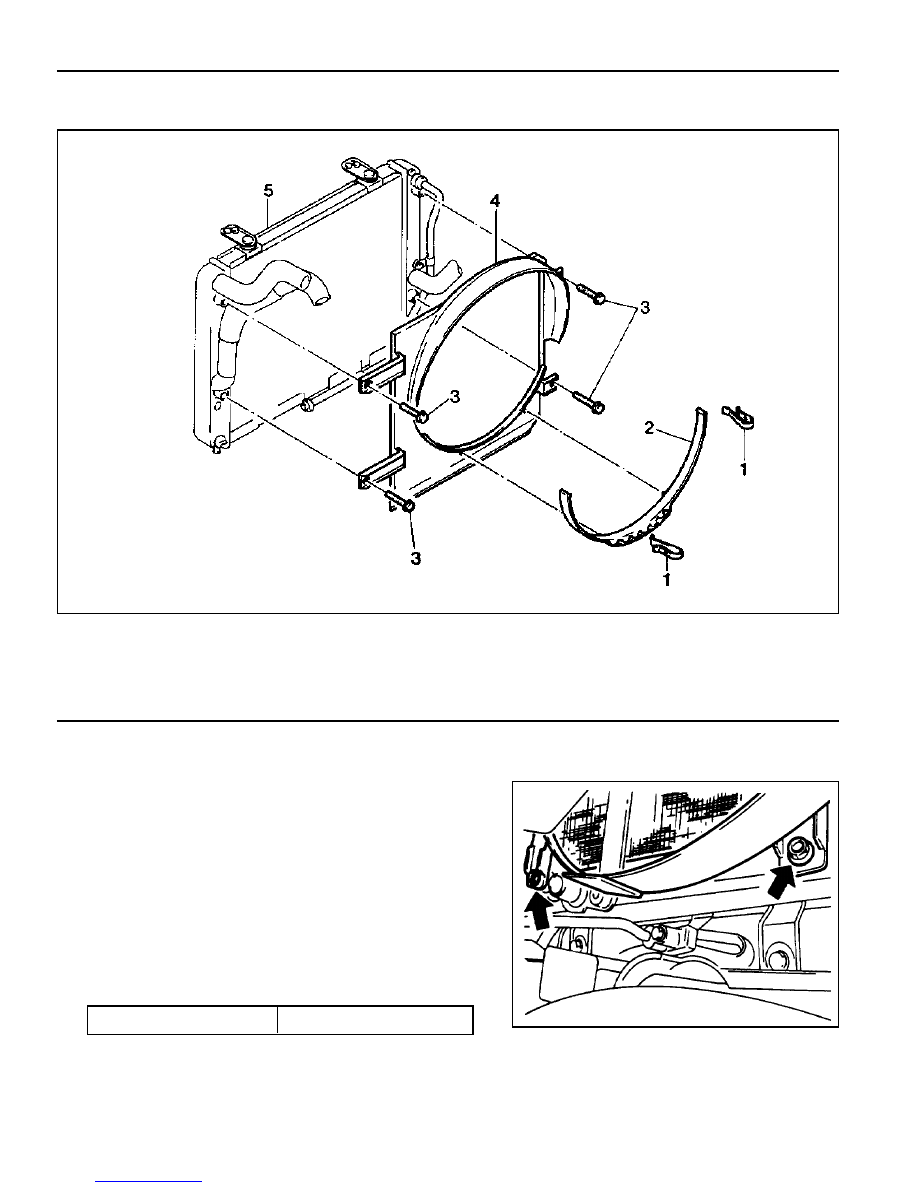

COOLING FAN SHROUD

Removal & Installation Procedure

1. Pull out the 2 clips (1) from the fan shroud assembly.

2. Remove the lower fan shroud (2).

Notice

For installation, exactly align the lower fan shroud pin into
the hole of the fan shroud assembly (4) and insert the
clips.

3. Remove the bolts (3) and then remove the cooling fan

shroud assembly (4).

Installation Notice

1 Clip
2 Lower Fan Shroud
3 Bolt

4. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

7 Nm

4 Fan Shroud Assembly
5 Radiator
