1B1-96  M162 ENGINE MECHANICAL

Tightening Torque

23 Nm

Notice

Replace the oil filter gasket.

4. Installation should follow the removal procedure in the

reverse order.

5. Check engine oil level.

6. Run the engine at idle and check the engine for leaks.

3. Remove the oil filter bolt and then remove the oil filter.

Installation Notice

Removal & Installation Procedure

1. Drain the coolant from the crank case.

2. Remove the each coolant line and hose.

M162 ENGINE MECHANICAL  1B1-97

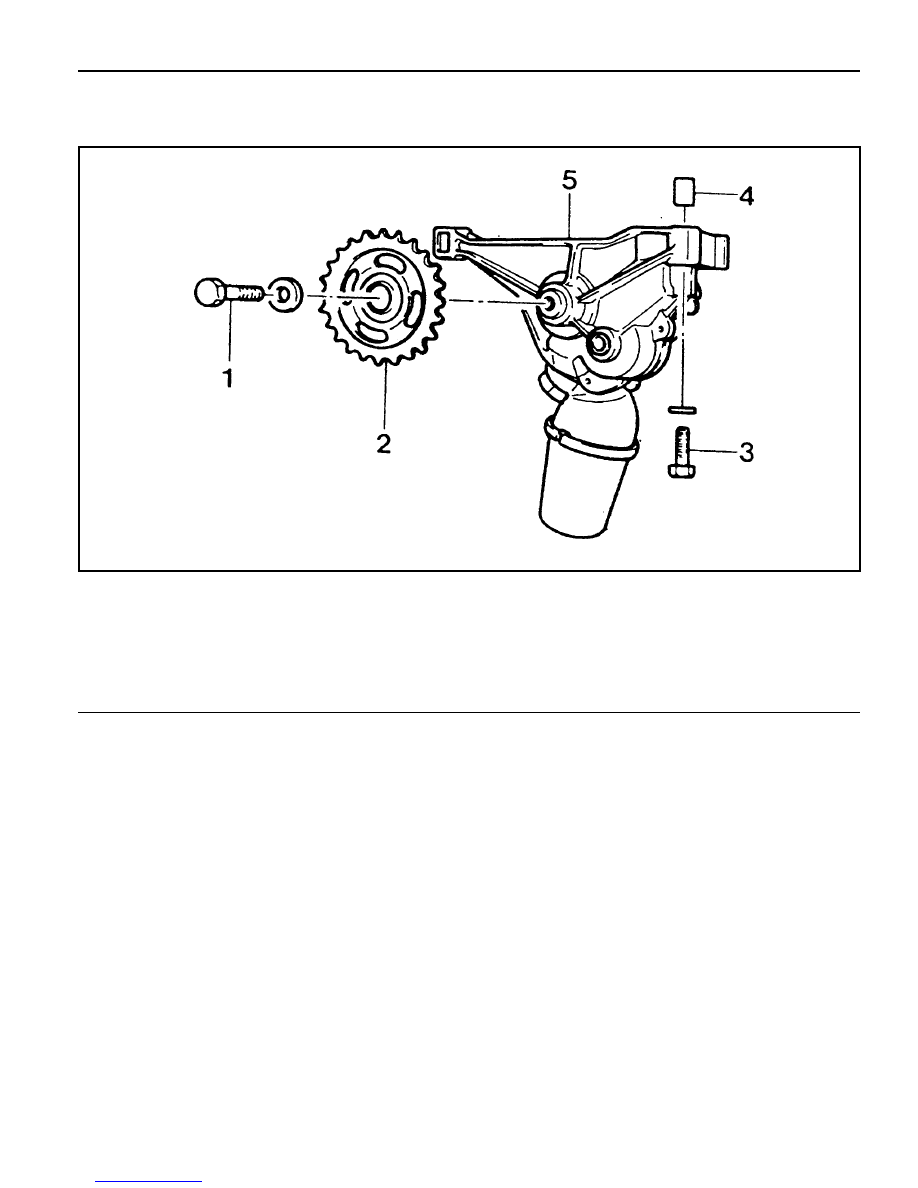

1 Bolt (M8 x 20, 1 piece) ......................... 29-35 Nm
2 Sprocket (Oil Pump Drive)
3 Bolt (M8 x 35, 3 pieces) ................. 22.5-27.5 Nm

OIL PUMP

Preceding Work : Removal of oil pan

4 Spring Pin
5 Oil Pump

1B1-98  M162 ENGINE MECHANICAL

Removal & Installation Procedure

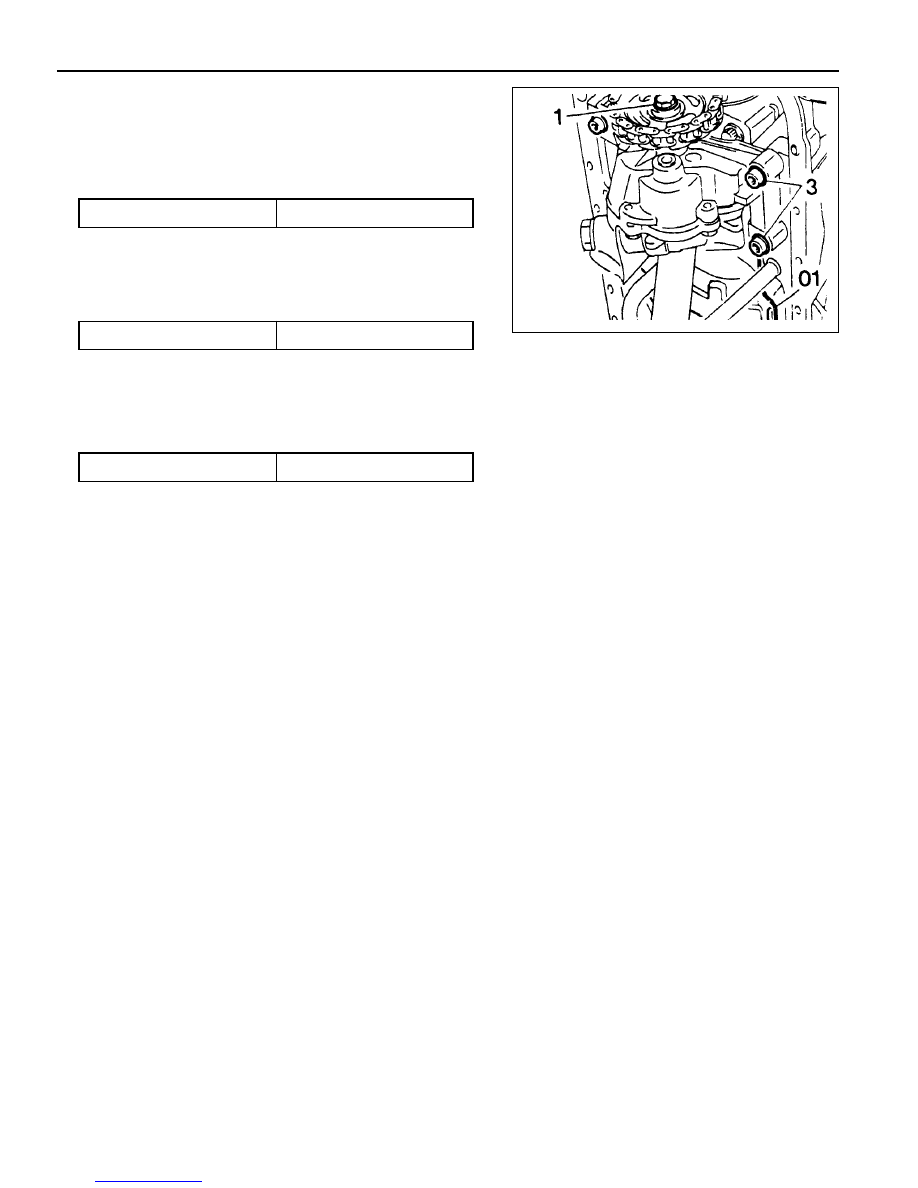

1. Remove the bolt (1) from the oil pump drive sprocket

(2) and separate the gear and the oil pump drive chain.

Installation Notice

4. Remove the oil pump and oil strainer assembly.

5. Replace the strainer in oil pump if necessary.

6. Installation should follow the removal procedure in the

reverse order.

Tighten the baffle plate and the oil pump with the two bolts
in right side first, and then tighten the other bolt.

3. Unscrew the bolt (9) from the oil strainer bracket.

Installation Notice

2. Unscrew the oil pump mounting bolts (3).

Installation Notice

Tightening  Torque

29 - 35 Nm

Tightening  Torque

22.5 - 27.5 Nm

Tightening  Torque

9 - 11 Nm

M162 ENGINE MECHANICAL  1B1-99

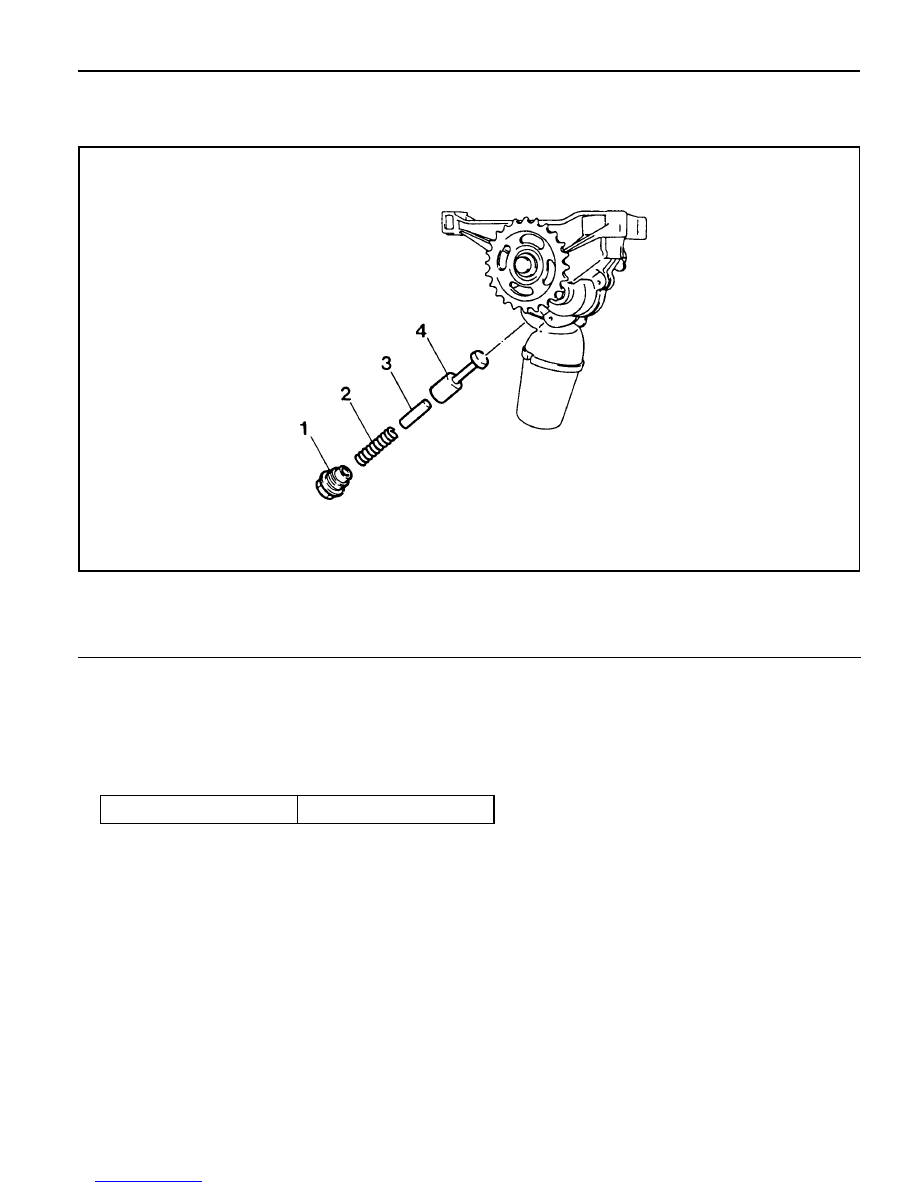

OIL PRESSURE RELIEF VALVE

Preceding Work : Removal of oil pan

1 Screw Plug ................................................ 50 Nm
2 Compression Spring

Removal & Installation Procedure

1. Remove the screw plug (1).

Installation Notice

2. Remove the spring (2), guide pin (3) and the piston (4).

3. Installation should follow the removal procedure in the

reverse order.

Notice

Don’t use the seal for the screw plug.

3 Guide Pin
4 Piston

Tightening Torque

50 Nm
