1B1-56  M162 ENGINE MECHANICAL

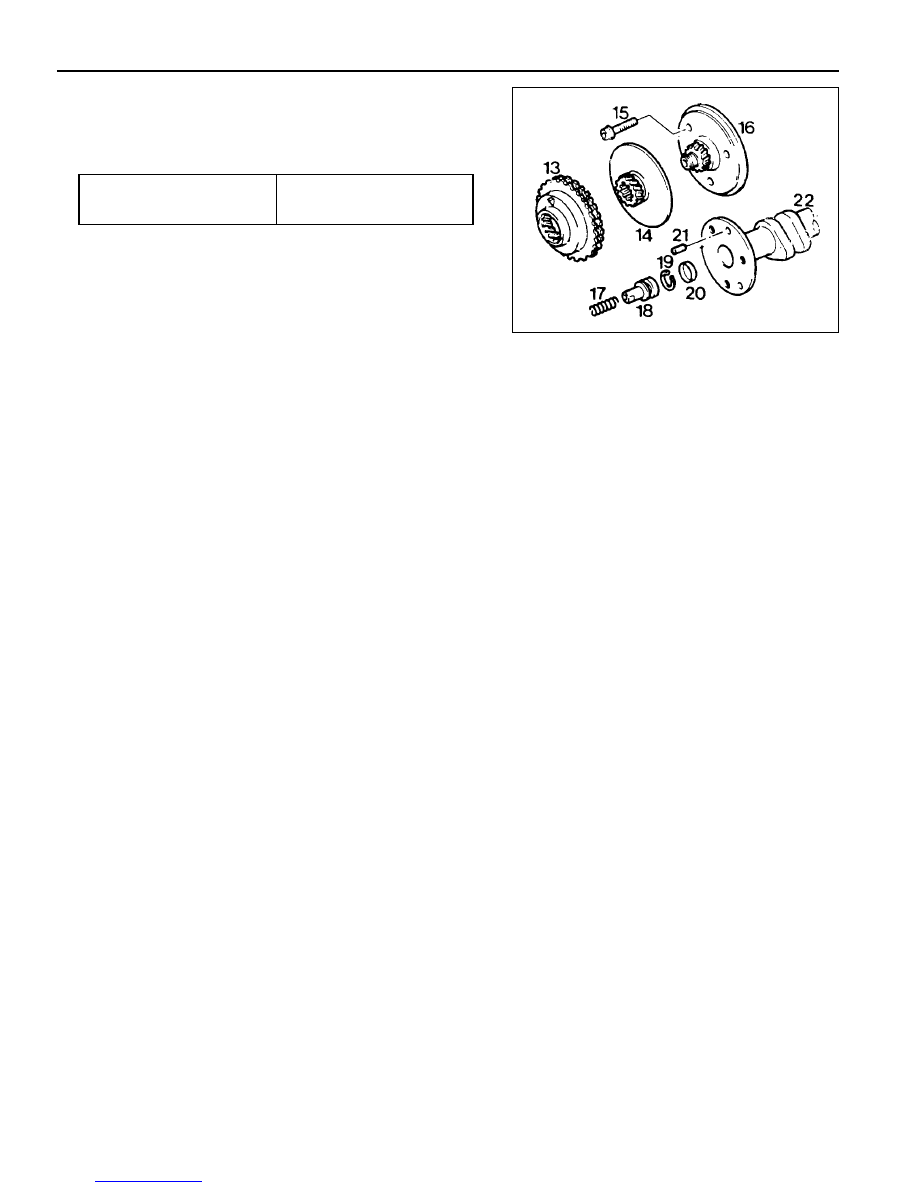

7. Remove the camshaft sprocket (13) and adjust piston (14),

and remove the flange shaft (16) from the intake camshaft
(22) after removing the bolt (15).

Installation Notice

The sprocket bolt is designed to be used only once, so
always replace with new one.

8. Installation should follow the removal procedure in the

reverse order.

9. Adjust the camshaft timing.

Tightening Torque

1st step 18 - 22 Nm

2nd step 90° ± 5°

M162 ENGINE MECHANICAL  1B1-57

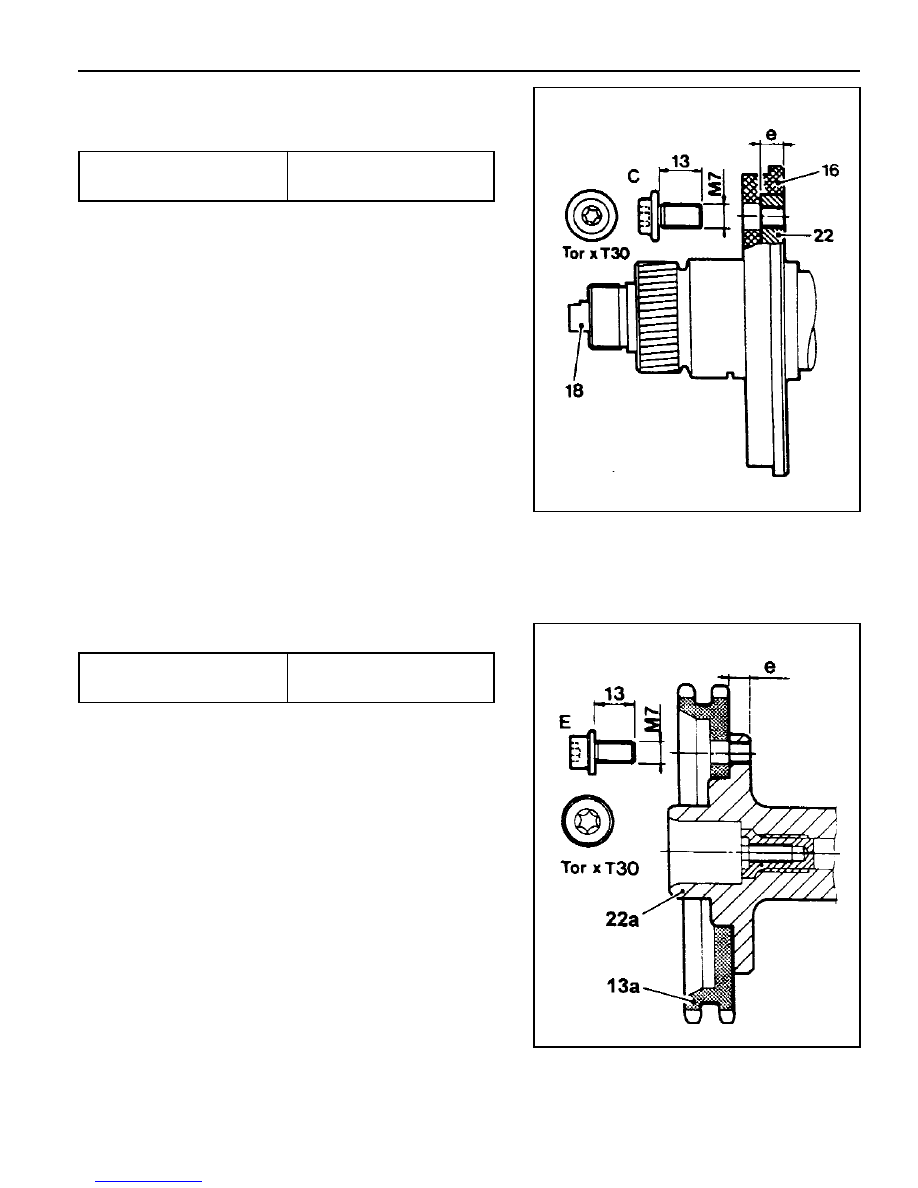

CAMSHAFT SPROCKET BOLT

Intake Flange Shaft Bolt

Notice

The sprocket bolts are designed to be used only once, so
always replace with new one.

Exhaust Camshaft Sprocket Bolt

Notice

The sprocket bolts are designed to be used only once, so
always replace with new one.

C. M7 x 13 Collar  Bolt Torx-T30
e.

6.8 mm

16. Flange  Shaft
18. Control  Piston
22. Intake  Camshaft

E.

M7 x 13 Collar  Bolt Torx-T30

e.

6.8 mm

13a. Camshaft  Sprocket
22a. Exhaust  Camshaft

Tightening Torque

1st step 18 - 22 Nm

2nd step 90° ± 5°

Tightening Torque

1st step 18 - 22 Nm

2nd step 90° ± 5°

1B1-58  M162 ENGINE MECHANICAL

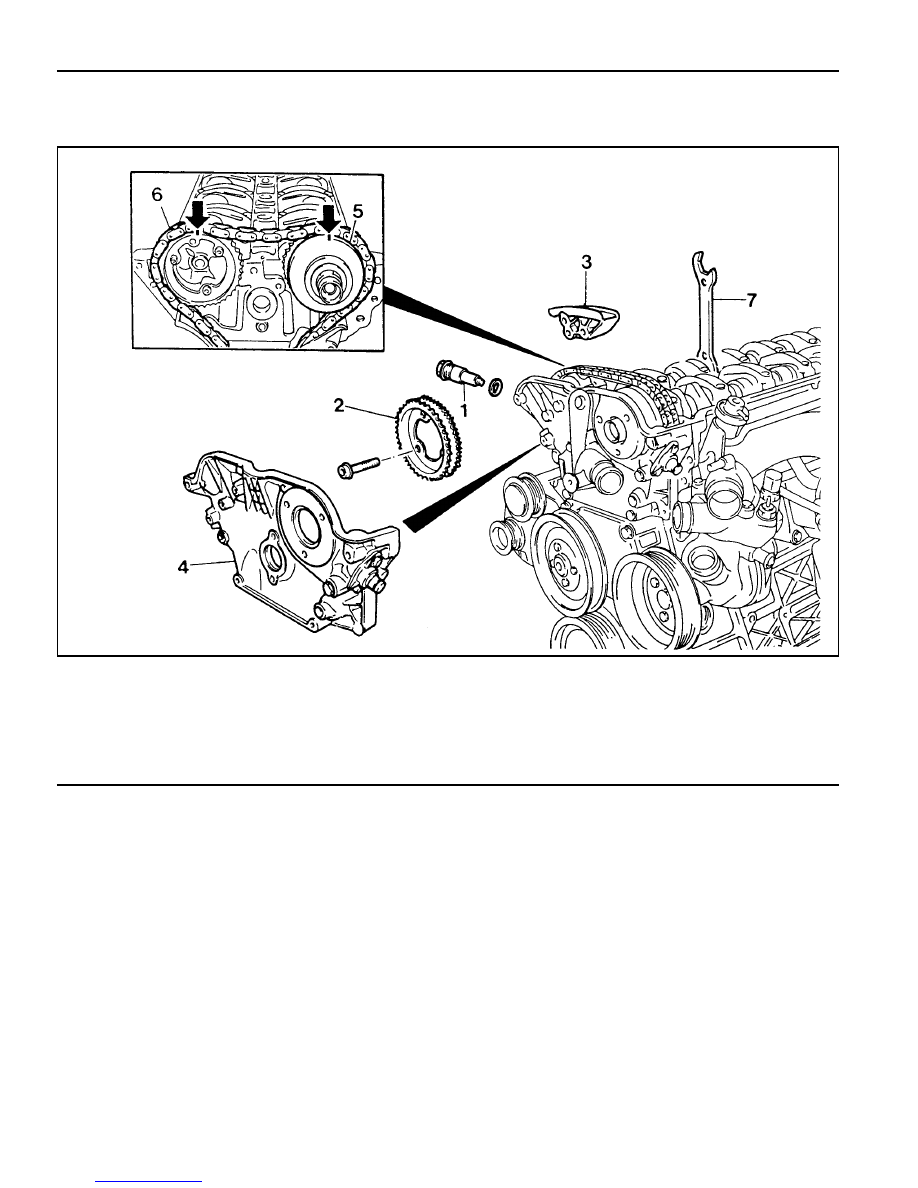

CAMSHAFT

Preceding Work : Removal of cylinder head cover, removal of coolant connection fitting

1 Chain Tensioner Assembly .................. 72-88 Nm
2 Exhaust Camshaft Sprocket
3 Upper Guide Rail
4 Cylinder Head Front Cover

5 Intake Camshaft Sprocket
6 Chain
7 Wrench (Special Tool)

M162 ENGINE MECHANICAL  1B1-59

Tools Required

000 589 01 10 00 Box Wrench Insert

104 589 01 01 00 Spanner

Removal Procedure

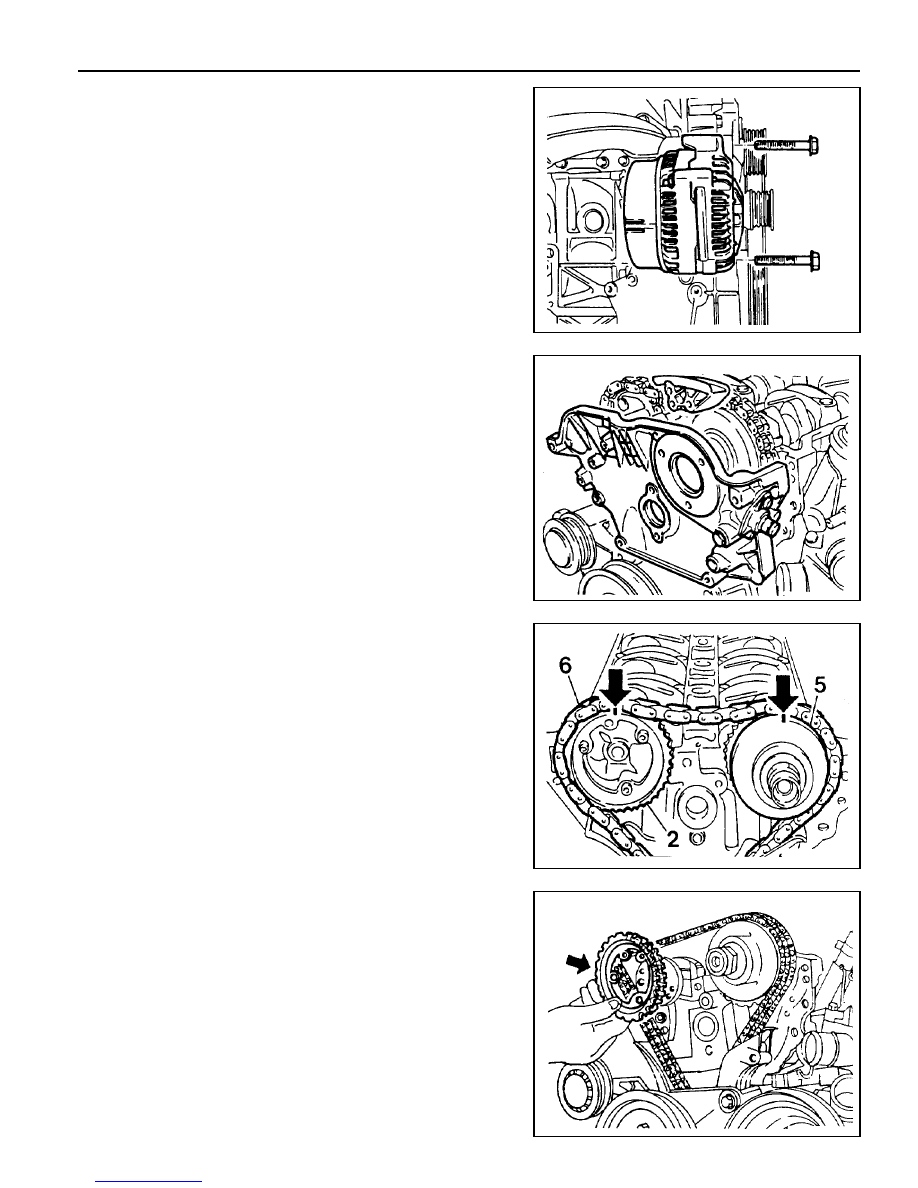

1. Turn the crankshaft and position the No. 1 cylinder piston

at BTDC 30°.

2. Remove the alternator.

3. Remove the chain tensioner.

4. Remove the cylinder head front cover and the upper guide

rail.

6. Unscrew the exhaust camshaft sprocket bolt and remove

the sprocket.

7. Separate the chain from the intake camshaft sprocket and

put the chain not to be dropped into timing case.

5. Put the alignment marks (arrows) on the camshaft sprocket

(2, 5) and the timing chain (6).
