DAF CF65, CF75, CF85 Series . Manual - part 988





©

 200423

3-9

Removal and installation

FRONT AXLE/LEADING REAR AXLE

ΧΦ65/75/85 series

7

6

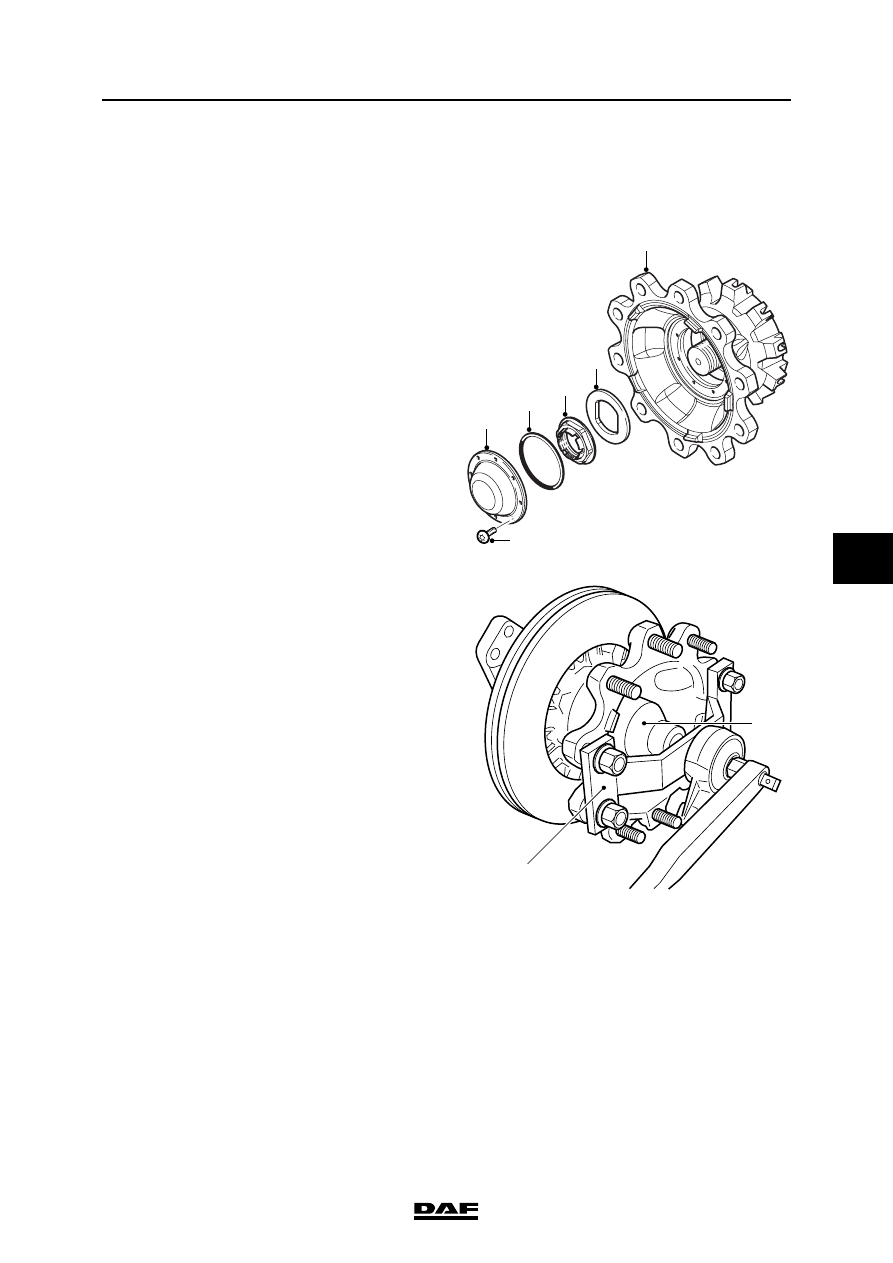

3.5 REMOVAL AND INSTALLATION, WHEEL HUB UNIT

Removing the wheel hub unit
1.

Jack up the axle until the wheels are clear

from the floor. Place suitable supports under

the axle.

2.

Remove the wheel.

3.

Remove the brake calliper.

4.

Remove the hub cap (2).

5.

Remove the hub nut (4) using the special tool

set (DAF no. 1329496).

Fit the socket wrench (A) to the hub nut. Fit

the socket wrench guide (B) to the wheel hub

unit using four wheel studs. Loosen the nut

using a torque amplifier.

6.

Remove the thrust washer (5).

6

5

2

1

4

3

S7 00 581

A

B

S7 00 641

FRONT AXLE/LEADING REAR AXLE

3-10

©

 200423

Removal and installation

6

ΧΦ65/75/85 series

7

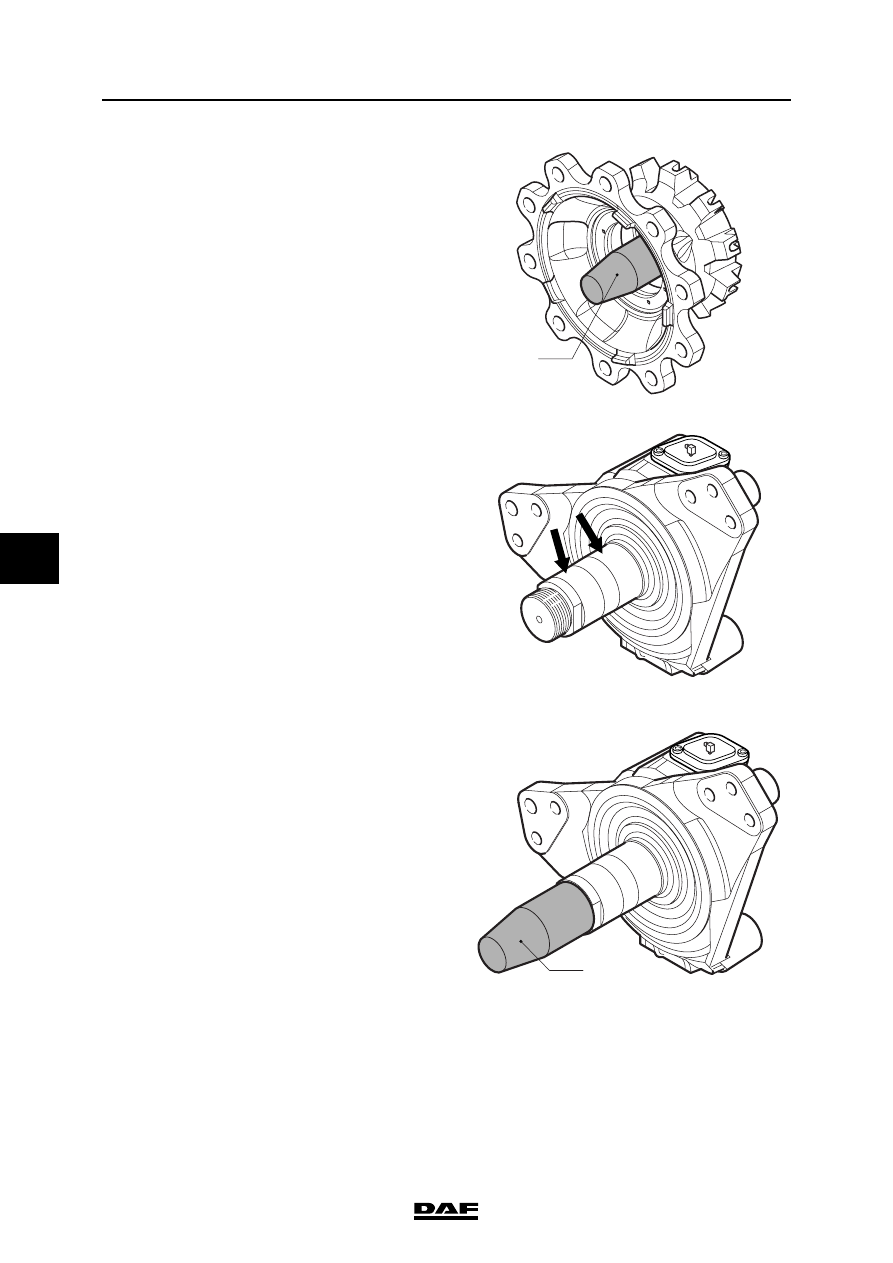

7.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

8.

Remove the wheel hub unit (6) using a lifting

device. Take care that the wheel hub unit

does not rest on the guide bush (A) as the

latter is not strong enough to take the weight

of the wheel hub unit.

Installation of wheel hub unit
1.

Check the wheel hub speed sensor ring, see

'Technical data'.

2.

Check the axle journal thread carefully for

damage.

You must never fit a wheel hub unit

on an axle journal with a damaged

thread.

3.

Apply a thin and even layer of the prescribed

anti-corrosion agent to the entire

circumference of the axle journal, see

'Technical data'.

Note:

Do not apply too much anti-corrosion agent

to the axle journal. While fitting the wheel hub

unit, the excess anti-corrosion agent will

collect at the backside of the wheel hub.

When the vehicle is used in daily operation,

this can leak out so that the seal wrongly

appears to be leaking.

4.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

S7 00 580

A

S7 00 547

}

A

S7 00 561

©

 200423

3-11

Removal and installation

FRONT AXLE/LEADING REAR AXLE

ΧΦ65/75/85 series

7

6

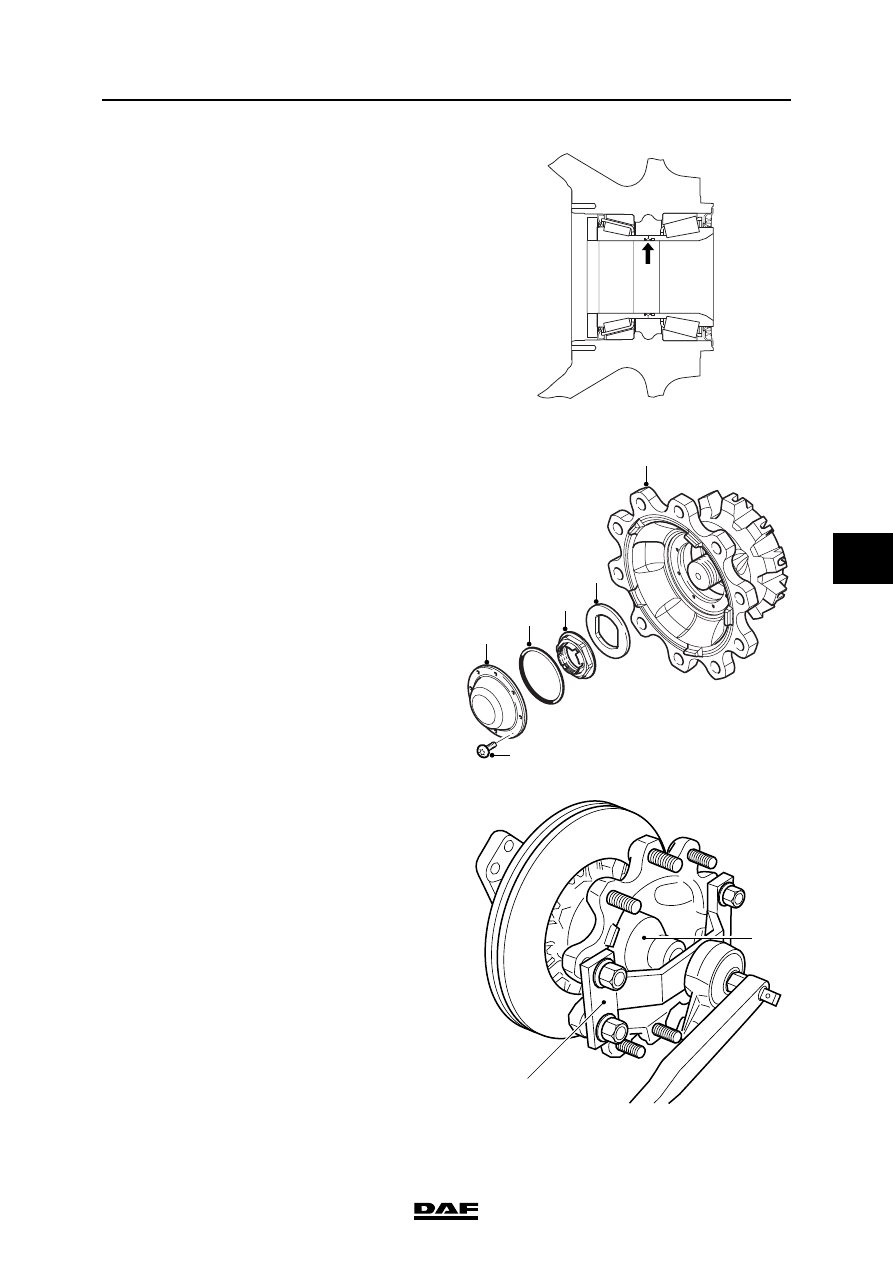

5.

Check that the spring clip, located between

the inner bearing races, is positioned

correctly.

6.

Position the wheel hub unit (6) precisely in

front of the axle journal using a lifting device.

Slide the wheel hub unit (6) onto the axle

journal without twisting it. Take care that the

wheel hub unit does not rest on the guide

bush as the latter is not strong enough to

take the weight of the wheel hub unit.

7.

Fit the thrust washer (5).

8.

Replace the hub nut (4). Apply a few drops of

oil to the abutting surface of the hub nut. Fit

the hub nut.

9.

Fit the hub nut (4) using the special tool set

(DAF no. 1329496).

Fit the socket wrench (A) to the hub nut. Fit

the socket wrench guide (B) to the wheel hub

unit using four nuts. Tighten the hub nut (4)

in the specified manner using a torque

amplifier, see 'Technical data'.

10. Fit a new O-ring (3) to the hub cap (2).

11. Fit the brake calliper.

12. Fit the wheel.

;;;;;

;;;;;

;;;;;

;;

;;;

;;;

;

;

;;;;;;

;;;

;;;

;;

;

;;

;;

;

;

;;;;;

;;;;;

;;;;;

;;

;;;

;

;;;;;;

;;;;;;

;;;

;;;

;;

;

;;

;;

;

;

S7 00 747

6

5

2

1

4

3

S7 00 581

A

B

S7 00 641

FRONT AXLE/LEADING REAR AXLE

3-12

©

 200423

Removal and installation

6

ΧΦ65/75/85 series

7

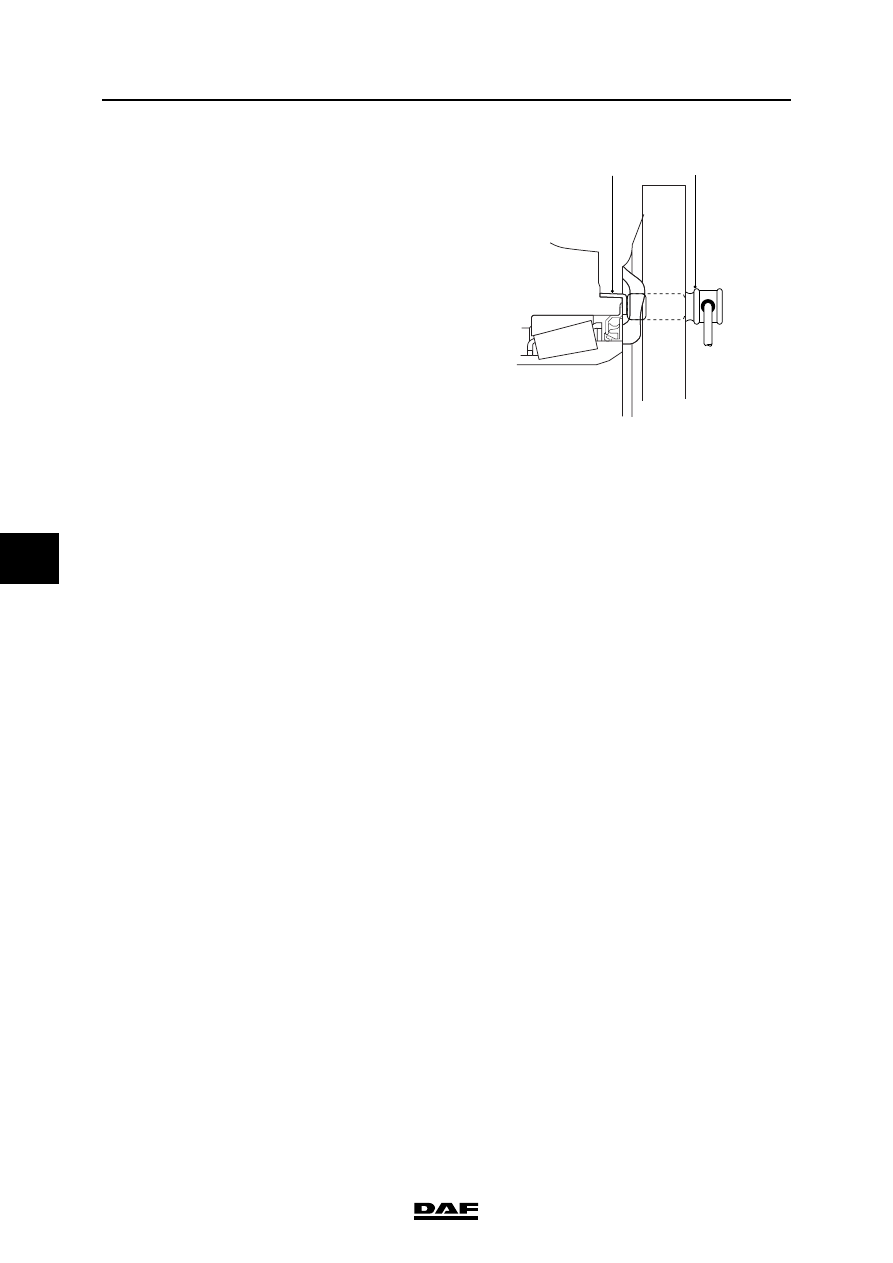

13. Press the wheel speed sensor (2) against

the sensor ring (1) by hand. While the vehicle

is being driven, the air gap between the

sensor and the sensor ring is adjusted.

If the sensor has no freedom of movement,

remove, clean and refit it.

Never tap the sensor with a hammer.

This may damage both the sensor

and the sensor ring.

14. Check the operation of the EBS or ABS

system.

;;;

;;;

;;;

;;;

;;;

;;;;;

;;;;;

;

;

;

;

;;;

;;;

;;

;;

;;

;;

;;

;;

;;

;;

;;

S7 00 543

2

1

}
