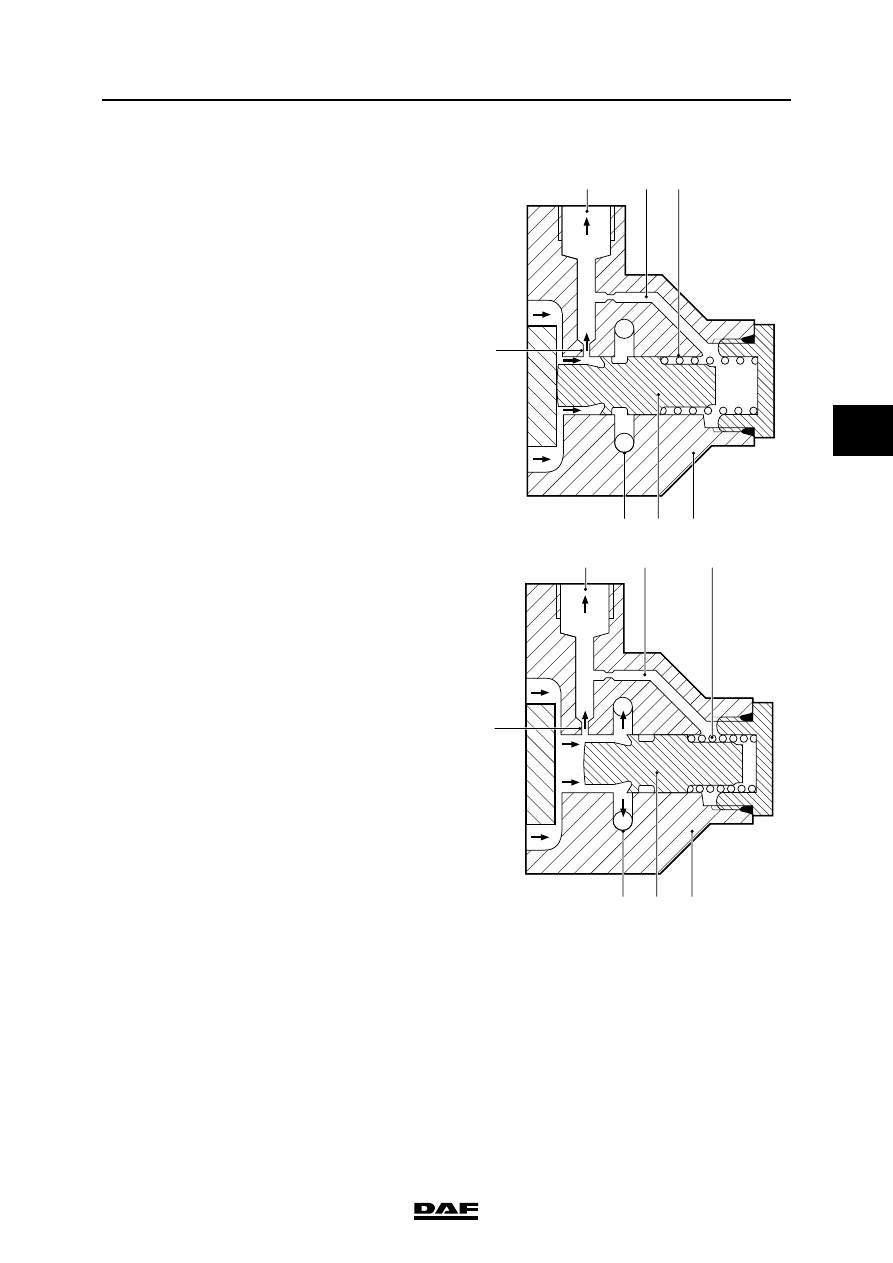

Regulated output control
In principle, the pump output depends on the

speed.

The steering gear however should be provided

with an oil volume which is as constant as

possible. To achieve this constant oil volume, the

pump is equipped with a regulated output control.

The output at the steering box is controlled by a

calibrated opening (1) in the internal delivery pipe

and the flow control valve (6) with spring (4).

If the pump output has not yet reached the preset

output, the flow control valve (6) is pushed at the

front against a stop, thus closing the internal

circulation channel (5).

The flow control valve (6) is held against the stop

by the spring (4) and the oil pressure in the

delivery pipe (2) which is exerted through the

channel (3) at the back of the flow control valve.

The entire pump output flows through the

calibrated opening (1) to the delivery pipe

connection (2).

If the pump output exceeds the preset output

because the engine speed has increased,

pressure builds up at the front of the flow control

valve (6) which exceeds the delivery pressure at

the back of the valve. The valve moves to the

right and the connection to the internal circulation

channel (5) is opened. Part of the pump output is

returned to the pump inlet channel through the

circulation channel.

If the pump output drops because the engine

speed has been reduced, the flow control valve

will move to the left and the connection to the

internal circulation channel (5) will partly close

again. A smaller part of the pump output is

returned to the pump inlet channel.

This control system supplies a fairly constant oil

output to the steering gear, despite the engine

speed variations.

Note:

The pressure-limiting valve is fitted into the

steering box.

1

5

2

3

4

6

7

S7 00 039

1

5

2

3

4

6

7

S7 00 040

STEERING PUMP

1-6

©

 200423

General

4

ΧΦ65/75/85 series

7

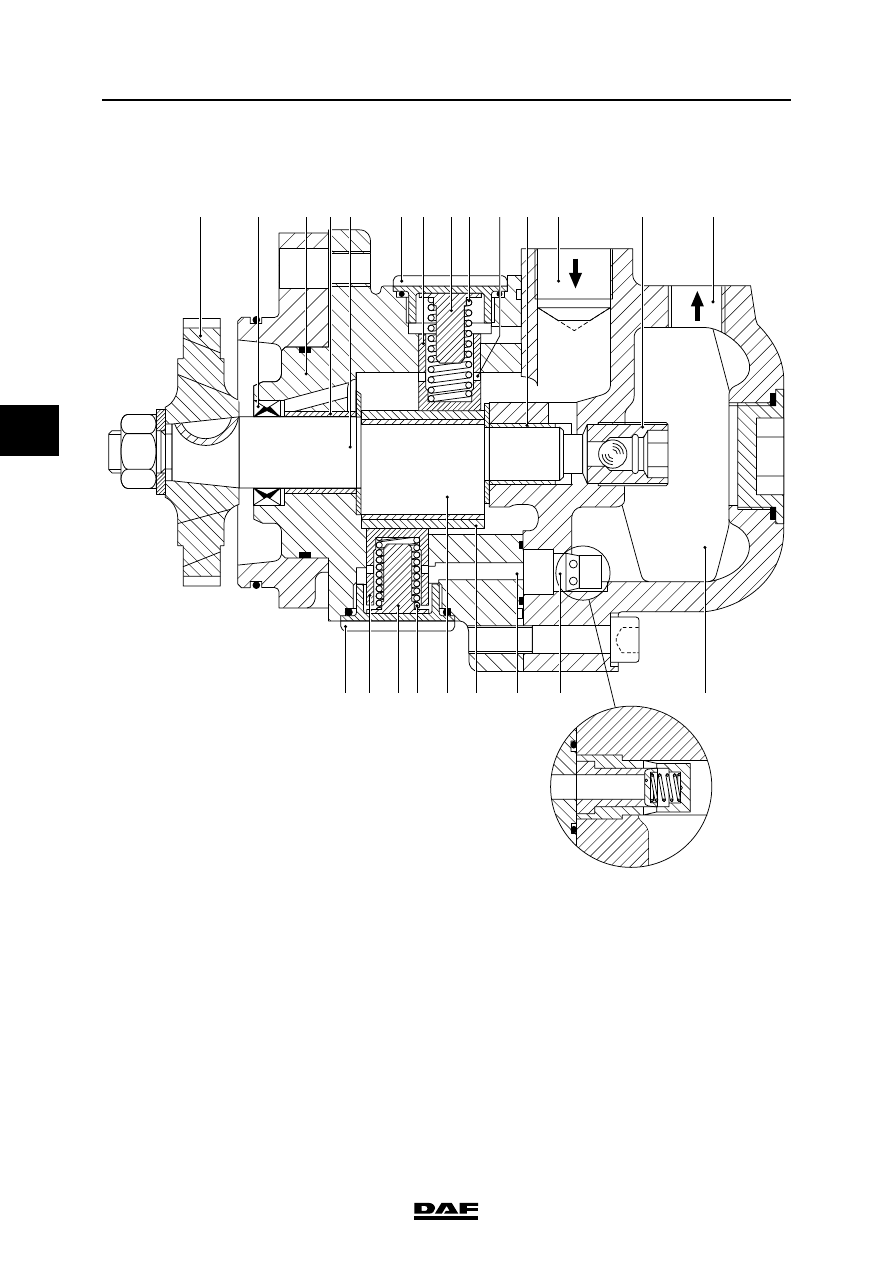

1.4 OPERATION OF EMERGENCY STEERING PUMP

The emergency steering pump is a radial plunger

pump. This pump is driven by the gearbox output

shaft.

The pump is driven when the vehicle is moving.

The direction of rotation is not important for this

pump.

The pump is equipped with eight hollow

plungers (7), arranged around an eccentric (10).

The eccentric takes care of the upward plunger

stroke.

The downward stroke is activated by a spring (9)

which is fitted in the plunger (7).

1

2

3 4 5

6 7

8 9 12 14 15

17

19

18

16

13

11

10

9

8

7

6

S7 00 049

©

 200423

1-7

General

STEERING PUMP

ΧΦ65/75/85 series

7

4

At the bottom the plunger is equipped with

bores (12). These bores are connected to the

supply line (15).

At the end of the downward stroke the plunger is

filled with oil. The oil is pressed away during the

upward stroke.

The pump output is limited because an increase

in engine speed reduces the amount of time

during which the steering oil can flow into the

hollow plunger, thus decreasing the filling volume

of the hollow plungers.

A flow control valve is therefore not necessary.

Every cylinder is equipped with a delivery

valve (16). Behind the delivery valves there is a

cushioning chamber (18) in which the pulsating

action of the plunger on the oil is dampened.

The pump is equipped with a suction valve (17).

A suction valve is required in a plunger pump

because this pump type cannot draw in oil via the

plungers when the pump is at a standstill.

The suction valve (17) is opened when an

underpressure exists in the emergency steering

pump delivery line (19). Such an underpressure

can be caused if steering takes place when the

main steering pump is switched off and the

vehicle road speed is low. In such a situation,

partial mechanical steering takes place. Such

steering requires more oil than the emergency

steering pump can supply at that moment.

The underpressure will open the suction

valve (17), connecting the supply line (15) with

the delivery line (19).

If the emergency steering pump output is

sufficient, the suction valve is closed due to the

pressure difference between the supply line and

the delivery line.
