4-13

Removal and installation

STEERING BOX

ΧΦ65/75/85 series

7

3

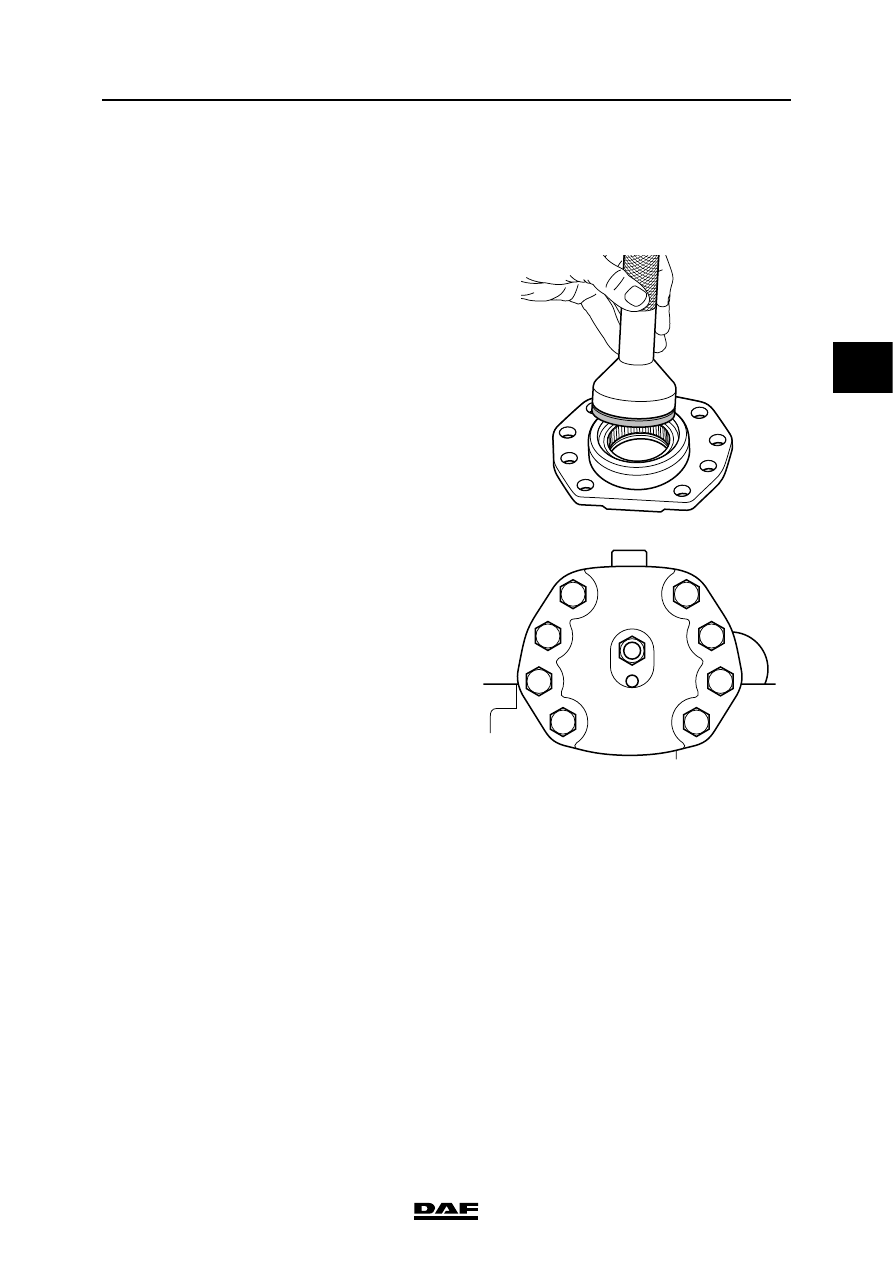

Installing the sector shaft oil seal in the side
cover
1.

Apply clean grease with the specified DAF

specification (melting point >130

C) to the

needle bearing (5).

2.

Fit a new seal into the side cover using

special tool (DAF no. 1329453).

3.

Fit a new gasket to the side cover. Stick the

gasket to the cover using a little clean

grease.

4.

Fit the side cover (4) to the steering box and

at the same time turn the adjusting screw (1)

anti-clockwise into the side cover.

5.

Clean the attachment bolts.

Note:

These are special attachment bolts. If

damaged or lost, always fit original

attachment bolts.

Apply a drop of steering oil to the bolt head

and first windings of the thread.

Fit the bolts.

Tighten the bolts evenly in the sequence

shown in the drawing. Then tighten the bolts

to the specified tightening torque in the

sequence shown. See 'Technical data'.

6.

Fit the lock nut and adjust the pressure point

once more. See 'Inspection and adjustment'.

7.

Fill and bleed the steering gear.

8.

Make a test drive. During the test drive the

proper functioning of the steering gear

should be checked. After the test drive the

system should be checked for leaks.

S7 00 455

1

8

6

4

2

3

5

7

S7 00 043

STEERING BOX

4-14

©

 200423

Removal and installation

3

ΧΦ65/75/85 series

7

4.6 REMOVAL AND INSTALLATION, SECTOR SHAFT OIL SEAL ON THE PITMAN

ARM SIDE

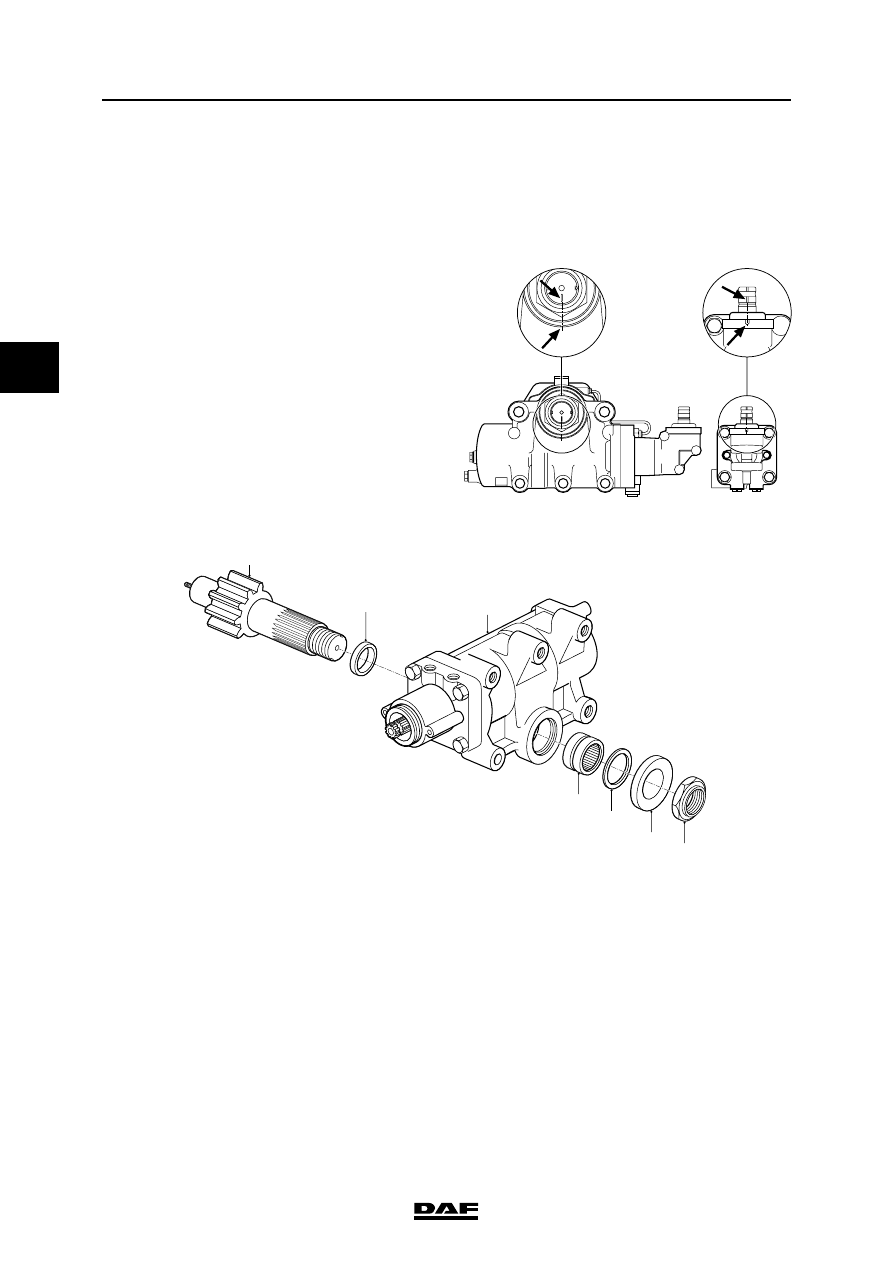

Removing the sector shaft oil seal on the
pitman arm side
1.

Remove the steering box.

2.

Fit clamping plates to bench vice jaws.

Clamp the steering box in the bench vice at

the attachment points. Do not clamp the

steering box in the bench vice at the cylinder.

If necessary, make a special bracket.

Connect the bracket to the steering box

attachment points and place the steering box

in the bench vice using the bracket.

3.

Place the steering box in the central position

using the markings.

4.

Remove the pitman arm from the steering

box.

5.

Remove the dust seal (6).

6.

Remove dirt and paint or rust, if any, from the

sector shaft (1).

Note:

Work in a clean environment. Prevent any

dirt from getting into the steering box or parts

thereof. When removing parts, note how they

were fitted. This is in view of fitting new seals.

7.

Remove the side cover of the steering box.

8.

Remove the sector shaft (1).

S7 00 024

1

2

3

4

S7 00 599

6

7

5

©

 200423

4-15

Removal and installation

STEERING BOX

ΧΦ65/75/85 series

7

3

9.

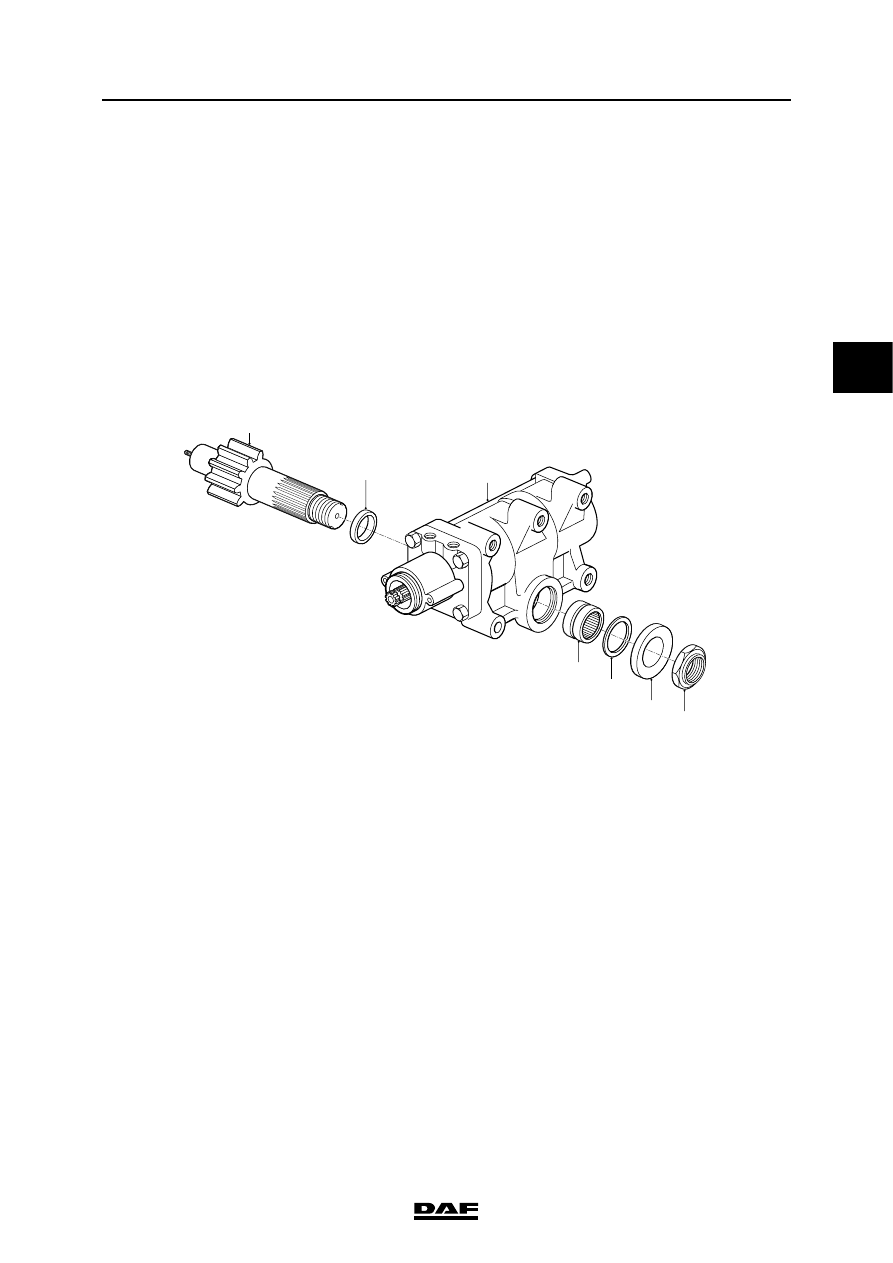

Carefully remove the dirt/water seal (5) from

the steering box (3) using a small screw

driver.

10. Lay the steering box flat and remove the

sector shaft oil seal (2) with a universal

internal puller from the steering box.

When removing the sector shaft oil

seal, make sure that the needle

bearing (4) is not damaged.

11. Check the needle bearing for freedom of

movement and damage after removing the

sector shaft oil seal (2).

}

1

2

3

4

S7 00 599

6

7

5

STEERING BOX

4-16

©

 200423

Removal and installation

3

ΧΦ65/75/85 series

7

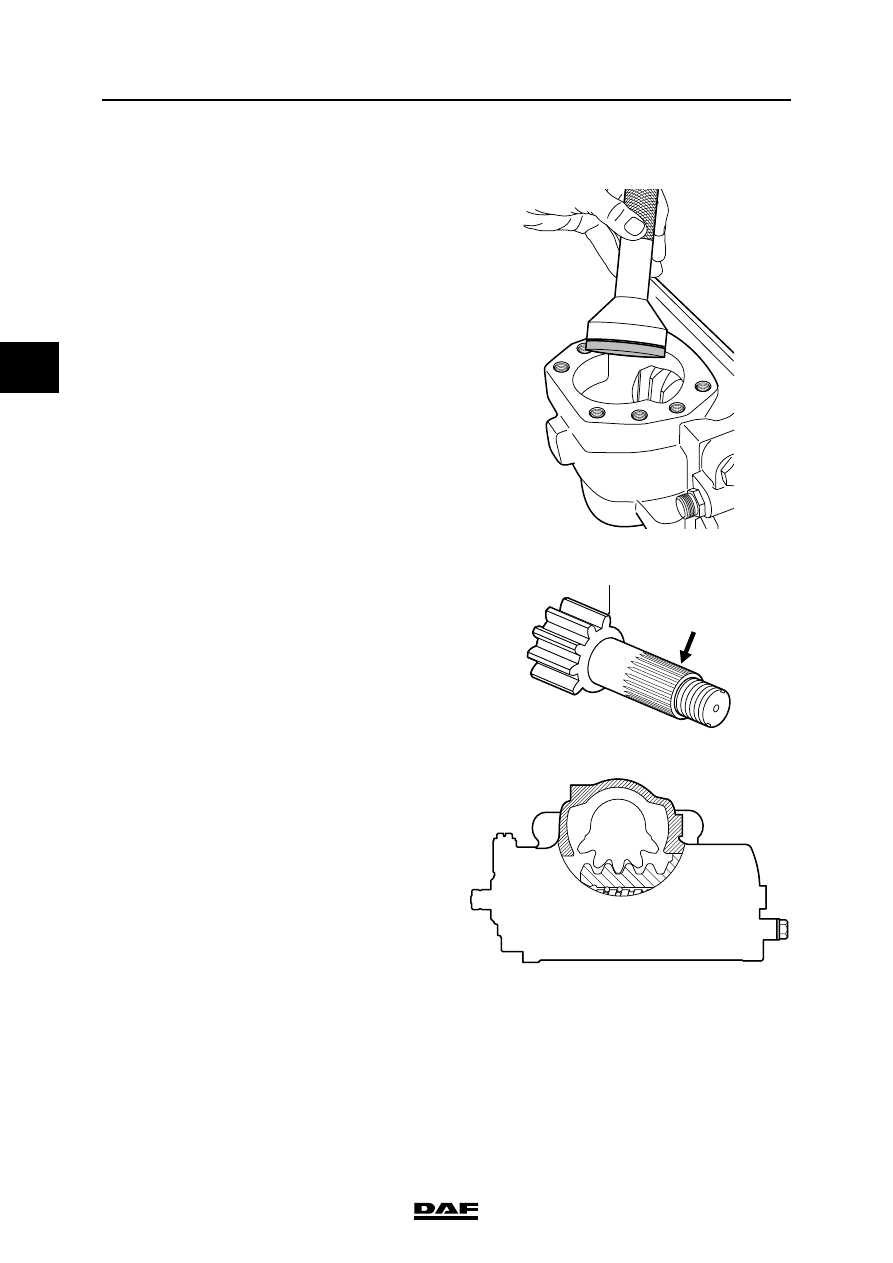

Installing the sector shaft oil seal on the
pitman arm side
1.

Fit a new sector shaft oil seal (2) in the

steering box (3) using special tool

(DAF no. 1329453).

2.

Apply clean grease with the specified DAF

specification (melting point >130

C) to the

needle bearing (4).

3.

Apply grease with the specified DAF

specification (melting point >130

C) to the

rear side of the new dirt/water seal (5) and fit

the dirt/water seal (5) into the steering box..

4.

Stick adhesive tape to the sector shaft

groove teeth (1) (see arrow in drawing). This

tape will prevent damage to the sector shaft

oil seal when fitting the sector shaft in the

steering box.

5.

Check whether the piston is still in its central

position, so that the middle sector shaft tooth

engages the correct piston teeth.

If the piston is not in its central

position during the sector shaft

assembly, the steering turn to one

side will become very small. This

may lead to dangerous situations.

6.

Install the sector shaft (1) into the steering

box (3).

S7 00 454

S7 00 453

1

S7 00 036

}
