Removal and installation

STEERING BOX

ΧΦ65/75/85 series

7

3

Installing the steering bracket
1.

Apply one drop of oil to the first turn of the

screw thread and to the underside of the bolt

head. Do not apply more than a single drop

of oil as excess oil would penetrate between

the two contact surfaces, which would

increase the risk of the connection

loosening.

2.

Screw the nut on the attachment bolt by

hand. If the nut can be screwed by hand

easily on to the bolt, the bolt may be re-used.

If necessary, the attachment bolts should be

renewed.

3.

Remove all paint from the contact surfaces

of the steering box/steering bracket and

steering bracket/chassis (a thin, factory-

applied layer of paint is allowed).

The contact surfaces should be absolutely

free from dirt and grease.

4.

Place the steering bracket on the chassis.

Tighten the bolts evenly to the specified

tightening torque. See 'Technical data'.

5.

Install the steering box.

STEERING BOX

4-6

©

 200423

Removal and installation

3

ΧΦ65/75/85 series

7

4.3 REMOVAL AND INSTALLATION, PITMAN ARM

If the pitman arm has been subjected

to extremely high loads (accident), it

should be magnaflux tested, even if

no deviations can be found with the

naked eye. If such a test is not

possible, the pitman arm should be

replaced at all times.

The pitman arm should only be

removed using the prescribed

special tools. Under no

circumstances should the pitman

arm be removed by dislodging it with

a hammer or by heating, if the

prescribed tools are not available.

This would not only result in the

pitman arm becoming highly

unreliable, it would also permanently

damage the sector shaft.

Removing the pitman arm
1.

Remove the steering box.

2.

Clean the screw thread of the sector shaft

protruding from the nut.

3.

Tap the locking ring of the nut back into its

locking position.

4.

Remove the nut from the sector shaft.

5.

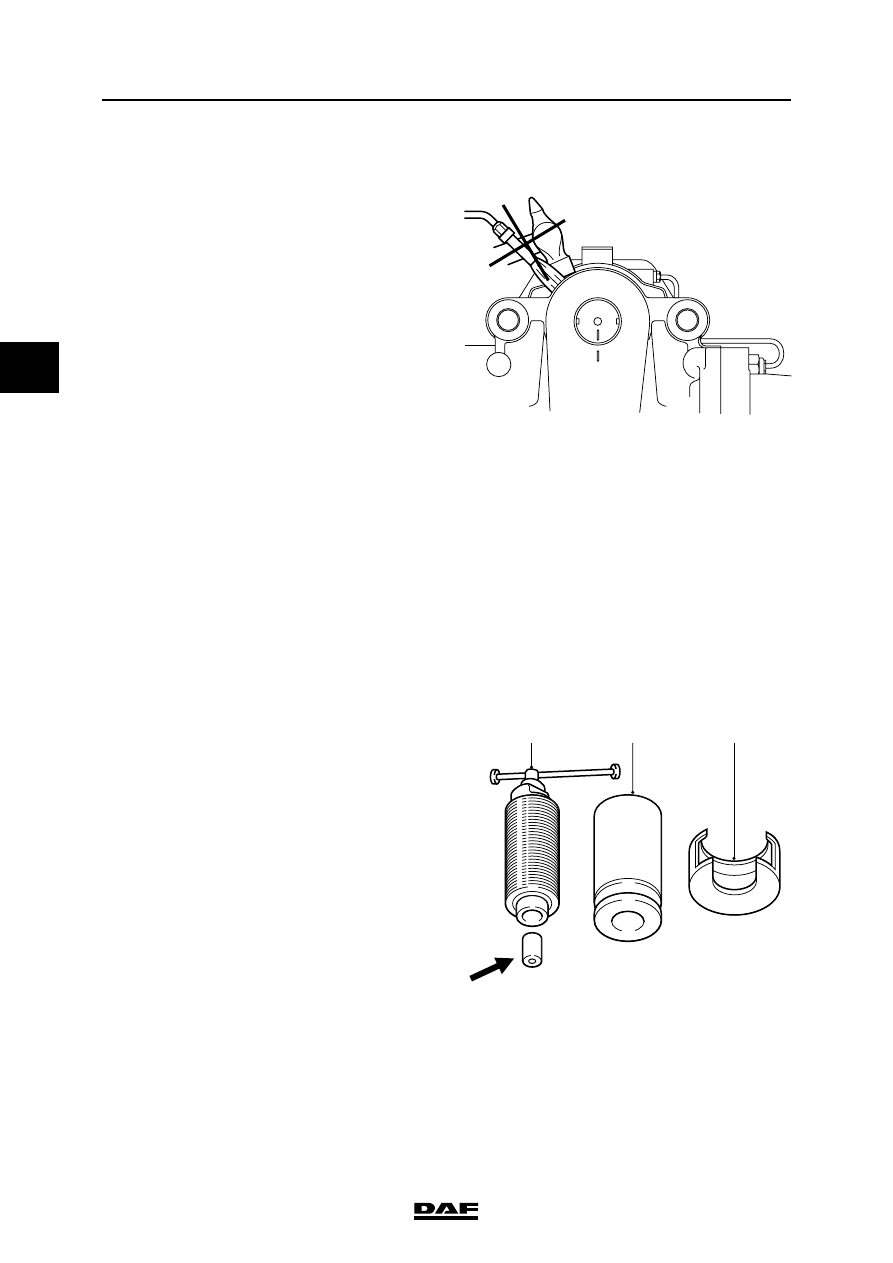

Place the push rod (see arrow in drawing) in

the hydraulic puller (C), special tool

(DAF no. 0535891).

6.

Screw the adapter (B), special tool

(DAF no. 0694786), partly onto the hydraulic

puller (C).

S7 00 031

}

C

B

A

S7 00 029

©

 200423

4-7

Removal and installation

STEERING BOX

ΧΦ65/75/85 series

7

3

7.

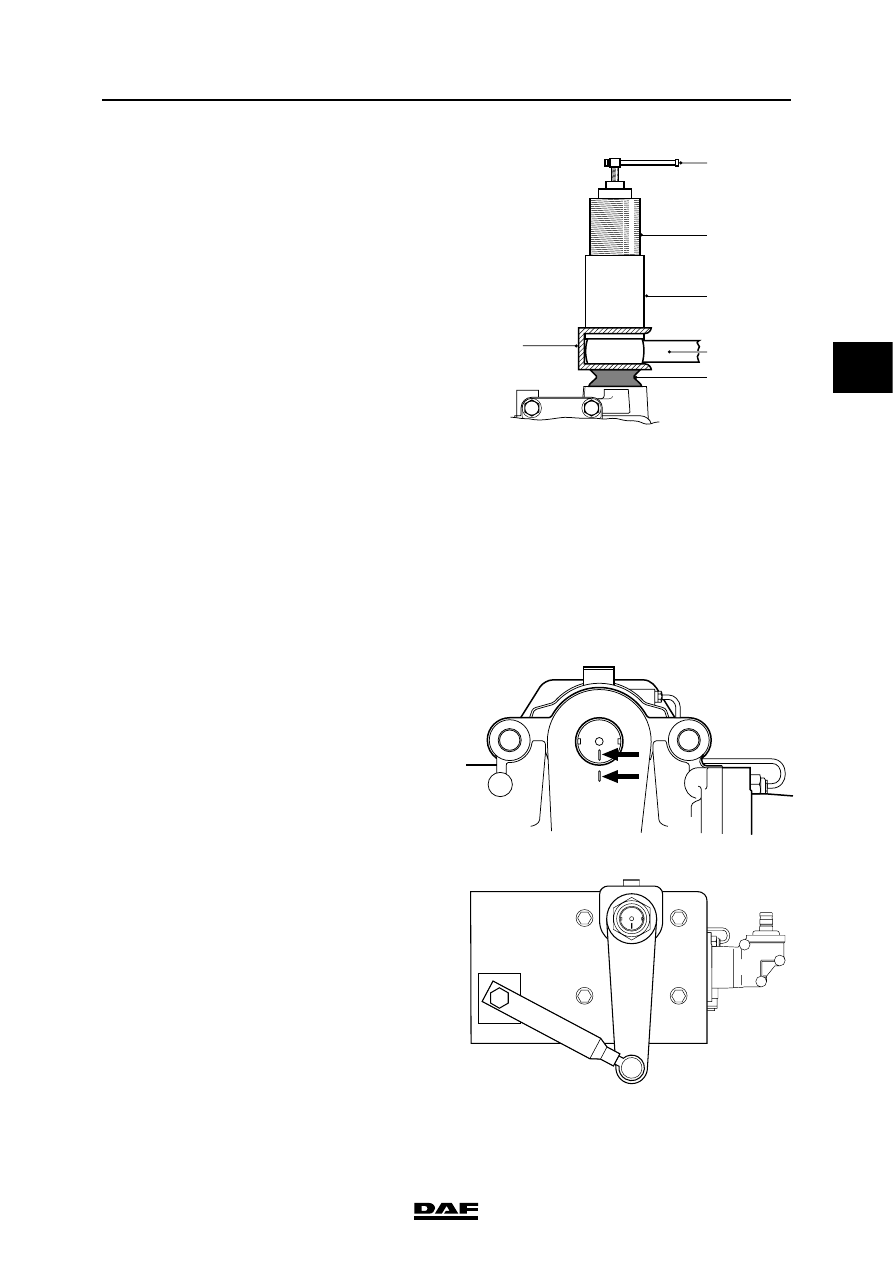

Slide the claw (A), special tool

(DAF no. 0694916), over the pitman arm (1).

If necessary, cut the sector shaft dust

seal (2) and remove it.

8.

Slide the adapter (B) with the hydraulic

puller (C) into the claw (A).

9.

Screw out the spindle (D) of the hydraulic

puller (C) as far as possible. Subsequently

screw the hydraulic puller (C) into

adapter (B) as far as possible using an open-

end spanner.

10. Screw in the spindle (D) until the pitman arm

comes off the sector shaft.

If the pitman arm still has not come off after

the spindle has been completely screwed in,

screw out the spindle and screw the puller

into the adapter (B) as far as possible. Then

screw in spindle (D) again until the pitman

arm comes off.

Installing the pitman arm
1.

Install a new dust seal on the sector shaft.

2.

Grease the dust seal surface which is

positioned against the steering box using a

grease with the specified DAF specification

(melting point >130

C).

3.

Install the pitman arm on the sector shaft so

that the marks on the pitman arm and the

sector shaft align.

Note:

As the sector shaft is normally secured at the

same position, the sector shaft nut can only

be secured twice. After that, the nut should

be replaced. The nut should not be used for

locking at locations where the shaft has

already been locked before.

4.

Block the steering box with the pitman arm.

Do this, for example by fixing a section of a

used steering rod to a clamp and to the

pitman arm with the ball joint.

If the pitman arm is blocked differently,

ensure that the conical section of the pitman

arm is not damaged.

Note:

If the steering box is not blocked, the

adjustment of the wheel-deflection limiting

valve will be distorted when the steering box

is completely rotated in.

C

D

B

1

2

A

S7 00 030

S7 00 032

S7 00 723

STEERING BOX

4-8

©

 200423

Removal and installation

3

ΧΦ65/75/85 series

7

5.

Fit the nut on the sector shaft and tighten it to

the specified tightening torque. See

'Technical data'.

6.

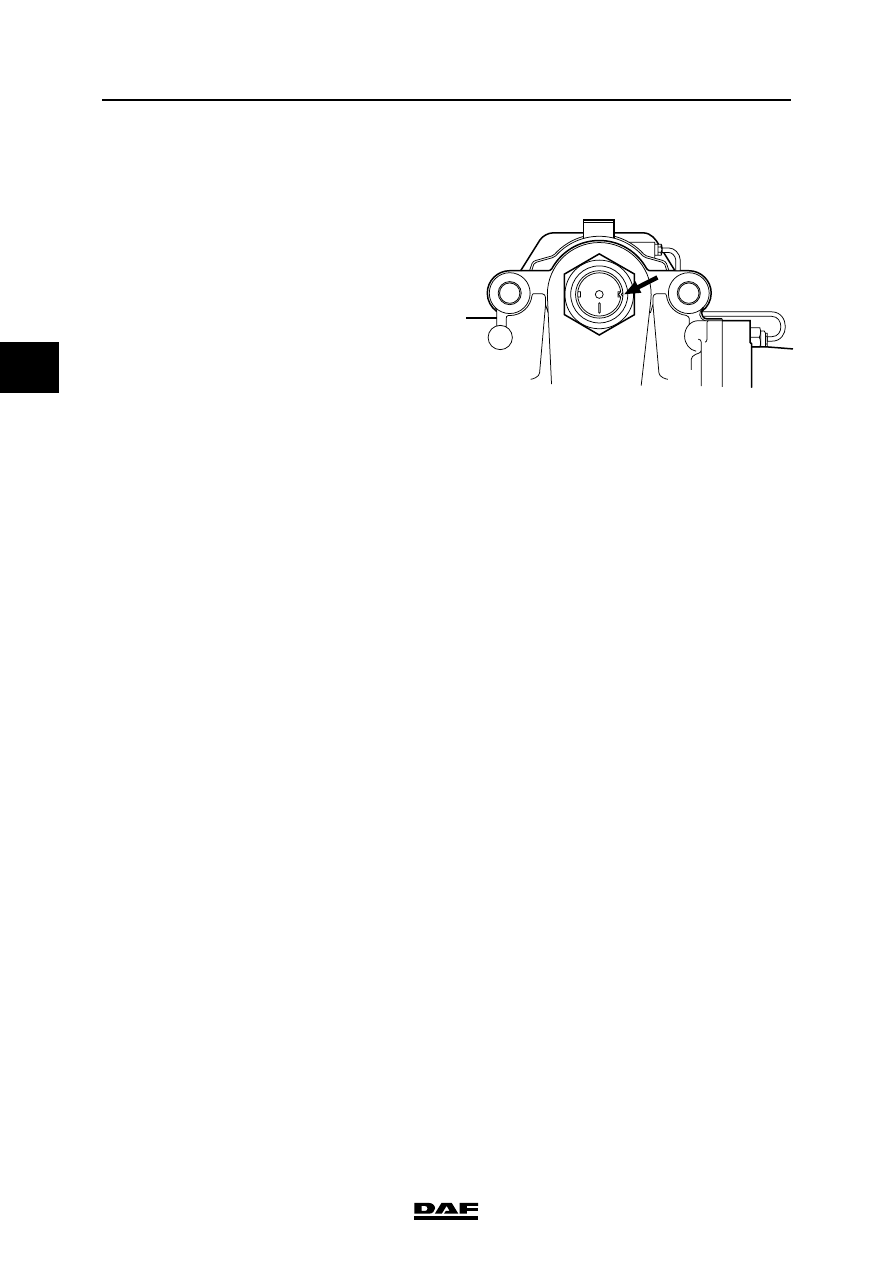

Secure the sector shaft nut by tapping the

locking ring of the nut at least 2.5 mm into

one of the recesses of the sector shaft.

Always use a part of the locking ring which

has not been used before.

7.

Install the steering box.

S7 00 033
