General

STEERING GEAR, GENERAL

ΧΦ65/75/85 series

7

2

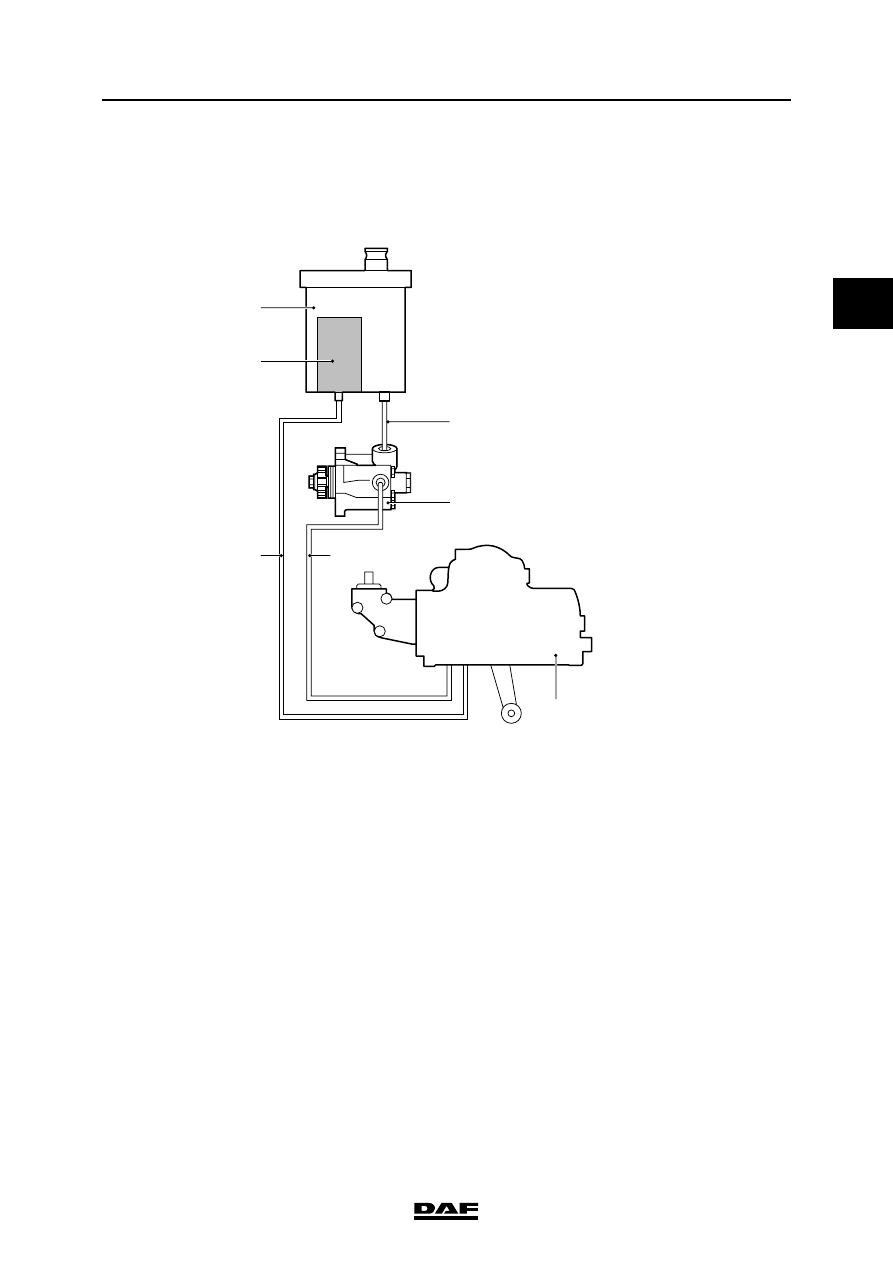

2.5 SYSTEM DESCRIPTION, SINGLE-CIRCUIT SYSTEM

From the reservoir (1) mounted over the steering

pump (4), the oil flows through the supply pipe (3)

to the steering pump (4).

The steering pump is a non-regenerative vane

pump. When the pump is supplying output, the

steering pump (4) does become regenerative,

thus causing a negative pressure in the supply

pipe (3).

The steering pump (4) pumps the oil through the

delivery pipe (5) to the steering box (6).

From the steering box (6), the oil is returned to the

reservoir (1) through the return pipe (7) via the

filter (2). The return pipe (7) always has a low

pressure.

The pressure in the delivery pipe (5) varies and

depends on the steering force. If there is no

steering action, the delivery pipe is at circulation

pressure.

If a steering action takes place, the pressure in

the delivery pipe can increase to the preset value

of the pressure relief valve.

  1

  7

  5

  6

  2

  3

  4

P

R

S700925

STEERING GEAR, GENERAL

2-6

©

 200423

General

2

ΧΦ65/75/85 series

7

This maximum pressure can occur when the

vehicle is steered while at a standstill on a skid-

resistant road surface or when the vehicle is

parked against a curb and the steering wheel is

turned.

When at maximum pressure a major

transmission of energy will take place, resulting in

the release of much heat. If this situation lasts too

long, the steering pump can be damaged by the

heat development.

The steering pump can develop very high

pressure within a short period of time. This very

high pressure can cause certain steering gear

components to become overloaded or even to

break off.

A pressure-limiting valve is intended to protect

the steering gear against excessive pressure.

The system pressure may not be increased.

The pressure-limiting valve is located in the

steering box. This can be checked using the type

plate on the steering box.

If a pressure value is mentioned on the type plate,

the component concerned contains a pressure-

limiting valve.

It can be very dangerous to replace

the steering box or the steering

pump with a different type without

DAF's express permission. Such

replacements are therefore

prohibited. If the original type is no

longer available, DAF will supply

another approved type.

}

©

 200423

2-7

General

STEERING GEAR, GENERAL

ΧΦ65/75/85 series

7

2

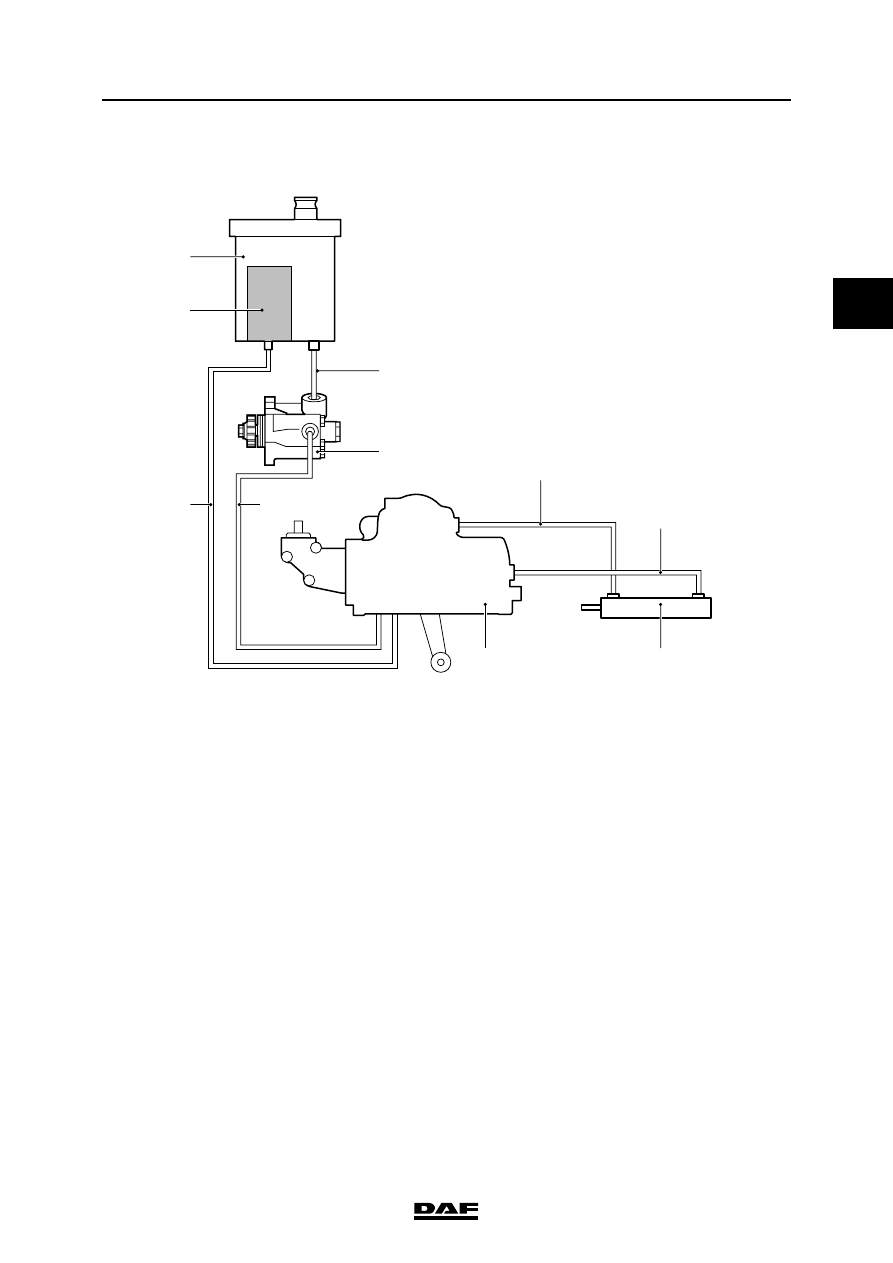

2.6 SYSTEM DESCRIPTION, SINGLE-CIRCUIT SYSTEM WITH SLAVE CYLINDER

The steering gear can contain a slave cylinder (8)

for additional steering power. This slave cylinder

is located parallel to the steering box cylinder and

is supplied with oil through the steering box.

System operation is identical to that of the single-

circuit system.

  1

  7

  5

  9

  10

  8

  6

  2

  3

  4

P

R

HR

HR

HL

HL

S7 00 018

STEERING GEAR, GENERAL

2-8

©

 200423

General

2

ΧΦ65/75/85 series

7

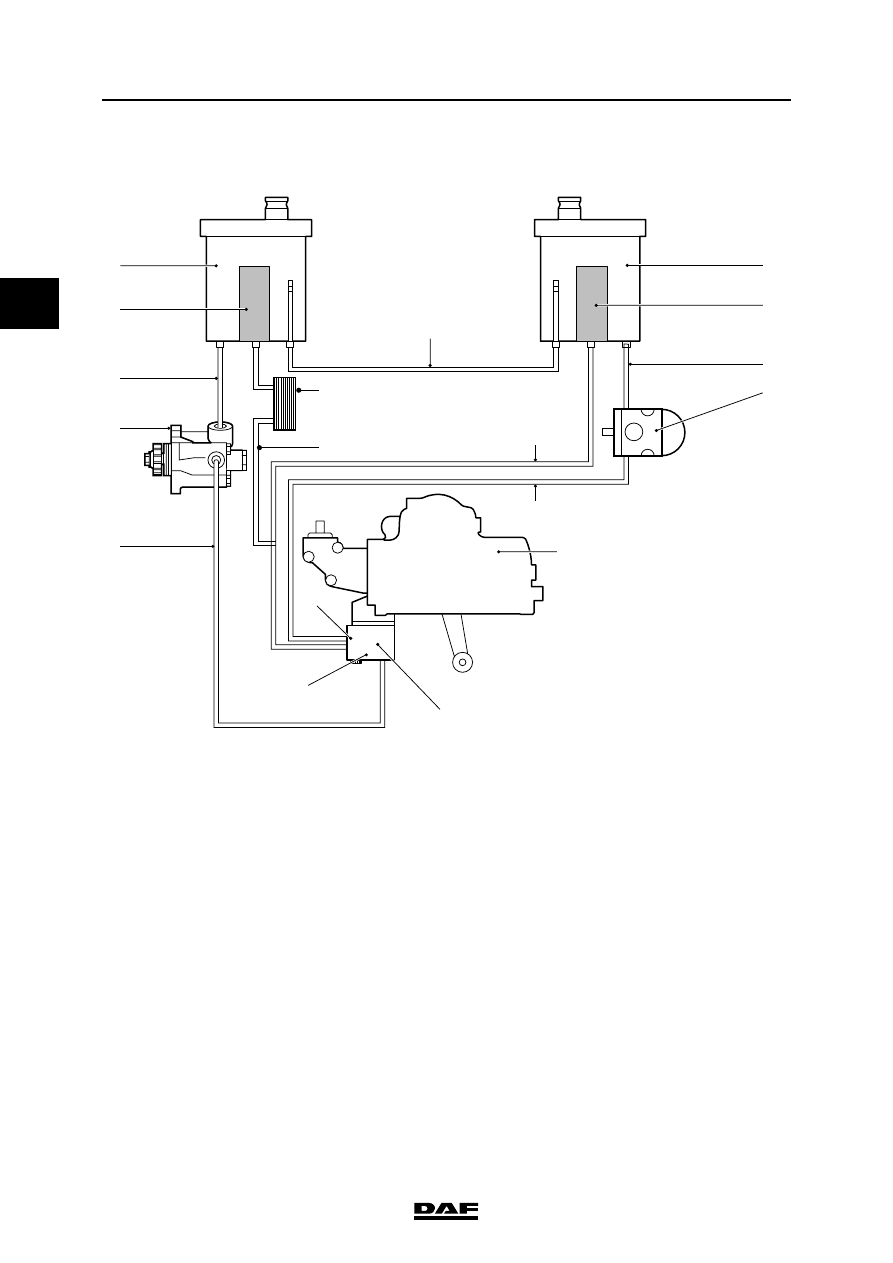

2.7 SYSTEM DESCRIPTION, DUAL-CIRCUIT SYSTEM

During normal operation, the engine-driven main

steering pump (4) supplies oil to the dual-circuit

valve (6), which is part of the steering box (7).

The oil arrives at the steering box (7) through the

dual-circuit valve (6).

The emergency steering pump (16) is attached to

the gearbox and is driven by the gearbox output

shaft. At a vehicle road speed exceeding approx.

10 km per hour, the emergency fuel pump

supplies sufficient oil. During normal operation,

the oil from the emergency steering pump is

returned to the emergency steering pump

reservoir (13) via the dual-circuit valve (6).

Reservoirs (1) and (10) are interconnected by an

overflow pipe (9). This pipe is connected in such

a way that if one of the circuits leaks the other

circuit remains functional.
