 200423

2-1

General

STEERING GEAR, GENERAL

ΧΦ65/75/85 series

7

2

2. GENERAL

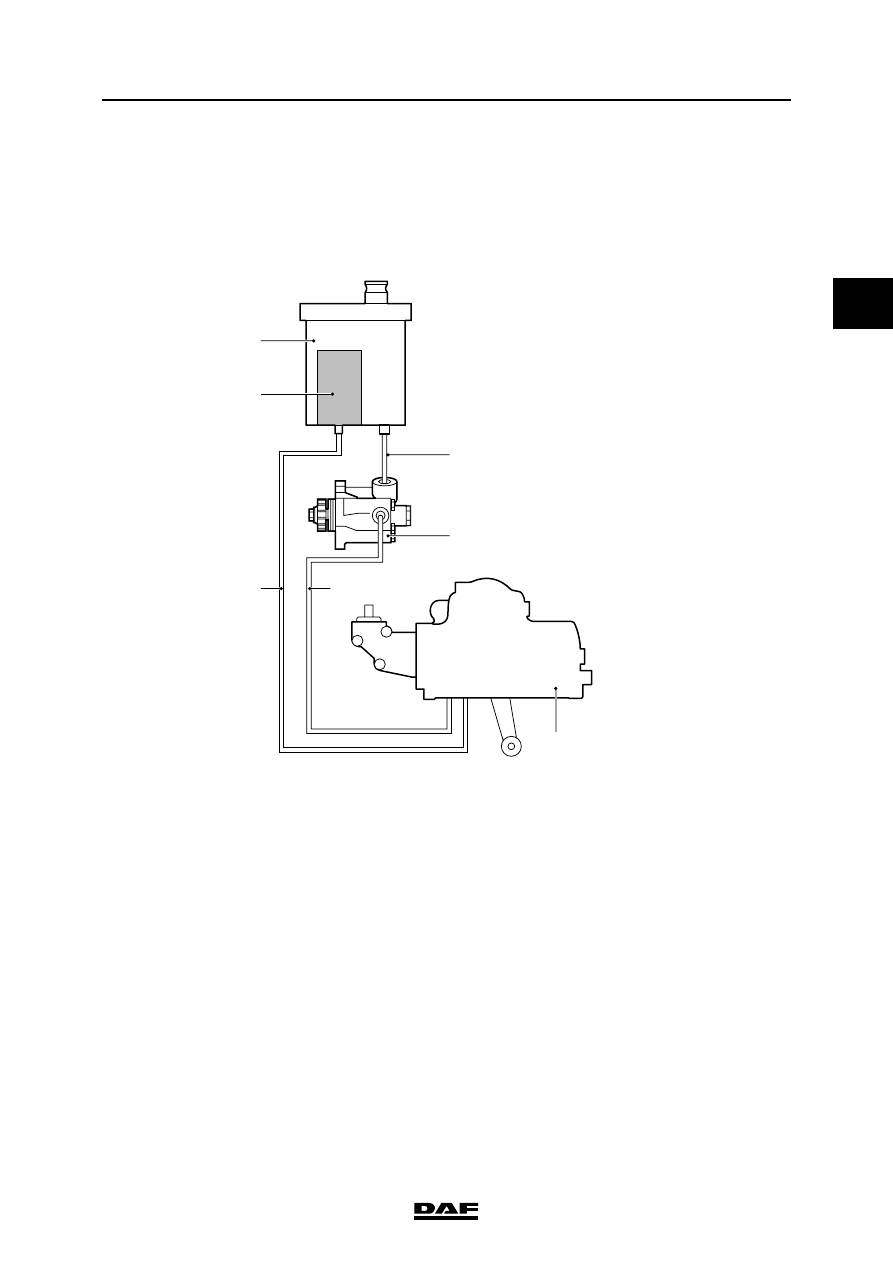

2.1 OVERVIEW DRAWING, SINGLE CIRCUIT SYSTEM

  1

  7

  5

  6

  2

  3

  4

P

R

S700925

1.

Reservoir

2.

Filter

3.

Supply pipe

4.

Steering pump

5.

Delivery pipe

6.

Steering box

7.

Return pipe

STEERING GEAR, GENERAL

2-2

©

 200423

General

2

ΧΦ65/75/85 series

7

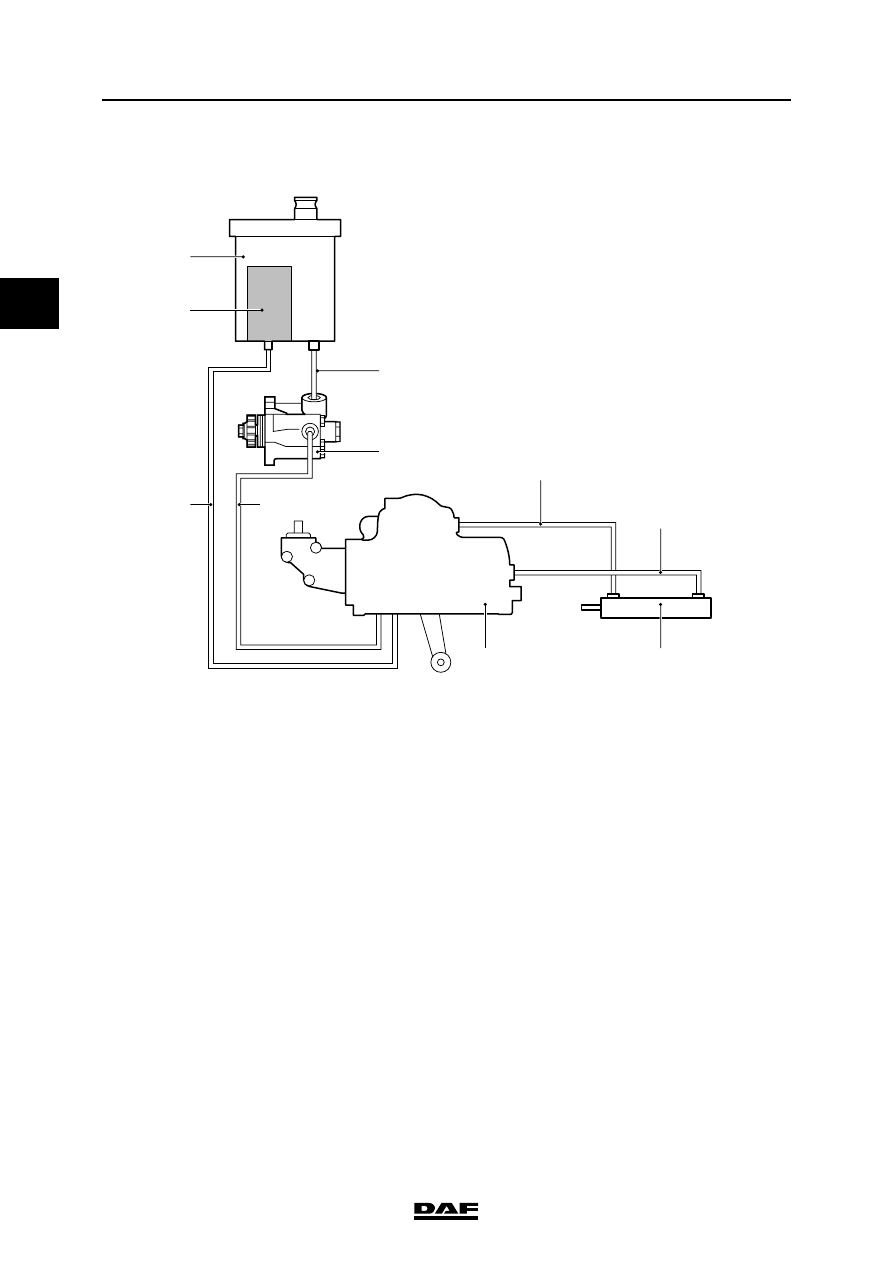

2.2 OVERVIEW DRAWING, SINGLE-CIRCUIT SYSTEM WITH SLAVE CYLINDER

  1

  7

  5

  9

  10

  8

  6

  2

  3

  4

P

R

HR

HR

HL

HL

S7 00 018

1.

Reservoir

2.

Filter

3.

Supply pipe

4.

Steering pump

5.

Delivery pipe

6.

Steering box

7.

Return pipe

8.

Slave cylinder

9.

Slave cylinder pipe

10.

Slave cylinder pipe

©

 200423

2-3

General

STEERING GEAR, GENERAL

ΧΦ65/75/85 series

7

2

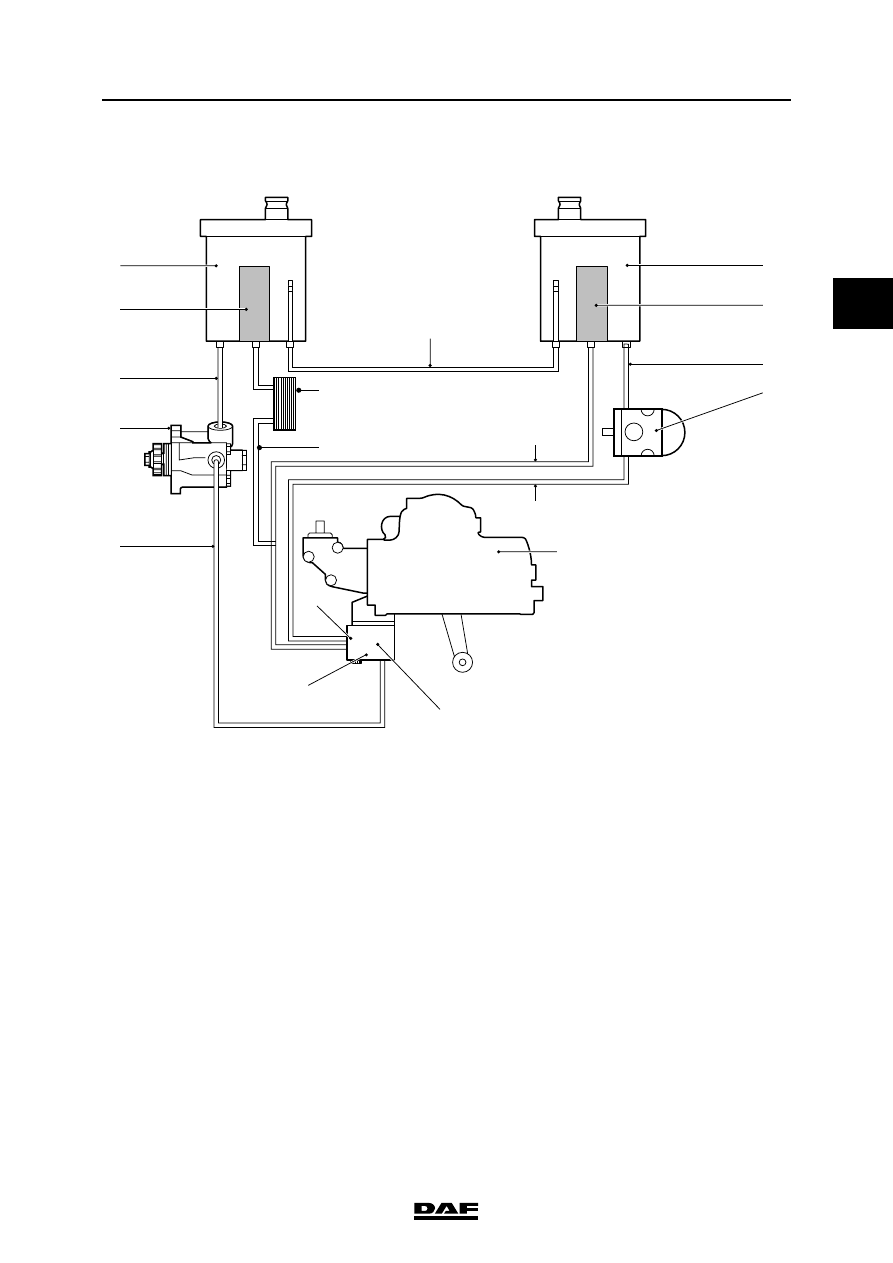

2.3 OVERVIEW DRAWING, DUAL-CIRCUIT SYSTEM

4

R1

R2

P2

P1

+

1

3

5

7

10

12

13

11

16

14

15

9

6

17

2

S700926

8

18

1.

Main steering pump reservoir

2.

Filter

3.

Main steering pump supply pipe

4.

Main steering pump

5.

Main steering pump delivery pipe

6.

Valve housing

7.

Steering box

8.

Main steering pump return pipe

9.

Connection pipe reservoirs

10.

Emergency steering pump reservoir

11.

Filter

12.

Emergency steering pump supply pipe

13.

Emergency steering pump

14.

Emergency steering pump delivery pipe

15.

Emergency steering pump return pipe

16.

Main steering pump output indicator

17.

Emergency steering pump output

indicator

STEERING GEAR, GENERAL

2-4

©

 200423

General

2

ΧΦ65/75/85 series

7

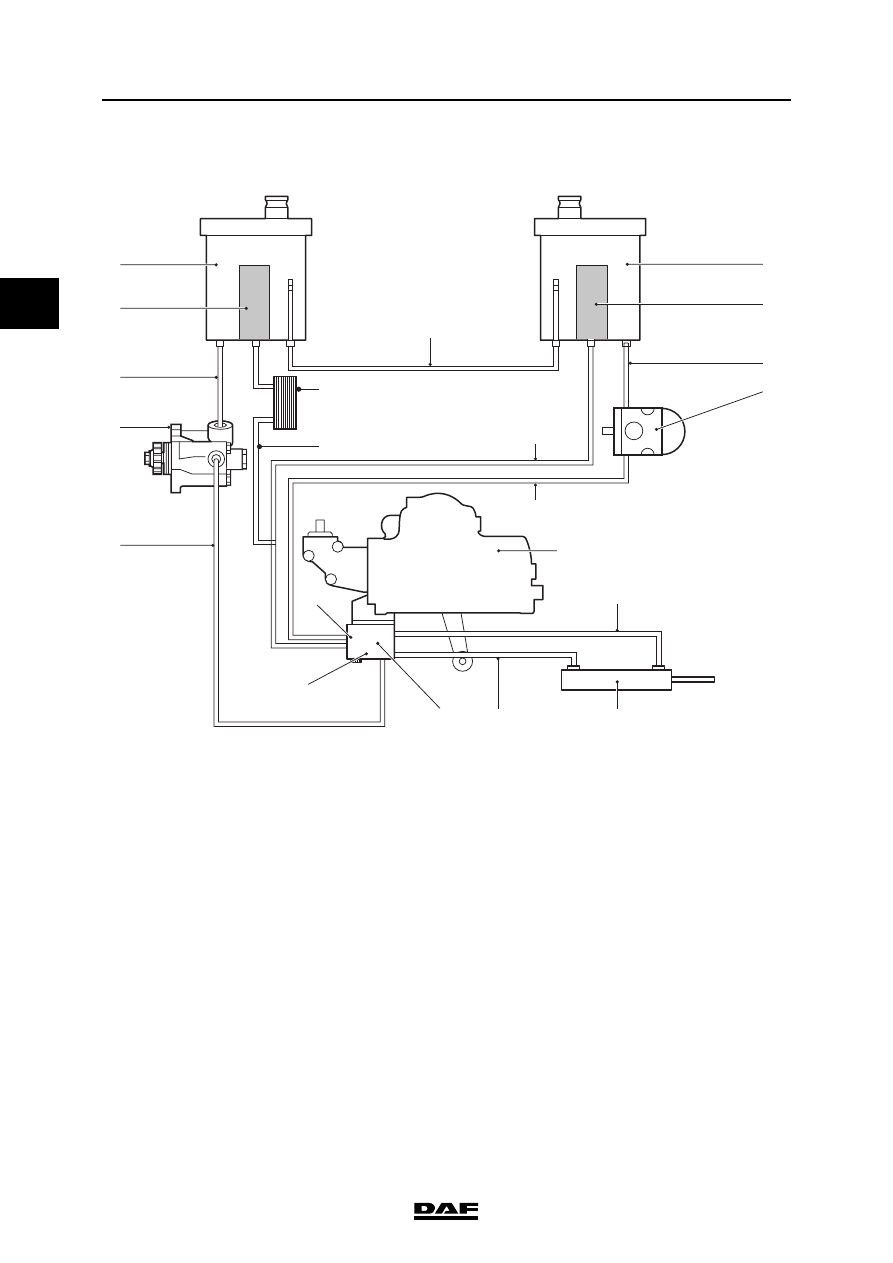

2.4 OVERVIEW DRAWING, DUAL-CIRCUIT SYSTEM WITH SLAVE CYLINDER

4

R1

R2

P2

P1

C1

C2

+

1

3

5

7

13

15

16

14

9

19

17

18

10

11

12

6

20

2

S700913

8

21

1.

Main steering pump reservoir

2.

Filter

3.

Main steering pump supply pipe

4.

Main steering pump

5.

Main steering pump delivery pipe

6.

Valve housing

7.

Steering box

8.

Main steering pump return pipe

9.

Slave cylinder pipe

10.

Slave cylinder

11.

Slave cylinder pipe

12.

Connection pipe reservoirs

13.

Emergency steering pump reservoir

14.

Filter

15.

Emergency steering pump supply pipe

16.

Emergency steering pump

17.

Emergency steering pump delivery pipe

18.

Emergency steering pump return pipe

19.

Main steering pump output indicator

20.

Emergency steering pump output

indicator

21.

Oil cooler
