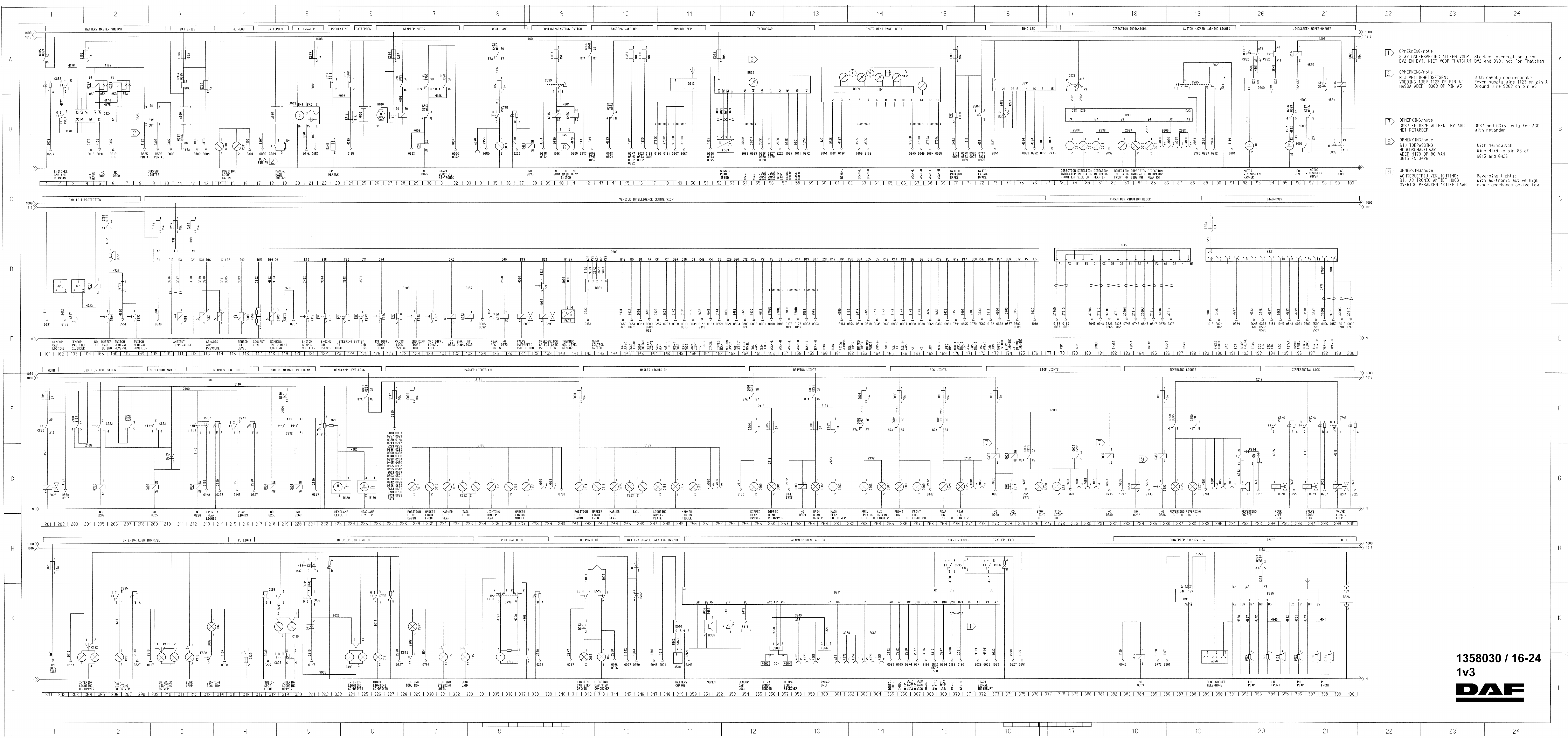

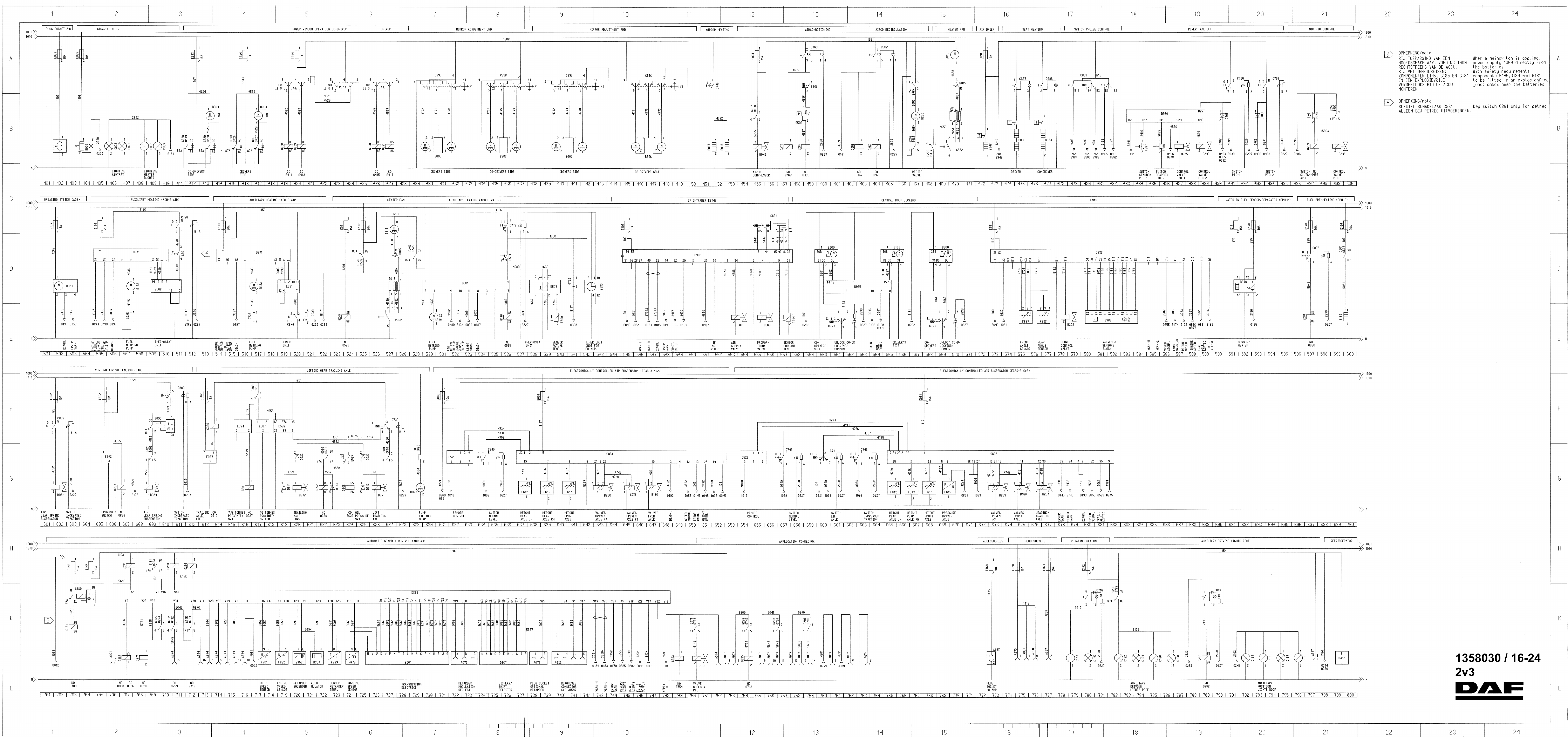

CHANGES IN THE ELECTRICAL SYSTEM
Changes in the electrical system from chassis number 0E570448
CF65/75/85 series
2-2
Section
diagram
Electrical system
Changes
From chassis
number
29
EMAS
Circuit in power supply after contact
changed.
Wire 3157 changed to 3003. Pins A16
and A17 changed to B4 and B5.
0E595070
30
AGC
Circuit in power supply after contact
changed.
Wire 5722 in connector A074 on pin19
added.
0E578830
32
PTO
Activation of 2
nd
PTO via VIC added.
0E602132
33
Roof spotlights/cooler
box/rotating beams
Wire 1258 (rotating beams power
supply) changed from 1154.
0E595070
34A
ECAS-3 (4x2)
Circuit in power supply after contact
changed.
0E595070
34B
ECAS-2 (6x2)
Circuit in power supply after contact
changed.
0E595070
37
Electric drop glass/cen-
tral door locking/roof
hatch, SH cab
Fuse E026 changed to E084. Wire
1105 changed to 1101.
0E595070
42
Hydronic 10 (ACH-EW)
cab heater with timer
Wire 4595 changed to 5241.
0E602132
43
UPEC/Cummins/AGC
application connector
Relay G350 (reversing lights) added
0E595070
44
EBS
Circuit in power supply after contact
changed.
Switch C890, third brake integration
added.
0E595070
46
Alarm system/battery
charger for BV3 alarm
Circuit in power supply after contact
changed.
0E595070
47
Plug sockets, FA/FT
Fuse E026 changed to E036. Fuse
E168, wire 1175, socket A038 added.
Wire 1105 changed to 1103.
0E595070
50
Water separator
Preline, “water in fuel” sensor.
0E590212
51
AS Tronic
AS Tronic added.
0E602132
