CF65/75/85 series

General location of components

LOCATION OF COMPONENTS

1-21

1

2

3

4

E581

Control switch, Eberspächer
Airtronic cab heater timer

In rear wall, driver’s side

2

E584

Proximity switch for axle-load
protection lifting gear (7.5 tons)

Next to distribution box, inside of
chassis on co driver’s side, front of
driven axle

9

E592

Reversing light operating switch

Gearbox, driver’s side

3

E593

Neutral position switch

Gearbox, driver’s side

3

E595

Gearbox gate protection operating
switch

Gearbox, driver’s side

3

F000

Control switch for parking brake

Behind radio panel cover

4

F087

Control switch, gearbox PTO

Gearbox, driver’s side

3

F097

Proximity switch for trailing axle
mechanical lifting gear

Next to distribution box, inside of
chassis on co driver’s side, front of
driven axle

9

F120

Clutch protection switch

Gearbox, driver’s side

3

F533

Speed sensor (4-pin, 1

st

)

Gearbox, driver’s side

3

F603

Transmitter, ultrasonic

Under roof console, driver’s side

2

F604

Receiver, ultrasonic

Under roof console, co-driver’s side

2

F651

Ambient temperature sensor

Behind bumper, driver’s side

3

F652

Air dryer heating element

On APU unit, under cab, co-driver’s
side

6

F656

Coolant level sensor

Rear of expansion tank

3

F673

Sensor, engine oil level and
temperature

In engine oil sump, driver’s side

8

F676

Cab tilting cylinder sensor

Next to cab tilting cylinder in side
member, co-driver’s side

8

F686

Alarm system radar sensor

In roof console, driver’s side

2

G014

Relay, glow element

On engine block, driver’s side

7

G052

Relay, mechanical lifting gear motor

In distribution box, inside of chassis
on co-driver’s side, front of driven
axle

9

8

 200332

5

LOCATION OF COMPONENTS

General location of components

CF65/75/85 series

1-22

1

2

3

4

G066

Relay, mechanical lifting-gear
takeover

In distribution box, inside of chassis
on co-driver’s side, front of driven
axle

9

G257

Recirculation valve micro-relay

Right-hand side of heater unit

6

G258

Recirculation valve micro-relay

Right-hand side of heater unit

6

G267

Air conditioning micro relay

Right-hand side of heater unit

6

G279

Air conditioning micro relay

Right-hand side of heater unit

6

G299

Relay, roof spotlights

In roof console, driver’s side

8

G367

Relay, main switch power supply

In main switch electronic unit
(D924)

5

G368

Relay, main switch earth

In main switch electronic unit
(D924)

5

G380

Relay, mechanical lifting axle
upwards

In distribution box, inside of chassis
on co-driver’s side, front of driven
axle

9

G381

Relay, mechanical lifting axle
(7.5 tons)

In distribution box, inside of chassis
on co-driver’s side, front of driven
axle

9

G535

CAN distribution block

On attachment plate under PCB,
central box

1

8

 200332

5

CF65/75/85 series

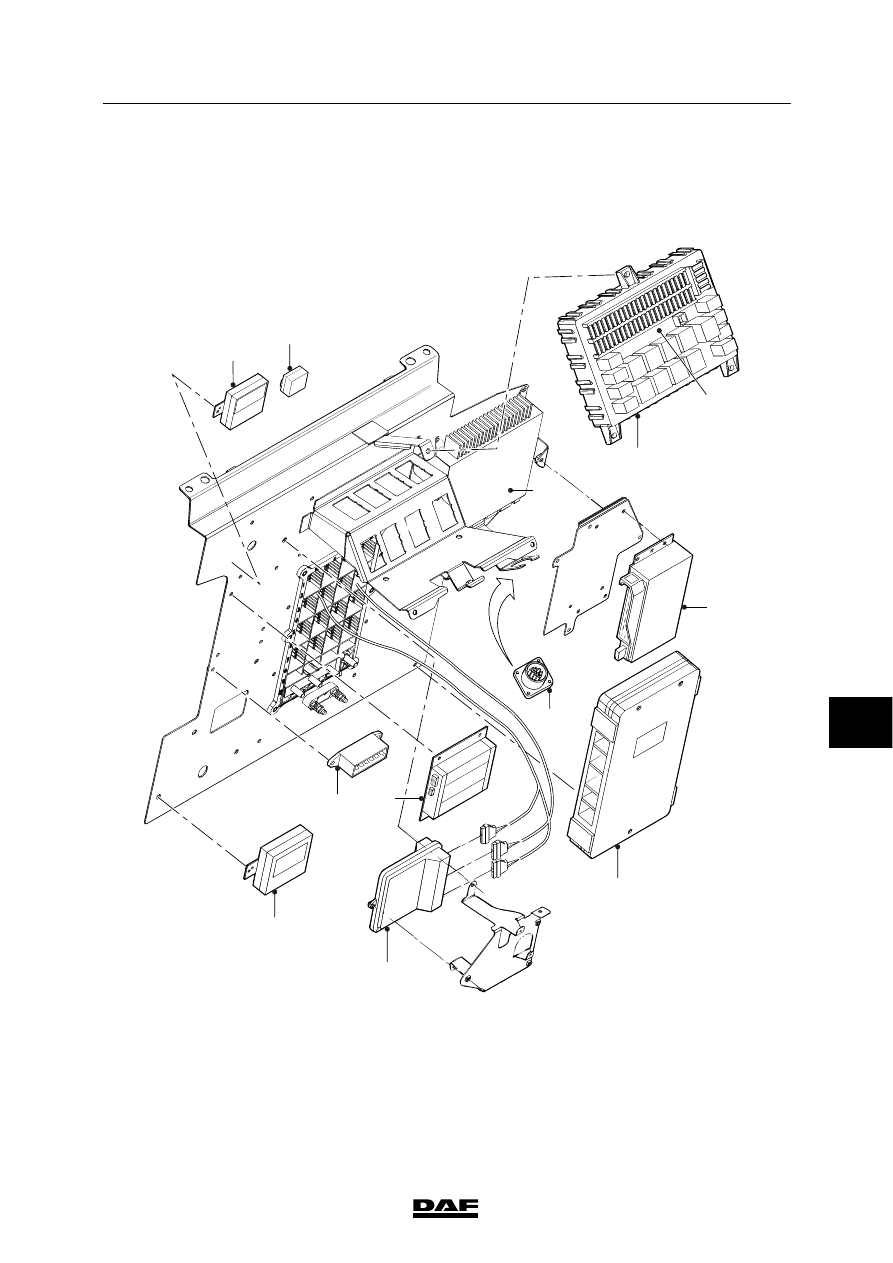

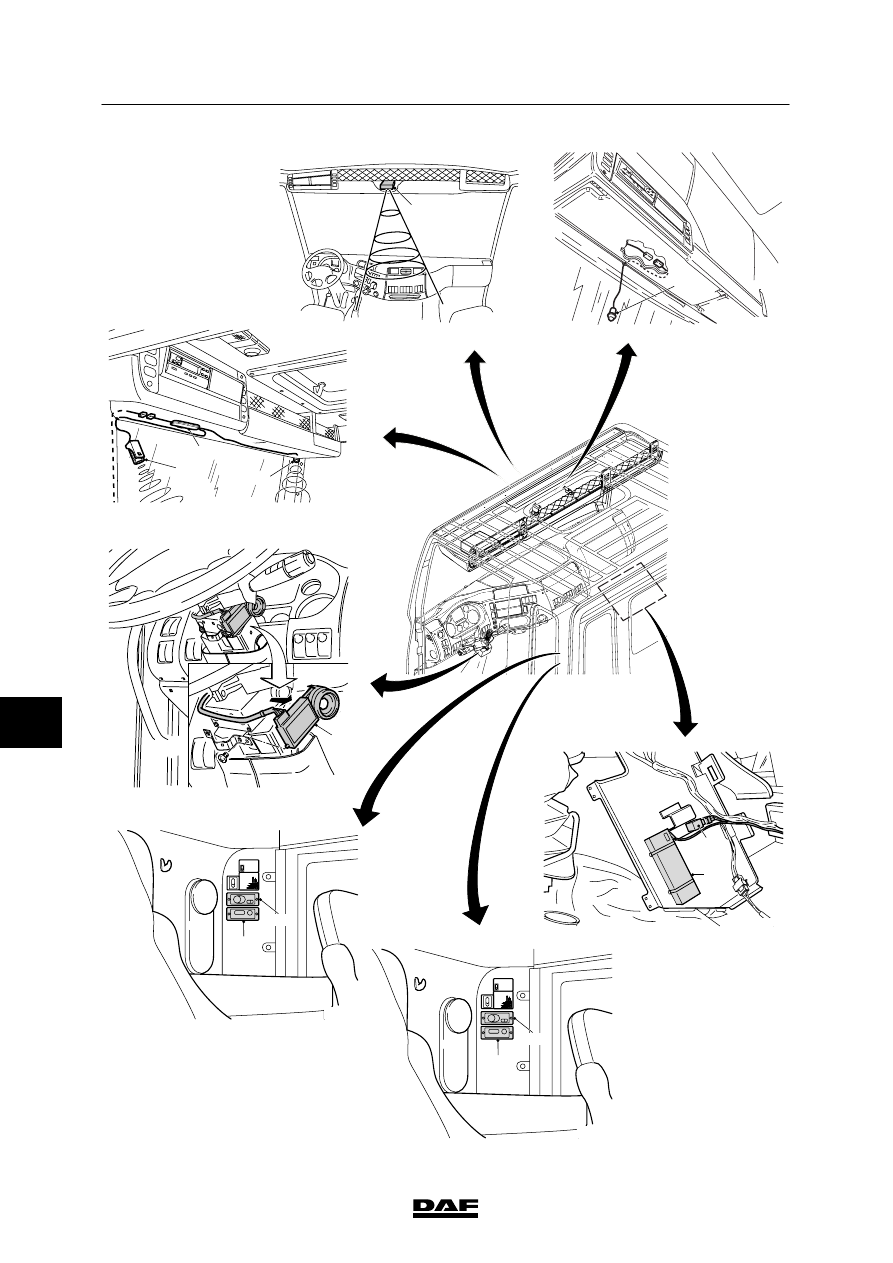

Location of components in relation to

circuit diagram: 1358030/25

LOCATION OF COMPONENTS

1

E501914





D866

D900

A021

D902

D850
D880
D977

D851
D802

D911

D931

G535

D895

D929

D609
D610
D710
D782
D783

8

 200332

5

LOCATION OF COMPONENTS

Location of components in relation to
circuit diagram: 1358030/25

CF65/75/85 series

2

E501134

E501026

E501107

F604

D909

F603

E501108

F686

E501106

D715

E501077

A510

D910

E501097

E580

E579

E501014

E566

E581

E501080

D912

8

 200332
