DAF CF65, CF75, CF85 Series . Manual - part 706

5

CF65/75/85 series

Location of components in relation to

circuit diagram: 1358030/16-24

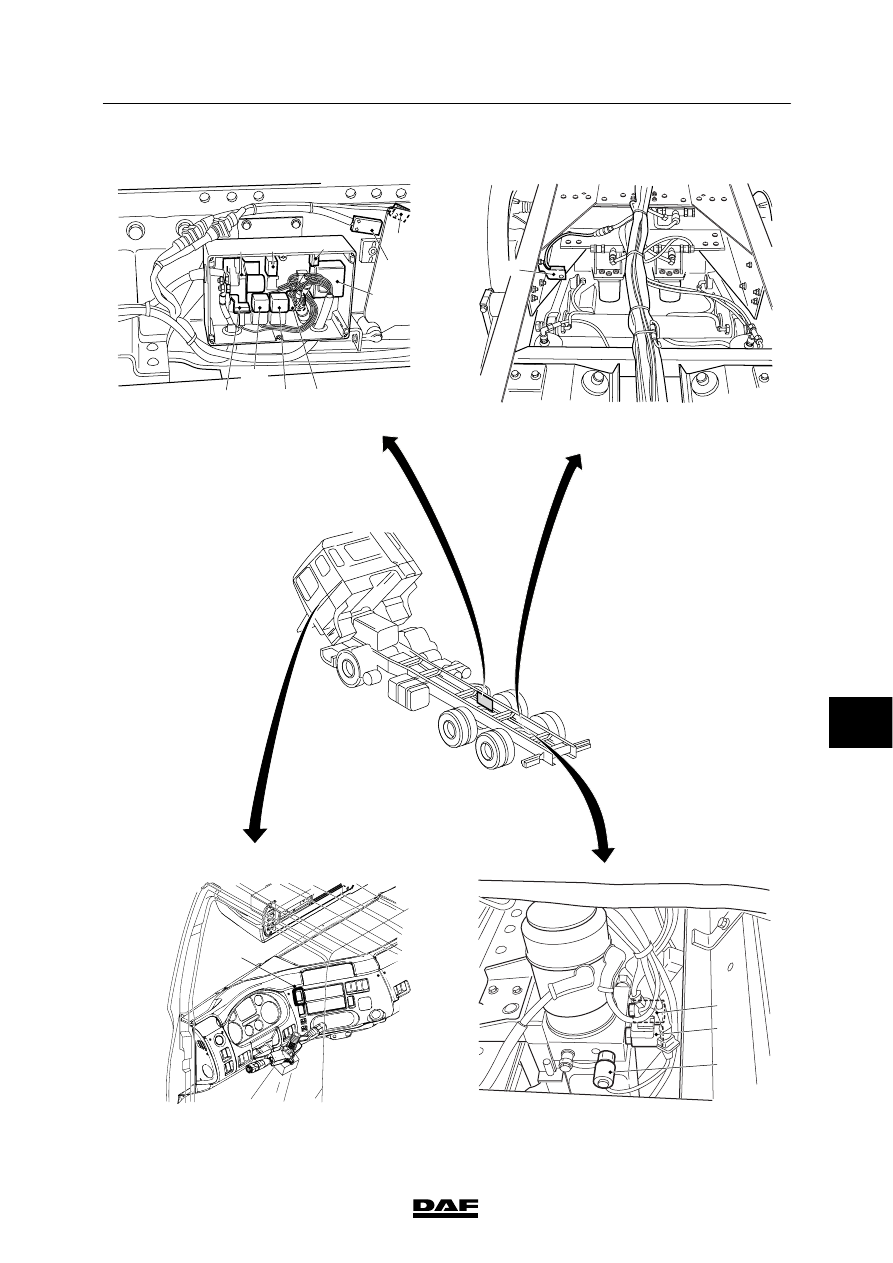

LOCATION OF COMPONENTS

9

E501476

E501466

G066

D612
D613

D622

G381

D503

D623

G380

G052

E584

E507

D611

E501472

E501473

F097

E501474

C704

E501475

B071

B072

E524

8

 200332

5

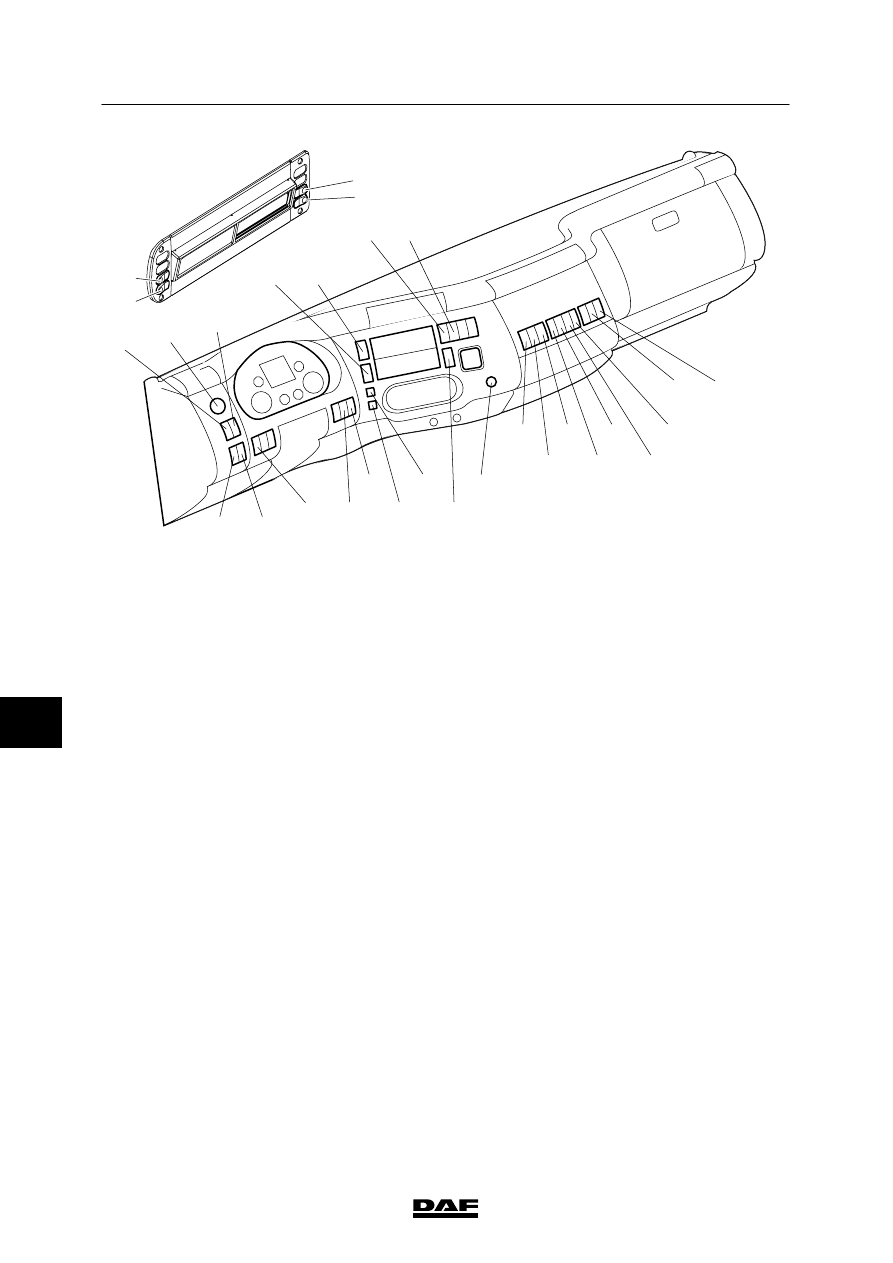

LOCATION OF COMPONENTS

Location of components in relation to
circuit diagram: 1358030/16-24

CF65/75/85 series

10

E501860

C835

C765

C836

C837
C859

C778
C844

C725

C813

C716

C622

C741

C740

C773

C727

C749 C737

C742

C814

C858

C764

C763

C840

C760

C748

C802

D904

C735

C736

C744

C853

C750

C751

8

 200332

5

CF65/75/85 series

General location of components

LOCATION OF COMPONENTS

1-15

1.4 LOCATION OF COMPONENTS IN RELATION TO CIRCUIT DIAGRAM:

1358030/25

Column 1

=

basic codes of component

Column 2

=

description

Column 3

=

location

Column 4

=

page number reference

1

2

3

4

A000

FA drawn vehicle socket (7-pin)

Chassis rear end

5

A001

Socket, rear fog lamp, reversing
light, FT trailer (7-pin)

Behind cab

5

A004

Socket, ABS/EBS, FA drawn
vehicle (7-pin)

Chassis rear end

5

A007

24V socket, 2-pin

Under radio panel, driver’s side

8

A021

Diagnostics socket (16-pin)

Under step-up bracket, co-driver’s
side

1

A076

Telephone socket

Behind radio panel cover

4

A510

Alarm system battery

Under foot rest, co-driver’s side

2

B015

Heater unit with resistor

Middle of dashboard

6

B026

CB set connector

In roof console, driver’s side

4

B071

Mechanical lifting-gear lifting valve

On mechanical lifting-gear pump,
intermediate side member, behind
driven axle

9

B072

Mechanical lifting-gear lowering
valve

On mechanical lifting-gear pump,
intermediate side member, behind
driven axle

9

B176

Reversing buzzer

In rearmost chassis cross member

3

B182

Thermoline heating element

Next to side member, co-driver’s
side next to battery pack

5

B241

Fuel filter/water separator heating
element sensor

Rear of cab, driver’s side

5

B243

Cross-axle differential lock
operation valve

In chassis side member, above rear
axle, driver’s side

3

8

 200332

5

LOCATION OF COMPONENTS

General location of components

CF65/75/85 series

1-16

1

2

3

4

B251

Neutral position buzzer, cab tilting

Against side member, front of
stepwell, co-driver’s side

3

B378

Heating element for fuel filter/water
separator

Under cab rear, driver’s side

5

C622

Switch, lighting

Dashboard panel, driver’s side

10

C704

Mechanical lifting-gear switch

Dashboard, radio panel

9

F006

Differential lock control switch, 1

st

differential

In chassis side member, above rear
axle, co-driver’s side

3

C716

Switch, rotating lights

Roof console, driver’s side

10

C725

Switch, work lamp, loadspace
lighting

Dashboard, instrument panel

10

C727

Front/rear fog lamp switch

Dashboard, instrument panel

10

C735

Switch, night lighting

Dashboard, middle of console

10

C736

Roof hatch switch

Dashboard, middle of console

10

C737

Switch, ASC

Dashboard, middle of console

10

C739

Switch, trailing axle lifting gear (leaf
springs or air suspension)

Dashboard, radio panel

10

C740

Switch, normal driving height

Dashboard, radio panel

10

C742

Switch, traction assistance, air
suspension or inter-axle lock
differential

Dashboard, radio panel

10

C744

Switch, co-driver’s door

Dashboard, middle of console

10

C748

Cross-axle differential lock
operation switch

Dashboard, radio panel

10

C750

Switch, engine PTO

Dashboard, instrument panel

10

C751

Switch, gearbox PTO

Dashboard, instrument panel

10

C760

Air conditioning switch

Dashboard, radio panel

10

C763

Dimming instrument lights

Dashboard, instrument panel

10

C764

headlamp height adjustment

Dashboard, instrument panel

10

C765

Switch, hazard warning lights

Dashboard, middle of console

10
