DAF CF65, CF75, CF85 Series . Manual - part 675





5

CF65/75/85 series

Description of components

COMPONENTS

2-9

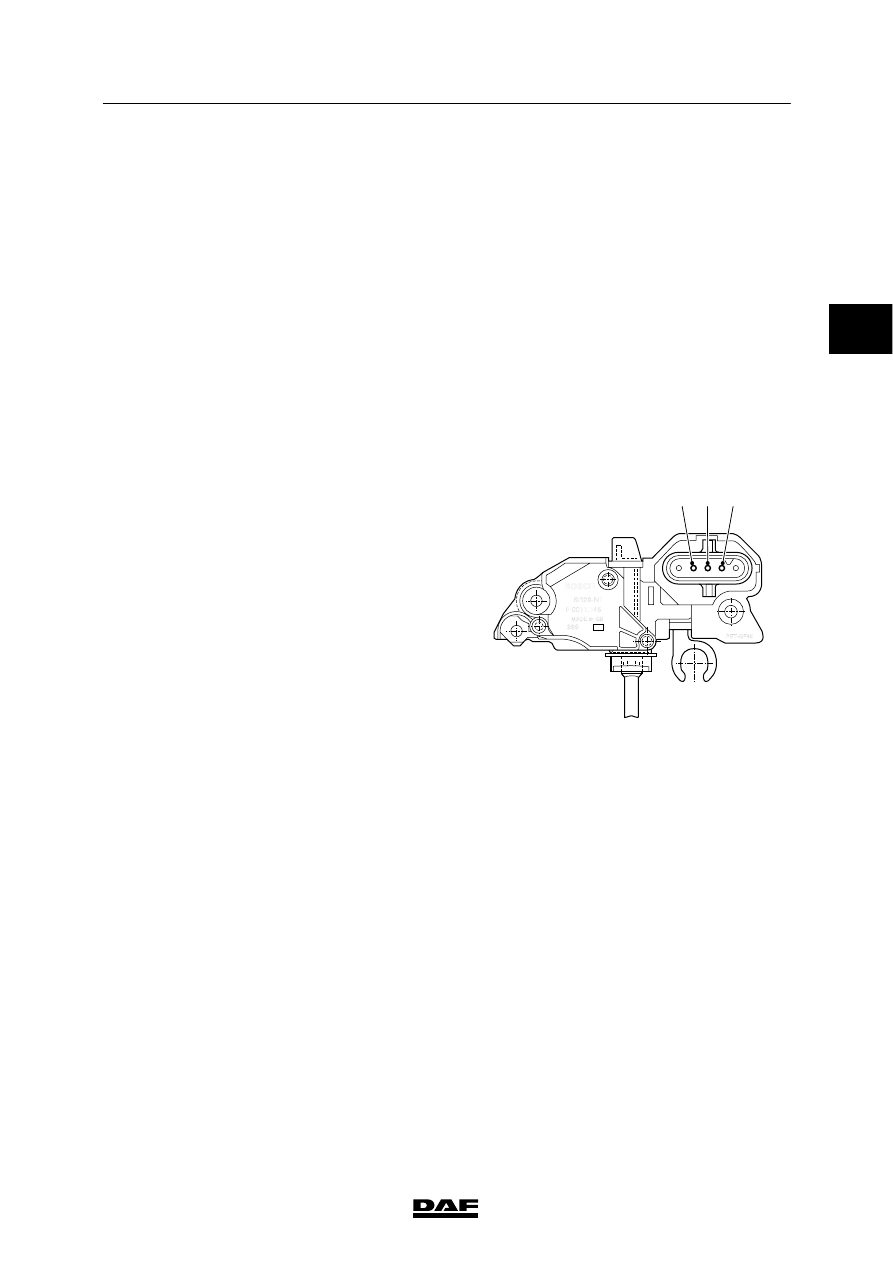

Connection 15
When the ignition has been turned on (contact
made), power is supplied to the alternator via
connection 15 (1010). The controller uses this
power to activate pre-excitation
(self-energising). If there is an open circuit in this
connection, the alternator will not produce any
power until it reaches a speed of about 5000
rpm. This corresponds to an engine speed of
around 1500 rpm. The alternator will energise
itself when it reaches this speed.

Sens connection
The sens connection can be used to
compensate for voltage losses in B+. There are
voltage differences between the alternator and
the battery. Voltage regulation can be improved
if these voltage variations can be controlled. The
sens connection is connected to terminal 30 on
the starter motor.

L connection
The L connection is connected to the VIC
electronic unit.
This connection is used to activate a fault
message in the master display via the VIC, if
necessary.

L voltage high: no fault
L voltage low: fault

The following faults can be detected via the “L”
connection:
-

Voltage too low (

< 16V)

-

Open circuit in connection 15 (1010)

-

Open circuit in “S” connection

-

Open circuit in “L” connection

These faults are indicated by the yellow
“Alternator fault” warning.

Too high a voltage (red warning) can be
recognised by too high a voltage (

>31 V) on the

VIC electronic unit.

E501129

L

15

S

2

 0202

5

COMPONENTS

Description of components

CF65/75/85 series

2-10

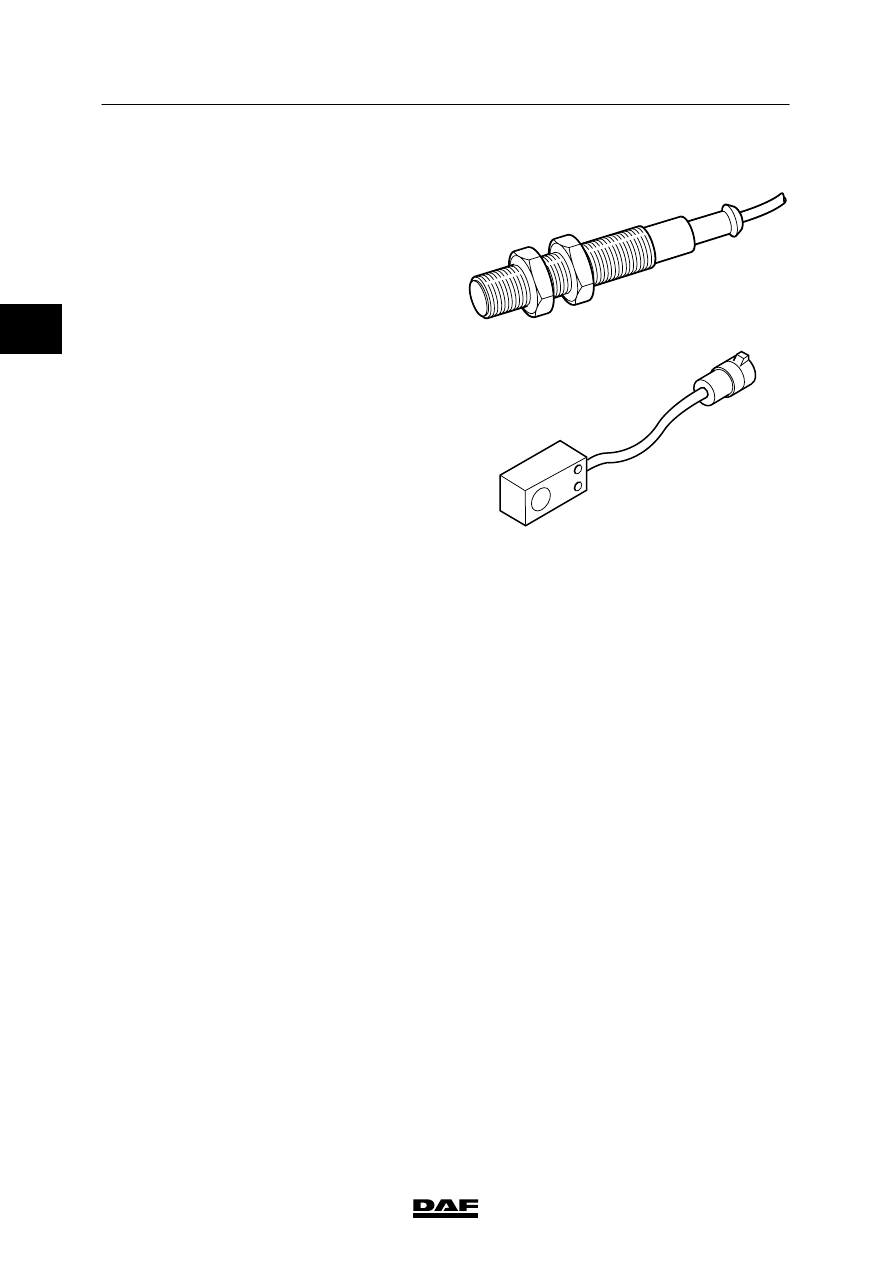

2.7 PROXIMITY SENSORS

The vehicle has a number of proximity sensors,
such as:
-

sensor under the clutch pedal for engine
management

-

cab lock sensor

-

mechanical rear axle lifting-gear

Inductive proximity sensor
An alternating electromagnetic field is generated
by a pulsating current in a coil (oscillation).
If a metal object is introduced into the
electromagnetic field, eddy currents will occur in
that metal object.
These eddy currents will “damp” the magnetic
field in the coil, so that the current in the coil
changes.
This change results in an output voltage.

Inspection
Placing a metal object in front of the sensor
(inductive sensor) makes it possible to check the
output voltage using a multimeter set to the
direct voltage range.

W 5 01 014

E500551

2

 0202

5

CF65/75/85 series

Description of components

COMPONENTS

2-11

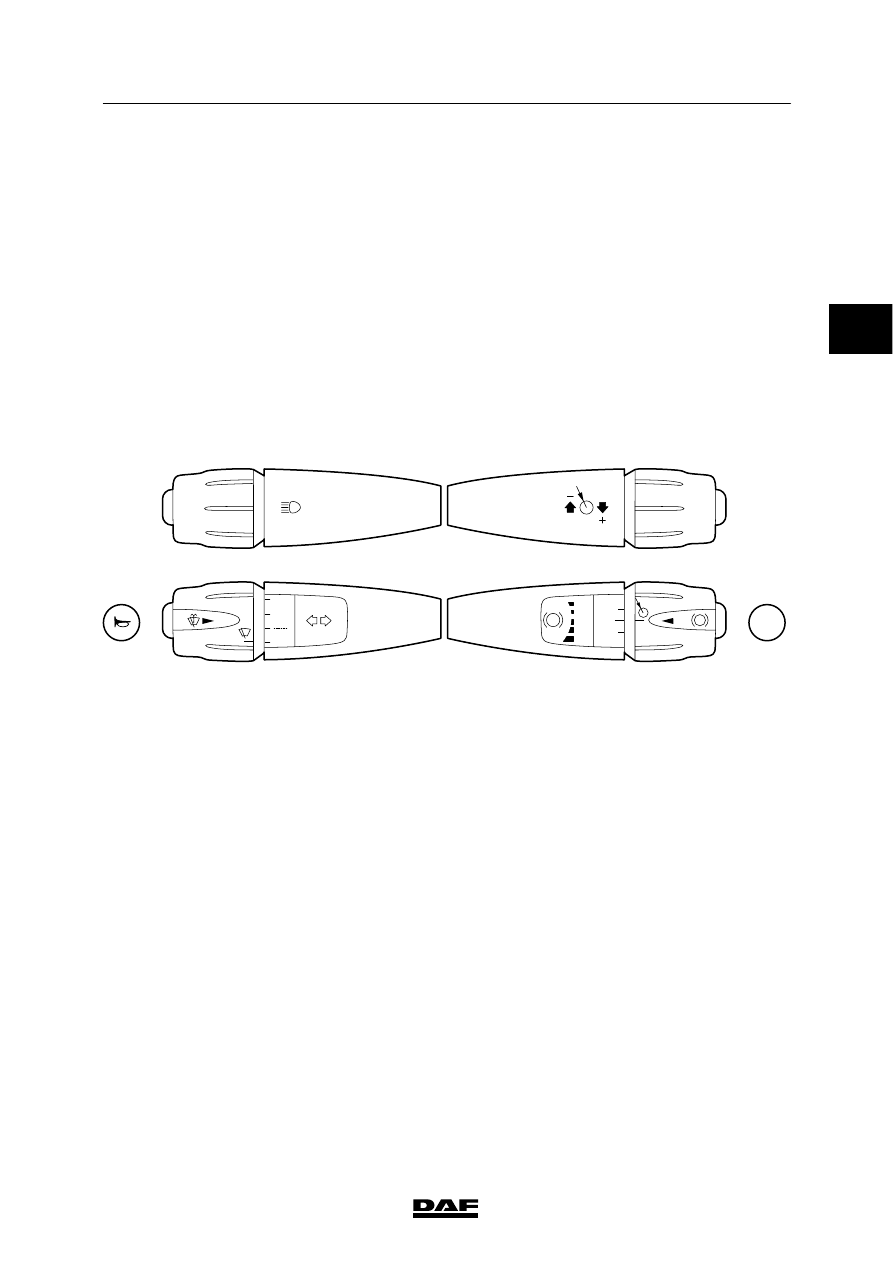

2.8 STEERING COLUMN SWITCH

The steering column switches in the CF vehicle
series have been re-designed.
Both the design and the functionality have
changed.
The advantages of the new switches are:

-

They are short-circuit proof

-

Use of reed switches ensures a longer
service life

-

The intarder function has been integrated
into the right hand switch; consequently
there are two switches on the steering
column

-

All cruise-control and engine speed control
functions have been integrated into the right
hand steering column switch

E501135

R

SET

OFF

OFF

0

LIM

SET

RES

2

1

0

R

2

 0202

5

COMPONENTS

Description of components

CF65/75/85 series

2-12

There are always two stalks on the steering
column.

The left hand stalk has one model. Its functions
are:
-

Left/right direction indicator

-

Main/dipped beam

-

Horn

-

Windscreen wiper speed/intermittent/wash

The right hand stalk has two models:
-

With intarder function

-

Without intarder function

The functions of the right hand stalk are as
follows:

Model 1:
Cruise control function (speed up/slow
down/memory)
Engine speed control (speed up/slow down/fixed
speed PTO)

Model 2:
Same functions as version 1
Intarder intarder/V-constant function

2

 0202
