XE engine inlet/exhaust system

TECHNICAL DATA

ΧΦ65/75/85 series

4

0

7.2 TIGHTENING TORQUES

The tightening torques specified in this section
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.
When attachment bolts and nuts are replaced, it
is important that - unless stated otherwise - these
bolts and nuts are of exactly the same length and
property class as those removed.

Turbocharger

(1) Use Loctite 243 to secure
(2) Fasten with Copaslip

Glow element

Air cooler

Heat shield attachment bolts

30 Nm

(1)

Turbine housing clamp plate attachment nut

15 Nm

Exhaust manifold flange/turbocharger
attachment nuts

60 Nm

(2)

Elbow attachment with exhaust brake on
turbocharger

40 Nm

Oil supply pipe banjo bolt

90 Nm

Attachment bolts

30 Nm

Air cooler hose clamps

10 Nm

TECHNICAL DATA

7-4

©

 200416

XE engine inlet/exhaust system

0

ΧΦ65/75/85 series

4

©

 200416

8-1

Engine brake, XE engine

TECHNICAL DATA

ΧΦ65/75/85 series

4

0

8. ENGINE BRAKE, XE ENGINE

8.1 GENERAL

DEB solenoid valve

DEB oil pressures

DEB settings

Exhaust brake

Resistance rating
Cold (20

C)

32,6 - 36,8

Hot (80

C - 100C)

41,8 - 46,1

Minimum cut-in pressure

1.5 bar

Maximum service pressure

4.5 bar

Maximum pressure of DEB control valve

8.0 bar

DEB clearance

1.40 mm

Calibration of butterfly valve opening:
- with DEB

14 mm

- without DEB

10.5 mm

TECHNICAL DATA

8-2

©

 200416

Engine brake, XE engine

0

ΧΦ65/75/85 series

4

8.2 TIGHTENING TORQUES

The tightening torques specified in this paragraph
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.
When attachment bolts and nuts are replaced, it
is important - unless stated otherwise - that these
bolts and nuts are of exactly the same length and
property class as those removed.

DEB

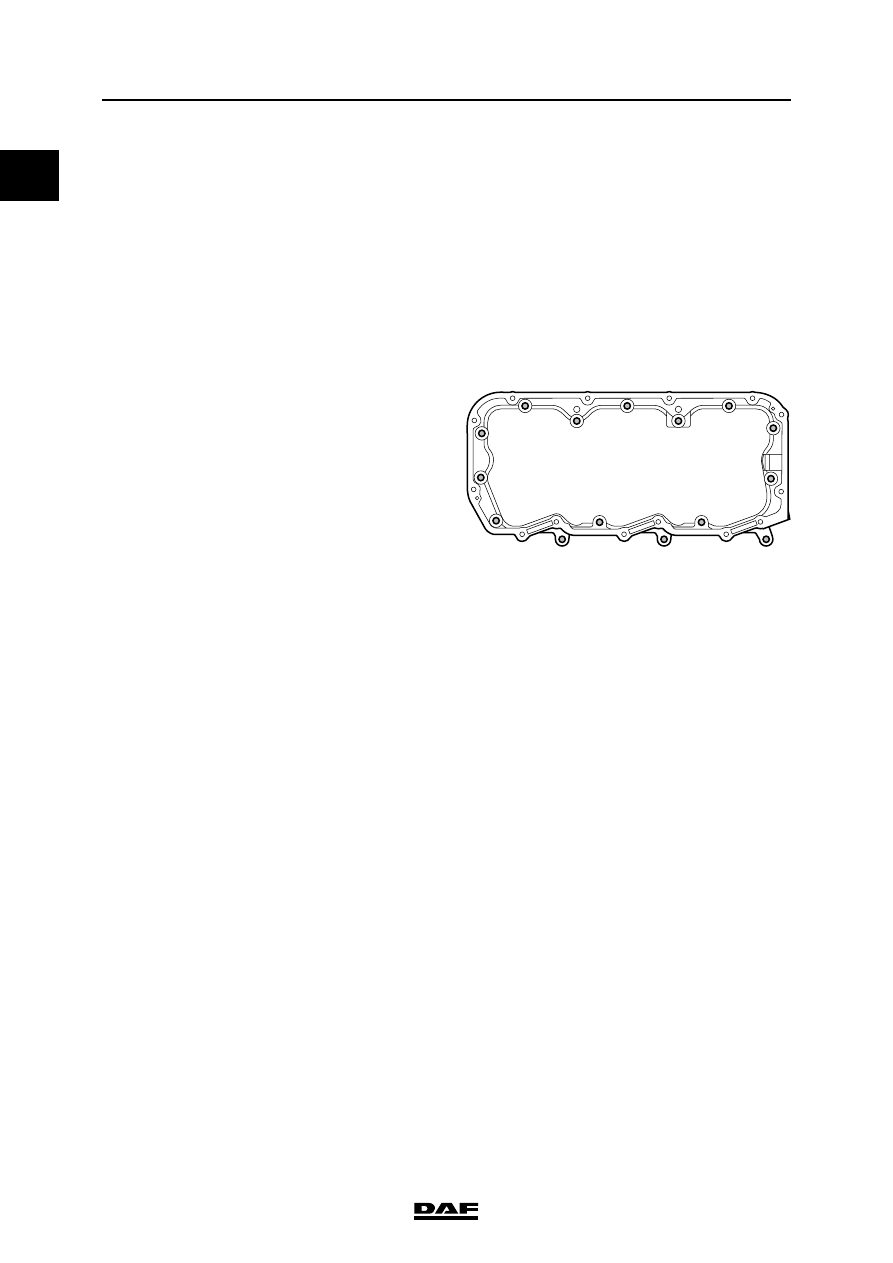

(1) Tighten the attachment bolts in the order indicated

Exhaust brake

(1) Fasten with Copaslip
(2) Use Loctite 243 to secure

1

5

2

6

4

12

10

13

9

15

7

11

8

14

3

M200942

Valve cover attachment bolts

25 Nm

Rocker setting bolt lock nut

40 Nm

Bridge piece setting bolt
lock nut

40 Nm

DEB attachment bolts

110 Nm

DEB set screw nut

25 Nm

Solenoid valve

20 Nm

Wiring harness attachment bolt

5 Nm

Spring plate attachment bolt

12.5 Nm

Valve sleeve attachment bolts

30 Nm

(1)

Exhaust brake elbow attachment nuts on turbo-
charger

40 Nm

(1)

Heat shield attachment bolts

30 Nm

(2)
