DAF CF65, CF75, CF85 Series . Manual - part 403

©

 200416

2-3

CE engine fuel system

TECHNICAL DATA

ΧΦ65/75/85 series

4

0

2.2 TIGHTENING TORQUES

The tightening torques specified in this section
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.
When attachment bolts and nuts are replaced, it
is important that - unless stated otherwise - these
bolts and nuts are of exactly the same length and
property class as those removed.

Electronic unit cooling plate

Low-pressure fuel pipes

High-pressure pump

High-pressure fuel pipe

Fuel rail

Injector pipes

Fuel supply pipe

Injectors

Attachment bolts holding the electronic unit to the
cooling plate

10 Nm

Attachment bolts holding the cooling plate to the
engine block

24 Nm

VOSS quick-release coupling fittings

18 Nm

Banjo bolts

24 Nm

VOSS quick-release coupling fittings

24 Nm

Fuel return overflow valve in cylinder head

24 Nm

Attachment nuts holding the high-pressure pump
to the timing gear case

25 Nm

High-pressure pipe union nut

22 Nm

Attachment bolts

24 Nm

Pressure-limiting valve

100 Nm

Injector pipe union nuts

22 Nm

Fuel supply pipe nut

50 Nm

Injector clamping bracket attachment bolts

10 Nm

Injector electrical connection

1.5 Nm

TECHNICAL DATA

2-4

©

 200416

CE engine fuel system

0

ΧΦ65/75/85 series

4

©

 200416

3-1

CE engine inlet/exhaust system

TECHNICAL DATA

ΧΦ65/75/85 series

4

0

3. CE ENGINE INLET/EXHAUST SYSTEM

3.1 GENERAL

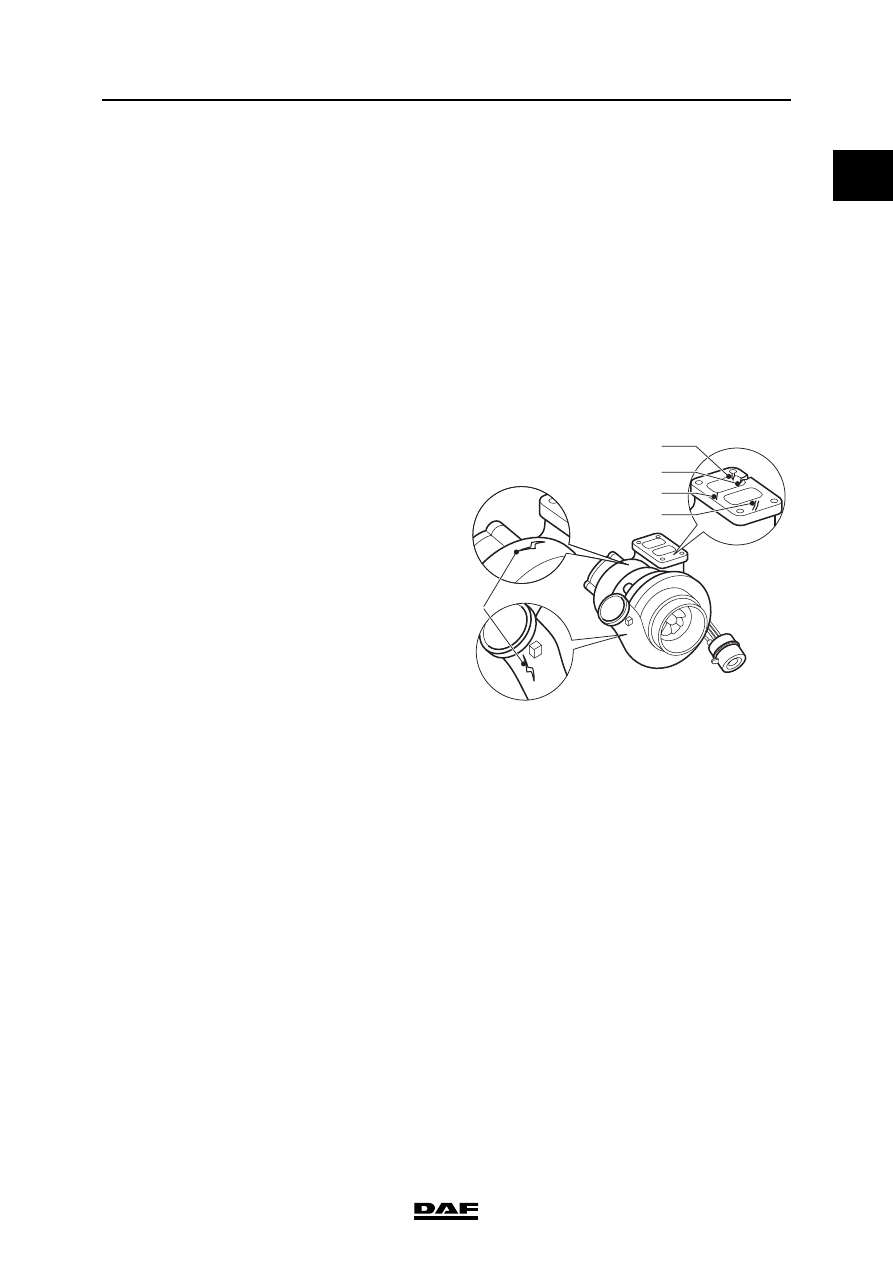

Turbocharger

Rejection standards for cracking
1.

Cracks in the connector flange must not
reach as far as the attachment holes.

2.

Cracks in the connector flange must not
reach from the channels as far as the
exterior.

3.

Cracks in the connector flange may not be
longer than 15 mm.

4.

Cracks in the connector flange must not be
less than 6 mm apart.

5.

There must be no cracks in the housing.

Exhaust gas back pressure

Inlet underpressure

Glow element

CE 136 C

Holset HY 35 W

CE 162 C

Holset HY 35 W

CE 184 C

Holset HX 35 W

Minimum actuating pressure of wastegate cap-
sule under which the control rod will move

2.0 bar

Axial bearing play of compressor shaft

0.038 - 0.093 mm

Radial bearing play of compressor shaft

0.329 - 0.501 mm

1

2

5

3
4

i400784

At full-load engine speed

100 mbar

Maximum back pressure during engine brake ap-
plication

4.3 bar

At full-load engine speed (clean air filter)

25 mbar

At full-load engine speed (clogged air filter)

62 mbar

Resistance value

180 - 220 m



TECHNICAL DATA

3-2

©

 200416

CE engine inlet/exhaust system

0

ΧΦ65/75/85 series

4

3.2 TIGHTENING TORQUES

The tightening torques specified in this section
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.
When attachment bolts and nuts are replaced, it
is important that - unless stated otherwise - these
bolts and nuts are of exactly the same length and
property class as those removed.

Turbocharger

(1) Fasten with Copaslip

Glow element

Air cooler

Attachment nuts, exhaust manifold flange/turbo-
charger

43 Nm

(1)

Oil discharge pipe attachment bolts

23 Nm

Oil supply pipe union

28 Nm

Turbocharger V-clamp

10 Nm

Attachment bolts

14 Nm

Hose clamps

7 Nm
