DAF CF65, CF75, CF85 Series . Manual - part 350

3

CF65/75/85 series

General

CLUTCH

2-9

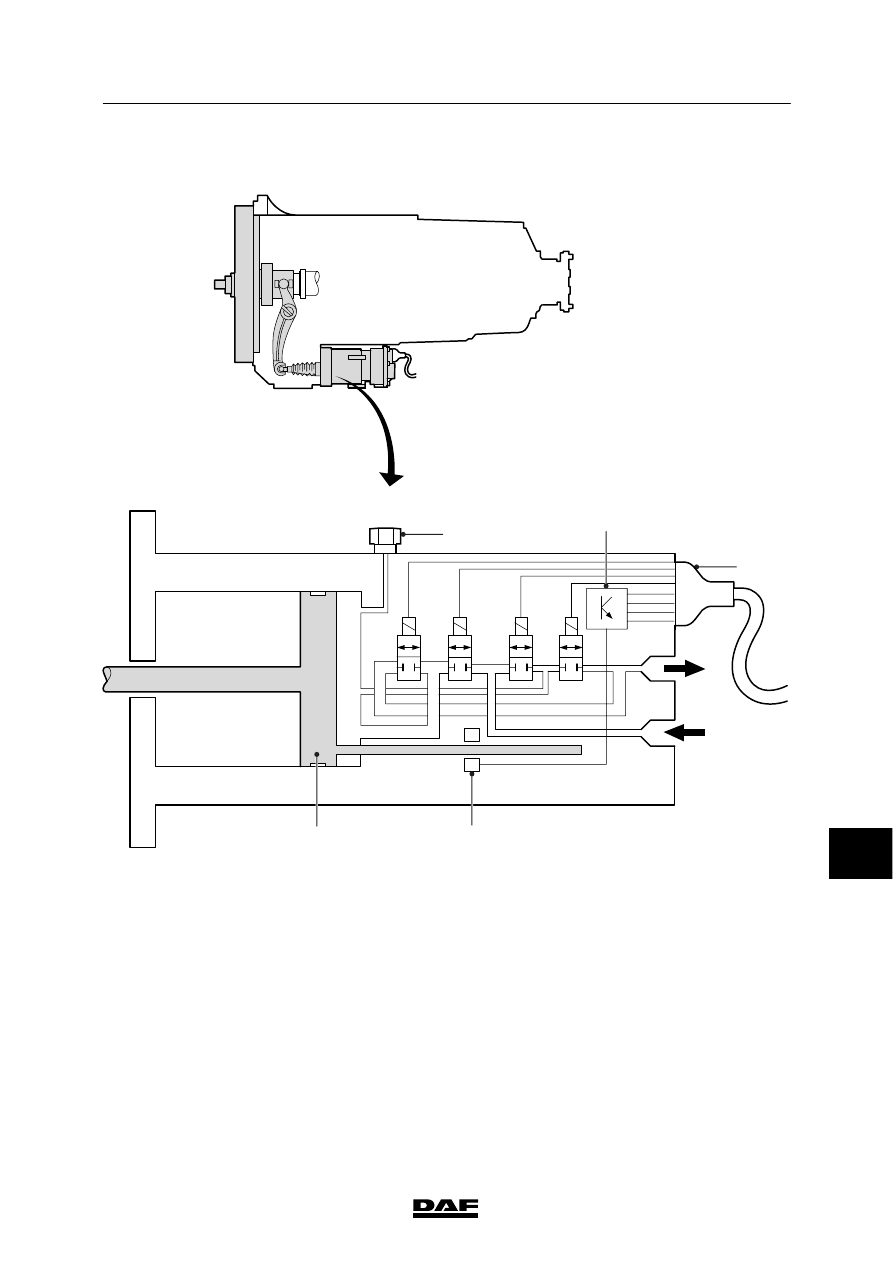

2.6 OVERVIEW DRAWING, AS TRONIC CLUTCH UNIT

3

2

1

4

5

11

6

V300702

7

8

9

10

1.

Bleed screw

2.

Electronic unit

3.

Cable connection to modulator

4.

Bleed

5.

Compressed air connection

6.

Position sensor

7.

“Fast clutching” pneumatic valve

8.

“Fast declutching” pneumatic valve

9.

“Slow declutching” pneumatic valve

10. “Slow clutching” pneumatic valve
11. Operating piston

10

ᓻ 200337

3

CLUTCH

General

CF65/75/85 series

2-10

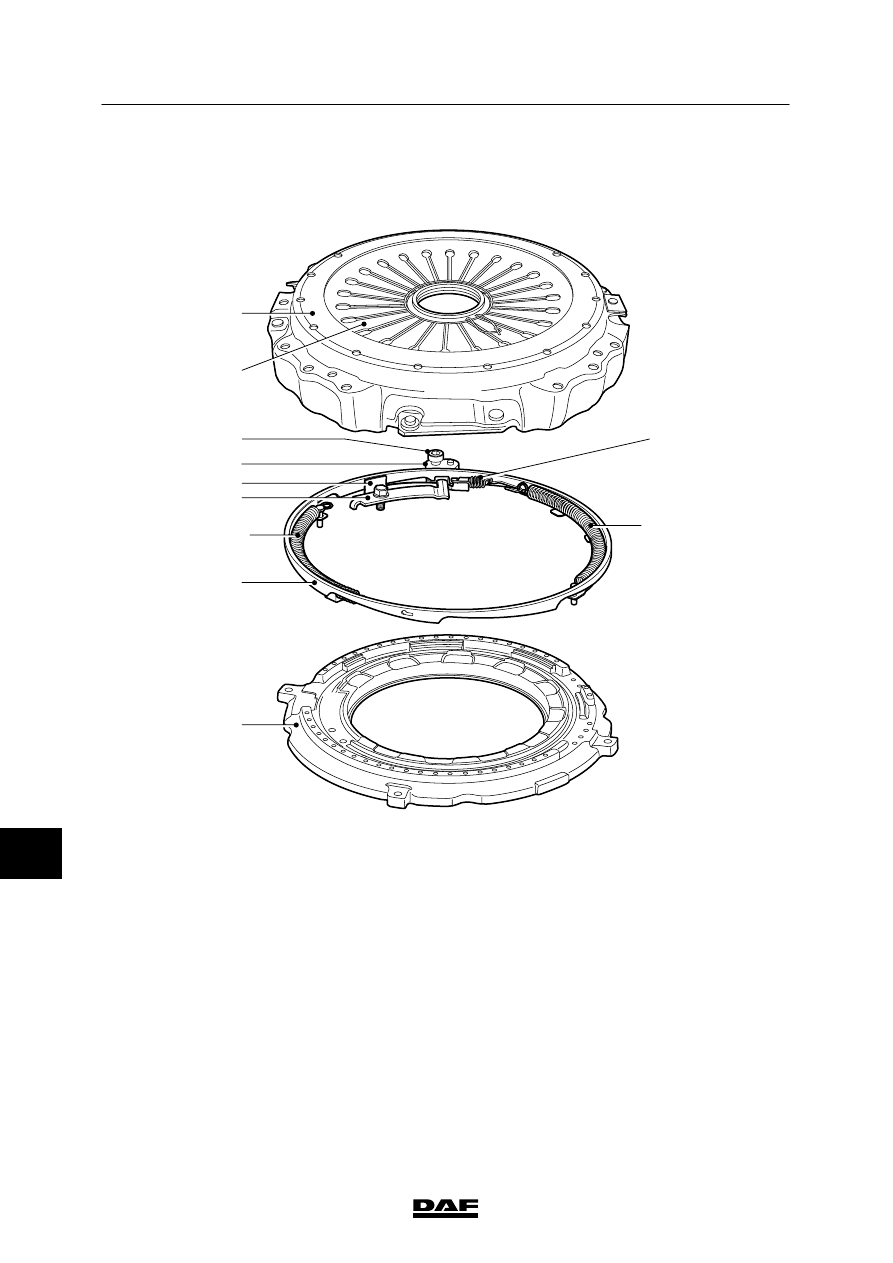

2.7 OVERVIEW DRAWING, AUTOMATICALLY ADJUSTING CLUTCH RELEASE

ASSEMBLY

(The example shown here is a pull-type clutch)

V300487

4

8

3

2
7
5

10

6

1

9

10

The automatically adjusting clutch release
assembly comprises the following parts:
1.

Thrust plate

2.

Stop plate

3.

Stop plate attachment bolt

4.

Clutch release assembly cover

5.

Stop spring

6.

Adjusting ring

7.

Slide plate

8.

Diaphragm spring

9.

Pre-adjusting spring

10. Adjusting spring

10

ᓻ 200337

3

CF65/75/85 series

General

CLUTCH

2-11

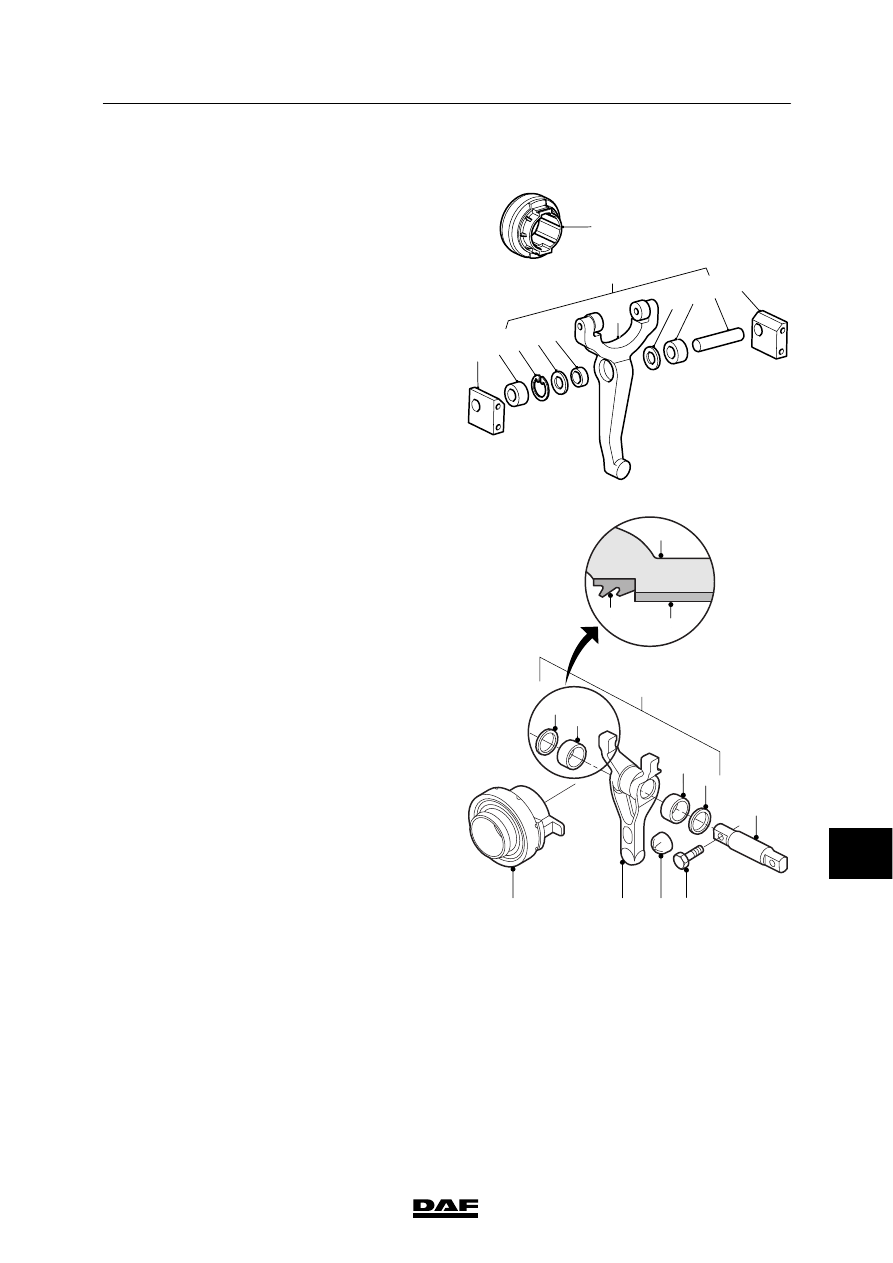

2.8 OVERVIEW DRAWING, CLUTCH LEVER ATTACHMENT TO GEARBOX

ZF 16S-151/181/221
1.

Bearing

2.

Lever assembly

3.

Bracket

4.

Bearing bush

5.

Circlip

6.

Shim

7.

Lever bearing bush

8.

Lever

9.

Shaft

V300439

3

9

5

4

3

1

8

2

6 4

6 7

AS Tronic
1.

Bearing

2.

Lever assembly

3.

Attachment bolt

4.

Bearing bush

5.

Oil seal

6.

Ball cup

7.

Clutch lever

8.

Shaft

7

4

5

8

5

4

4

5

2

1

7

6 3

V300671

10

ᓻ 200337

3

CLUTCH

General

CF65/75/85 series

2-12

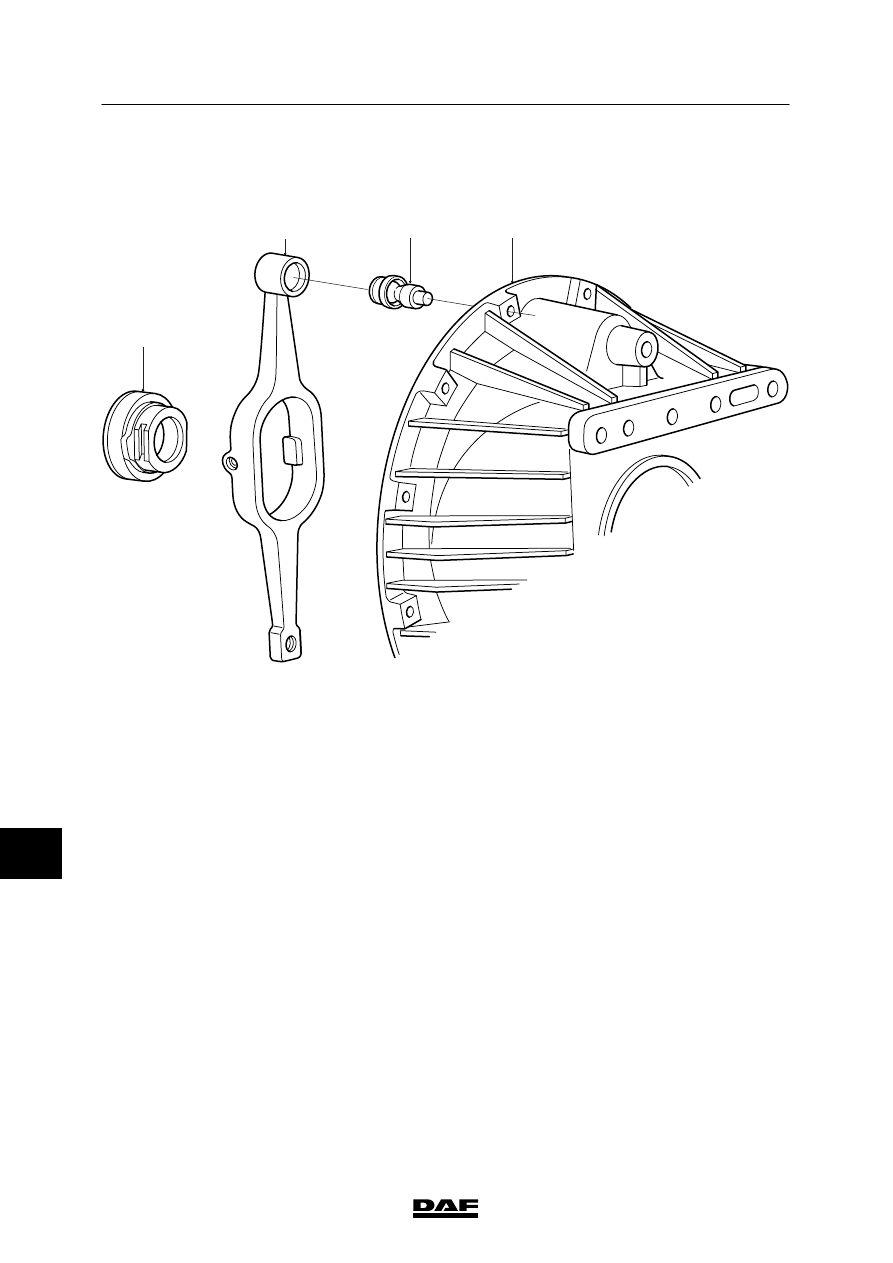

2.9 OVERVIEW DRAWING, CLUTCH LEVER ATTACHMENT TO CLUTCH

HOUSING

V300440

2

3

4

1

1.

Thrust bearing

2.

Lever

3.

Ball joint

4.

Clutch housing

10

ᓻ 200337
