DAF CF65, CF75, CF85 Series . Manual - part 295





3

CF65/75/85 series

Contents

MECHANICAL GEARBOX CONTROL

1

CONTENTS

Page

Date

1.

GENERAL

1-1

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

1.1

Description of mechanical gearbox control

1-1

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

1.2

Overview drawing, gear lever unit

1-2

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

1.3

Overview drawing, gear lever

1-3

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

2.

INSPECTION AND ADJUSTMENT

2-1

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

2.1

Inspection and adjustment of gearbox control LHD/RHD

2-1

0111

. . . . . . . . . . . . . . .

. . . . . .

3.

REMOVAL AND INSTALLATION

3-1

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

3.1

Removal and installation, entire gear lever unit

3-1

0111

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

3.2

Removal and installation, gear lever gaiter

3-3

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

3.3

Removal and installation, gear lever unit inner dust cover

3-6

0111

. . . . . . . . . . . . . .

. . . . . .

3.4

Removal and installation of gear lever ball

3-9

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

3.5

Removal and installation, control rod

3-11

0111

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . .

3.6

Removal and installation, control rod ball joint

3-13

0111

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . .

2

ᓻ 0111

3

MECHANICAL GEARBOX CONTROL

Contents

CF65/75/85 series

2

2

ᓻ 0111

3

CF65/75/85 series

General

MECHANICAL GEARBOX CONTROL

1-1

1. GENERAL

1.1 DESCRIPTION OF MECHANICAL GEARBOX CONTROL

Operating mechanism, LHD
When the gear lever is moved forwards, the
control rod moves backwards.

When the gear lever is moved backwards, the
control rod moves forwards.

When the gear lever is moved left, the control
rod moves right.

When the gear lever is moved right, the control
rod moves left.

Operating mechanism, RHD
In the RHD version, the operating mechanism
remains mounted in place. An additional control
rod, passing over the engine to the right-hand
side of the vehicle, is added to the control
mechanism.

2

ᓻ 0111

3

MECHANICAL GEARBOX CONTROL

General

CF65/75/85 series

1-2

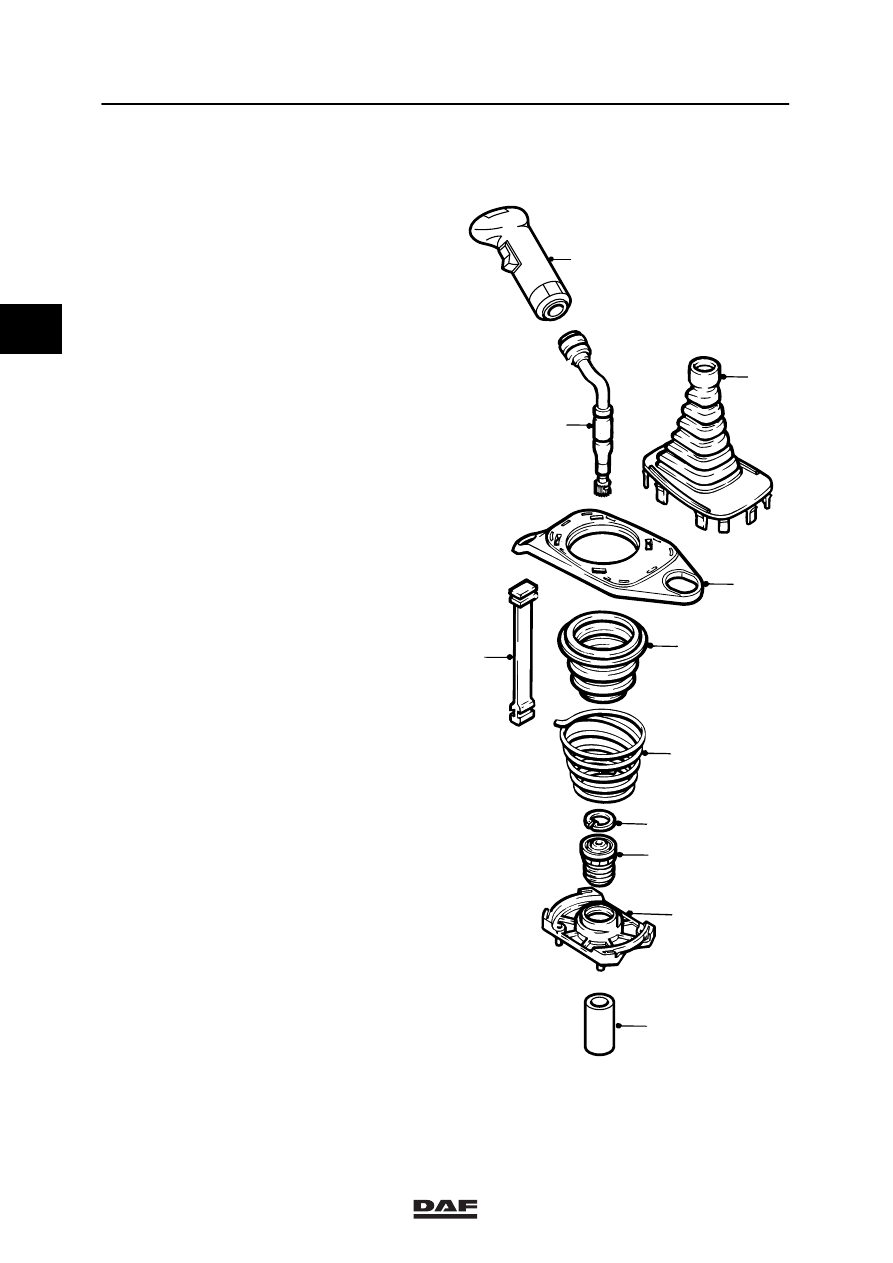

1.2 OVERVIEW DRAWING, GEAR LEVER UNIT

1.

Switch

2.

Gaiter

3.

Gear lever

4.

Retaining plate

5.

Inner gaiter

6.

Attachment tape

7.

Pressure spring

8.

Circlip

9.

Gear lever ball

10. Bearing housing
11.

Spacer sleeve

4

2

1

6

5

7

8

9

10

11

3

V300393

2

ᓻ 0111
