Removal and installation

XE ENGINE

CF65/75/85 series

2

8

4.10 REMOVAL AND INSTALLATION, STEERING PUMP

Removing the steering pump
1.

Clean the steering pump and the

surrounding area.

2.

Remove the suction and delivery pipes from

the steering pump. Collect the steering oil

released from the system.

3.

Immediately plug the openings in the pump

and hoses to prevent dirt entering the

system.

4.

Remove the two attachment bolts in the

timing cover and take the pump from the

timing case.

5.

Check the gear for wear or damage.

6.

Remove the O-ring.

Installing the steering pump
1.

Fit a new O-ring.

2.

Fit the steering pump and tighten the

attachment bolts to the specified torque. See

"Technical data".

3.

Install the suction and delivery pipes of the

steering pump. Fit the banjo bolts. Tighten

the banjo bolts to the specified torque. See

"Technical data".

4.

Fill the oil reservoir with the specified oil. See

"Fluids and lubricants" specifications

manual.

5.

Bleed the steering system.

6.

Check the pipes for leaks.

XE ENGINE

4-16

©

 200324

Removal and installation

8

CF65/75/85 series

2

4.11 REMOVAL AND INSTALLATION, STARTER MOTOR

Removing the starter motor
1.

Disconnect the earth lead from the battery

terminal.

2.

Disconnect the contacts of the starter motor.

3.

Remove the noise insulation cover if fitted.

4.

Remove the starter motor. Check the starter

pinion for damage.

Installing the starter motor
1.

Clean the contact surfaces of the starter

motor and the flywheel housing.

2.

Fit the starter motor and tighten the

attachment nuts to the specified torque. See

"Technical data".

3.

Connect the starter motor.

4.

Check the operation of the starter motor.

5.

Fit the noise insulation cover.

6.

Fit the earth cable.

©

 200324

4-17

Removal and installation

XE ENGINE

CF65/75/85 series

2

8

4.12 REMOVAL AND INSTALLATION, POLY-V-BELT

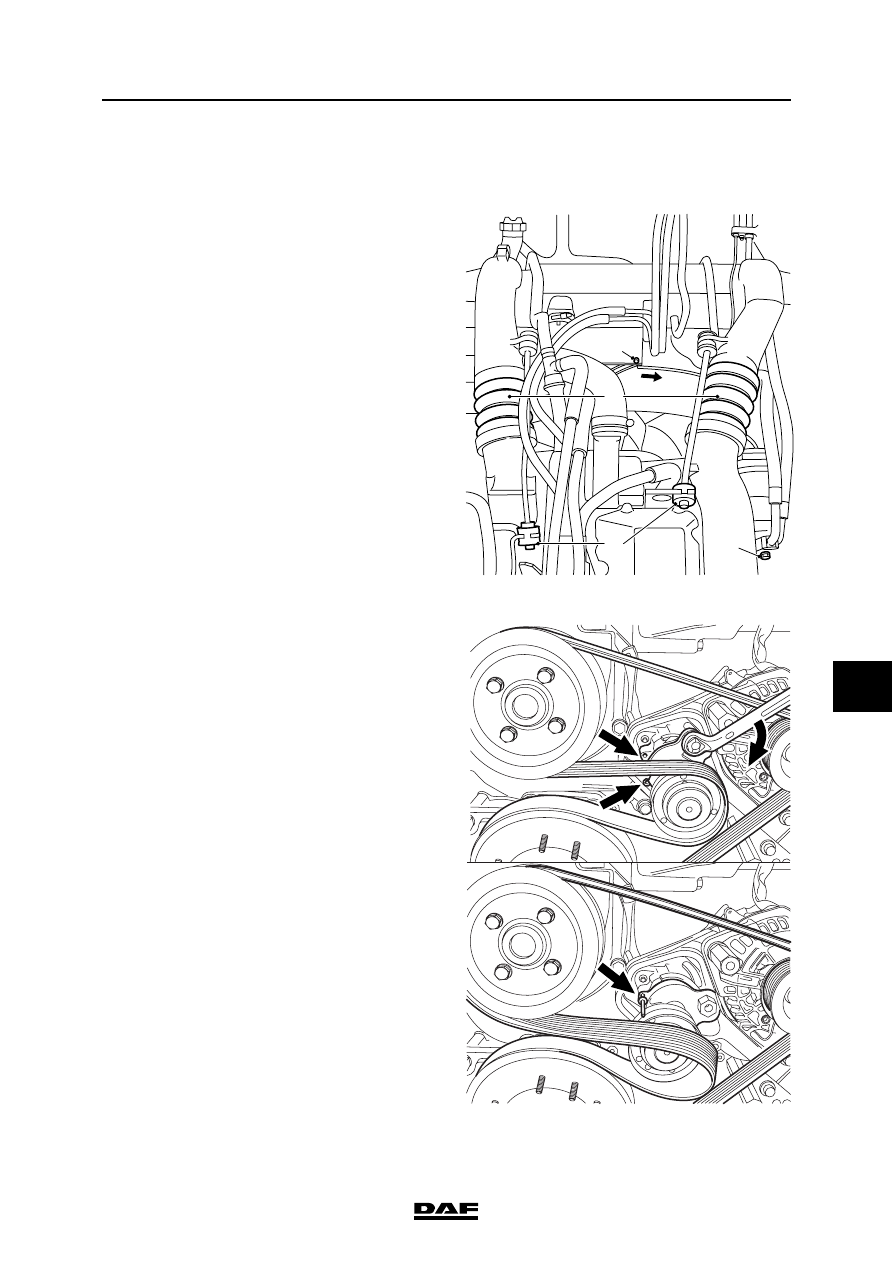

Removing the poly-V-belt
1.

Remove the locking screw from the wind

tunnel collar (G) and turn the latter towards

the radiator.

2.

Move the tensioner against the spring force

and lock it with a 4 to 5 mm thick pin (bore).

3.

Loosen the connector of the electric fan

clutch, if fitted, and remove the wiring from

the bracket.

4.

Take the poly-V-belt off over the fan.

5.

Inspect the automatic tensioner. See

"Inspection and adjustment".

M201032

H

J

G

F

M201275

XE ENGINE

4-18

©

 200324

Removal and installation

8

CF65/75/85 series

2

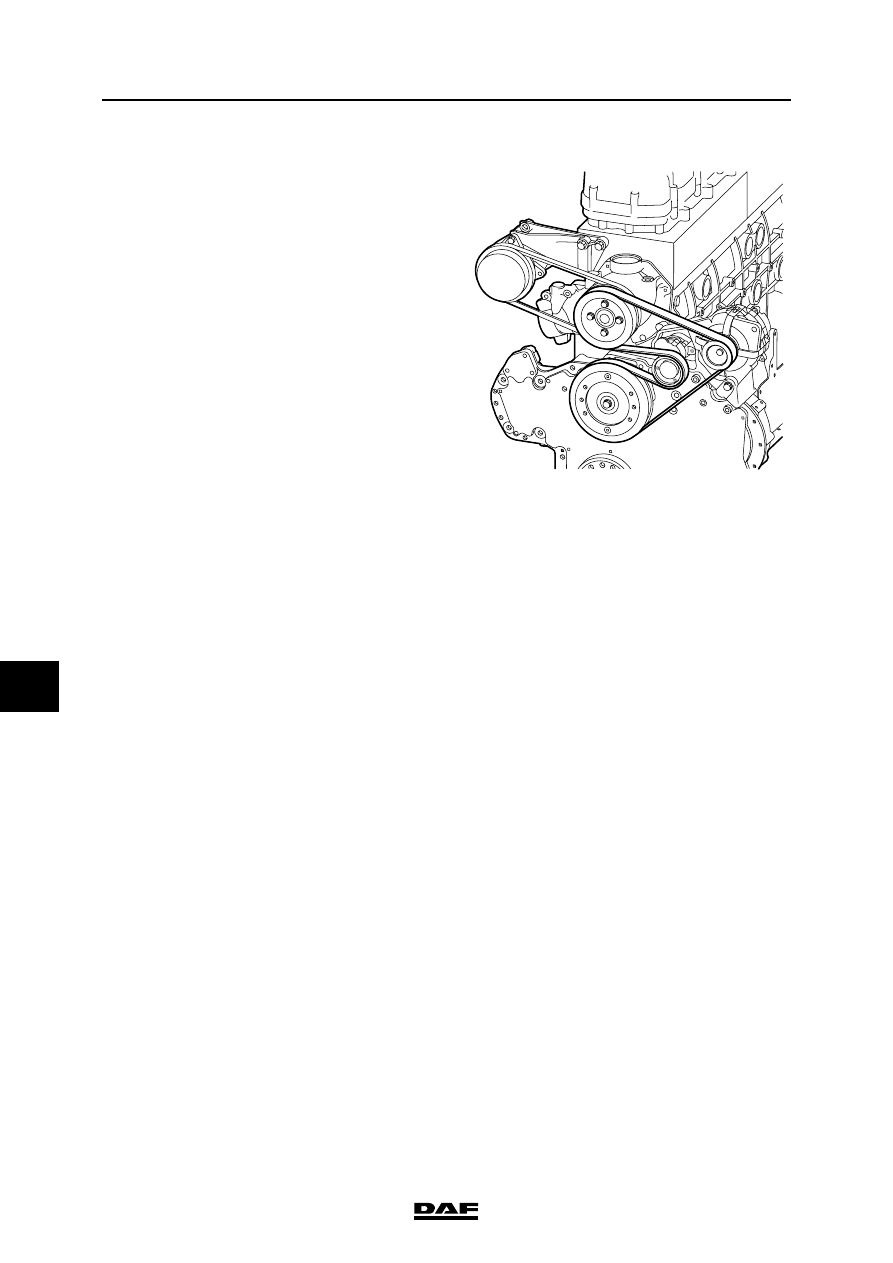

Installing the poly-V-belt
1.

Inspect the belt pulleys for damage, rust and

grease deposits.

2.

Pull the poly-V-belt over the fan.

3.

Pull the poly-V-belt over the coolant pump,

fan drive and alternator pulleys and push it

between the pulleys in the direction of the

tensioner.

4.

Move the tensioner against the spring

tension and fit the poly-V-belt.

5.

If applicable, fit the electric fan clutch

connector and connect the wiring ensuring

that it is clear of moving parts.

6.

Install the wind tunnel collar and fit the

locking screw (G).

M201066
