2. GENERAL

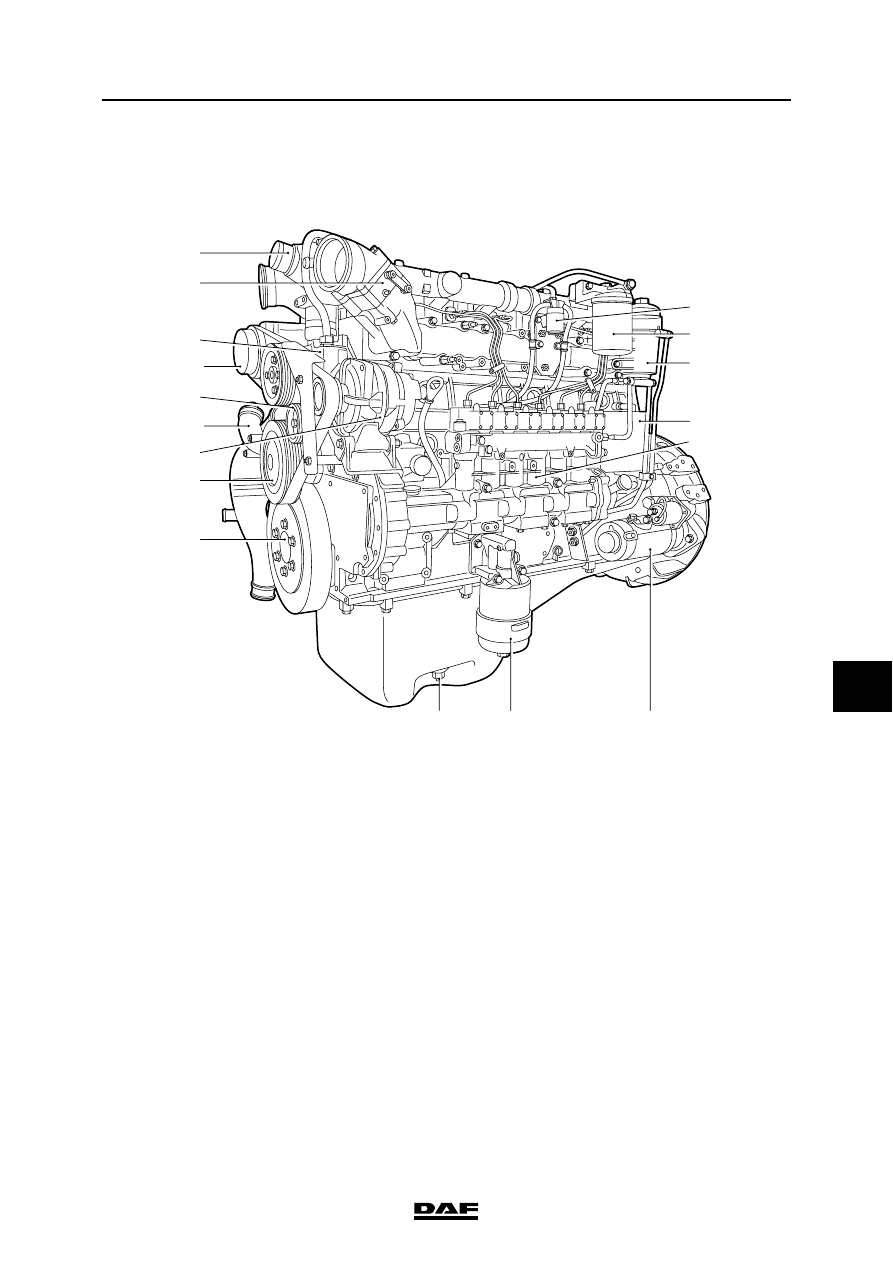

2.1 LOCATION OF COMPONENTS

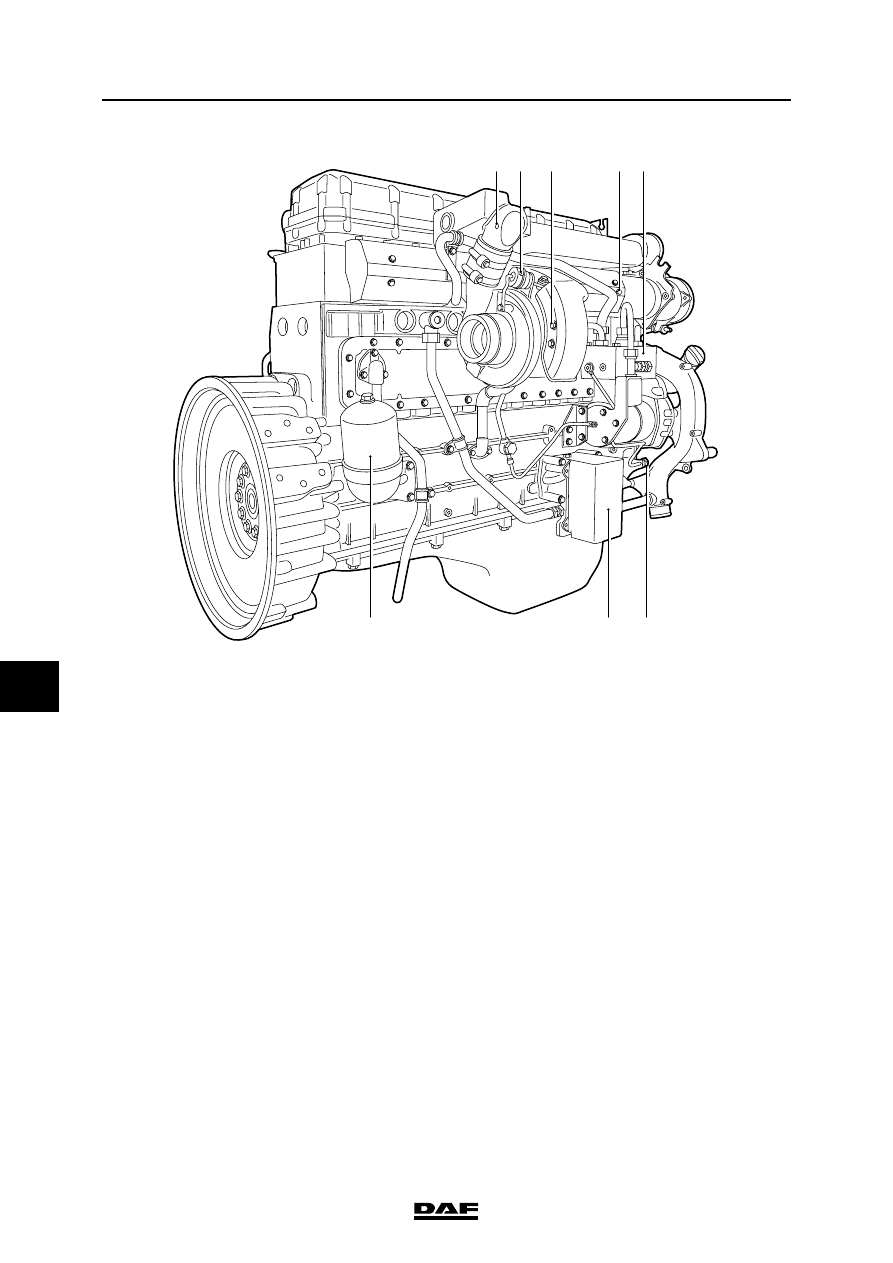

Legend
1.

Thermostat housing

2.

Coolant pump

3.

Air-conditioning compressor

4.

Fan drive

5.

Vibration damper

6.

Oil filter

7.

Oil filler pipe

8.

Poly-V-belt tensioner

9.

Starter motor

10. Coolant filter

11. Fuel filter

12. UPEC pump housing

13. Glow plug relay

14. Glow plug

15. Alternator

16. UPEC electronic unit

17. Oil level sensor

M201130

10

13

1

14

2

8

7

3

4

15

5

11

12

16

17

6

9

XE ENGINE

2-2

©

 200324

General

8

CF65/75/85 series

2

Legend
1.

Air intake pipe

2.

Wastegate diaphragm

3.

Turbocharger

4.

Exhaust manifold

5.

Air compressor

6.

Exhaust brake valve

7.

Oil cooler

8.

Centrifugal oil filter

M201129

1

8

7

6

4

5

2

3

©

 200324

2-3

General

XE ENGINE

CF65/75/85 series

2

8

2.2 IDENTIFICATION

Engine number
The engine number is stamped on the cylinder

block at the rear left

XE engine identification plate

Fitted to the inlet manifold

1.

Engine type

2.

Engine number

3.

Order number

(2)

4.

Maximum governed engine speed

5.

Number (for type approval)

6.

Smoke level at maximum no-load engine

speed

7.

Engine output

8.

Injection timing

(1)

9.

Transport number

(2)

(1)

Not filled in for XE engines

(2)

For production

-T-12345-

M201087

M201088

9 3 2 1 8

7 5 4 6

XE ENGINE

2-4

©

 200324

General

8

CF65/75/85 series

2

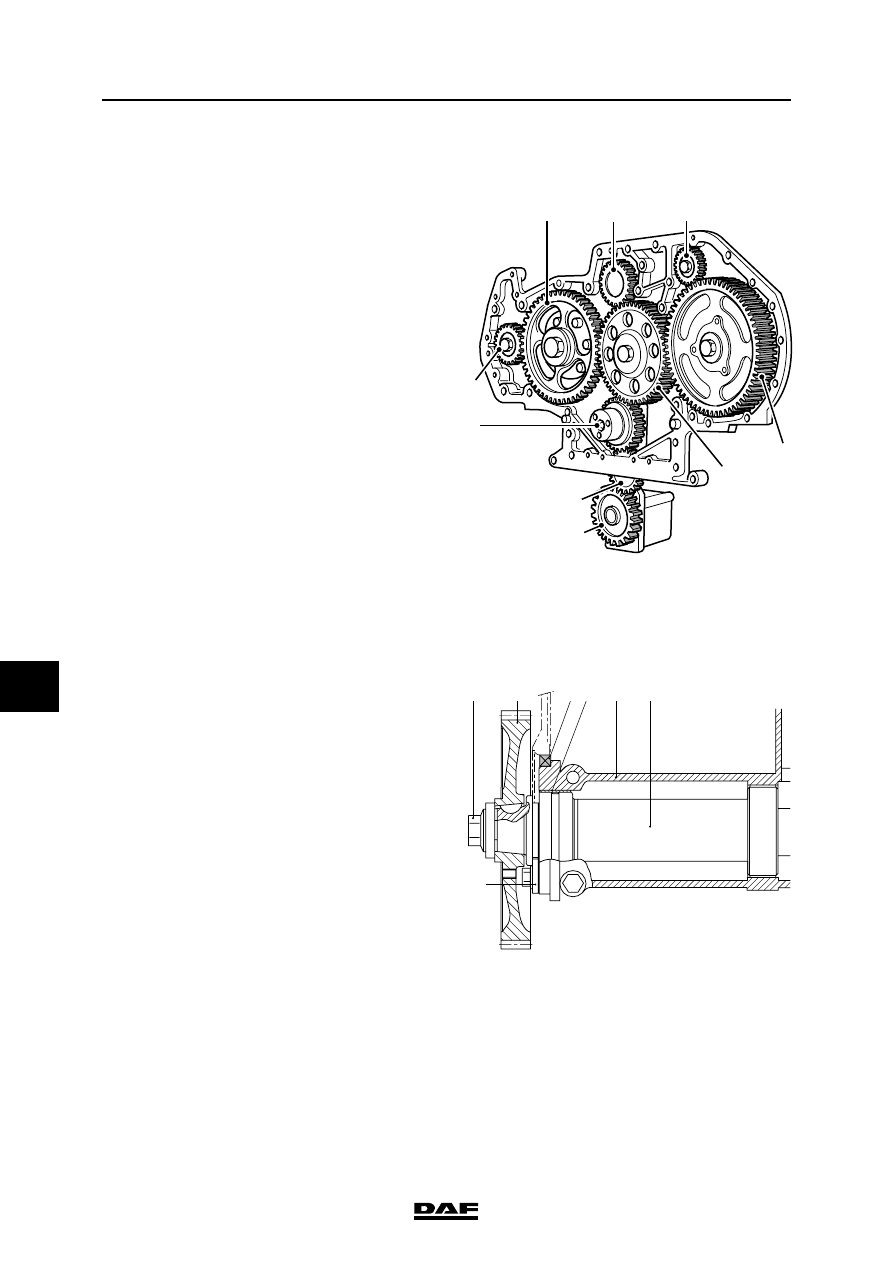

2.3 OVERVIEW DRAWING, TIMING GEAR

Legend
1.

Crankshaft gear

2.

Camshaft gear

3.

Idler gear

4.

Fan drive

5.

Steering pump gear

6.

Pump housing camshaft gear

7.

Air compressor gear

8.

Oil pump idler gear

9.

Oil pump

2.4 OVERVIEW DRAWING, PUMP HOUSING CAMSHAFT DRIVE

1.

Pump housing camshaft gear

2.

Timing case oil seal

3.

Pump housing

4.

Locking plate

5.

Pump housing camshaft

6.

Camshaft gear attachment bolt

7.

Camshaft bearing bush

M200886

2

4

5

7

1

8

9

3

6

1

3

5

6

2 7

4

M200887
