DAF CF65, CF75, CF85 Series . Manual - part 229





©

 200324

4-31

Removal and installation

PE ENGINE

CF65/75/85 series

2

5

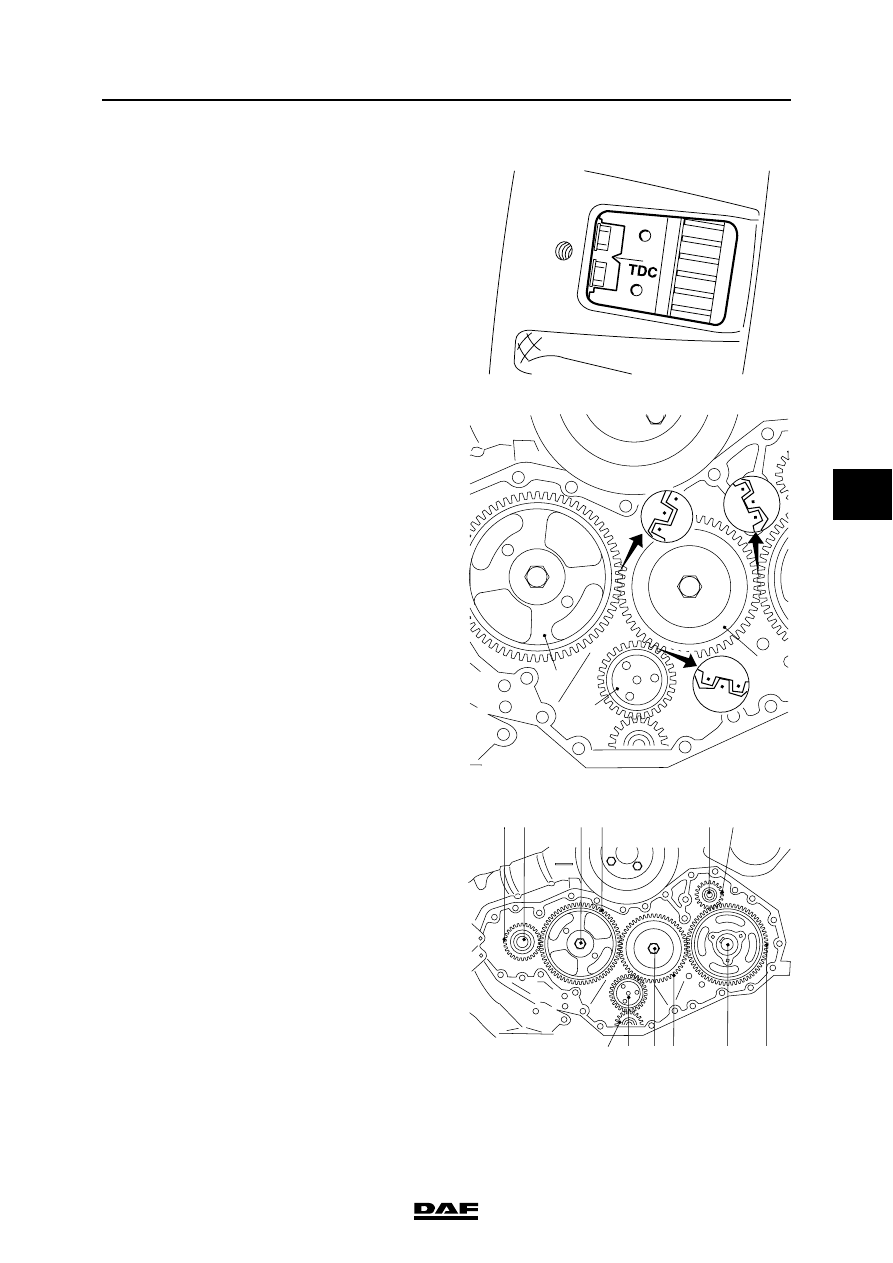

Installing the timing gears
1.

Check whether cylinder 1 is at top dead

centre (TDC on the flywheel, cylinder 6 in

overlap position).

Note:

When the crankshaft (1) or the camshaft (2) of an

engine without an idler gear (3) is rotated

separately, the engine's pistons may touch the

valves.

2.

When fitting the gears, make sure that the

marks are correctly positioned.

Installing the camshaft gear
1.

Fit the camshaft gear (2) onto the camshaft.

2.

Fit the camshaft gear wheel attachment bolt

(11). Tighten the attachment bolt to the

specified torque. See "Technical data".

3.

Install the idler gear (3).

4.

Fit the attachment bolt and axial thrust

washer (9) of the idler gear and tighten the

attachment bolt to the specified torque. See

"Technical data".

5.

Check that the backlash specified for the

gears is not exceeded. See "Technical data".

M201185

1

2

3

M200884

7

6

1

8

9 3

10

5

11 2

12 4

M201171

PE ENGINE

4-32

©

 200324

Removal and installation

5

CF65/75/85 series

2

Installing the pump housing camshaft gear
1.

Fit the pump housing camshaft gear (5) to

the shaft journal.

2.

Fit the pump housing camshaft gear

attachment bolt (10). Tighten the attachment

bolt to the specified torque. See "Technical

data".

3.

Install the idler gear (3).

4.

Fit the attachment bolt and axial thrust

washer (9) of the idler gear and tighten the

attachment bolt to the specified torque. See

"Technical data".

5.

Check that the backlash specified for the

gears is not exceeded. See "Technical data".

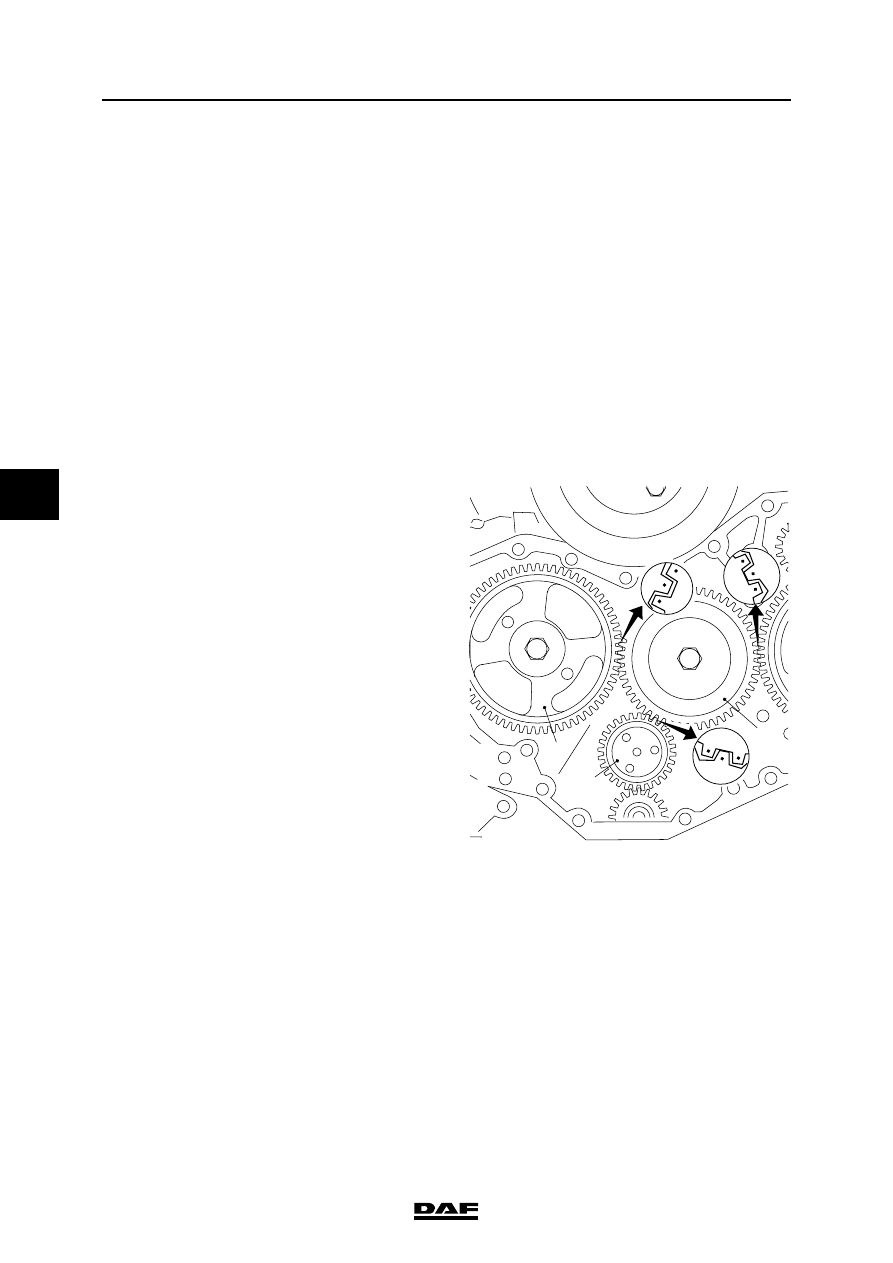

Installing the idler gear
1.

Fit the idler gear (3) so that the mark on

the idler gear (3) is opposite the marks on

the camshaft gear (2) and the crankshaft

gear (1).

2.

Fit the attachment bolt and axial thrust plate

of the idler gear. Tighten the attachment bolt

to the specified torque. See "Technical data".

3.

Check that the backlash specified for the

gears is not exceeded, see "Technical data".

Installing the timing gear
1.

Fit the timing cover.

2.

Fit the valve covers.

1

2

3

M200884

©

 200324

4-33

Removal and installation

PE ENGINE

CF65/75/85 series

2

5

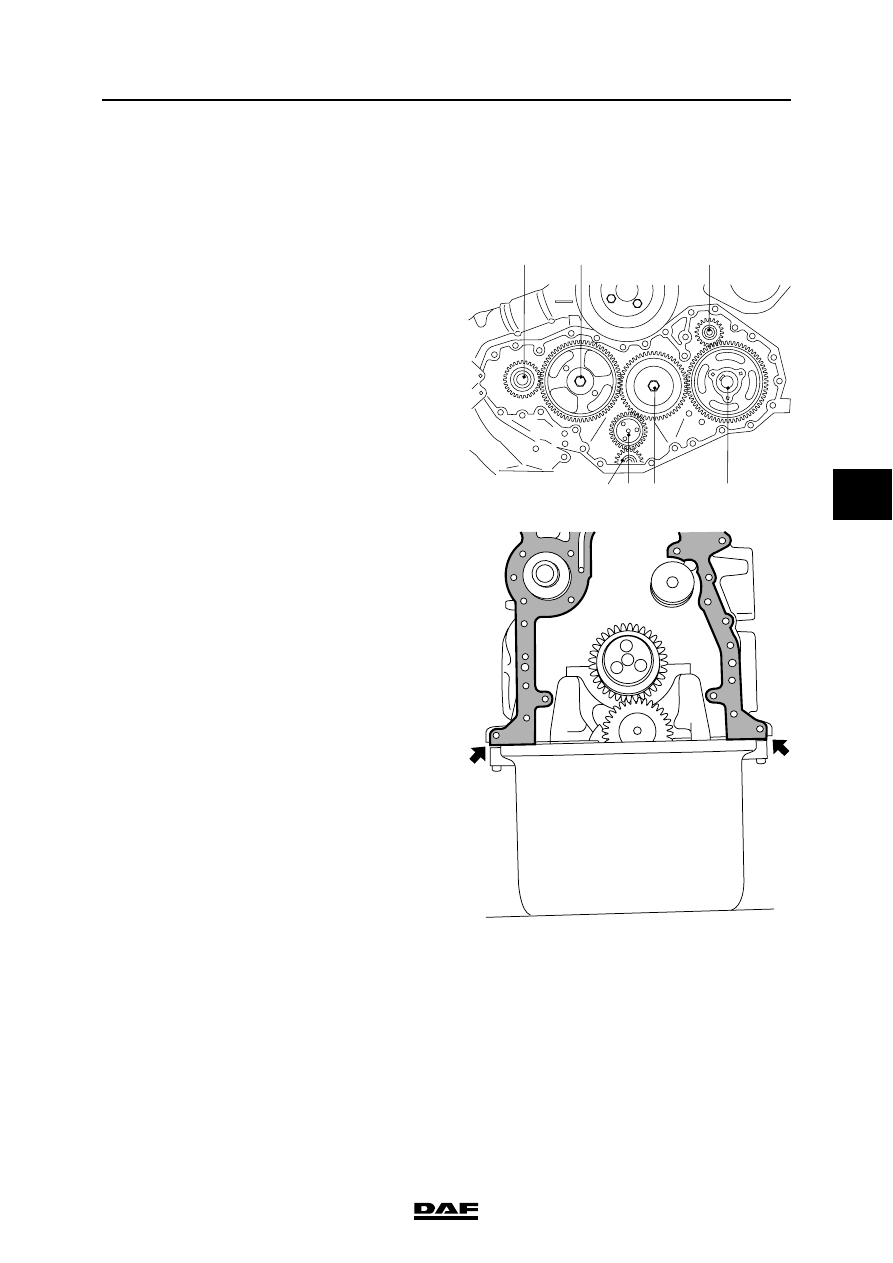

4.24 REMOVAL AND INSTALLATION, TIMING CASE

Removing the timing case
1.

Remove the timing cover.

2.

Remove the timing gears.

3.

Remove the air compressor.

4.

Remove the steering pump.

5.

Remove the camshaft attachment bolts and

locking plate.

6.

Loosen the oil sump attachment bolts until

the oil sump is free from the timing case.

7.

Remove the bolts attaching the timing case

to the cylinder block, and remove the timing

case.

Installing the timing case
1.

Remove any remnants of gasket. Clean and

inspect the sealing surfaces, dowels and

locating holes.

2.

To position the gasket, insert three studs and

fit the new gasket.

3.

Then remove any gasket remains between

the cylinder block and oil sump.

4.

Fit the timing case.

5.

Fit the timing case attachment bolts. Tighten

the attachment bolts to the specified torque.

See "Technical data".

6.

Tighten the oil sump attachment bolts to the

specified torque. See "Technical data".

7.

Fit the camshaft locking plate and

attachment bolts. Tighten the attachment

bolts to the specified torque. See "Technical

data".

6

1

7

3

5

2

4

M200744

M200579

PE ENGINE

4-34

©

 200324

Removal and installation

5

CF65/75/85 series

2

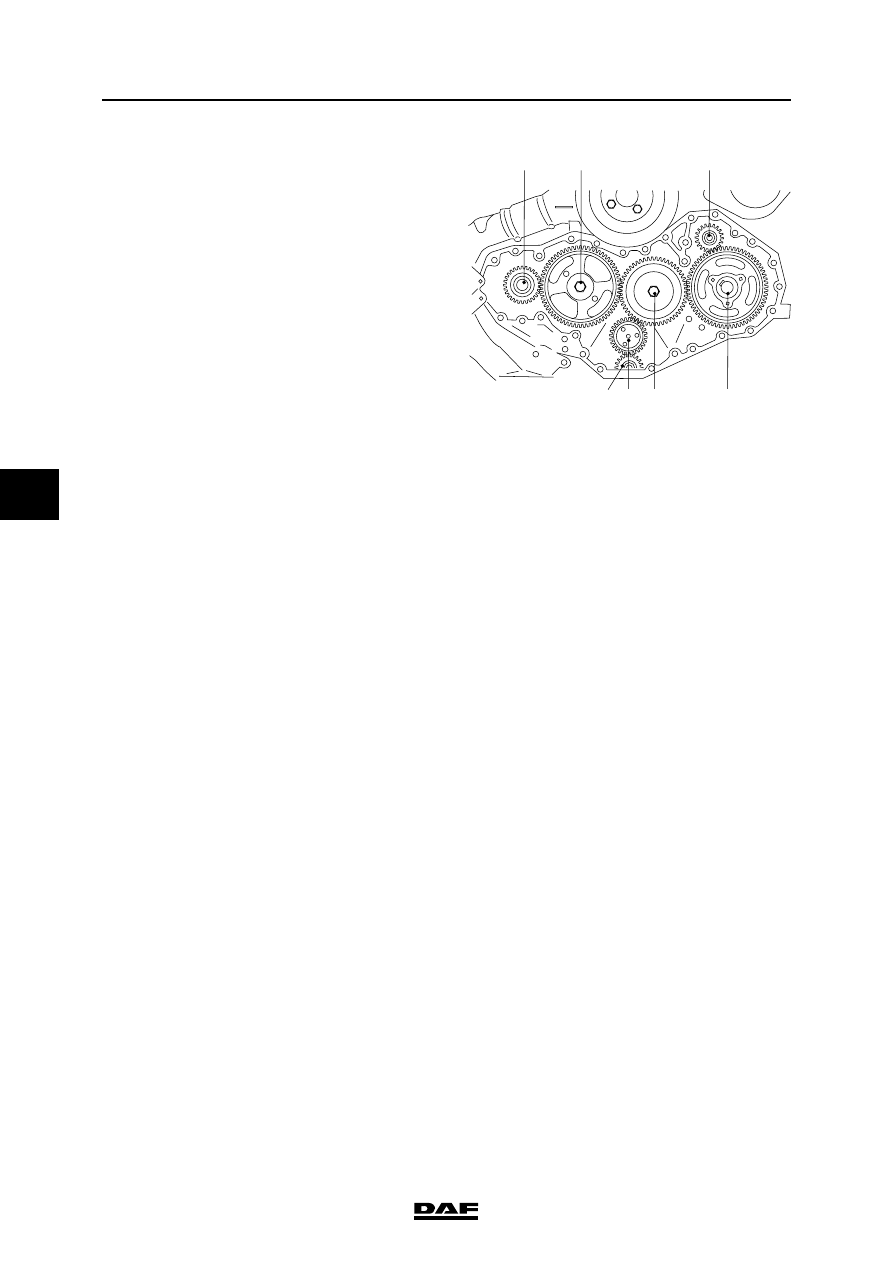

8.

Fit the timing gears.

9.

Fit a new O-ring to the air compressor and

install the compressor.

10. Fit the steering pump.

11. Fit the timing cover.

6

1

7

3

5

2

4

M200744
