DAF CF65, CF75, CF85 Series . Manual - part 179

©

 200351

7-3

XE engine

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

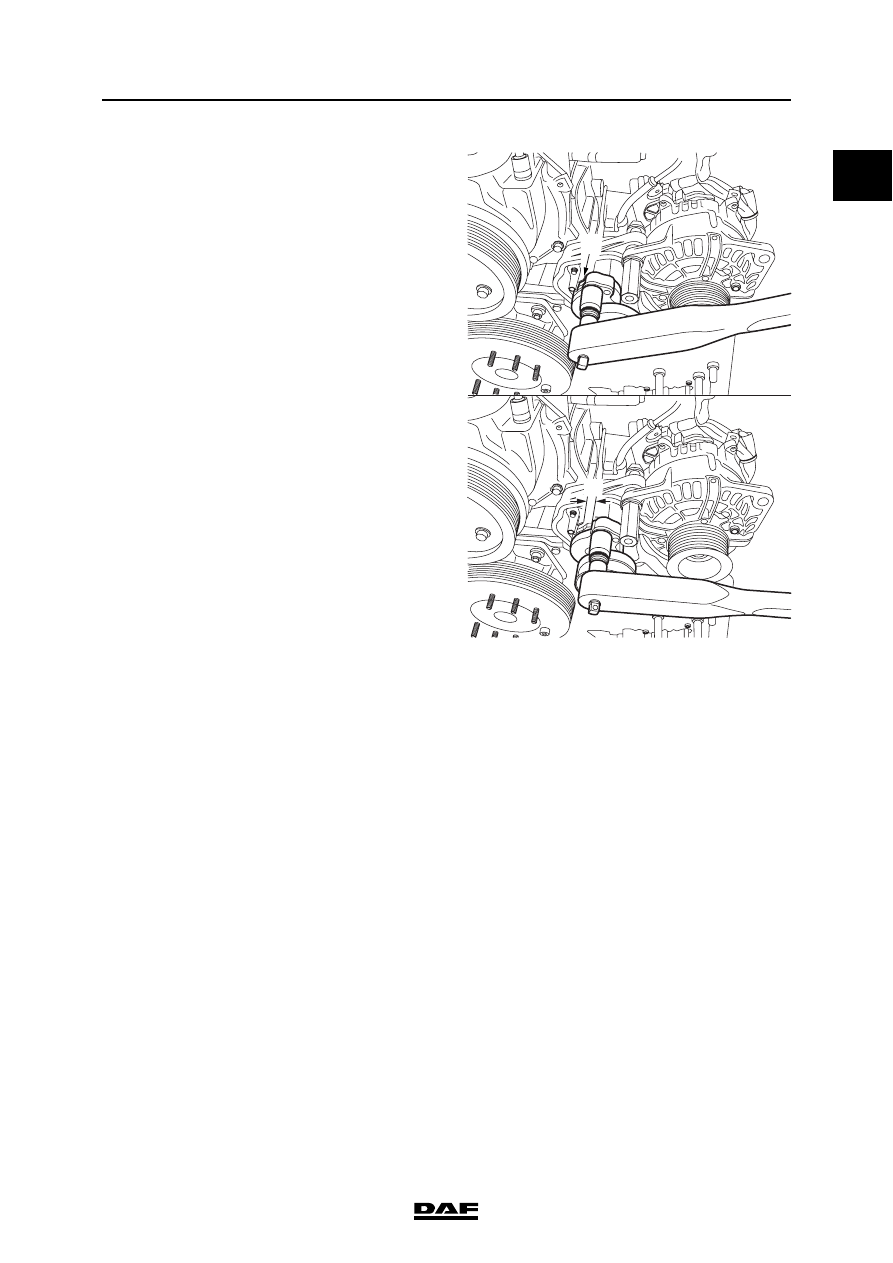

Automatic poly-V-belt tensioner

Cylinder liner

Cylinder head

Valve clearance

Axial play

0

M201274

A

Torsional moment
from rest position (0)
to 17 mm torsion (A)

19 - 37 Nm

Height above cylinder block

0.02 - 0.10 mm

Minimum height after overhaul

119.50 mm

Test pressure using air (hot)

1.5 bar

Valve clearance (cold/hot)
inlet

0.50 mm

exhaust

0.50 mm

Crankshaft axial play

0.06 - 0.32 mm

Camshaft axial play

0.10 - 0.55 mm

Idler gear axial play

0.05 - 0.25 mm

TECHNICAL DATA

7-4

©

 200351

XE engine

0

ΧΦ65/75/85 series

2

Gear backlash

Number of teeth, timing gears

Compression pressure

Flywheel/starter ring gear

Idler gear - crankshaft gear

0.02 - 0.21 mm

Idler gear - pump housing camshaft gear

0.02 - 0.22 mm

Idler gear - camshaft gear

0.02 - 0.21 mm

Camshaft gear - compressor gear

0.02 - 0.22 mm

Pump housing camshaft gear - steering pump
gear

0.02 - 0.19 mm

Oil pump idler gear - oil pump gear

0.02 - 0.20 mm

Crankshaft gear - oil pump idler gear

0.02 - 0.20 mm

Crankshaft gear

35

Idler gear

54

Pump housing - camshaft gear wheel

70

Camshaft gear

70

Air compressor gear

27

Fan drive housing gear

29

Steering pump gear

18

Lubricating oil pump idler gear

34

Differences in compression pressure

max. 15%

Axial variation, measured at a radial distance of
210 mm

0.10 mm

Starter ring gear warm up

max. 185

|C

©

 200351

7-5

XE engine

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

7.2 TIGHTENING TORQUES

The tightening torques specified in this paragraph
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.

When attachment bolts and nuts are replaced, it
is important - unless stated otherwise - that these
bolts and nuts are of exactly the same length and
property class as those removed.

Starter motor

Alternator

Air compressor

Exhaust manifold

Inlet manifold

Attachment nuts

73 Nm

(1)

Electrical connection to starter motor

28 Nm

Alternator attachment bolts

60 Nm

Pulley attachment nut

80 Nm

Electrical connection to alternator (M8)

15 Nm

M12 attachment bolts

110 Nm

M8 attachment bolts for bracket

30 Nm

M10 attachment bolts for bracket

60 Nm

Compressor gear flange bolt

120 Nm

M14 threaded coupling for cylinder head

40 Nm

M26 threaded coupling for cylinder head

90 Nm

Cylinder head service line banjo bolt

25 Nm

Pressure line safety valve

75 Nm

Suction and pressure line unions

90 Nm

Oil supply banjo bolt

25 Nm

Fit gasket with steel side towards manifold
Sleeved attachment bolts

65 Nm

Heat shield attachment bolts

30 Nm

(1)

Attachment bolts:

46 Nm

Air inlet hose clamps

12 Nm

Electrical connection to glow plug

8.5 Nm

Attachment bolts, boost pressure/charge
temperature sensor

4 Nm

Hose clamps

12 Nm

TECHNICAL DATA

7-6

©

 200351

XE engine

0

ΧΦ65/75/85 series

2

Turbocharger

(1) Use Loctite 243 to secure
(2) Fasten with Copaslip

Glow plug relay

Main fuse

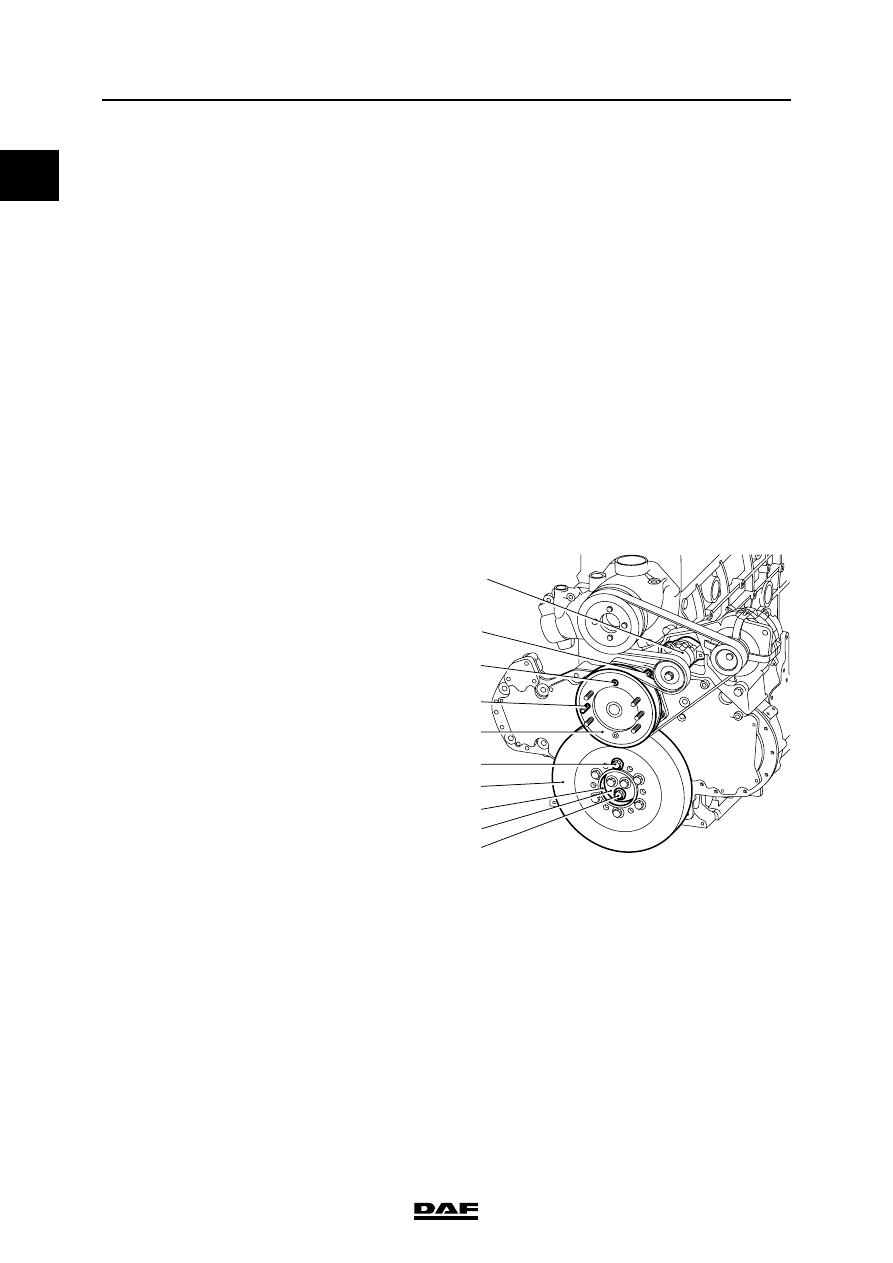

Vibration damper and fan drive

(1) Tighten the attachment bolts evenly
(2) Use Loctite 243 to secure

Heat shield attachment bolts

30 Nm

(1)

Turbine housing clamp plate attachment nut

15 Nm

Attachment nuts
Exhaust manifold flange/turbocharger

60 Nm

(2)

Elbow on turbocharger

40 Nm

Oil supply pipe banjo bolt

90 Nm

Glow plug relay cap

2 Nm

Electrical connections to glow plug relay:
M5

3.5 Nm

M8

8 Nm

Fuse holder (M6)

4.5 Nm

Fuse (M8)

18 Nm

M201153

7

4

6

3

2
1

5

9

8

10

Vibration damper
hub attachment bolts
(1) in 4 phases:
1

st

 phase, all

attachment bolts

100 Nm

(1)

2

nd

 phase, all

attachment bolts

100 Nm

(1)

3

rd

 phase, all

attachment bolts

100 Nm

(1)

4

th

 phase, all

attachment bolts

100 Nm

(1)

Attachment bolts,
vibration damper (5)

110 Nm

(2)

Attachment nuts, fan
drive (8)

60 Nm

Attachment bolts, fan
pulley (9)

30 Nm

(2)

Attachment nuts, fan
clutch (7)

25 Nm

(2)
