PE engine

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

(1) Apply a drop of oil to the bearing surface of the M16 and

M12 bolt heads.

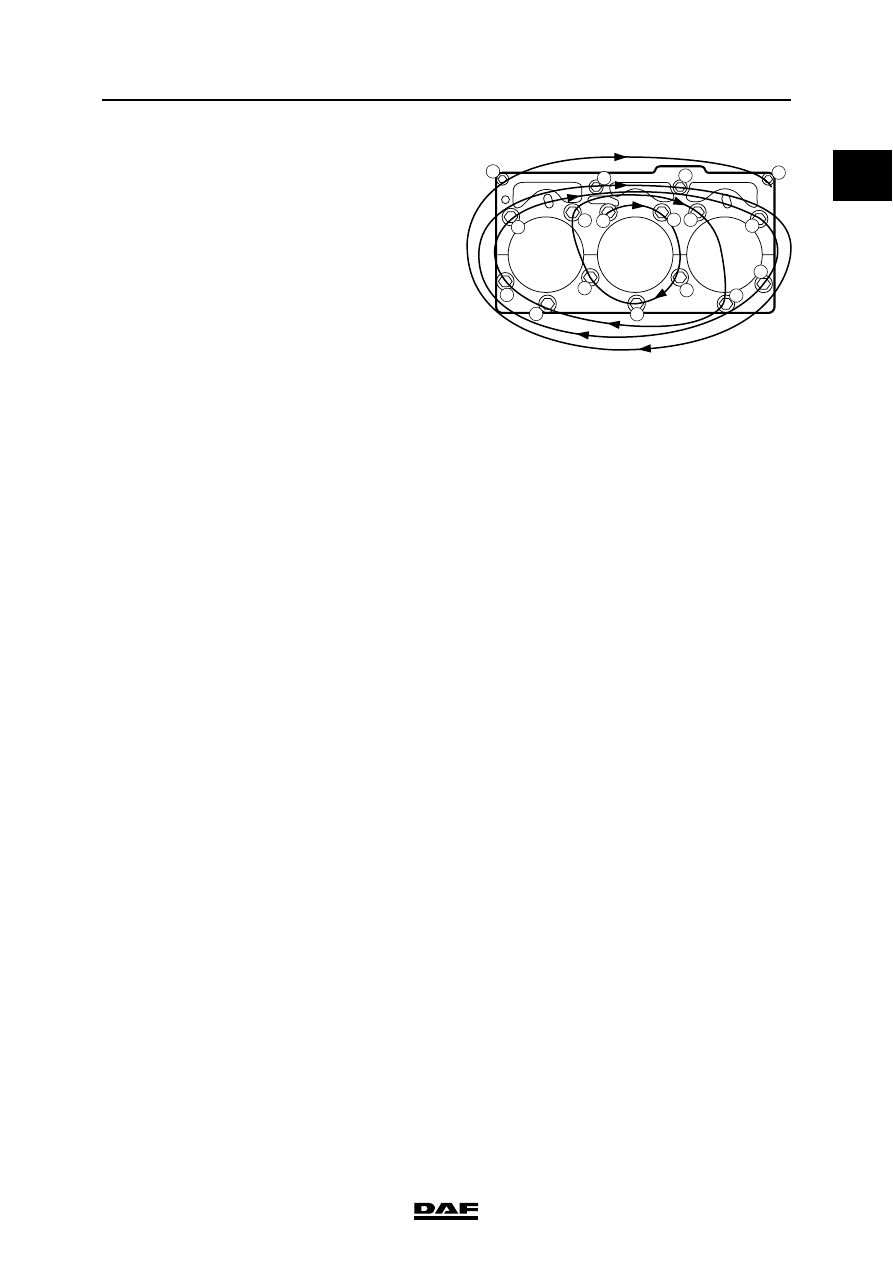

Timing gear

(1) Use Loctite 243 to secure
(2) Apply a drop of oil to the attachment bolts and tighten

evenly.

Flywheel housing

Flywheel

(1) Use Loctite 243 to secure

12

1

7

3

8

9

4

5

10

11

13

14

16

17

15

6

M200734

2

1

st

 phase

- M16 in the indicated
order

50 Nm

(1)

2

nd

 phase

- M16 in the indicated
order

150 Nm

- M12 in the indicated
order

94 Nm

(1)

3

rd

 phase

- M16 in the indicated
order in two stages of

60

 angular

displacement

Pump housing drive unit attachment bolts

60 Nm

Attachment bolts, pump housing drive shaft
locking plate

30 Nm

(1)

Locking plate attachment bolts

30 Nm

(1)

Crankshaft hub attachment bolts in 4 phases:
1

st

 phase, all attachment bolts

100 Nm

(2)

2

nd

 phase, all attachment bolts

100 Nm

(2)

3

rd

 phase, all attachment bolts

100 Nm

(2)

4

th

 phase, all attachment bolts

100 Nm

(2)

Viscous fan clutch attachment nuts

30 Nm

(1)

Timing case attachment bolts

30 Nm

(1)

Timing cover attachment bolts:
M10 attachment bolts

60 Nm

M8 attachment bolts

25 Nm

Timing cover protection plate attachment bolt

8.5 Nm

Camshaft gear attachment bolt

425 Nm

Idler gear attachment bolt

170 Nm

Pump housing camshaft gear attachment bolt

260 Nm

(1)

Steering pump gear attachment nut

80 Nm

(1)

Suction pipe banjo bolt

90 Nm

Delivery pipe banjo bolt

40 Nm

Attachment bolts:

110 Nm

Sealant to be used when fitting flywheel housing

Loctite 510

Attachment bolts:
without PTO

170 Nm

(1)

 + 90

 angle tightening

with PTO

170 Nm + 150

 angle tightening

TECHNICAL DATA

4-8

©

 200351

PE engine

0

ΧΦ65/75/85 series

2

Engine mountings at timing gear end

Engine mountings at flywheel end

Engine hanger brackets

Valve gear

Cylinder block bracket attachment bolts

92 Nm

Chassis engine bracket attachment bolts

73 Nm

Vibration damper engine bracket attachment
bolts

170 Nm

Flywheel housing engine bracket attachment
bolts

260 Nm

Chassis engine bracket attachment bolts

73 Nm

Vibration damper engine bracket attachment
bolts

226 Nm + 60

 angle tightening

M12 attachment bolts

110 Nm

Valve cover attachment bolts

25 Nm

M10 setting bolt lock nut for rocker

40 Nm

Bridge piece setting bolt lock nut

40 Nm

Lubricating oil strip/rocker seat attachment bolts

60 Nm

Valve sleeve attachment bolts

30 Nm

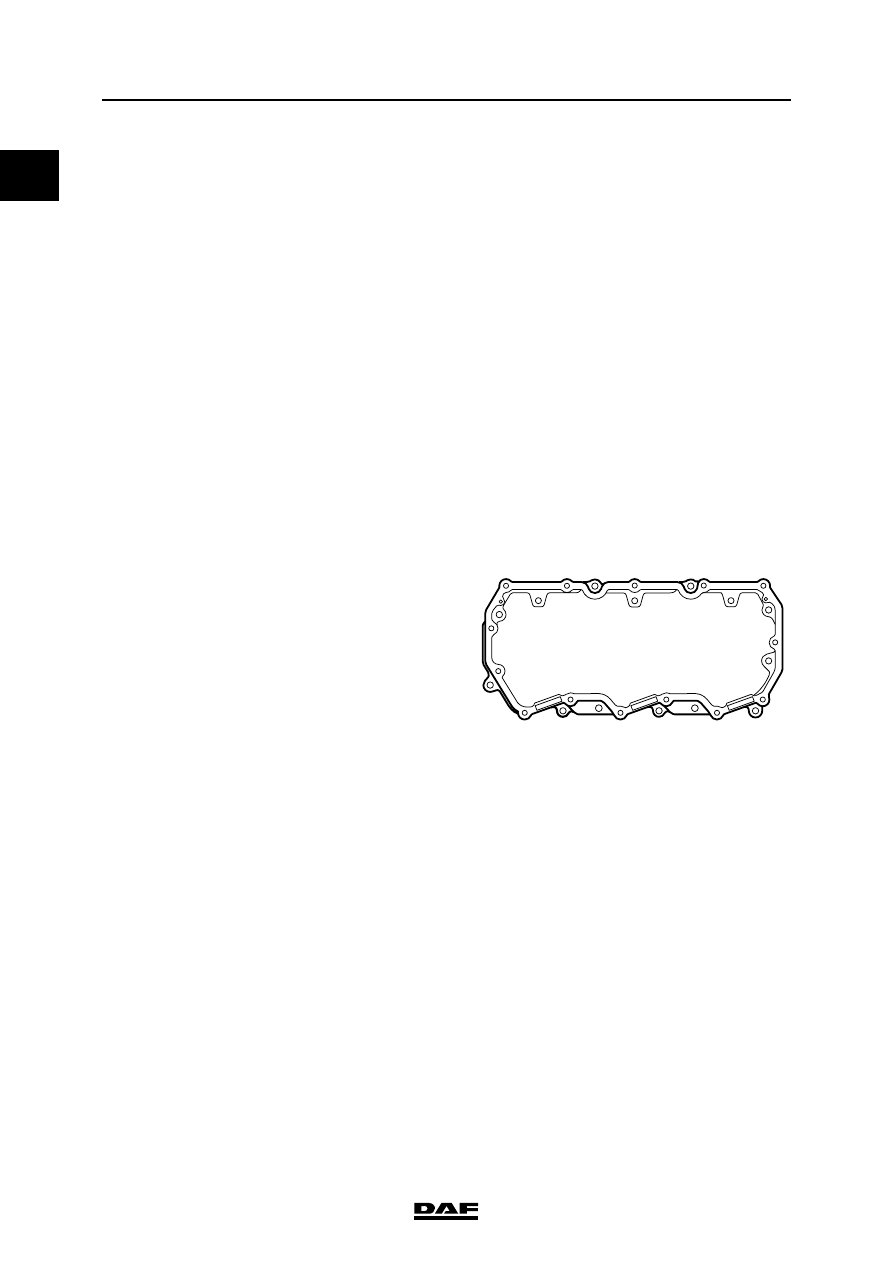

Tighten the valve sleeve attachment bolts in the
sequence shown.

M200959

13

9

6

14

2

11

7

3

5

1

8

4

10

12

©

 200351

5-1

PE-engine cooling system

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

5. PE-ENGINE COOLING SYSTEM

5.1 GENERAL

Thermostat

Coolant pump

Header tank pressure cap

Pressure testing the cooling system

Viscous fan clutch

Thermostat opening temperature
standard:
- thermostat opens at

approx. 87

C

- thermostat open at least 12 mm at

approx. 99

C

with intarder and/or automatic transmission:
- thermostat opens at

approx. 83

C

- thermostat open at least 12 mm at

approx. 95

C

Thermostat seat

Loctite 638

Radial play

0.16 - 0.20 mm

Pressure relief valve opening pressure

1 - 1.2 bar

Underpressure valve opening pressure

0.1 - 0.02 bar

Closed pressure cap position

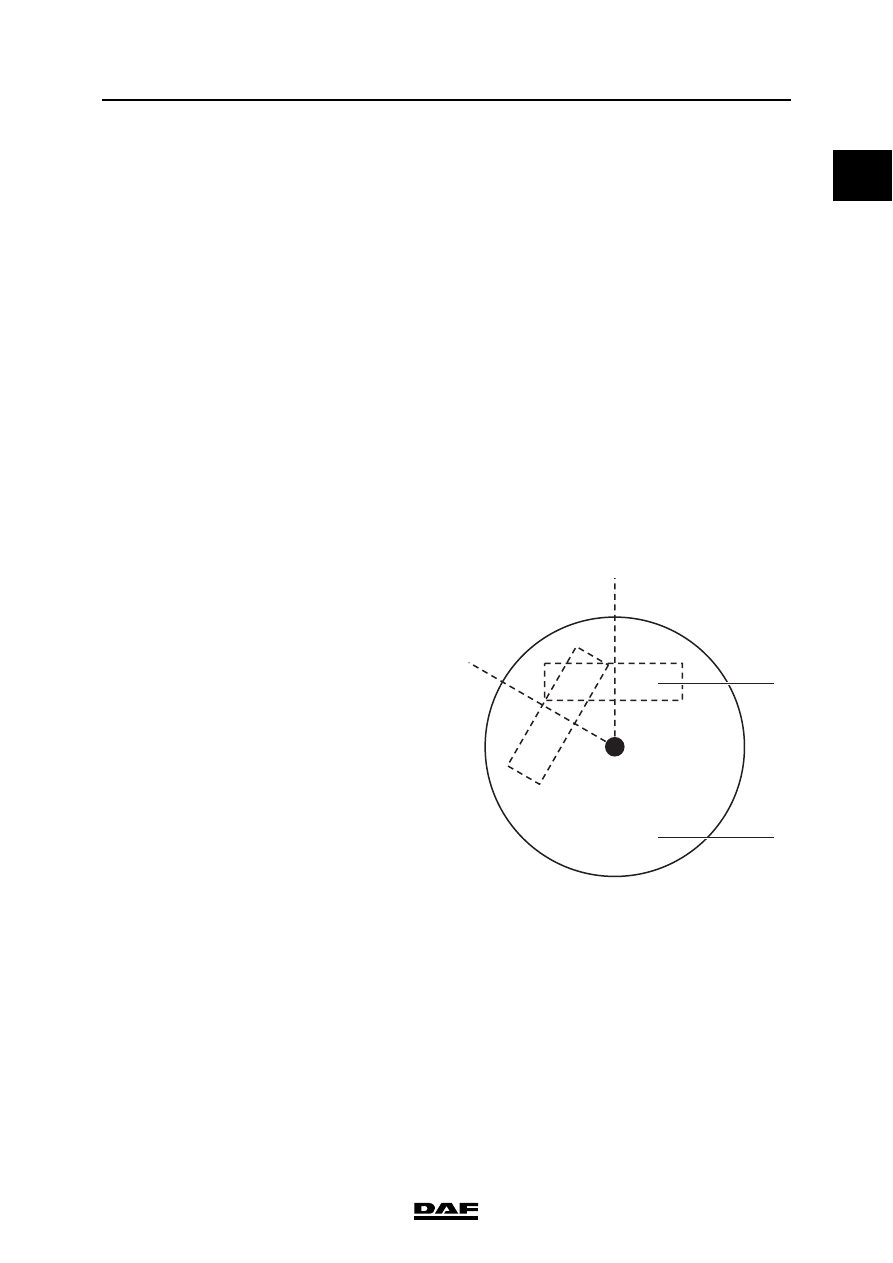

Brand name (2) legible horizontally or 60

 before

this position.

1

2

M201272

Closed pressure cap
position

Brand name (2)
legible horizontally or
60

 before this

position.

Test pressure

0.7 - 0.9 bar

Permissible slip at maximum speed control

10%

TECHNICAL DATA

5-2

©

 200351

PE-engine cooling system

0

ΧΦ65/75/85 series

2

5.2 TIGHTENING TORQUES

The tightening torques recorded in this paragraph
are different from the standard tightening torques
recorded in the overview of the standard
tightening torques. The other threaded
connections which are not recorded must
therefore be tightened to the torque recorded in
the overview of standard tightening torques.

When attachment bolts and nuts are replaced, it
is important - unless stated otherwise - that these
bolts and nuts are of exactly the same length and
property class as those removed.

Coolant pump

Coolant pipe on cylinder head

Thermostat housing on coolant pipe

Radiator

Oil cooler

M8 attachment bolts

30 Nm

Attachment bolts

54 Nm

Coolant pipe threaded coupling

90 Nm

Coolant pipe plug

35 Nm

Attachment bolts

30 Nm

Attachment nuts

60 Nm

Coolant drain plug

16 Nm
