 200346

1-1

Safety instructions

ACCESSORIES

ΧΦ65/75/85 series

1

8

1. SAFETY INSTRUCTIONS

1.1 SAFETY INSTRUCTIONS

General
The cab is equipped with a hydraulic tilting
mechanism. The pump is located on co-driver
side at the rear of the cab. The cab locks are
opened hydraulically during pumping.

Before tilting the cab, make sure that the doors
are closed, that there are no loose items in the
cab and that the gear lever is in neutral. Tilt the
cab fully forward if work must be carried out
underneath the cab.

}

You can stop the cab tilting forward
at any time by turning the cock to the
reverse tilting position.

ACCESSORIES

1-2

©

 200346

Safety instructions

8

ΧΦ65/75/85 series

1

©

 200346

2-1

Inspection and adjustment

ACCESSORIES

ΧΦ65/75/85 series

1

8

2. INSPECTION AND ADJUSTMENT

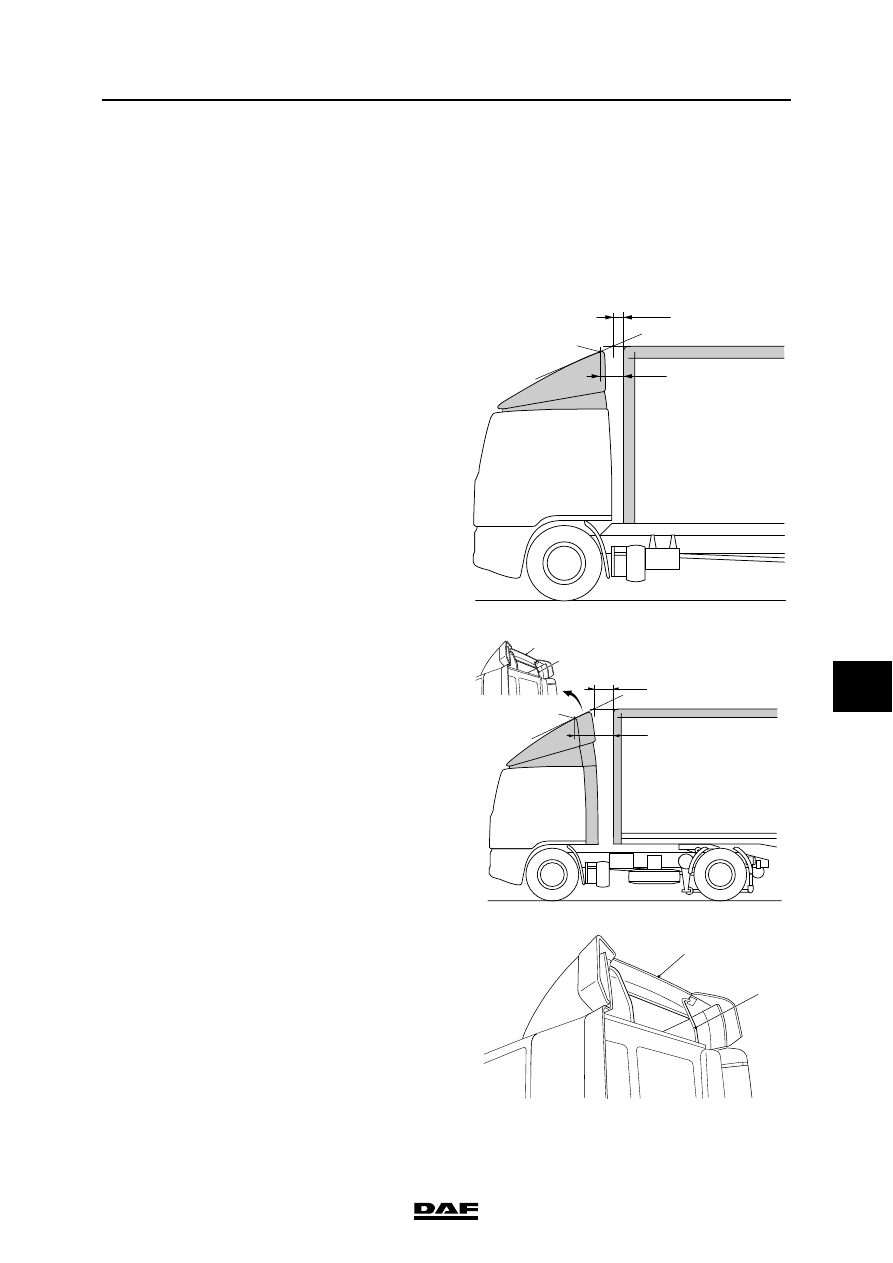

2.1 ADJUSTING ROOF SPOILER

Note:
Correct adjustment of the roof spoiler is essential
to minimise fuel consumption.

1.

Place the vehicle on a level and horizontal
surface. Make sure that in the case of a
tractor/semi-trailer combination the tractor is
straight in front of the semi-trailer.

2.

Determine the centreline of the vehicle and
put a slat on the superstructure roof
protruding into the cab direction.

3.

Put another slat (as a tangent) onto the outer
roof spoiler edge (P) pointing into the
direction of the superstructure.

4.

Both slats should cross at half the distance
(

∂ X) between the roof spoiler edge and the

start of the superstructure.
The roof spoiler height can be adjusted using
adjusting mechanism (B). For the roof spoiler
adjusting range see "Technical data".

X

1

/



X

P

K1 01 357

P

X

1

/

2

X

P

B

K1 01 356

P

B

K1 01 355

ACCESSORIES

2-2

©

 200346

Inspection and adjustment

8

ΧΦ65/75/85 series

1
