Disassembly and assembly

CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

5. DISASSEMBLY AND ASSEMBLY

5.1 DISASSEMBLY AND ASSEMBLY, LIFTING CYLINDER

A defective lifting cylinder is often caused by
leaking oil sealing rings or a damaged piston rod.
To be able to repair the lifting cylinder, the entire
piston rod must be removed and the oil seals
must be replaced. The cab tilting pump is
required to take out the piston rod.

Reconditioning of a lifting cylinder requires not
only the use of the reconditioning kit, but also the
reuse of a number of components.

Use a separate cab tilting pump to pump the
piston in and out.

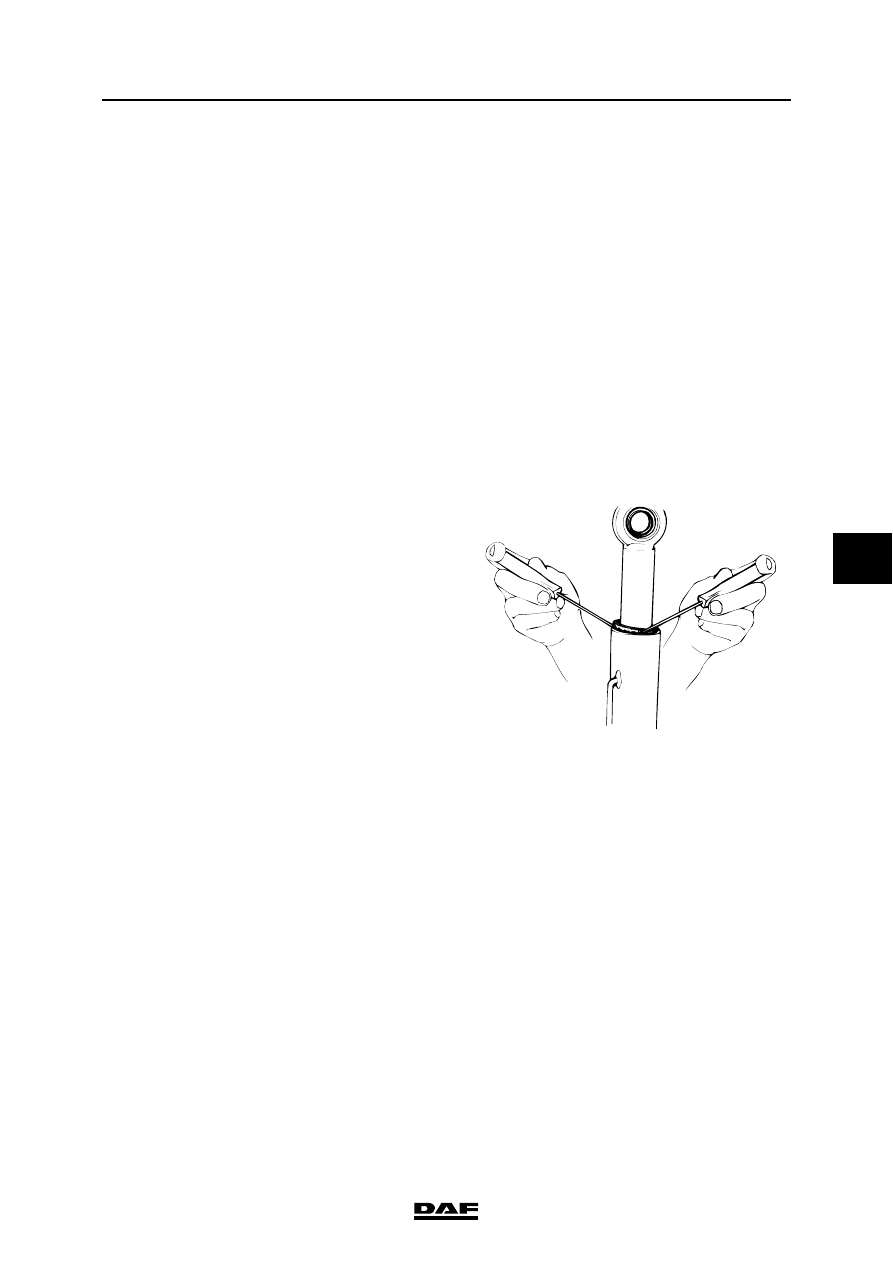

Disassembling lifting cylinder
1.

Remove the dust cap.

2.

Take the dirt scraper out of the lifting
cylinder.

K100148

CAB TILTING MECHANISM

5-2

©

 200346

Disassembly and assembly

6

ΧΦ65/75/85 series

1

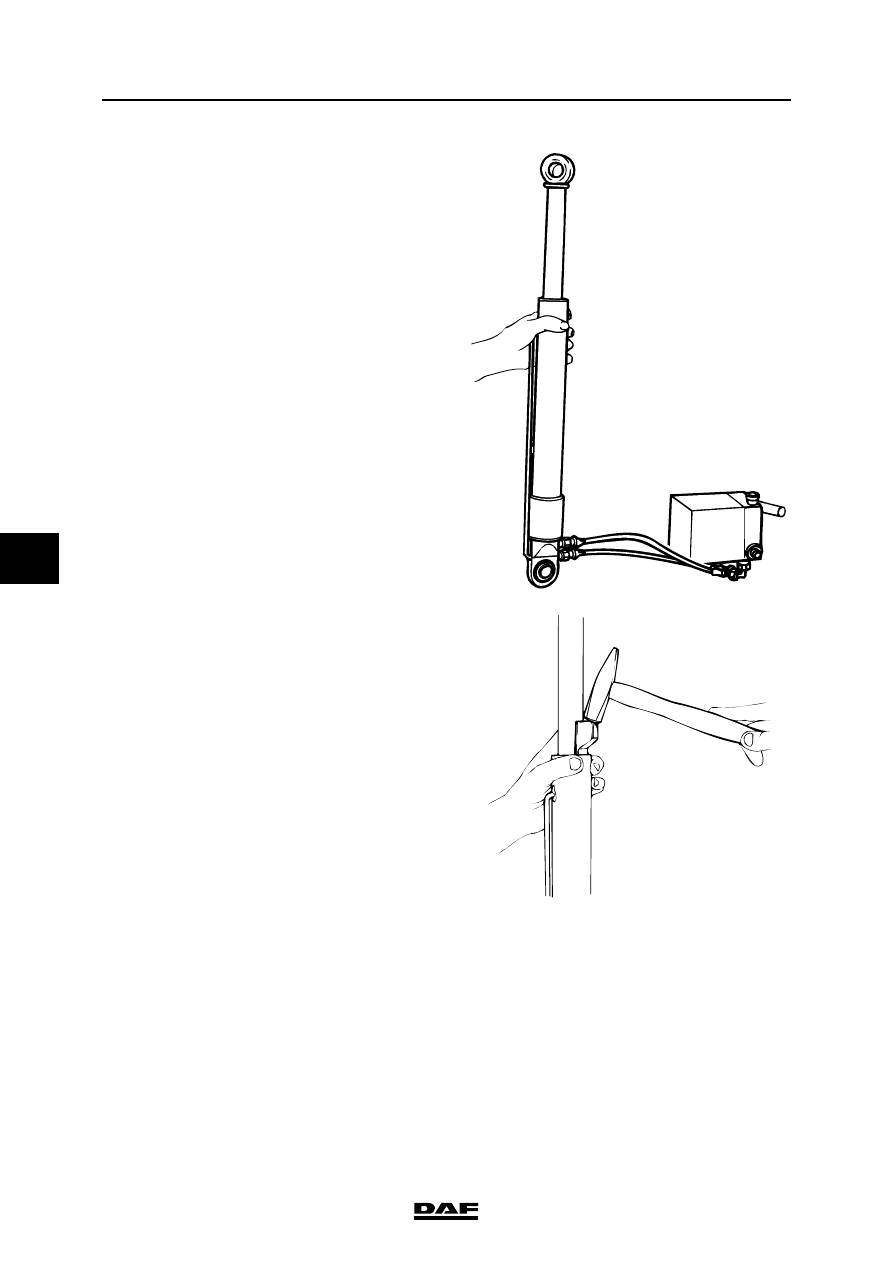

3.

Connect the lifting cylinder to the pump and
pump the piston rod outward to approx. 10
mm from the end.

4.

Tap the upper bearing of the piston rod 5 to
10 mm back. Make sure that the piston rod is
not damaged in the process.

K100120

k100149

©

 200346

5-3

Disassembly and assembly

CAB TILTING MECHANISM

ΧΦ65/75/85 series

1

6

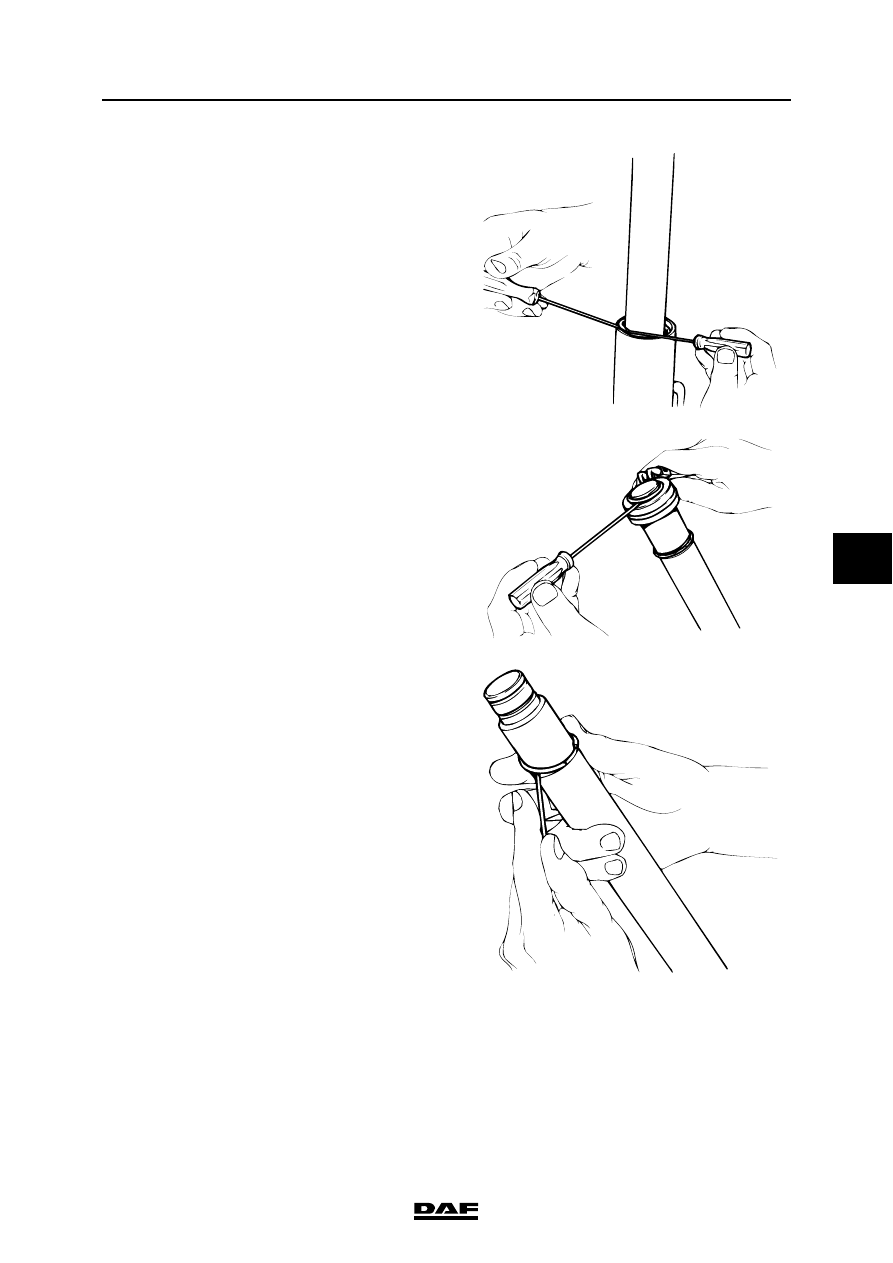

5.

Remove the upper circlip from the cylinder
and pump the piston rod fully out.

6.

Remove the circlip from the piston rod and
remove the piston from the rod.

7.

Remove the stop ring and the upper bearing.

K100150

K100151

K100152

CAB TILTING MECHANISM

5-4

©

 200346

Disassembly and assembly

6

ΧΦ65/75/85 series

1

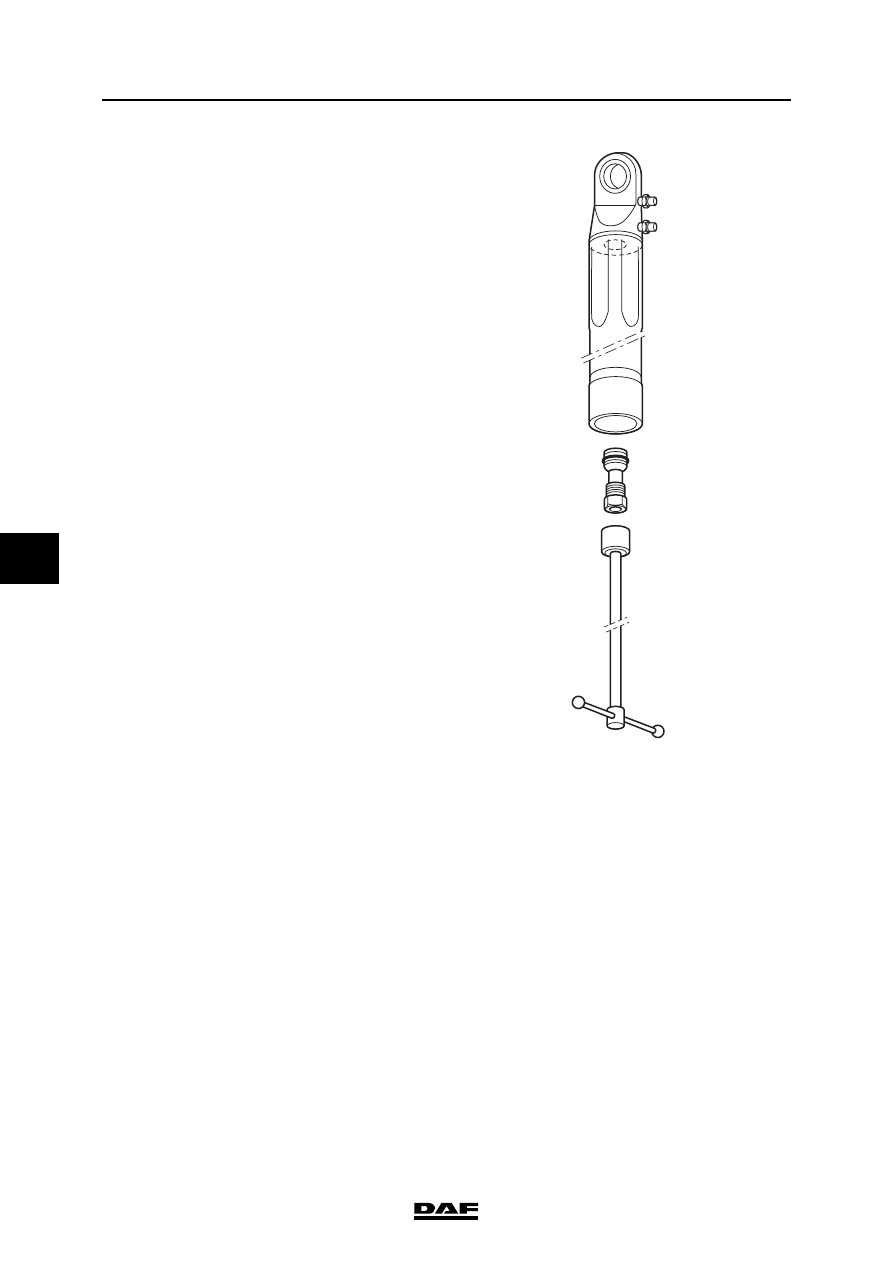

8.

Remove the non-return valve from the
cylinder using a 17-mm hexagonal socket.
Thoroughly clean all parts.

9.

Check the piston rod and the upper part of
the cylinder for scratches and damage. If
necessary, replace the entire cylinder.

K1 01 344
