DAF CF65, CF75, CF85 Series . Manual - part 131





©

 200346

4-39

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

Pre-treating cab
Within 30 minutes before gluing, the cab roof
edge should be pre-treated in the following
manner:

-

Clean the cut-back sealant and its immediate
surroundings using the specified activator,
see "Technical data". Apply the activator
using a well moistened ball of crumpled
paper towels or tissue; swipe it off
immediately using a ball of crumpled paper
towels or tissues so that only a thin layer
remains. Allow the surface to dry for the
specified time, see "Technical data".

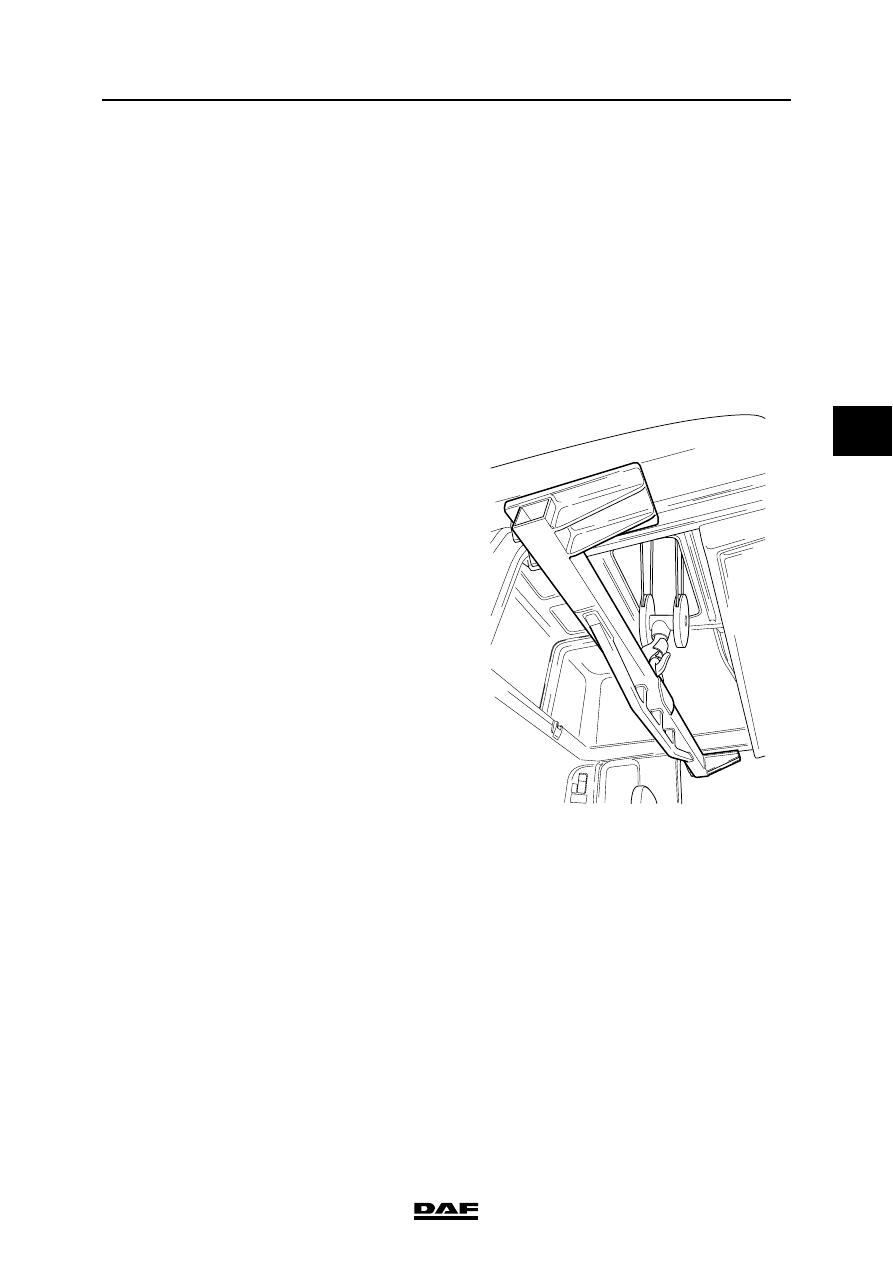

Installing raised roof
1.

Using a hoist place the polyester roof on the
cab to mark the position of the holes for the
attachment bolts.

2.

Remove the polyester roof. Drill the holes in
the polyester roof.

3.

Pre-treat the cab.

4.

Pre-treat the polyester roof.

Note:
-

Once the primer has been applied, the
polyester roof must be glued to the cab
with in the specified time, see "Technical
data".

-

Because a film forms on the beads of
adhesive (something which has a very
negative impact on the quality of the
adhesive), application of the beads of
adhesive, gluing of the surface and
fixation of the polyester roof should be
realised within the specified time, see
"Technical data".

-

Make sure that the polyester roof fits
securely into the drip channel edge of
the cab. Use stud bolts or guiding pins to
fit the polyester roof correctly onto the
cab.

K1 01 076

EXTERNAL CAB COMPONENTS

4-40

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

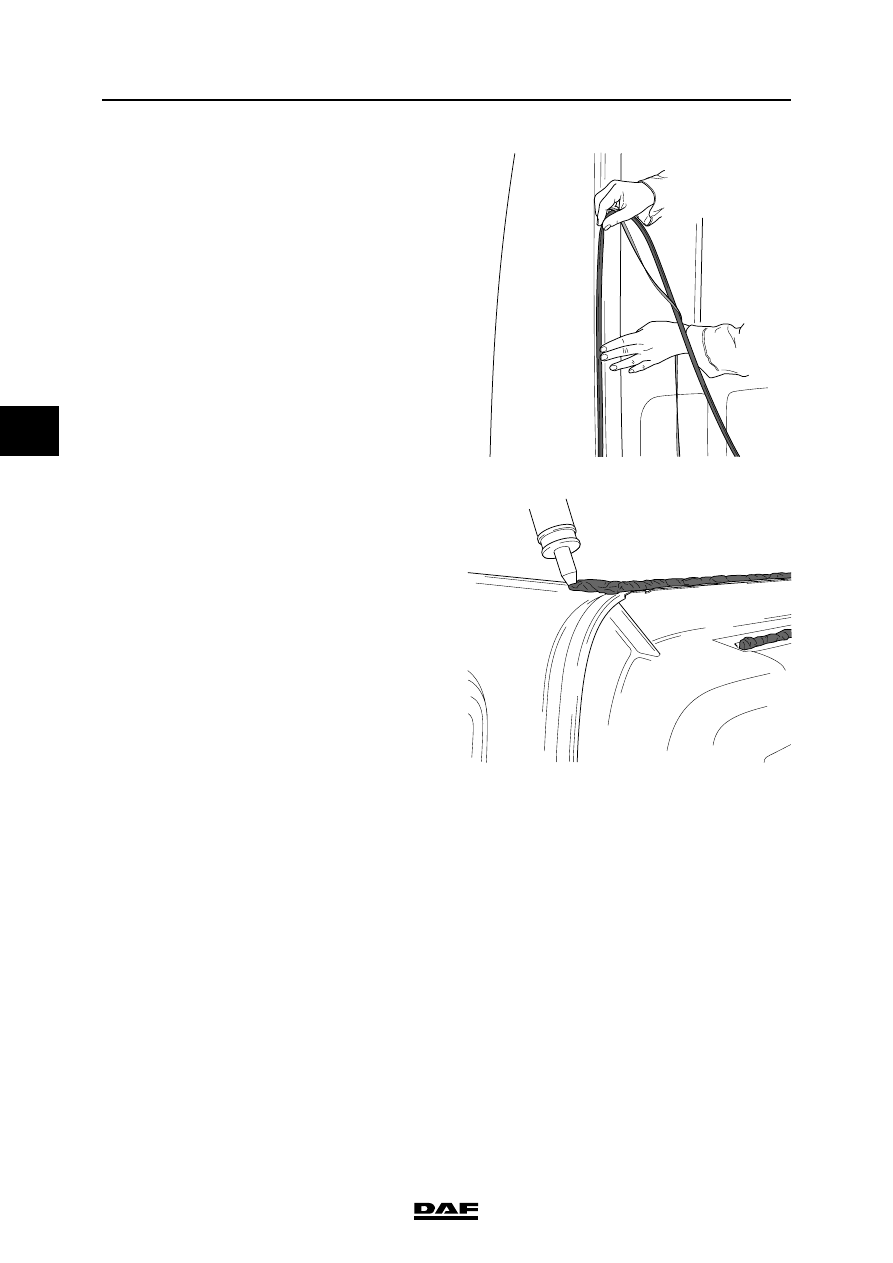

5.

Place the rubber seal all round.

6.

Apply the specified sealant, see "Technical
data".

7.

Place the steel plates to support the bed, to
prevent the roof edge from deforming.

8.

Using a hoist, place the poyester roof in the
correct position on top of the cab in one go.

9.

Tension the front of the polyester roof using
a beam at the rear so that it covers the
rubber at the front completely to prevent
black sealant streaks on the cab roof.

10. Fix the polyester roof to the inside ofthe cab

using the attachment bolts; tighten the
attachment bolts to the specified torque, see
"Technical data".

}

Setting
Take note of the full setting time
when applying the sealant. See
"Technical data". Only when it has
fully set will the glued joint be able to
bear the full load.

K1 01 075

K1 01 073

©

 200346

1

Contents

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

5 Cab suspension

CONTENTS

Page

Date

1.

SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . 200346
1.1

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . 200346

2.

GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 . . . . . 200346
2.1

Cab suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 . . . . . 200346

2.2

Operation of the cab air suspension  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 . . . . . 200346

2.3

Sectional drawing of air suspension element  . . . . . . . . . . . . . . . . . . . . . . 2-5 . . . . . 200346

3.

INSPECTION AND ADJUSTMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 . . . . . 200346
3.1

Inspection and adjustment, cab suspension with coil spring elements . . . 3-1 . . . . . 200346

3.2

Inspection and adjustment, cab suspension with air suspension elements 3-3 . . . . . 200346

4.

REMOVAL AND INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 . . . . . 200346
4.1

Removal and installation, cab stabiliser  . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 . . . . . 200346

4.2

Removal and installation, cab stabiliser bearing bracket. . . . . . . . . . . . . . 4-5 . . . . . 200346

4.3

Removal and installation, cab support. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 . . . . . 200346

4.4

Removal and installation, cab stabiliser silentblocks . . . . . . . . . . . . . . . . . 4-8 . . . . . 200346

4.5

Removal and installation, coil spring front suspension  . . . . . . . . . . . . . . . 4-10 . . . . 200346

4.6

Removal and installation, rear coil spring suspension. . . . . . . . . . . . . . . . 4-12 . . . . 200346

4.7

Removal and installation, front air suspension  . . . . . . . . . . . . . . . . . . . . . 4-13 . . . . 200346

4.8

Removal and installation, rear air suspension . . . . . . . . . . . . . . . . . . . . . . 4-15 . . . . 200346

4.9

Removal and installation, cab locking mechanism  . . . . . . . . . . . . . . . . . . 4-16 . . . . 200346

4.10 Removal and installation, complete cab  . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 . . . . 200346

CAB SUSPENSION

2

©

 200346

Contents

5

ΧΦ65/75/85 series

1
