Lubrication

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

7. LUBRICATION

7.1 LUBRICATE ACCORDING TO X-SERVICE LUBRICATION SCHEDULE

Lubrication
Check whether the lubricating points stated
below are applicable.

Note:
Where the lubricating points below are marked
with an (S), this indicates that the lubricating point
is positioned on both the left and right of the
vehicle.

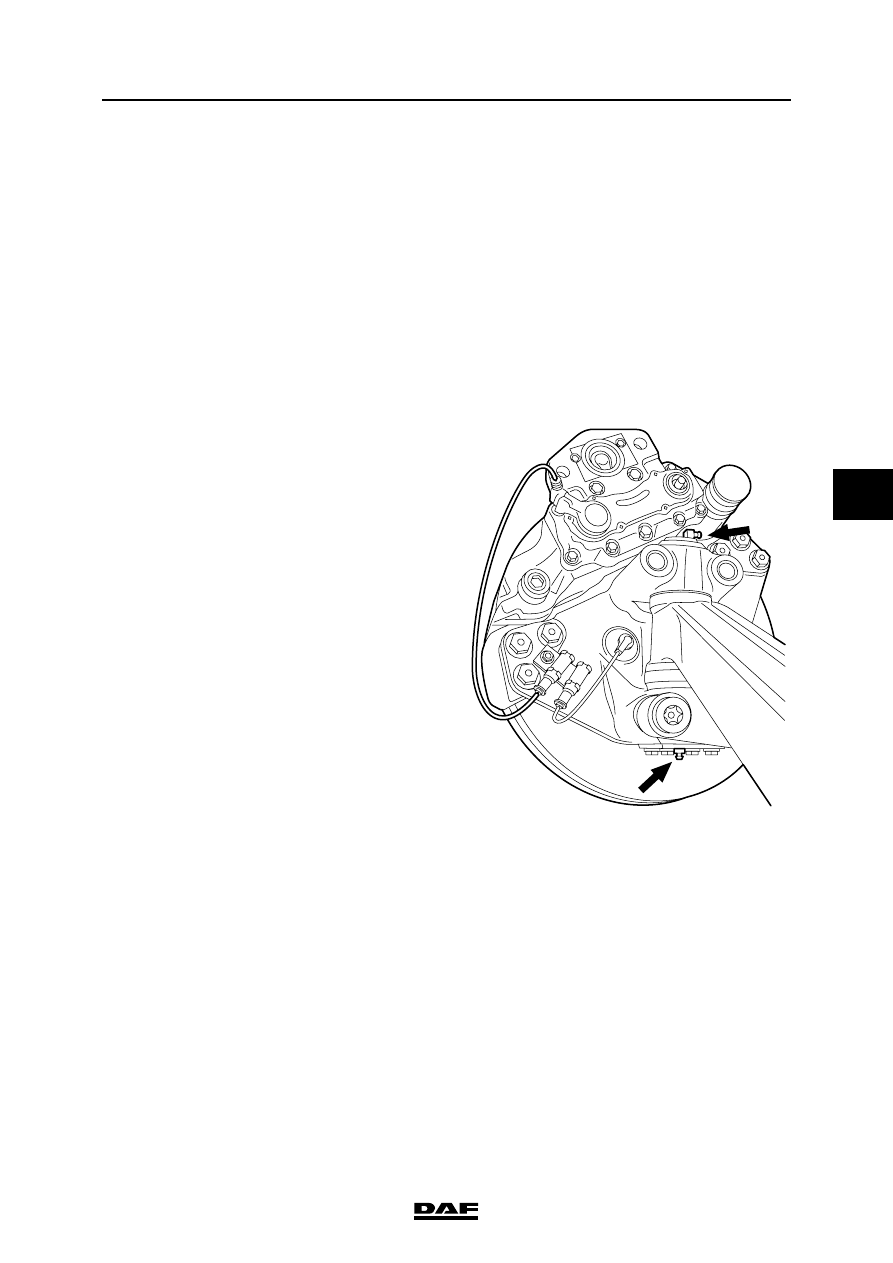

Lubricating stub axles (S)
1.

To make sure that the grease can penetrate
adequately, the stub axles should be
lubricated in unloaded condition. The front
axle should therefore be completely jacked
up.

2.

Lubricate the stub axles until grease comes
out.

G000189

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

7-2

©

 200423

Lubrication

5

ΧΦ85 series

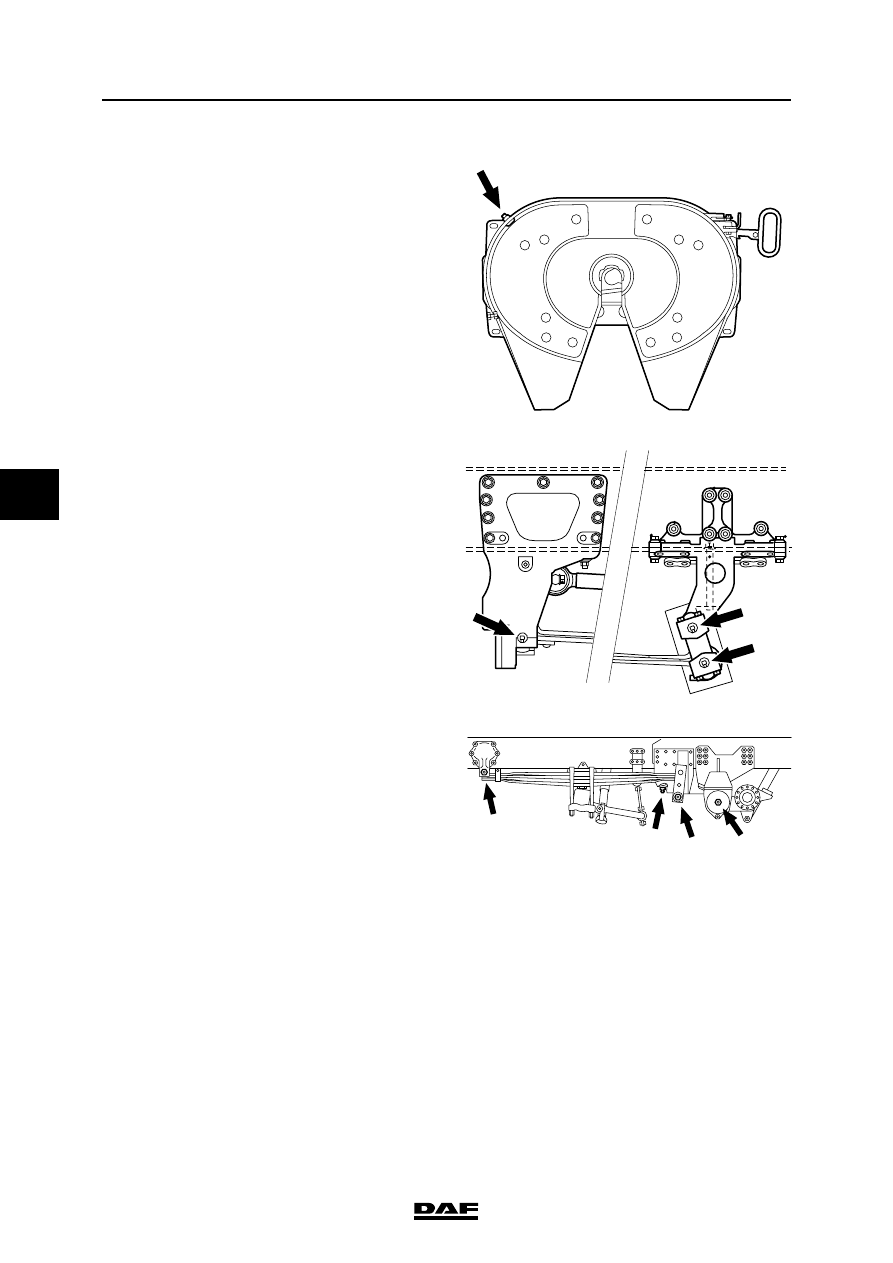

Lubricating the fifth wheel

Lubricating the air-sprung front axle (S)

Lubricating the leaf-sprung trailing axle (S)

G000192

G0 00 193

G000191

©

 200423

7-3

Lubrication

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

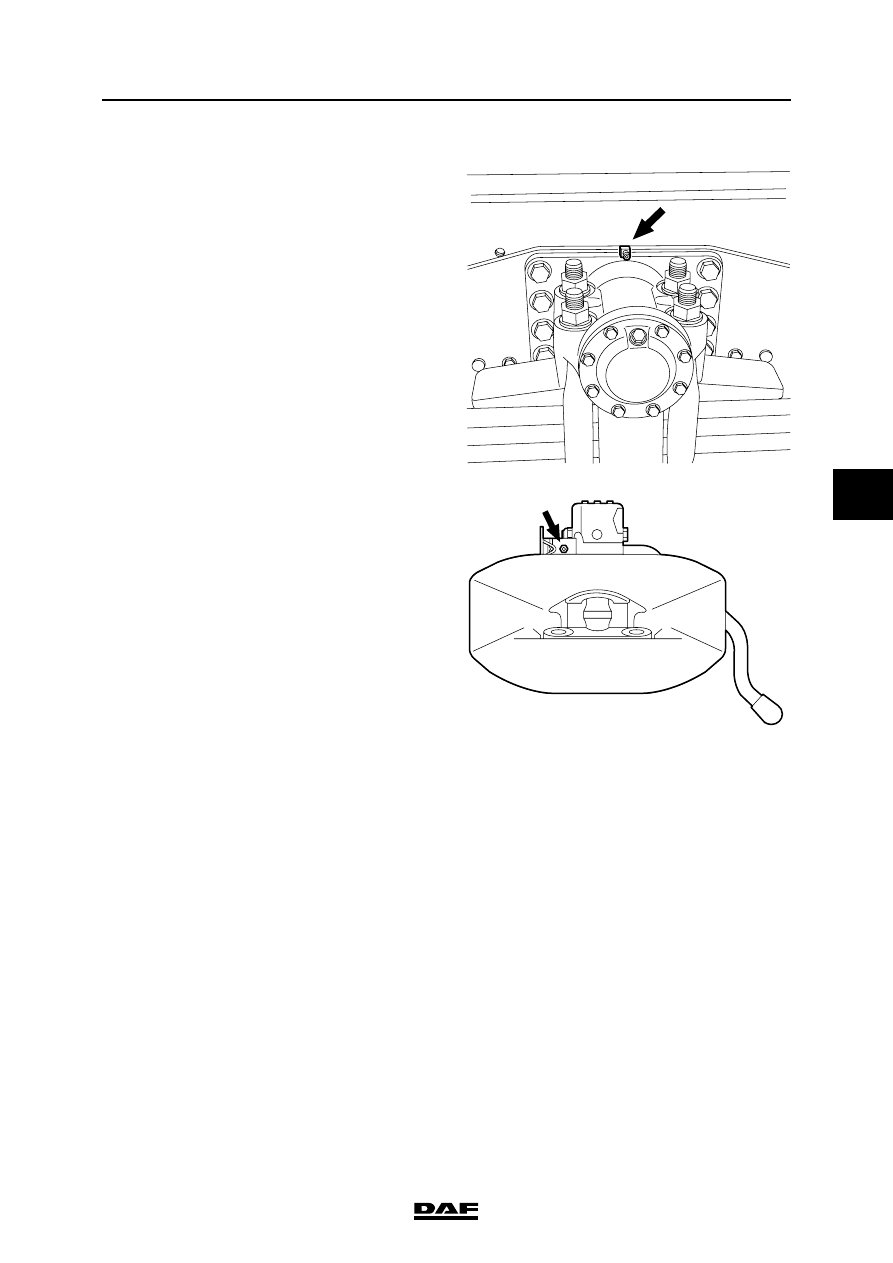

Lubricating the leaf-sprung tandem axle (S)

Lubricating the trailer coupling

G000187

G000188

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

7-4

©

 200423

Lubrication

5

ΧΦ85 series

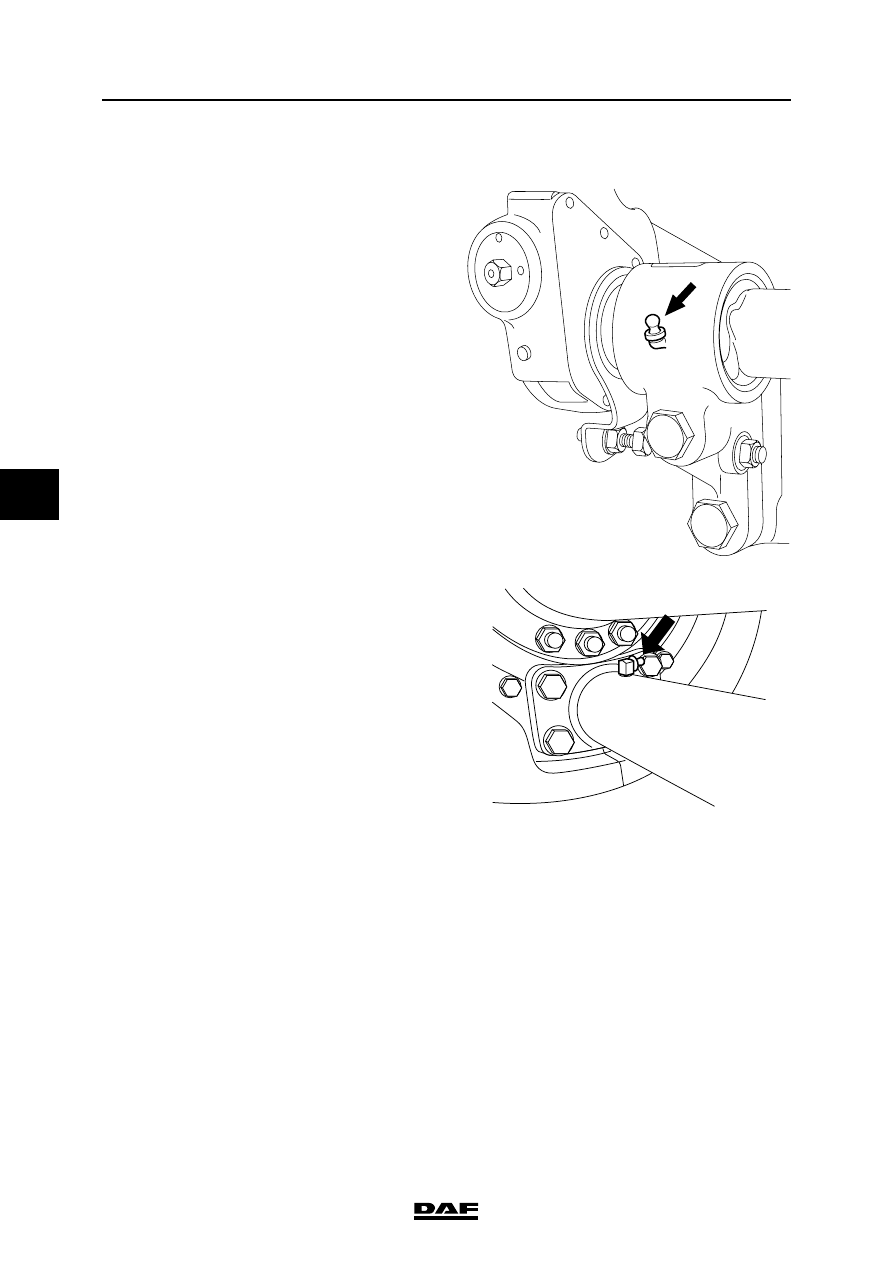

Lubricating the rear axle brake camshaft (S)
(drum brake version)

G000194

G0 00 267
