Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

5.5 DRAINING AND FILLING, DIFFERENTIAL

To prevent skin injury, avoid
unnecessary contact with the
drained oil.

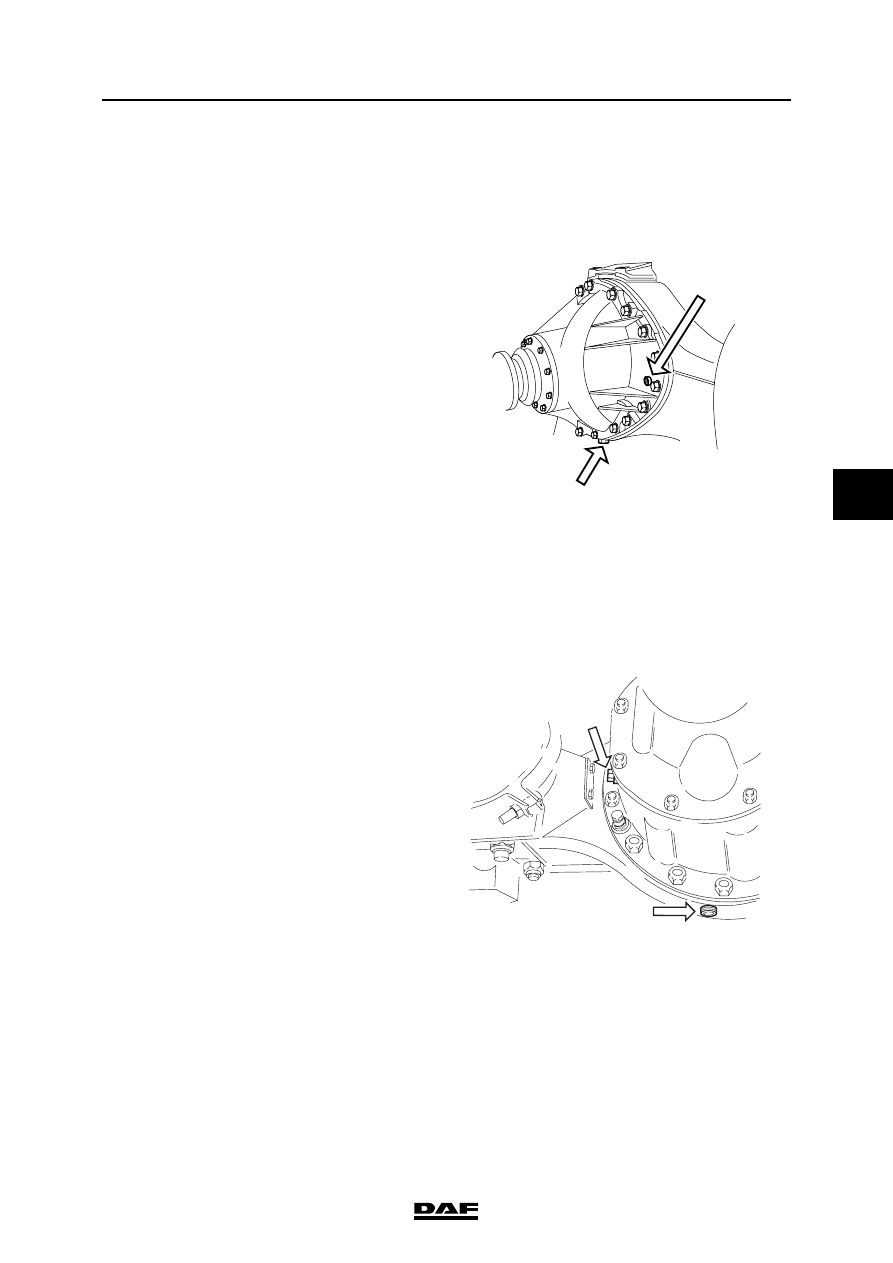

Version: 1339 and 1347 axles

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and
drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench
(DAF no. 1329493) and tighten to the
specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level
check/filler plug (A) with the specified
quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it
should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the
special Torx wrench (DAF no. 1329493) and
tighten to the specified torque; see
"Technical data".

Version: 1354 axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and
drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench
(DAF no. 1329493) and tighten to the
specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level
check/filler plug (A) with the specified
quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it
should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the
special Torx wrench (DAF no. 1329493) and
tighten to the specified torque; see
"Technical data".

}

M8013

A

B

B

A

M8048

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-8

©

 200423

Draining and filling

5

ΧΦ85 series

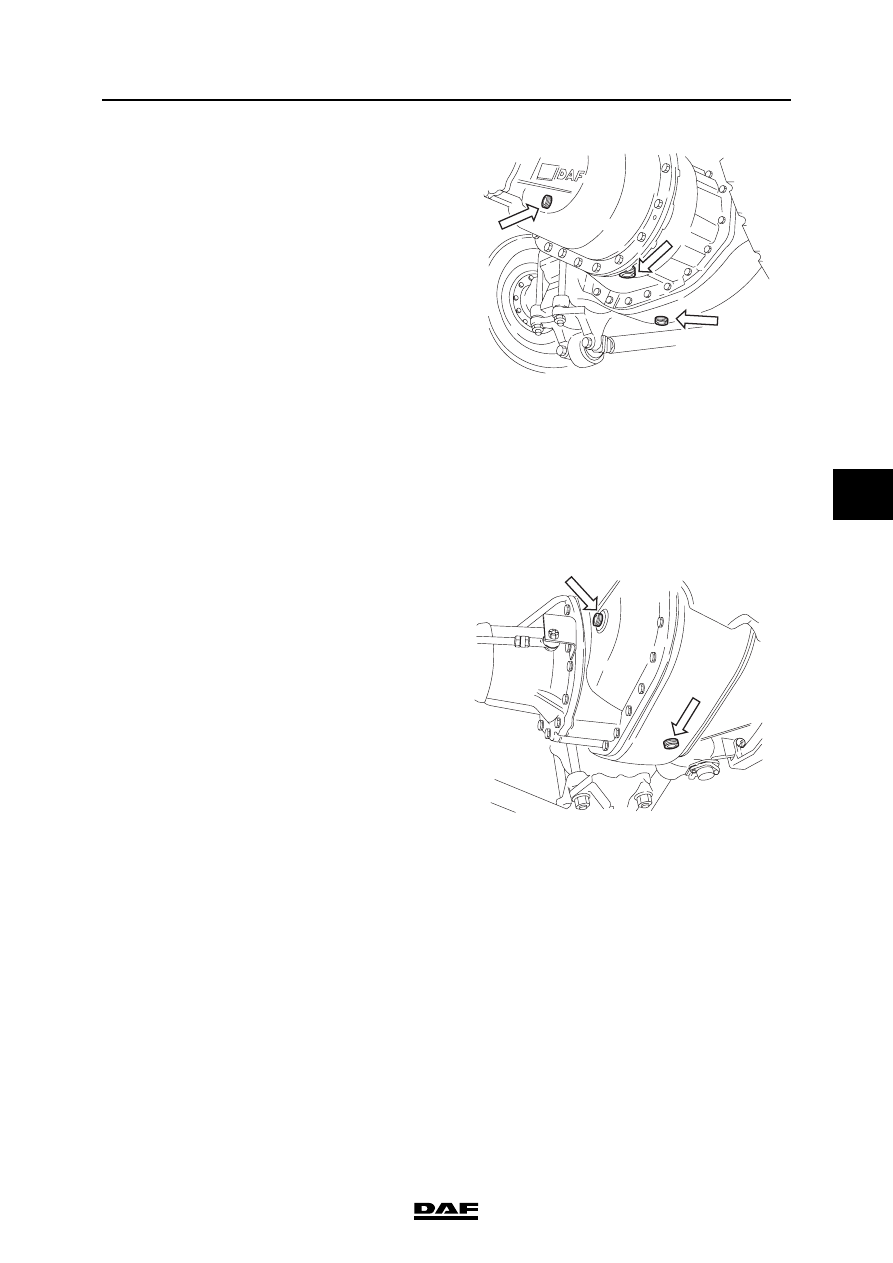

Version: 1132(T) 1st axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and
drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench
(DAF no. 1329493) and tighten to the
specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level
check/filler plug (A) with the specified
quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it
should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the
special Torx wrench (DAF no. 1329493) and
tighten to the specified torque; see
"Technical data".

Version: 1132(T) 2nd axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and
drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench
(DAF no. 1329493) and tighten to the
specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level
check/filler plug (A) with the specified
quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it
should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the
special Torx wrench (DAF no. 1329493) and
tighten to the specified torque; see
"Technical data".

M8013

A

B

©

 200423

5-9

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

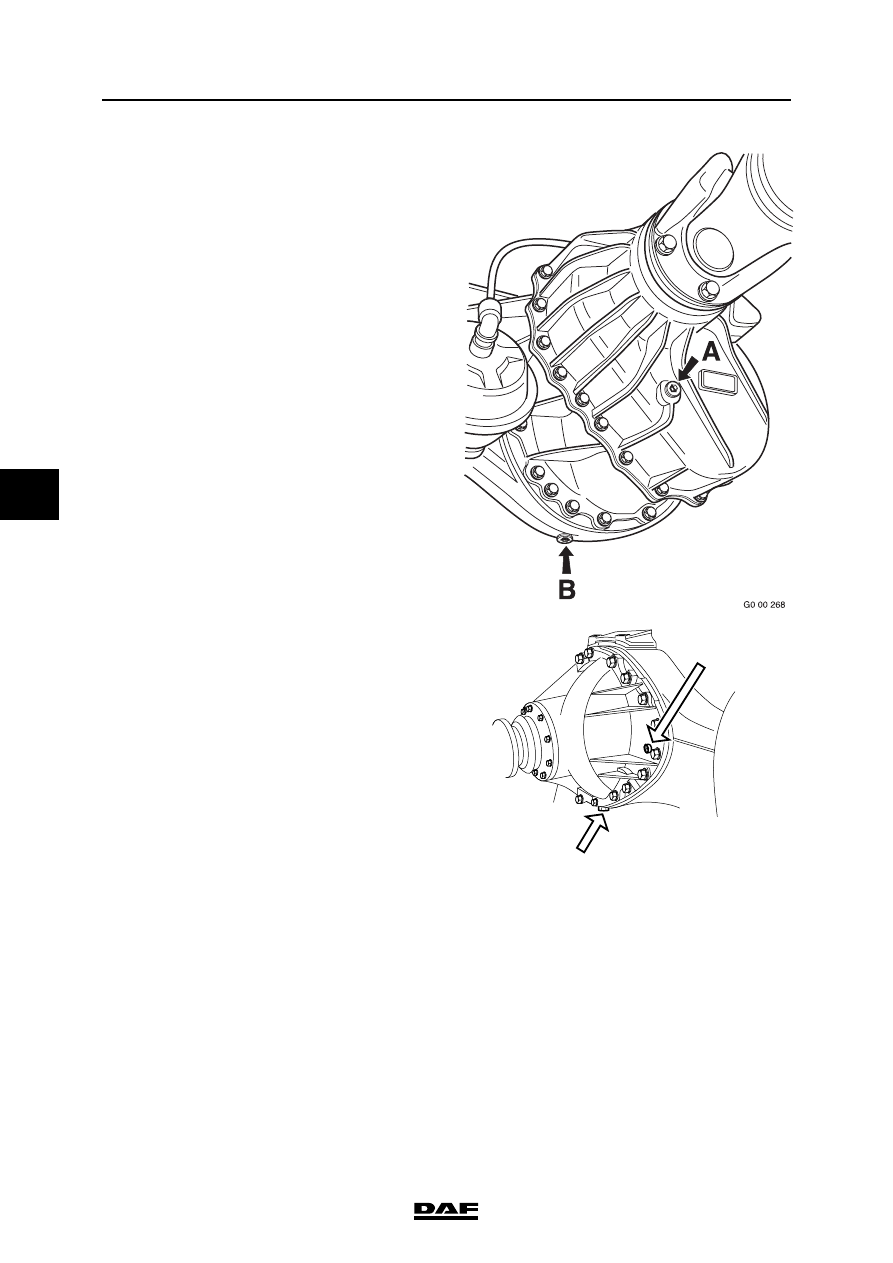

Version: 1355(T) 1st axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and
drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench
(DAF no. 1329493) and tighten to the
specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level
check/filler plug (A) with the specified
quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it
should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the
special Torx wrench (DAF no. 1329493) and
tighten to the specified torque; see
"Technical data".

Version: 1355(T) 2nd axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and
drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench
(DAF no. 1329493) and tighten to the
specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level
check/filler plug (A) with the specified
quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it
should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the
special Torx wrench (DAF no. 1329493) and
tighten to the specified torque; see
"Technical data".

B

B

A

M8049

B

A

M8050

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-10

©

 200423

Draining and filling

5

ΧΦ85 series

5.6 DRAINING AND FILLING THE WHEEL HUB

To prevent skin injury, avoid
unnecessary contact with the
drained oil.

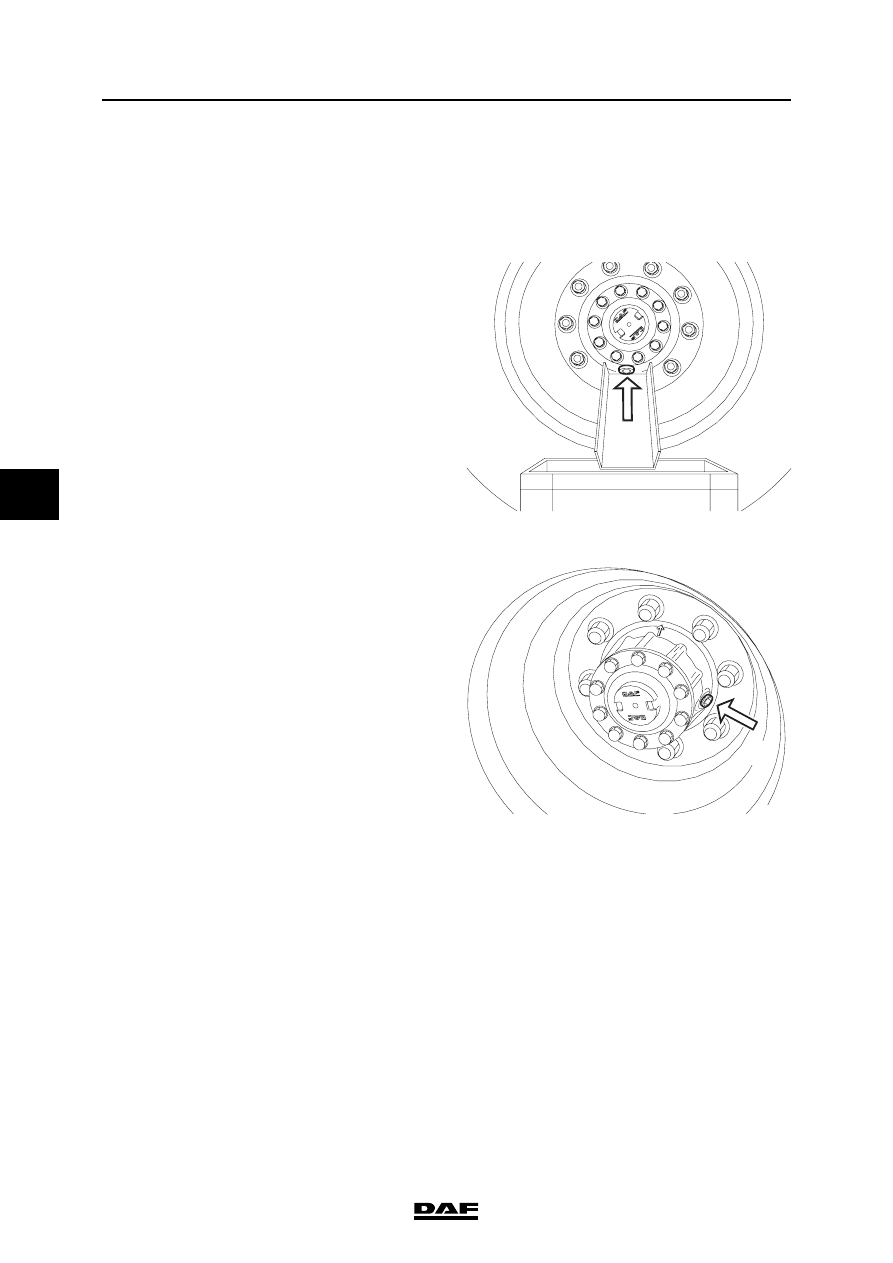

Version: 1132(T) axle

Draining the wheel hub
1.

Position the vehicle on a level surface.

2.

Position the wheels in such a way that the oil
drain/filler plug (A) is on the underside.

3.

Remove the oil level check plug (B) and oil
drain/filler plug (A).

4.

Drain the oil and let the oil leak out of the
hub.

Filling the wheel hub
1.

Position the wheels so that the arrow on the
wheel hub points upwards. The oil drain/filler
plug (A) is now in the correct position.

2.

Fill the wheel hub with the specified quantity
of oil. See "Technical data".

3.

Check the oil level after approx. 5 minutes: it
should reach up to the level check/filler plug.

4.

Fit the plug using the special tool
(DAF no. 1329493) and tighten the plug to
the specified tightening torque. See
"Technical data".

}
