DAF CF65, CF75, CF85 Series . Manual - part 1205





©

 200423

4-15

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

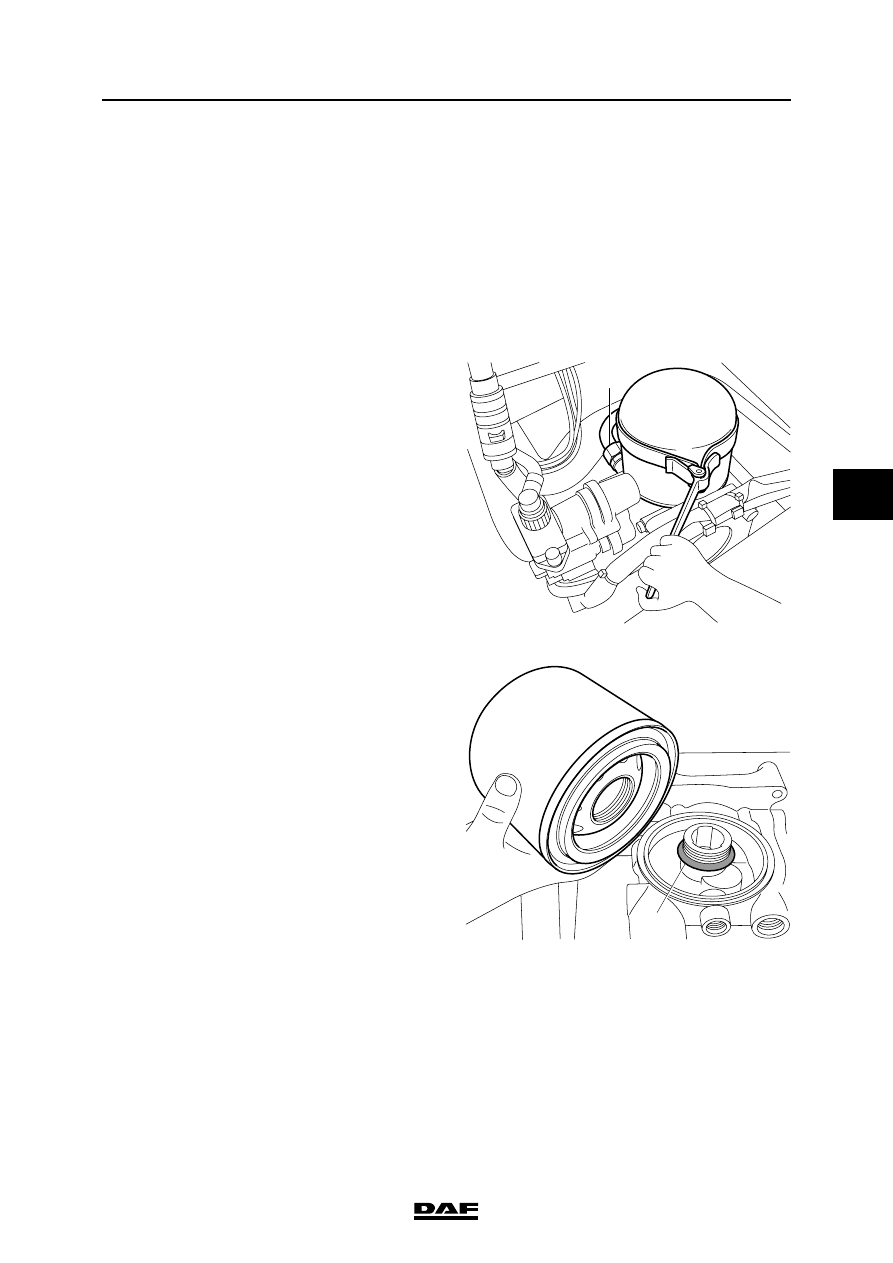

4.11 REMOVAL AND INSTALLATION, AIR DRYER FILTER ELEMENT

Note:
To be certain that the air dryer is functioning
properly, the air reservoirs should regularly be
checked for condensation. If more than the
normal amount of water is drained off repeatedly,
the air dryer element must be replaced. Under
normal circumstances the element must be
replaced at least once per year.

Removing air dryer filter element
1.

Vent the air dryer by allowing it to regenerate
or by loosening the compressor line (1), so
that the interior of the air dryer is
depressurised.

2.

Remove the filter element by turning it anti-
clockwise using a filter strap spanner.

3.

Dispose of the drying element as if it were an
oil filter.

4.

Clean the air dryer internally.

5.

Check the air dryer threaded connection (2)
for damage and then lubricate it sparingly
with grease.

Installing the air dryer filter element
1.

Lubricate the sealing ring of the new filter
element sparingly with grease.

2.

Fit the filter element by manually tightening it
until the sealing ring abuts. Then tighten the
element by hand (approx. 1 turn).

3.

Fasten the compressor line (1).

4.

Pressurise the system and then check the air
dryer for any air leaks.

R600525

1

R600526

2

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-16

©

 200423

Removal and installation

5

ΧΦ85 series

5.

Using a water-resistant felt pen, write on the
sticker the latest date by which the dryer
element must be replaced (not later than 1
year after the date of fitting).

Drive and chassis

Artikelnummer

Reference

Teilenummer

Référence

Eerstvolgende vervanging

Next change

Nächster Wechsel

Prochain remplacement

1391510

R600523

©

 200423

4-17

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

4.12 REMOVAL AND INSTALLATION, GEARBOX FILTER ELEMENT

To prevent skin injury, avoid
unnecessary contact with the
drained oil.

ZF gearbox with integrated retarder

Removing the gearbox filter element
1.

Remove the attachment bolt (1) of the oil
filter.

2.

Pull the filter cover with the filter from the
filter housing.

3.

Remove the filter (3) from the filter cover (2).
Do not clean the filter. The filter must always
be replaced.

Note:
If the magnetic disk is still attached to the
back of the filter, separate it from the filter
element and fit it on the new filter element.

}

M3052

1

M3053

M3054

2

3

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-18

©

 200423

Removal and installation

5

ΧΦ85 series

Installing the gearbox filter element
1.

Check the O-ring of the filter cover (2) for
damage. If necessary, replace the O-ring.
Grease the O-ring.

2.

Grease the O-ring of the new filter (3) and
place the filter on the filter cover.

3.

Then insert the filter and the filter cover into
the filter housing.

4.

Use a plastic mallet to tap the filter cover into
the filter housing.

5.

Tighten the attachment bolt (1) to the
specified tightening torque, see main group
"Technical data".
