3.37 CHECK THE SUPERSTRUCTURE ATTACHMENT

1.

Check that all attachment bolts are in place.

2.

Visually check the attachment of the
superstructure for faults. See the DAF
superstructure instructions.

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-36

©

 200423

Inspection and adjustment

5

ΧΦ85 series

3.38 CHECKING THE CLUTCH FLUID LEVEL

Hydraulic fluid is toxic and can
therefore have a damaging effect on
your health.
Hence avoid any direct or indirect
physical contact.
As hydraulic fluid is also a corrosive
fluid, it may damage the paintwork of
the vehicle.
Avoid any contact between
hydraulic fluid and paintwork.
Always use new and clean hydraulic
fluid which has been kept in a sealed
container and meets the
specifications.
Hydraulic fluid which has absorbed
water (from the ambient air) may
have an adverse effect on the
operation of the clutch system.
Avoid any contact with mineral oil.
Even one drop of mineral oil in the
system will damage the seals.

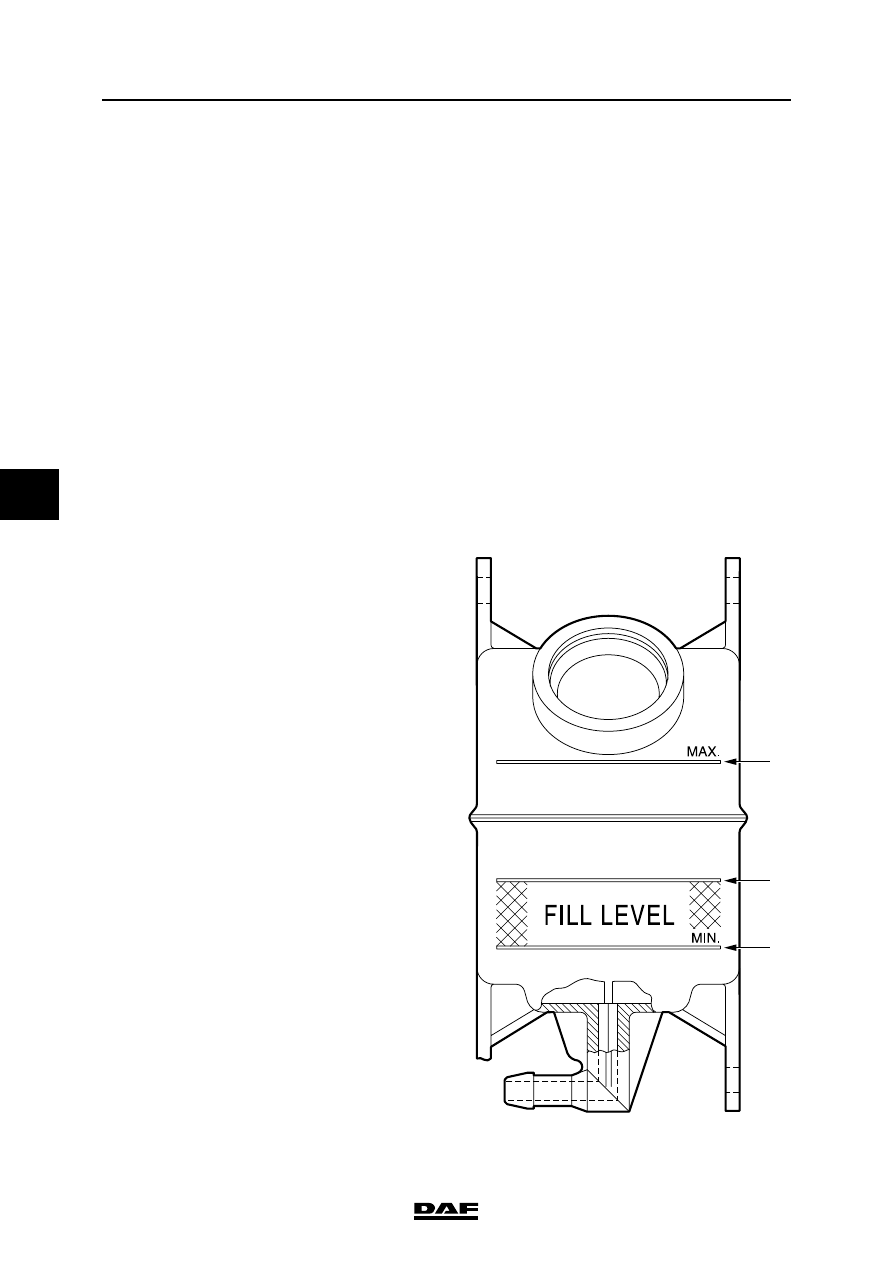

1.

Check that the fluid level is between the (A)
and (B) marks when the cab is in the driving
position.

2.

Mark (C) applies to fully tilted cabs.

3.

Hand tighten the reservoir sealing cap.

Note:
There is an air bleed vent in the cap that may
be closed if the cap is tightened with too
great a force.
If the air bleed vent is closed off, residual
pressure will build up in the system.

}

C

B

A

V300178

©

 200423

3-37

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

3.39 INSPECTION AND ADJUSTMENT, CLUTCH WEAR INDICATOR

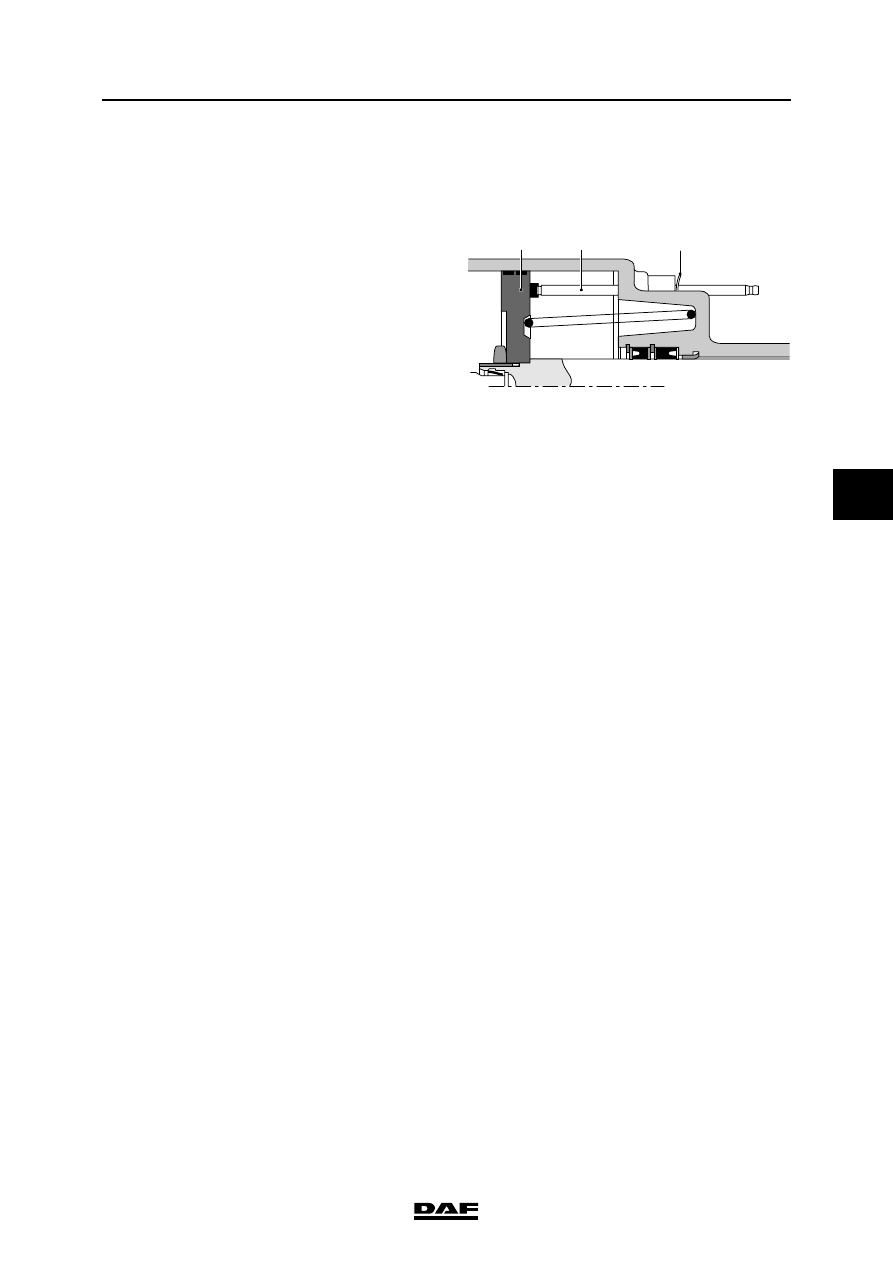

Checking the clutch wear indicator
1.

Visually check that the lock nut (12) makes
contact with the housing. If the lock nut (12)
no longer makes contact with the housing,
the clutch plate is approximately 80% worn.

Note:
It is not permissible to remove the circlip, or
to move the circlip over the pin. This is to
prevent inaccurate indication.

Adjusting the clutch wear indicator
1.

Press the circlip (12) against the clutch
servo.

Note:
It is not permissible to remove the circlip, or
to move the circlip over the pin. This is to
prevent inaccurate indication.

V300355

5

11

12

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-38

©

 200423

Inspection and adjustment

5

ΧΦ85 series

3.40 CHECKING THE GEARBOX FOR LEAKS

1.

Visually check the gearbox for leaks.

3.41 CHECKING THE CENTRAL AXLE OF THE TANDEM AXLE UNIT FOR LEAKS

1.

Visually inspect the central axle for leaks.

3.42 INSPECTION OF OIL LUBRICATED WHEEL HUBS FOR LEAKS

1.

Check the wheel hubs for leaks.

Note:
If leaks occur in the oil lubricated wheel hubs,
the wheel hub should be refilled to the
correct level - once the leak has been
repaired, see chapter: "Draining and filling".

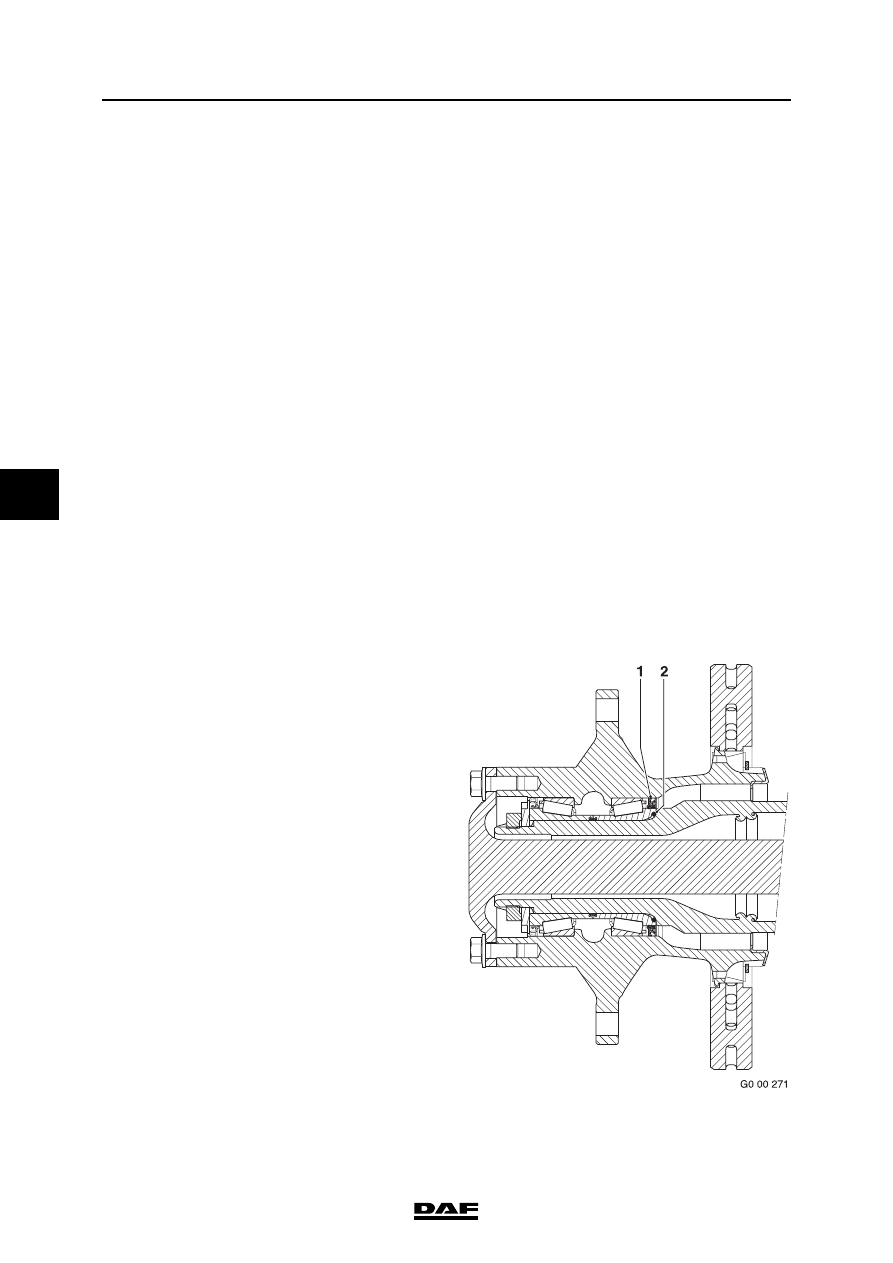

3.43 CHECKING THE GREASED WHEEL HUBS FOR LEAKS

1.

Check the wheel hubs for leaks.

Note:
If there are serious grease marks on the brake
disc side of the wheel hub, this could indicate
excessive use of assembly grease on new or
recently assembled wheel hubs.
On wheel hubs that have not been assembled
recently, serious grease marks could indicate a
leak in the seal (1). This means that the entire hub
unit must be replaced.
Serious oil leakage on the driven rear axle hubs
could indicate that the O-ring (2) is not sealing
correctly.
If there is an oil leak the hub unit should be
dismantled to remedy the problem.
