DAF CF65, CF75, CF85 Series . Manual - part 1193

©

 200423

3-11

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

3.12 CHECKING FOR FUEL LEAKS

1.

Visually inspect all hose connections and
fuel system components for leaks.

3.13 CHECKING THE COMPONENTS AND HOSE CONNECTIONS FOR LEAKS

1.

Check all hose connections and cooling
system components for leaks.

2.

Check the hose connections and inlet
system components.

3.14 CHECKING THE EXHAUST SYSTEM

1.

Visually inspect the exhaust system for
leaks.

2.

Check the exhaust suspension points.

3.

Check that no heat transfer (due to
accumulated dirt, for example) can take
place to the exhaust system area, such as
pipes, components etc.

3.15 CHECKING THE RADIATOR AND INTERCOOLER FOR FOULING

1.

Visually inspect the radiator and intercooler
for fouling If necessary, clean the radiator
and intercooler, see "Cleaning".

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-12

©

 200423

Inspection and adjustment

5

ΧΦ85 series

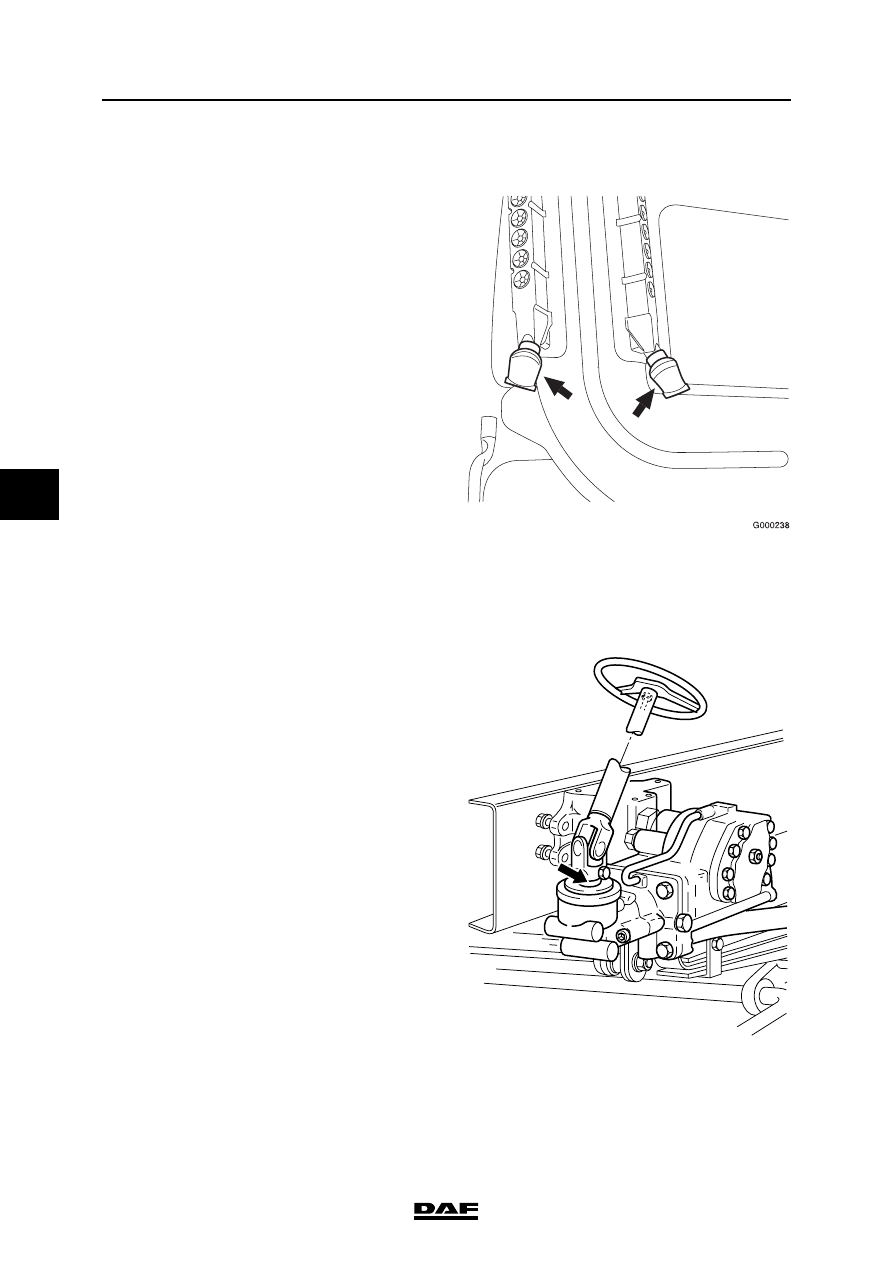

3.16 CHECKING THE AIR INLET DUST TRAPPING VALVE

1.

Check the condition of the rubber valves.

Steering gear and brake system

3.17 CHECKING THE UNIVERSAL JOINT ATTACHMENT ON STEERING BOX

INPUT SHAFT

1.

Check the universal joint for perceptible play.
If perceptible play is detected, the affected
part must be replaced.

2.

Check whether there is any perceptible play
between the spline connection of the
universal joint and the steering box input
shaft. If perceptible play is detected, the
splines on the universal joint and those on
the input shaft must be checked for wear. If
wear is detected, the affected part must be
replaced.

3.

If there is perceptible play but the parts are
not worn, the attachment bolt and nut must
be replaced. Tighten the attachment bolt and
nut to the specified torque, see "Technical
data".

S7 00 639

©

 200423

3-13

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ85 series

5

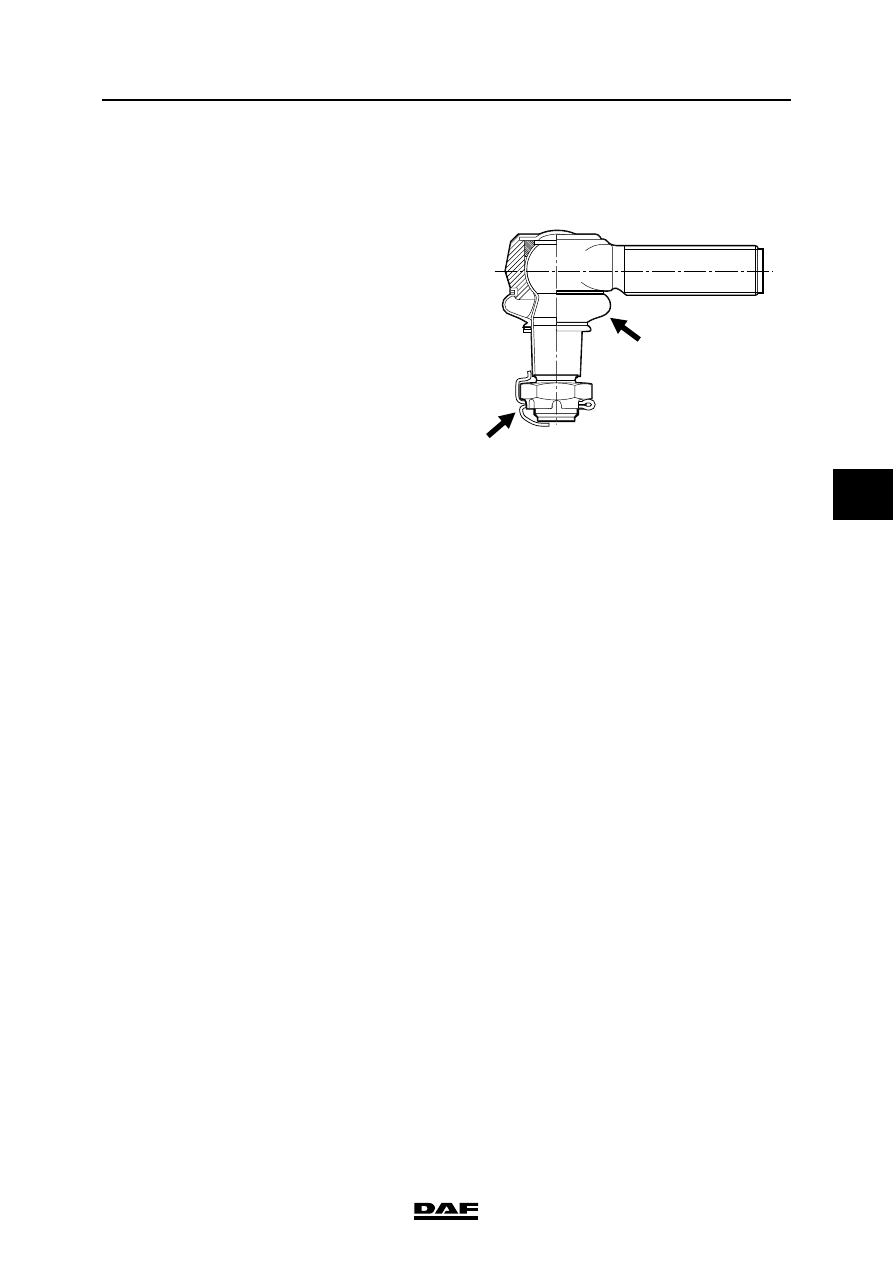

3.18 CHECKING THE STEERING BALL JOINT SLEEVE FOR DAMAGE

Inspection, locking devices and dust cover
1.

Check that the steering ball joint dust cover
or seal is not damaged. Replace the steering
ball joint if damaged.

2.

If a castle nut is fitted, check that the locking
devices are present and undamaged.

S7 00 592

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-14

©

 200423

Inspection and adjustment

5

ΧΦ85 series

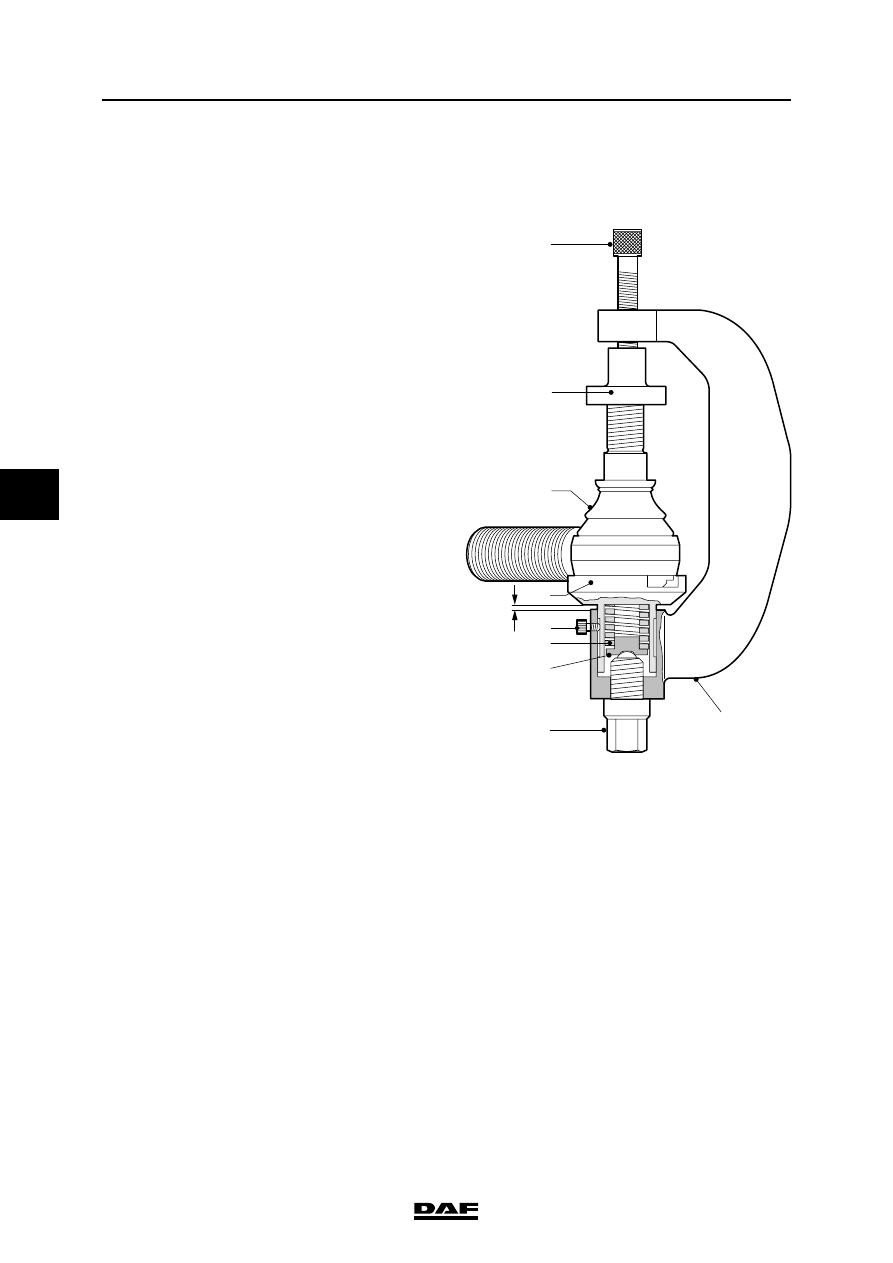

3.19 CHECKING THE STEERING BALL JOINTS

Checking axial steering ball joint play
1.

Check the axial steering-ball joint play using
special tool (DAF no. 1329426)

2.

First jack up the axle until the wheels come
off the ground and put the axle on stands.

3.

Make sure that the castle nut split pin (if
fitted) at the nut does not come into contact
with the head of the threaded end.

4.

Screw the thrust washer (8) on to the
threaded spindle.

5.

Fit the spring retainer (3), spring (4) and
pressure sleeve (6) into bracket (1). Fit the
locking screw (5). It should be possible to
move the pressure sleeve (6) freely.

Note:
Fit the correct pressure sleeve (6).
The pressure sleeve (6) must abut the outer
edge of the steering ball joint (7).

6.

Loosen thrust bolt (2) until the pressure
sleeve (6) with the flange abuts the bracket
(A = 0 mm).

7.

Fit the special tool over the steering ball joint
(7) and turn the threaded spindle (9) by hand
until the special tool is tight around the
steering ball joint (7).

8.

Tighten thrust bolt (2) until its head abuts
bracket (1).

9.

Measure play "A" between the pressure
sleeve and the bracket using a feeler gauge.
Compare the reading with the maximum
permissible steering ball joint play, see
"Technical data".
If necessary, replace the steering ball joint.

9

8

7

6

5

4

3

2

A

1

S700426
