DAF CF65, CF75, CF85 Series . Manual - part 1174





©

 200423

5-17

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

Version: Allison MD3060P, MD3066P and
MD3560P

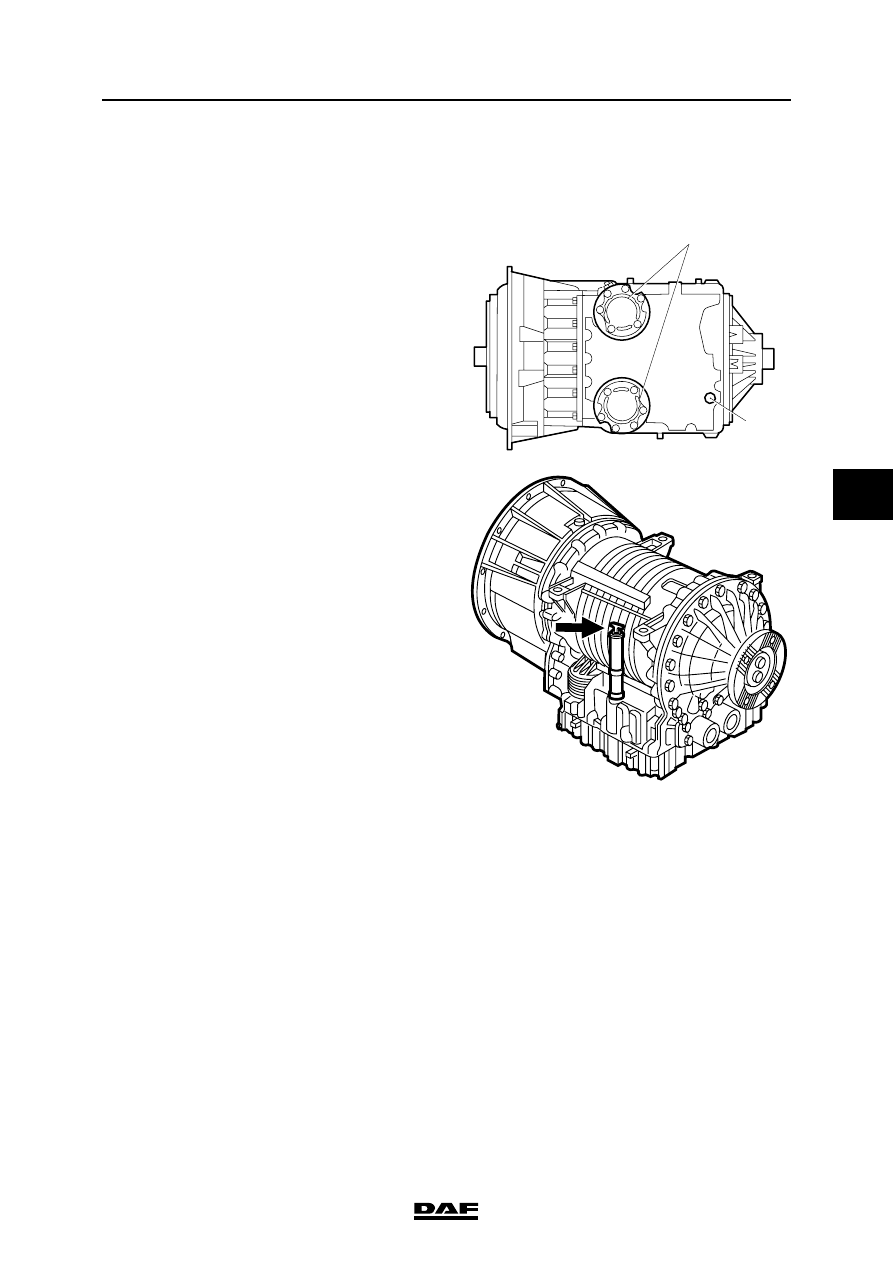

Draining the automatic gearbox
1.

Bring the gearbox to operating temperature

(approx. 71

C - 93C) to allow the oil to drain

more quickly and more fully.

2.

Place the vehicle on a level and horizontal

surface.

3.

Remove the drain plug (1) from the gearbox

oil sump.

4.

Remove the oil filters (2), see chapter

"Removal and installation".

Filling the automatic gearbox

1.

Clean the drain plug (1), fit a new sealing ring

and tighten the plug to the specified torque;

see "Technical data".

2.

Fit the oil filters (2), see chapter "Removal

and installation".

3.

Fill the gearbox through the dipstick holder

with the specified oil quantity; see "Technical

data".

V300371

2

1

W 3 03 098

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-18

©

 200423

Draining and filling

5

ΧΦ75 series

4.

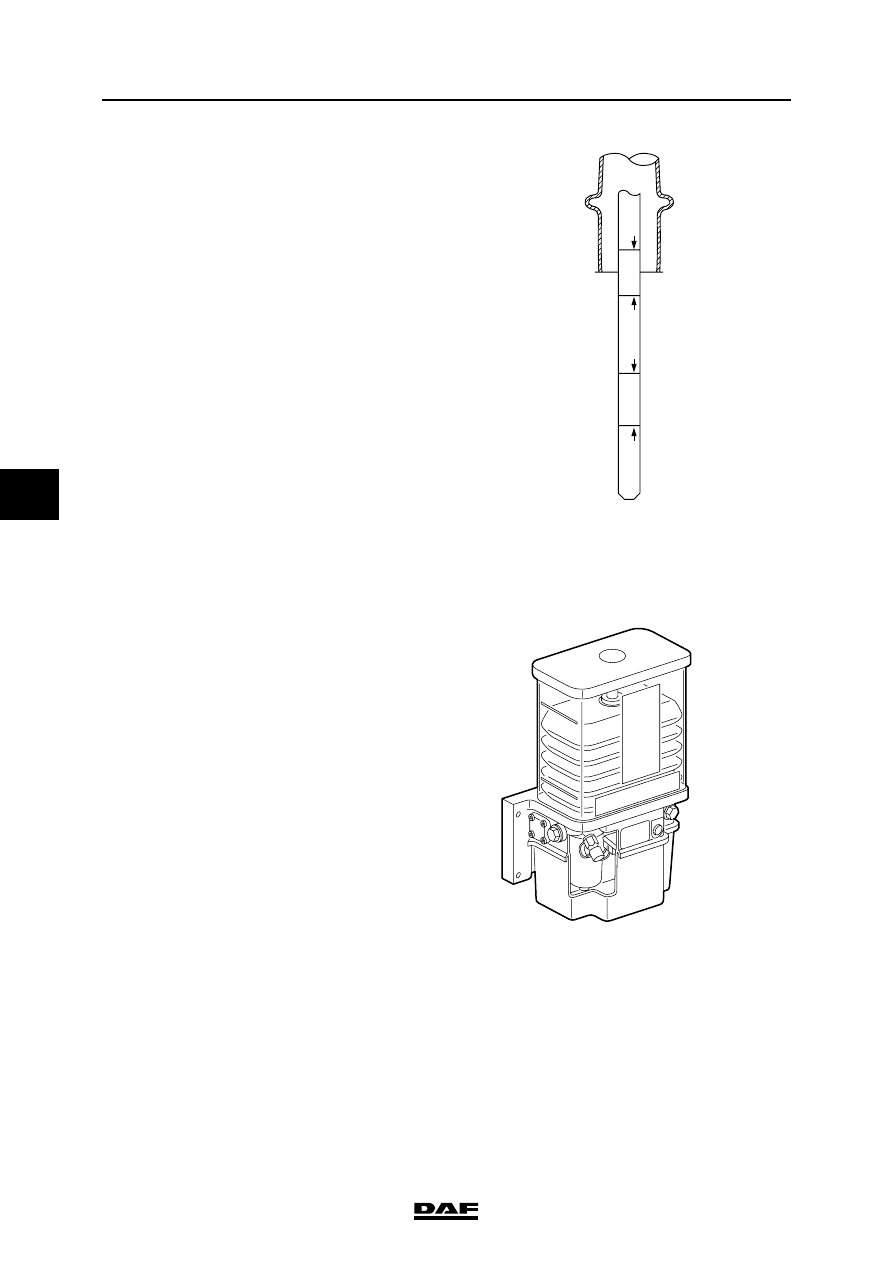

Check that the oil level reaches the "Cold

full" mark.

Note:

To take the dipstick from the holder, the

sealing cap must be held tightly while the

dipstick is turned anti-clockwise.

5.

Check the oil level using the selector keypad,

see chapter "Inspection and adjustment".

5.8 FILLING GREASE SUPPLY OF THE AUTOMATIC LUBRICATION SYSTEM

1.

Remove the dust cover from the filler

coupling.

2.

Connect the filler hose to the filler coupling.

Ensure that the filler hose is completely filled

with grease so that no air bubbles can get

into the system.

3.

Fill the reservoir to the specified maximum

level.

Note:

When filling the reservoir, the air above the

follower piston will escape. This air will flow

down through an opening in the piston line

and escape from the pump through the right-

angled coupling. Normally a small amount of

grease will escape from this coupling during

venting.

4.

Remove the filler hose from the filler

coupling.

HOT

FULL

COLD

FULL

HOT

ADD

COLD

ADD

W 3 03 099

C900331

©

 200423

6-1

Cleaning

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

6. CLEANING

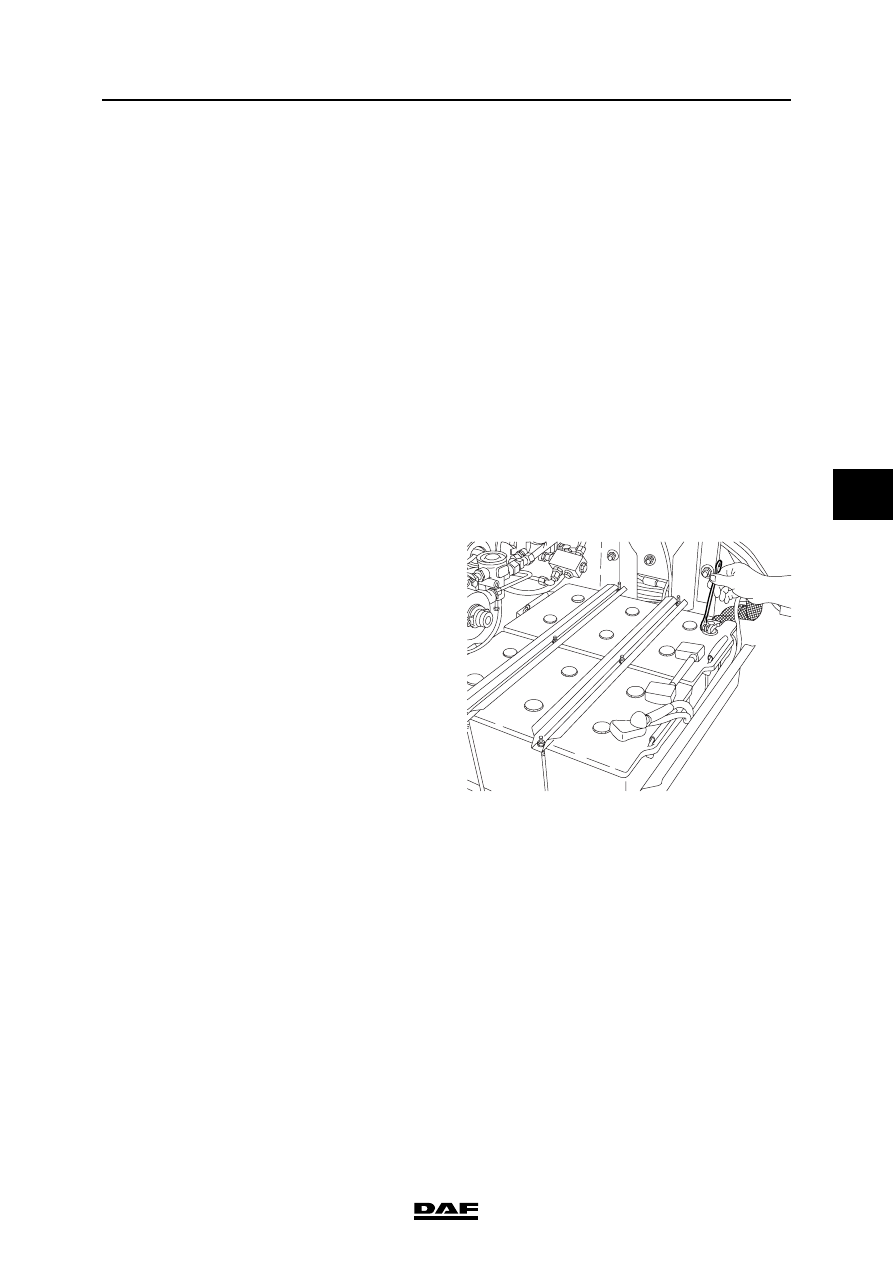

6.1 CLEANING THE BATTERY POLES

Avoid sparks and open flames in the

vicinity of batteries.

Battery acid is an aggressive fluid.

In the event of contact with the skin:

rinse the skin with plenty of water for

a sustained period. If redness or

pain persists, consult a doctor.

Remove any clothing affected and

rinse with water.

In the event of contact with the eyes:

rinse with plenty of water for at least

15 minutes and consult a doctor.

If swallowed: do NOT induce

vomiting. Rinse the mouth, drink two

glasses of water and consult a

doctor.

In the event of inhalation: get fresh

air, rest and consult a doctor.

1.

Disconnect the earth lead from the battery

terminal.

2.

Disconnect the positive lead from the battery

terminal.

3.

Clean the battery terminals, battery cables

and the top of the battery (oxide and dirt

discharge the battery).

4.

If the top of the battery has acid on it, it

should be rinsed with water.

5.

Grease the battery terminals with Vaseline.

6.

Check the earth lead connection to the

chassis and grease the connection with

Vaseline.

7.

Fit the positive lead to the battery terminal.

8.

Fit the earth lead to the battery terminal.

9.

Check the routing and attachment of the

battery cables.

}

M5008

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

6-2

©

 200423

Cleaning

5

ΧΦ75 series

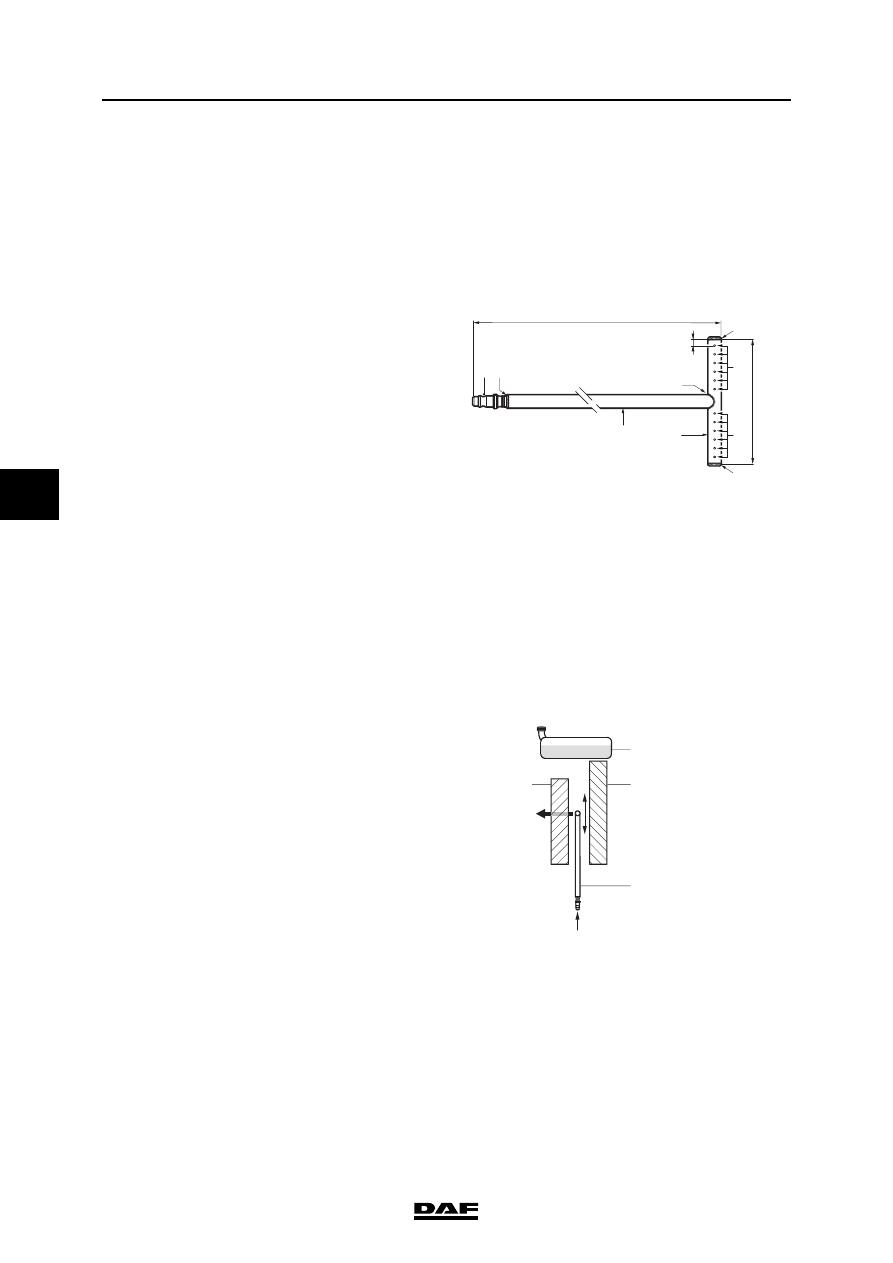

6.2 CLEANING RADIATOR AND INTERCOOLER

Inhalation of dust may have serious

consequences for your health.

Take the necessary precautions,

such as wearing goggles and a

facemask.

Key to drawing:

Note:

With the aid of a simple tool, the radiator and the

intercooler can be blow-cleaned.

The tool (radiator cleaner) cannot be ordered

from DAF. It should be manufactured by yourself

according to the drawing.

1.

Unscrew the protective screen attachment

bolts.

2.

Remove the protective screen.

3.

Clean the protective screen with a hard

brush, and blow-clean with compressed air.

4.

Insert radiator cleaner (4) between the

intercooler (1) and radiator (2), from the

bottom upwards, with the air holes facing the

intercooler (1).

5.

Apply air pressure to the radiator cleaner (4)

and continue blow-cleaning the intercooler

(1) until no more dirt comes out.

}

100mm

5mm

2

1150mm

2

4

3

5

5

4

1

1

M2108

1

Solder up

2

Solder

3

Quick-release coupling for air hose

4

Steel pipe,

 10 mm

5

6  x

 1.5 mm between holes, with a

centre-to-centre distance between the

holes of 7 mm, drilled on one side

1

2

3

4

M2109
