Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

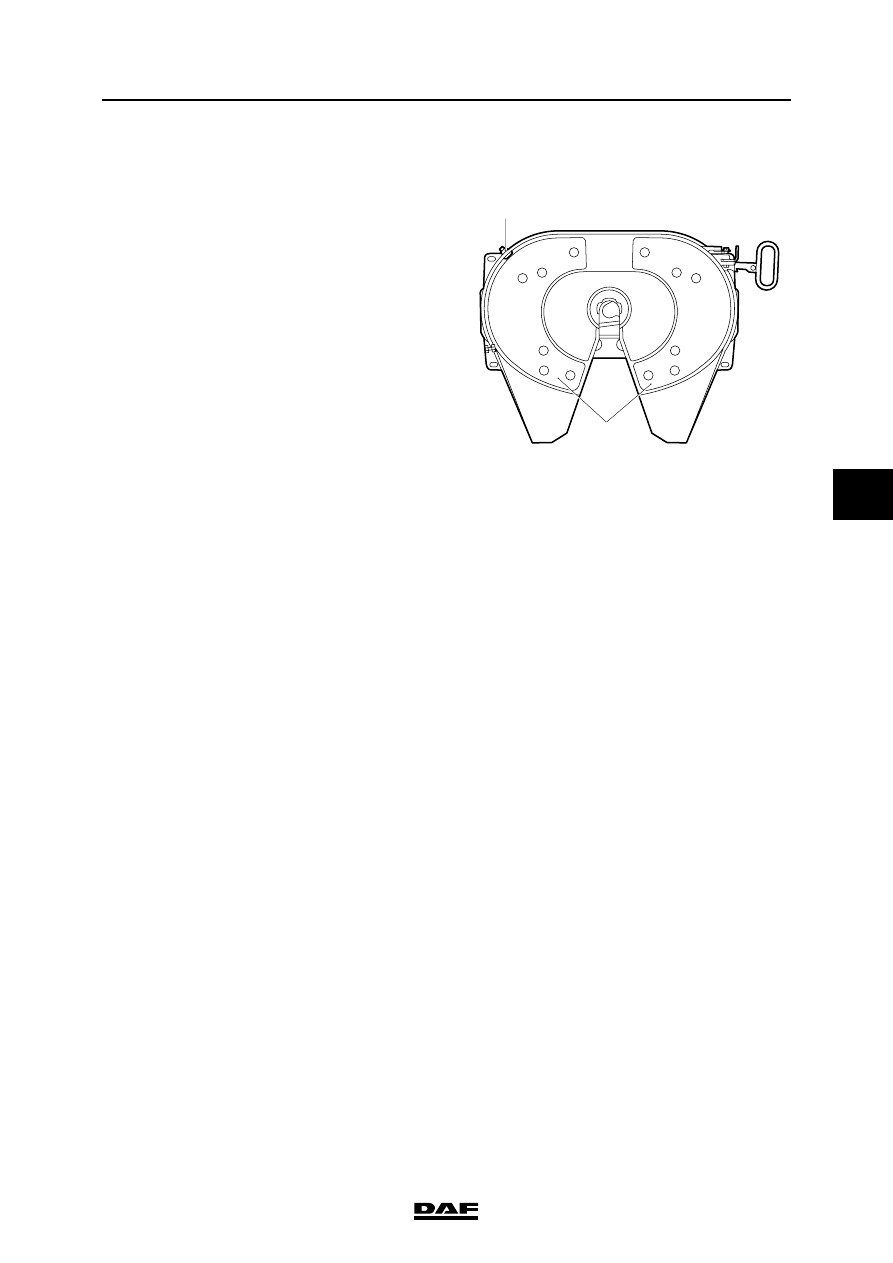

3.34 INSPECTING THE FIFTH WHEEL

1.

Check the attachment of the fifth wheel.

2.

Check the play of the closing gear of the fifth

wheel.

Note:

For maximum play values, consult the

manufacturer's instructions or the legal

requirements.

3.

In the case of fifth wheels with a plastic

sliding plate (1), check for wear. The plastic

sliding plate (1) must not lie flush with the top

of the attachment bolts.

V300372

1

2

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-32

©

 200423

Inspection and adjustment

5

ΧΦ75 series

3.35 CHECKING THE TRAILER COUPLING

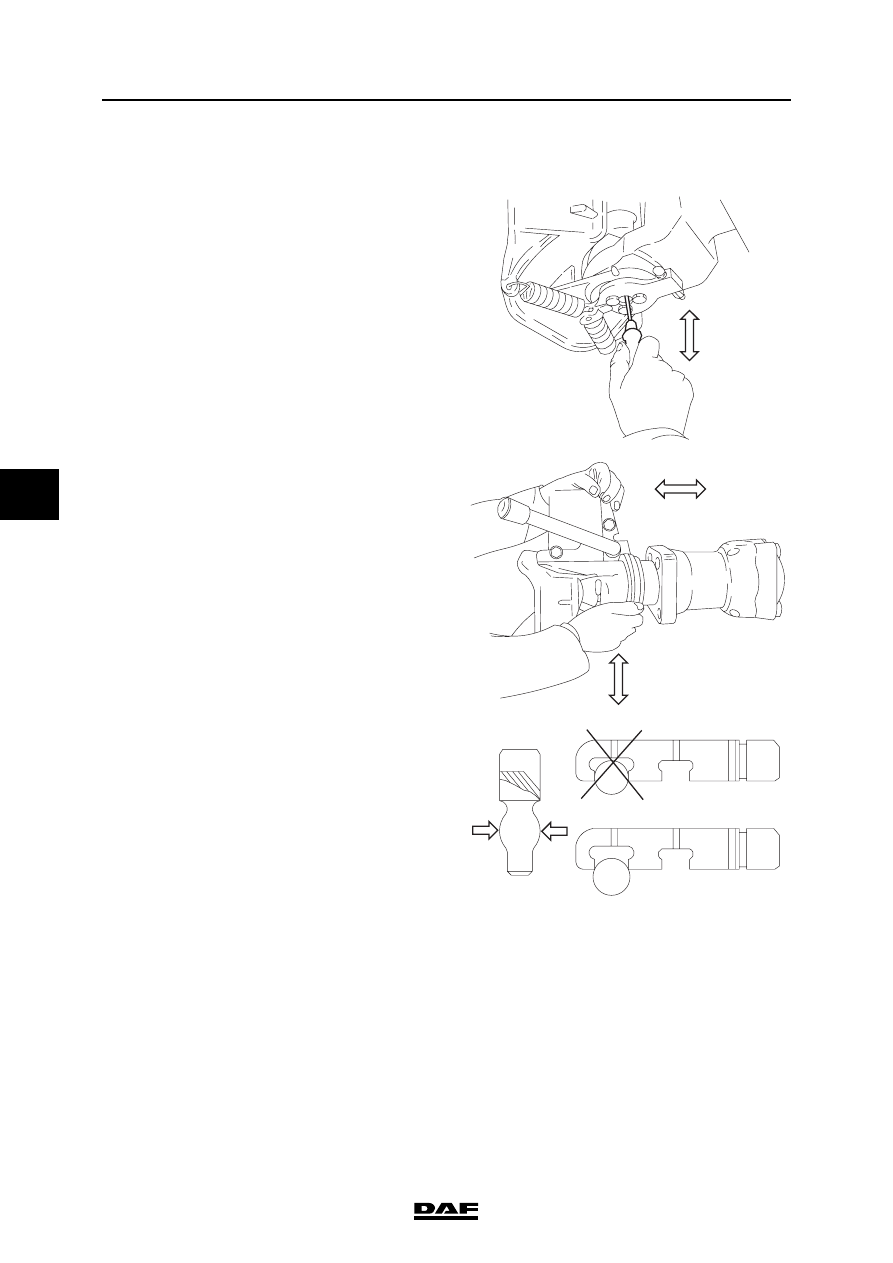

1.

Check the vertical play of the arched pin.

2.

Check the radial play of the arched pin.

3.

Check the vertical and horizontal play of the

coupling jaw.

4.

Check the diameter of the arched pin.

5.

Check the attachment of the trailer coupling

and the rear cross member.

Note:

For maximum play values, consult the

manufacturer’s instructions or the specified

legal requirements.

M9002

M9001

M9004

©

 200423

3-33

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

3.36 CHECK THE SUPERSTRUCTURE ATTACHMENT

1.

Check that all attachment bolts are in place.

2.

Visually check the attachment of the

superstructure for faults. See the DAF

superstructure instructions.

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-34

©

 200423

Inspection and adjustment

5

ΧΦ75 series

3.37 CHECKING THE CLUTCH FLUID LEVEL

Hydraulic fluid is toxic and can

therefore have a damaging effect on

your health.

Hence avoid any direct or indirect

physical contact.

As hydraulic fluid is also a corrosive

fluid, it may damage the paintwork of

the vehicle.

Avoid any contact between

hydraulic fluid and paintwork.

Always use new and clean hydraulic

fluid which has been kept in a sealed

container and meets the

specifications.

Hydraulic fluid which has absorbed

water (from the ambient air) may

have an adverse effect on the

operation of the clutch system.

Avoid any contact with mineral oil.

Even one drop of mineral oil in the

system will damage the seals.

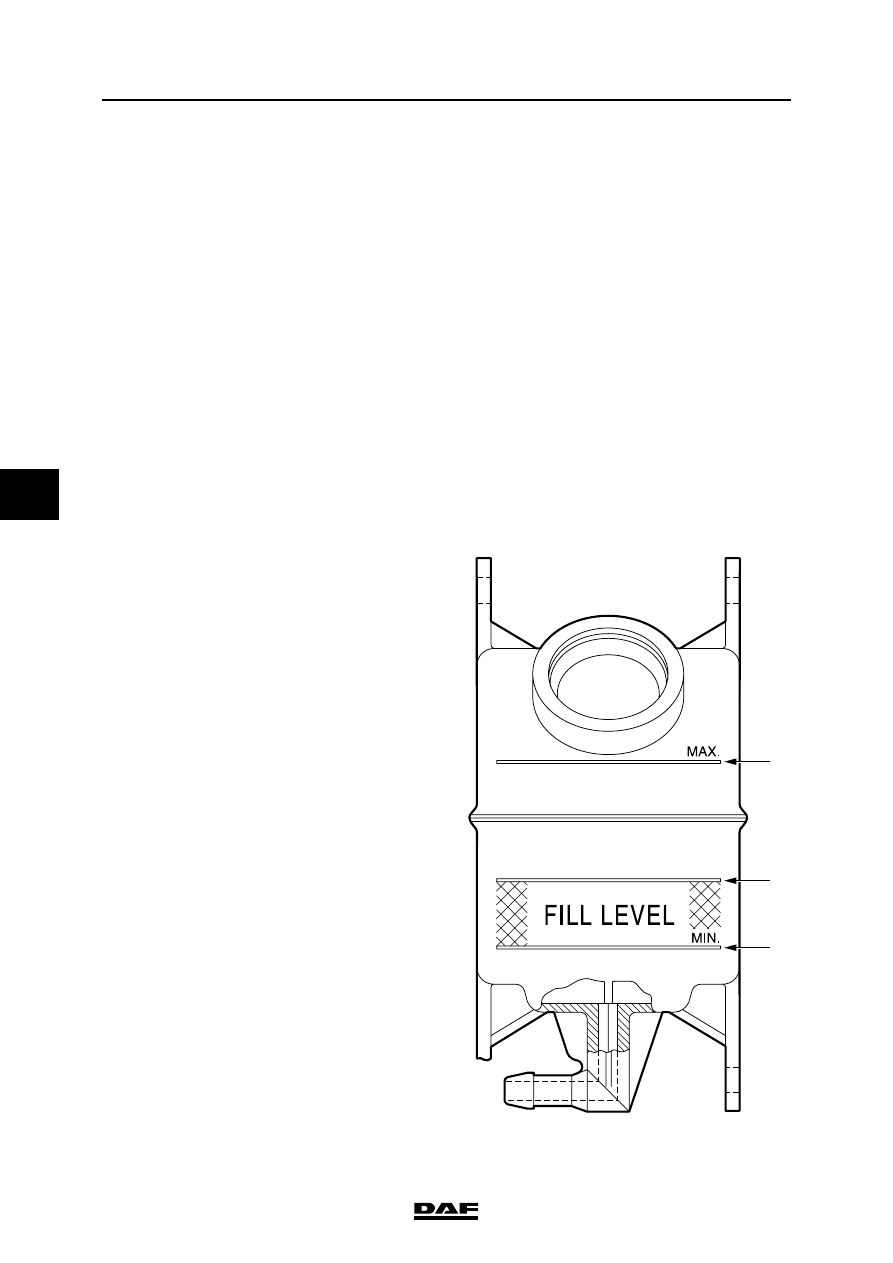

1.

Check that the fluid level is between the (A)

and (B) marks when the cab is in the driving

position.

2.

Mark (C) applies to fully tilted cabs.

3.

Hand tighten the reservoir sealing cap.

Note:

There is an air bleed vent in the cap that may

be closed if the cap is tightened with too

great a force.

If the air bleed vent is closed off, residual

pressure will build up in the system.

}

C

B

A

V300178
