Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

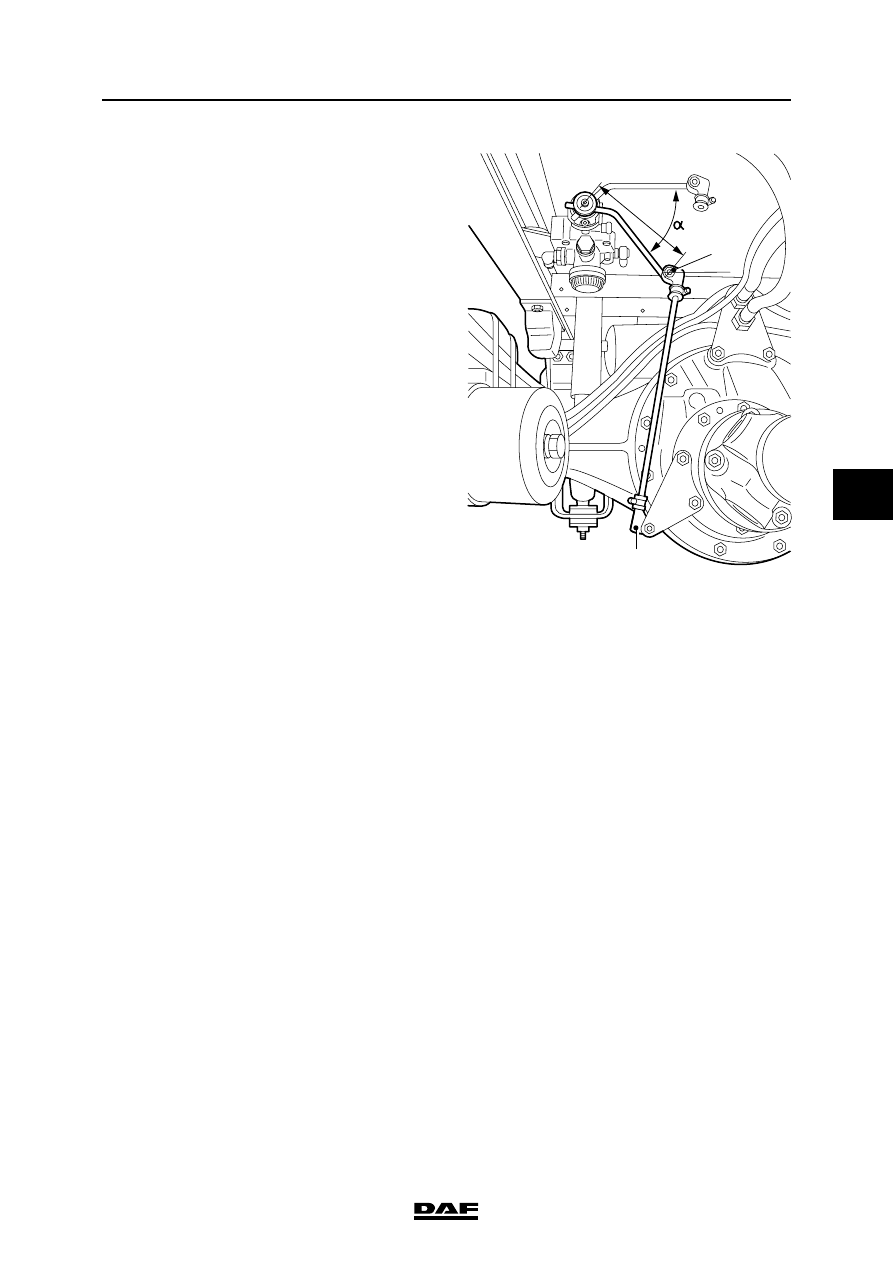

10. Correct, if necessary, the brake pressure by

moving the rubber sleeve (1) in relation to the

vertical connecting rod. On no account

change the length L of the (horizontal)

control lever.

11. Remove the rubber sleeve (2) and move the

control lever towards maximum load. Check

that the delivery pressure is now allowed

through with little or no reduction.

Note:

The small socket head screw in the centre of the

valve must not be adjusted.

L

R600781

1

2

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-28

©

 200423

Inspection and adjustment

5

ΧΦ75 series

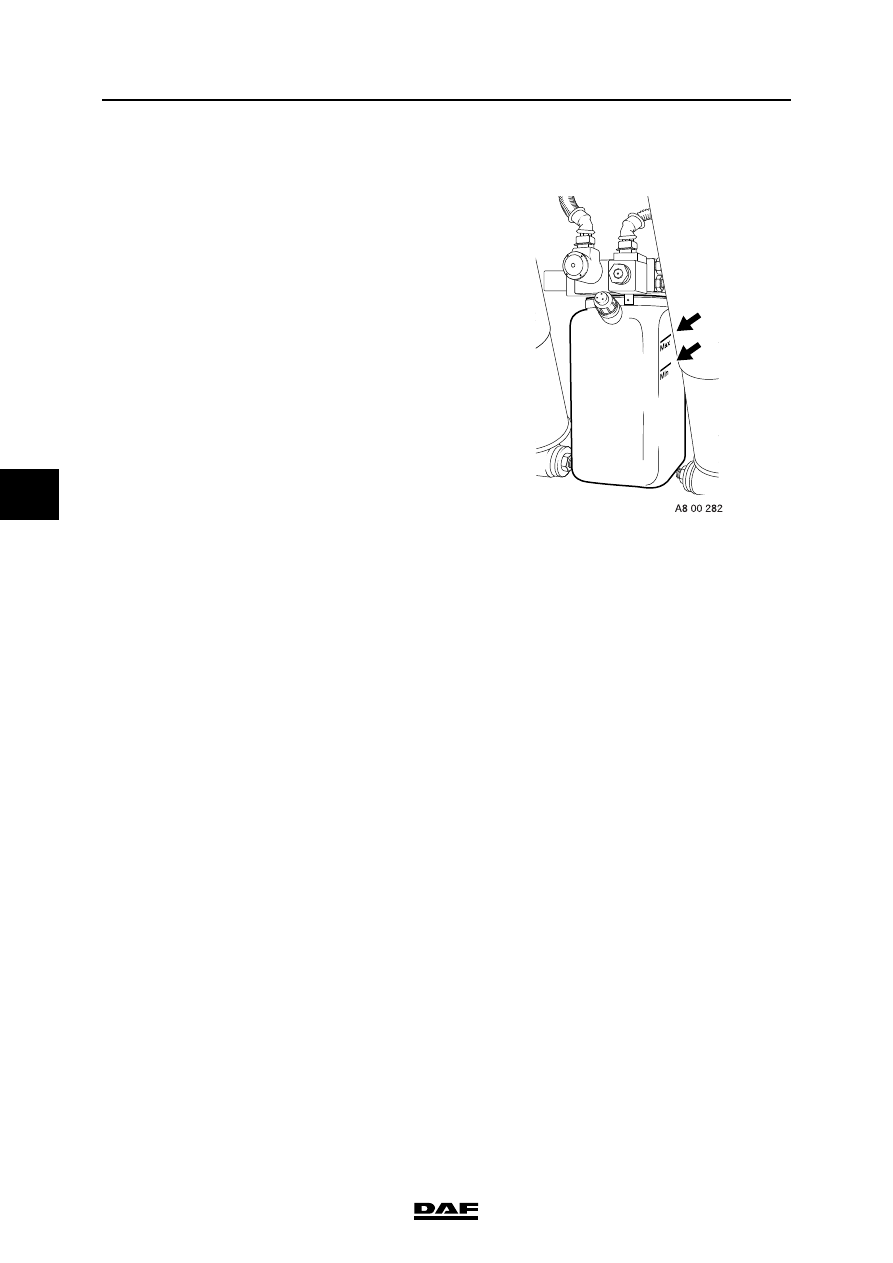

3.29 INSPECTION, FLUID LEVEL OF HYDRAULIC TRAILING-AXLE DEVICE

1.

Make sure that the trailing axle wheels are

fully lowered and on the ground.

2.

Check the fluid level. The liquid level must be

between the "min." and "max." level mark. If

necessary, top up.

3.30 INSPECTION, PIVOT POINTS OF THE HYDRAULIC TRAILING-AXLE DEVICE

1.

Check the play on the pivot points when

operating the hydraulic trailing axle.

3.31 CHECKING THE DIFFERENTIAL FOR LEAKS

1.

Visually inspect the differential for leaks.

©

 200423

3-29

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

3.32 CHECKING THE OPERATION OF THE DIFFERENTIAL LOCK

1.

Jack up the rear axle and support the axle on

stands.

2.

Bring the air system to operating pressure.

3.

Engage the differential lock. The warning

indicator should now be active.

4.

Check that there is a "rigid" connection

between the driven wheels.

5.

Disengage the differential lock. The warning

light should now go out and the "rigid"

connection between the driven wheels

should be broken.

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-30

©

 200423

Inspection and adjustment

5

ΧΦ75 series

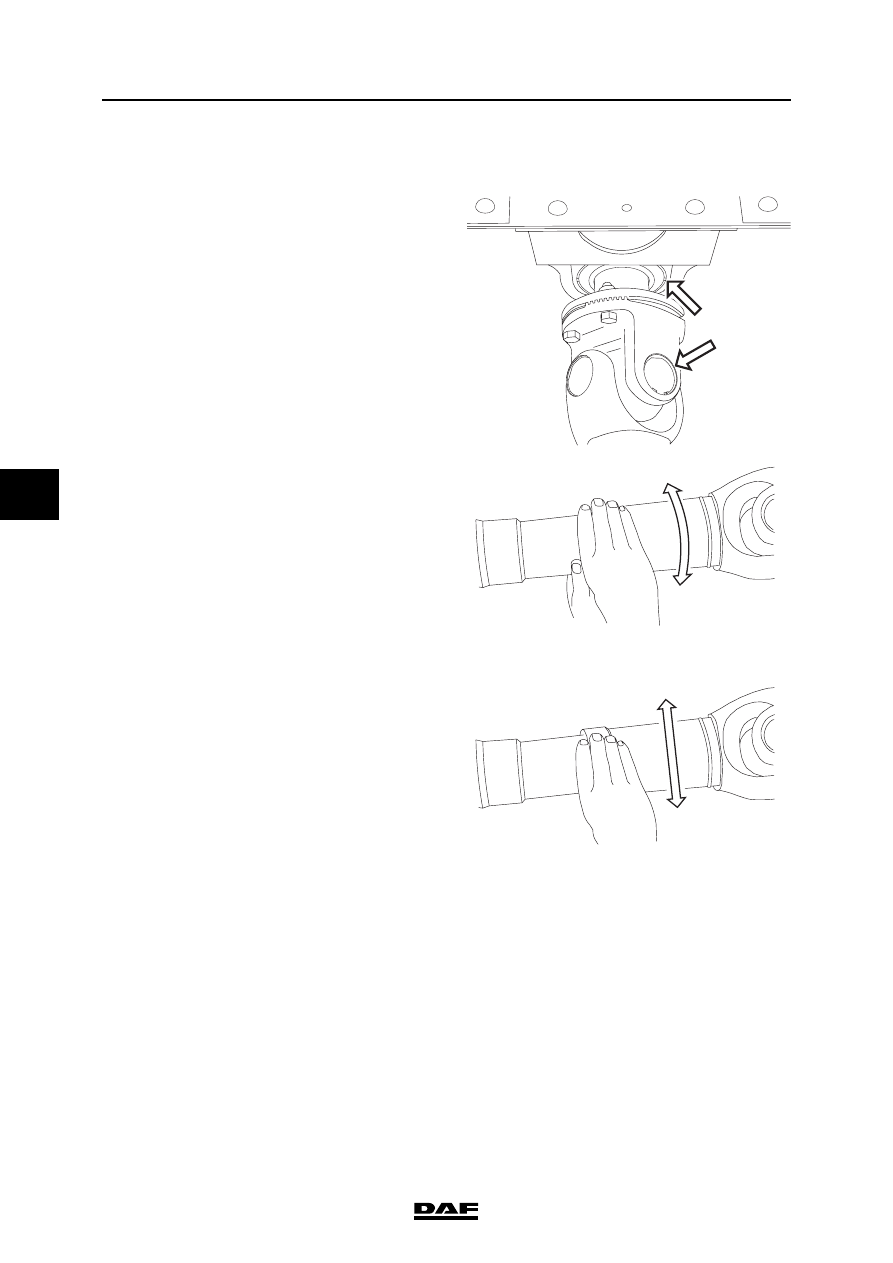

3.33 CHECKING THE DRIVE SHAFT PLAY

1.

Check the universal joints and suspension

bearing for play and damage.

2.

Check the sliding joint for axial and radial

play.

3.

There must be no clearly perceptible play on

the universal joints, suspension bearing and

the sliding joint.

M3032

M3019

M3020
