DAF CF65, CF75, CF85 Series . Manual - part 1138

©

 200518

5-9

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

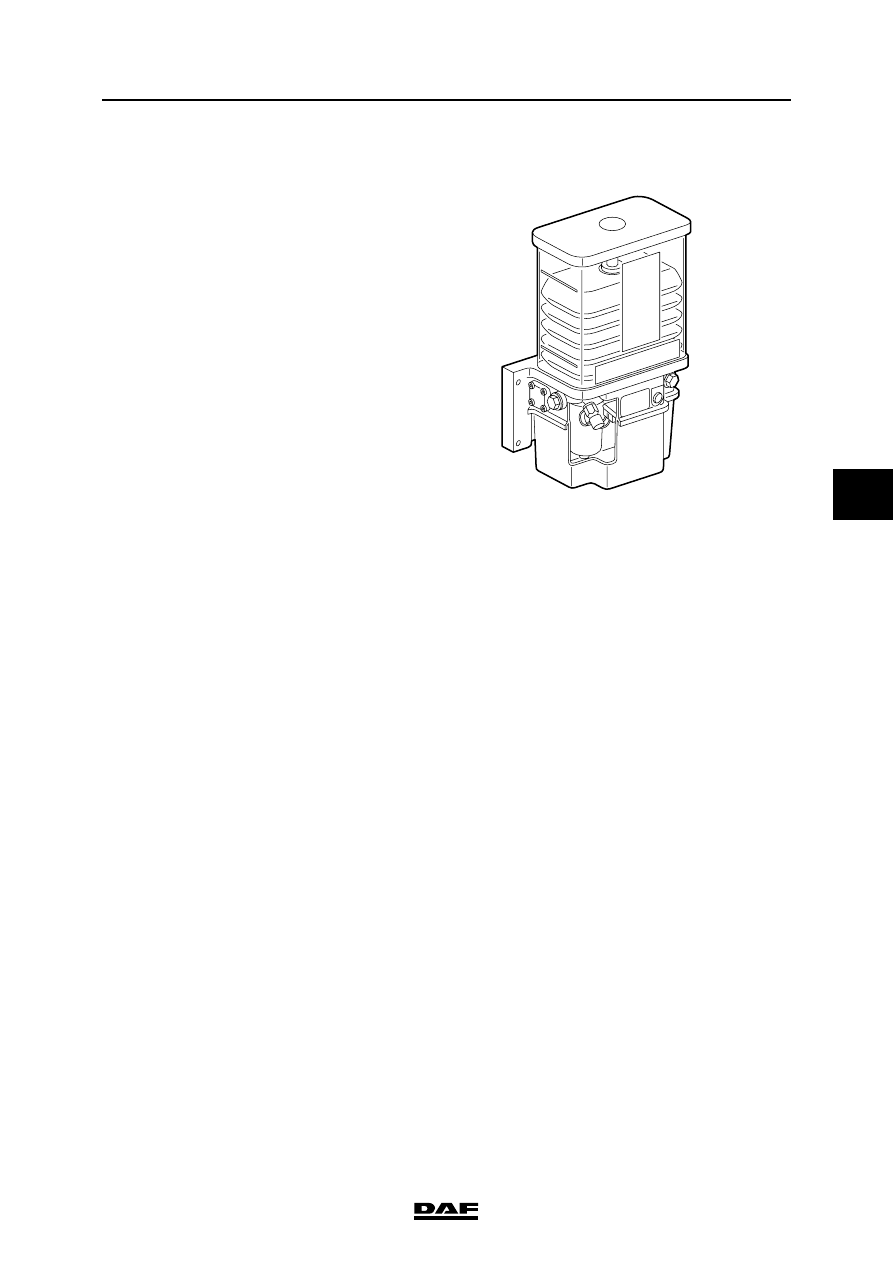

5.6 FILLING GREASE SUPPLY OF THE AUTOMATIC LUBRICATION SYSTEM

1.

Remove the dust cover from the filler

coupling.

2.

Connect the filler hose to the filler coupling.

Ensure that the filler hose is completely filled

with grease so that no air bubbles can get

into the system.

3.

Fill the reservoir to the specified maximum

level.

Note:

When filling the reservoir, the air above the

follower piston will escape. This air will flow

down through an opening in the piston line

and escape from the pump through the right-

angled coupling. Normally a small amount of

grease will escape from this coupling during

venting.

4.

Remove the filler hose from the filler

coupling.

C900331

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-10

©

 200518

Draining and filling

5

ΧΦ65/65 (II) series

©

 200518

6-1

Cleaning

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

6. CLEANING

6.1 CLEANING THE BATTERY POLES

Avoid sparks and open flames in the

vicinity of batteries.

Battery acid is an aggressive fluid.

In the event of contact with the skin:

rinse the skin with plenty of water for

a sustained period. If redness or

pain persists, consult a doctor.

Remove any clothing affected and

rinse with water.

In the event of contact with the eyes:

rinse with plenty of water for at least

15 minutes and consult a doctor.

If swallowed: do NOT induce

vomiting. Rinse the mouth, drink two

glasses of water and consult a

doctor.

In the event of inhalation: get fresh

air, rest and consult a doctor.

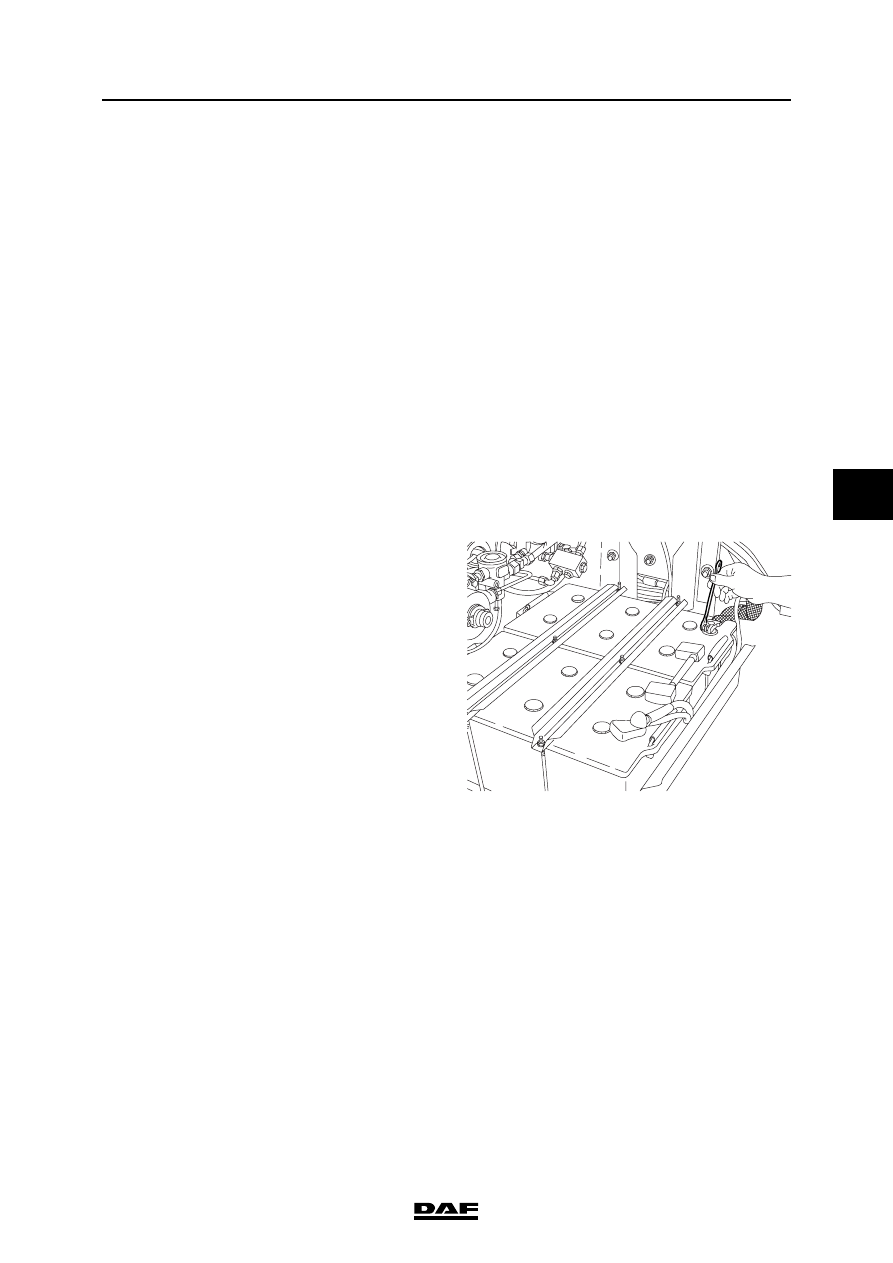

1.

Disconnect the earth lead from the battery

terminal.

2.

Disconnect the positive lead from the battery

terminal.

3.

Clean the battery terminals, battery cables

and the top of the battery (oxide and dirt

discharge the battery).

4.

If the top of the battery has acid on it, it

should be rinsed with water.

5.

Grease the battery terminals with Vaseline.

6.

Check the earth lead connection to the

chassis and grease the connection with

Vaseline.

7.

Fit the positive lead to the battery terminal.

8.

Fit the earth lead to the battery terminal.

9.

Check the routing and attachment of the

battery cables.

}

M5008

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

6-2

©

 200518

Cleaning

5

ΧΦ65/65 (II) series

6.2 CLEANING RADIATOR AND INTERCOOLER

Inhalation of dust may have serious

consequences for your health.

Take the necessary precautions,

such as wearing goggles and a

facemask.

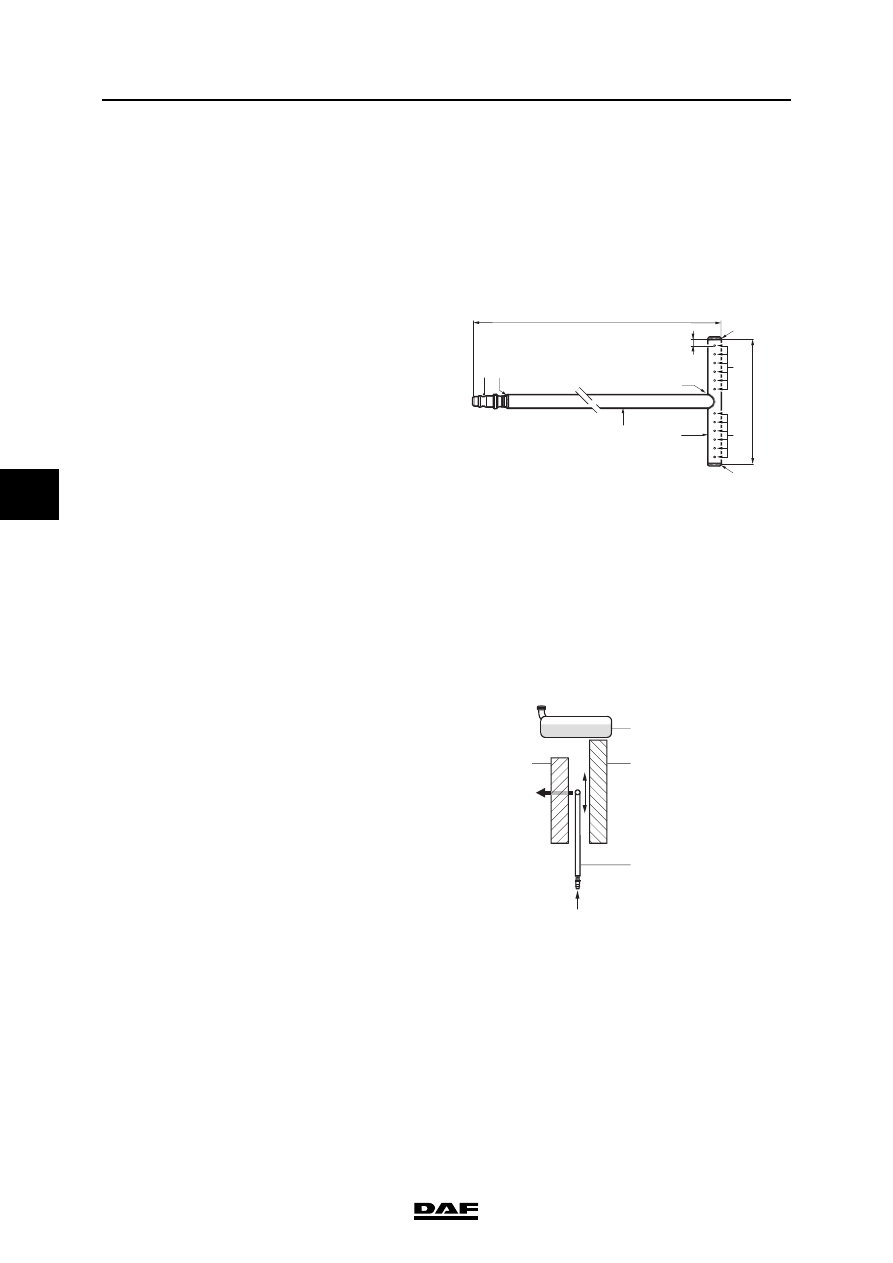

Key to drawing:

Note:

With the aid of a simple tool, the radiator and the

intercooler can be blow-cleaned.

The tool (radiator cleaner) cannot be ordered

from DAF. It should be manufactured by you

according to the drawing.

1.

Remove the protective screen, if applicable,

by removing the attachment bolts.

2.

Clean the protective screen, if applicable,

with a hard brush, and blow-clean with

compressed air.

3.

Insert radiator cleaner (4) between

intercooler (1) and radiator (2) with the air

holes facing the intercooler (1).

4.

Apply air pressure to the radiator cleaner (4)

and continue blow-cleaning the intercooler

(1) until no more dirt comes out.

}

100mm

5mm

2

1150mm

2

4

3

5

5

4

1

1

M2108

1

Solder up

2

Solder

3

Quick-release coupling for air hose

4

Steel pipe,

 10 mm

5

6  x

 1.5 mm between holes, with a

centre-to-centre distance between the

holes of 7 mm, drilled on one side

1

2

3

4

M2109

P
