DAF CF65, CF75, CF85 Series . Manual - part 113

©

 200346

1-1

Safety instructions

CAB HEATING

ΧΦ65/75/85 series

1

3

1. SAFETY INSTRUCTIONS

1.1 SAFETY INSTRUCTIONS

}

The air conditioning system may
only be opened and filled by a
specialist. Furthermore, many
countries require official
certification to carry out such
activities.

CAB HEATING

1-2

©

 200346

Safety instructions

3

ΧΦ65/75/85 series

1

©

 200346

2-1

General

CAB HEATING

ΧΦ65/75/85 series

1

3

2. GENERAL

2.1 SYSTEM DESCRIPTION OF HEATER, HEATER CONTROL

The heater is installed in the central console as a
complete unit.

There are two versions available for the F230
cab:

-

Heating/ventilation system

-

Heating/ventilation system combined with air
conditioning.

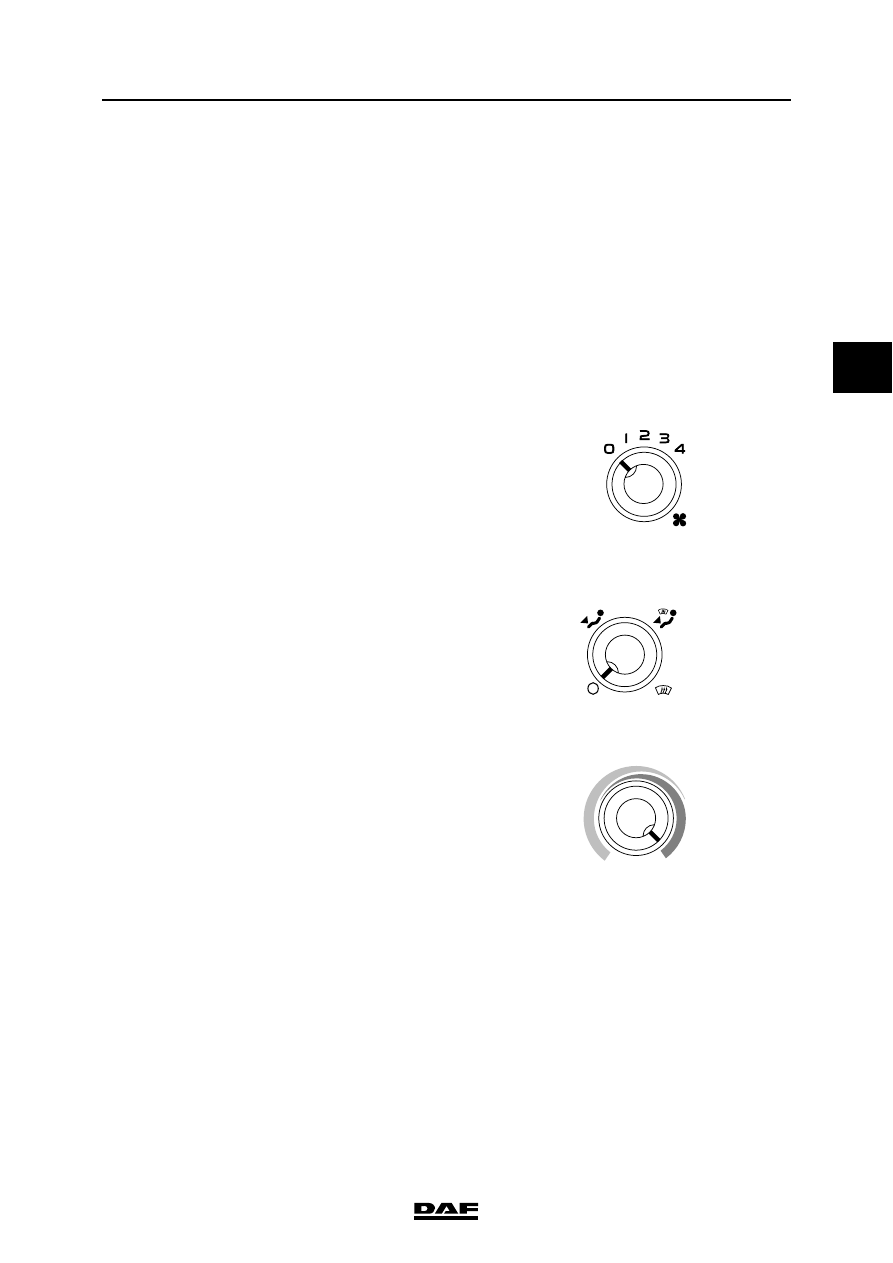

The control panel has three rotary knobs.

Knob 1
Five-position switch to control fan speed.

Knob 2
Air distribution in the cab.

0 = 0 position (leg area and windscreen closed)
A = leg area
B = windscreen and leg area
C = windscreen (demister)

Knob 3
Temperature control: offers a continuously
variable supply of hot air from 0 to 100%.

K100395

1

K1 01 126

2

A

B

C

K100397

3

CAB HEATING

2-2

©

 200346

General

3

ΧΦ65/75/85 series

1

Air distribution
Optimal air distribution in the cab can be
achieved by means of knob 2 in combination with
the rotating and adjustable vents on the central
console and at the sides of the dashboard.

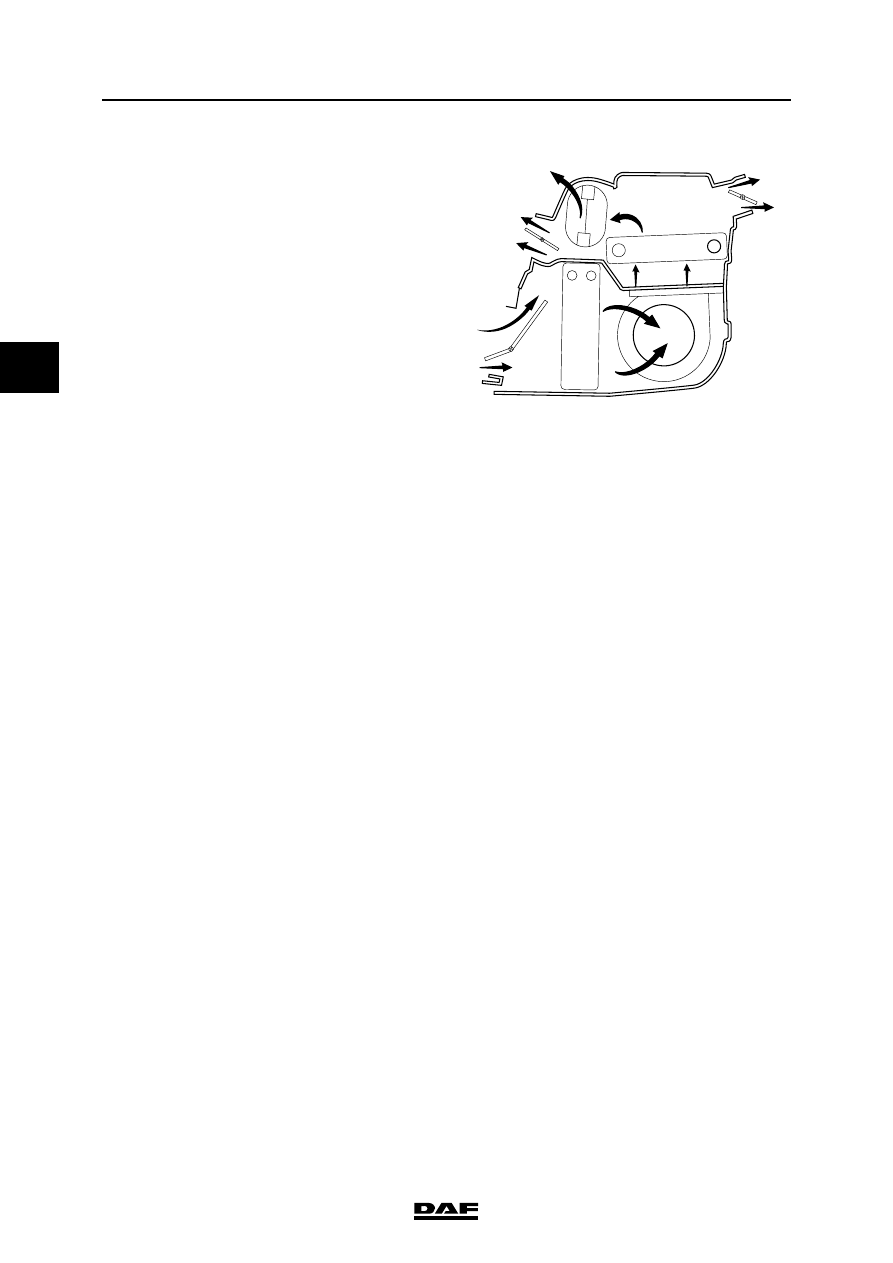

After passing through an air filter, outside air
enters the heater housing through recirculation
valve (A). Incoming air passes over the
evaporator (B) of the air conditioning (if present)
to the heater fan (C). The air is guided through the
heater radiator (D) and in the manifold (E) it is
guided to the vents on the central console (F), the
regulating valve (H) for the windscreen demisting
and the regulating valves (G) for the floor and
door heating.

A

B

C

D

E

F

G

H

K1 00 993
