DAF CF65, CF75, CF85 Series . Manual - part 1049

©

 200424

1-3

General

TANDEM REAR AXLE 1355T

ΧΦ65/75/85 series

8

7

1.

Hub

2.

Brake drum

3.

Wheel stud

4.

Nut

5.

Grease retainer

6.

Oil seal

7.

Taper roller bearing

8.

Bush

9.

Taper roller bearing

10.

Flange bolt

11.

Attachment plate

12.

Hub nut

13.

Gear wheel

14.

Thrust washer

15.

Ring

16.

Stud bolt

17.

Spring washer

18.

Sealing ring

19.

Nut

20.

Cap screw

21.

Magnet plug

22.

Yoke pin

23.

Circlip

24.

Ring

25.

Gear wheel

26.

O-ring

27.

Support

28.

Shaft

29.

Shim

30.

Hub

31.

Needle bearing

32.

Circlip

33.

Shim

34.

O-ring

35.

Flange bolt

36.

Locking plate

37.

Plug

38.

Holder

39.

Shim

40.

Cap screw

41.

Flange bolt

42.

Flange nut

43.

Grommet

45.

Bracket

46.

Cap

47.

Hub cap

48.

Cover

49.

Pin

TANDEM REAR AXLE 1355T

1-4

©

 200424

General

7

ΧΦ65/75/85 series

8

©

 200424

2-1

Inspection and adjustment

TANDEM REAR AXLE 1355T

ΧΦ65/75/85 series

8

7

2. INSPECTION AND ADJUSTMENT

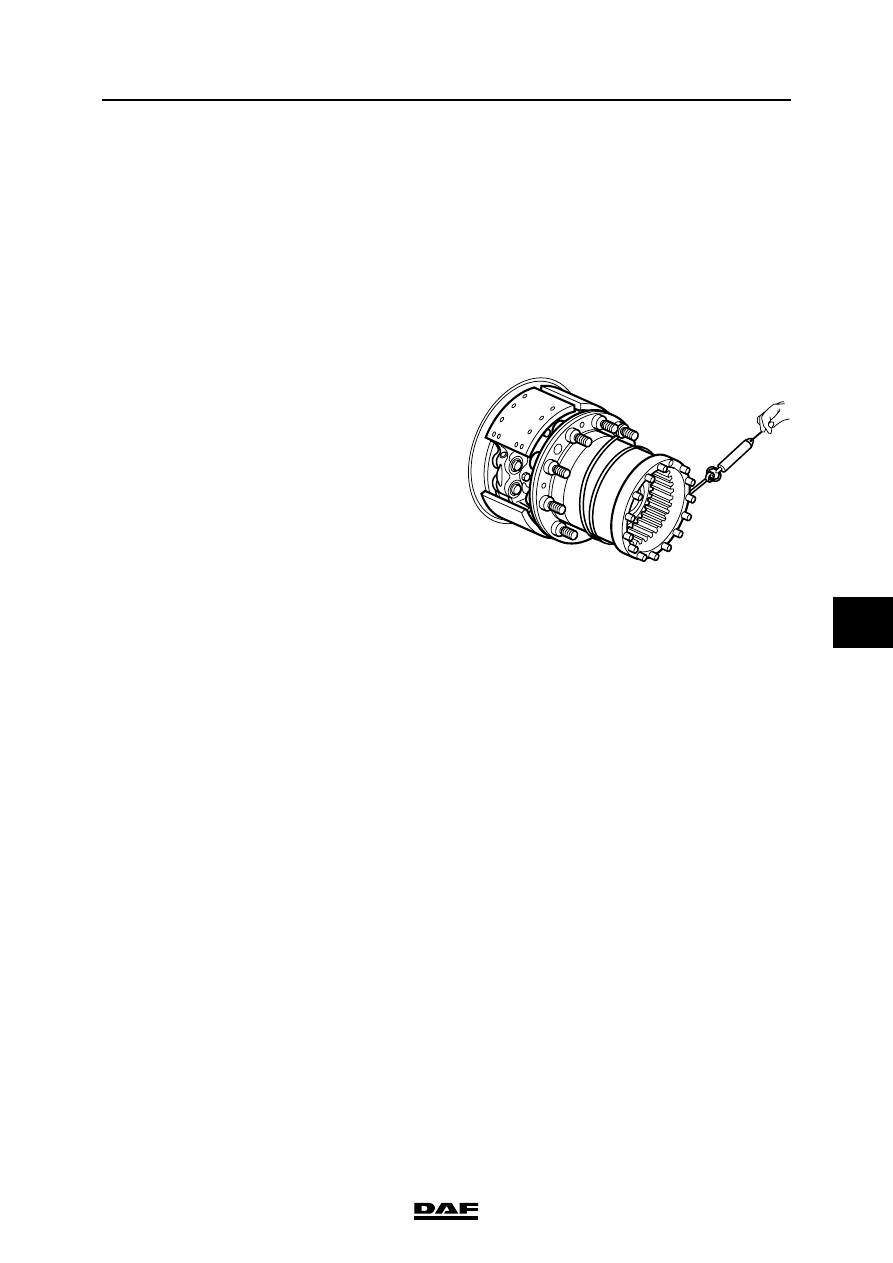

2.1 INSPECTION AND ADJUSTMENT, WHEEL BEARING PLAY

1.

Remove the wheel hub. See "Removal and

installation".

2.

Remove the hub seal. See "Removal and

installation".

3.

Fit the wheel hub without the hub seal.See

"Removal and installation".

4.

Turn a rope several times around the hub

and attach it to a wheel stud.

Pull the rope using a tensioner gauge and

read off the force required to turn the hub at

a constant speed.

Compare the pressure reading with the

technical data. See "Technical data".

5.

The pre-load of the wheel bearings can be

changed by removing or fitting spacers

between the spacer sleeve and the inner

wheel bearing. See "Removal and

installation".

A800039

TANDEM REAR AXLE 1355T

2-2

©

 200424

Inspection and adjustment

7

ΧΦ65/75/85 series

8

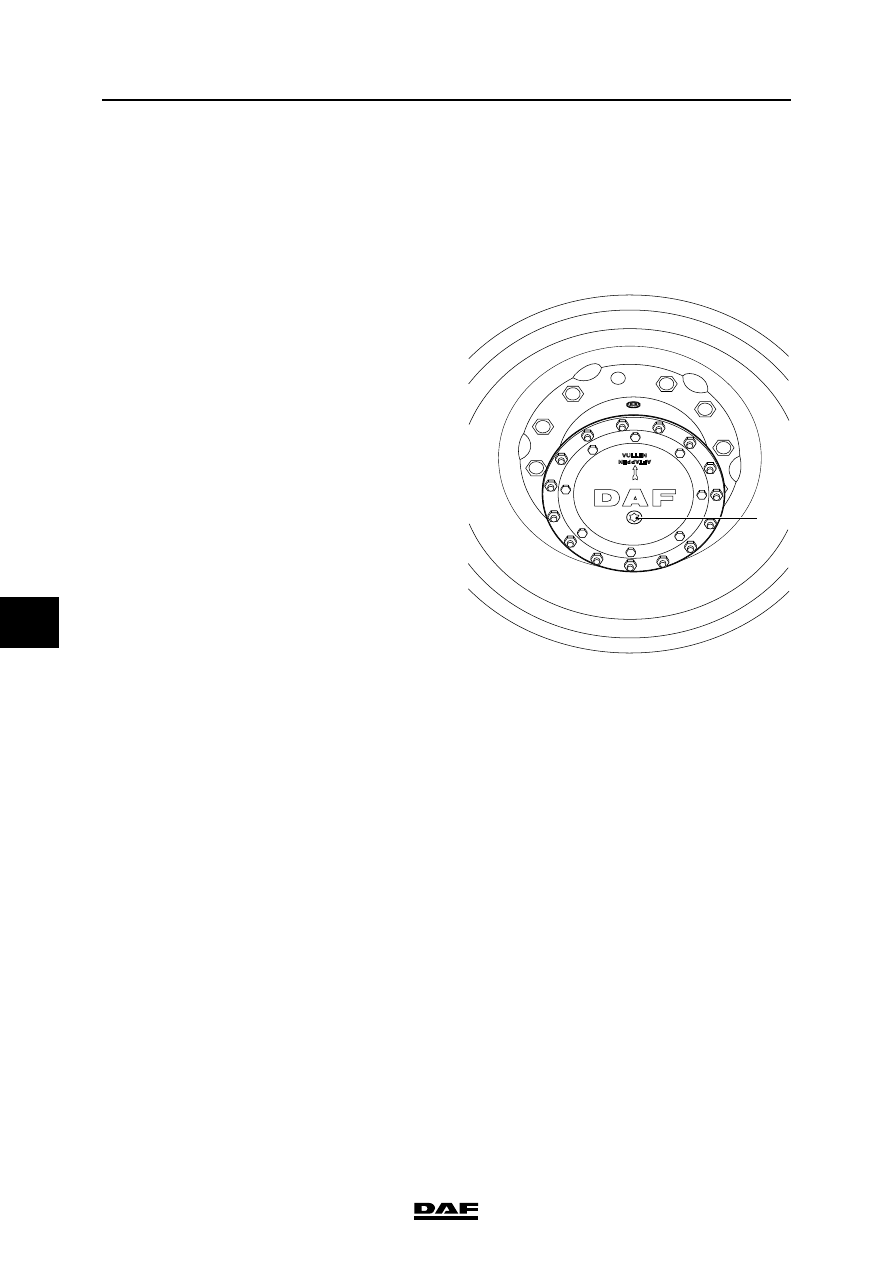

2.2 CHECKING THE HUB OIL LEVELS

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

1.

Position the vehicle on a level surface.

2.

Position the wheels so that the arrow on the

hub is pointing upwards.

3.

Remove the level check plug (A). The oil

level should have reached the opening.

4.

Fit the level check plug (A) using the special

Torx wrench (DAF no. 1329493) and tighten

to the specified torque; see "Technical data".

}

A

A8 00 365
