TANDEM REAR AXLE 1132T

ΧΦ65/75/85 series

8

6

Do not come near the selector sleeve

when de-aerating the differential

lock.

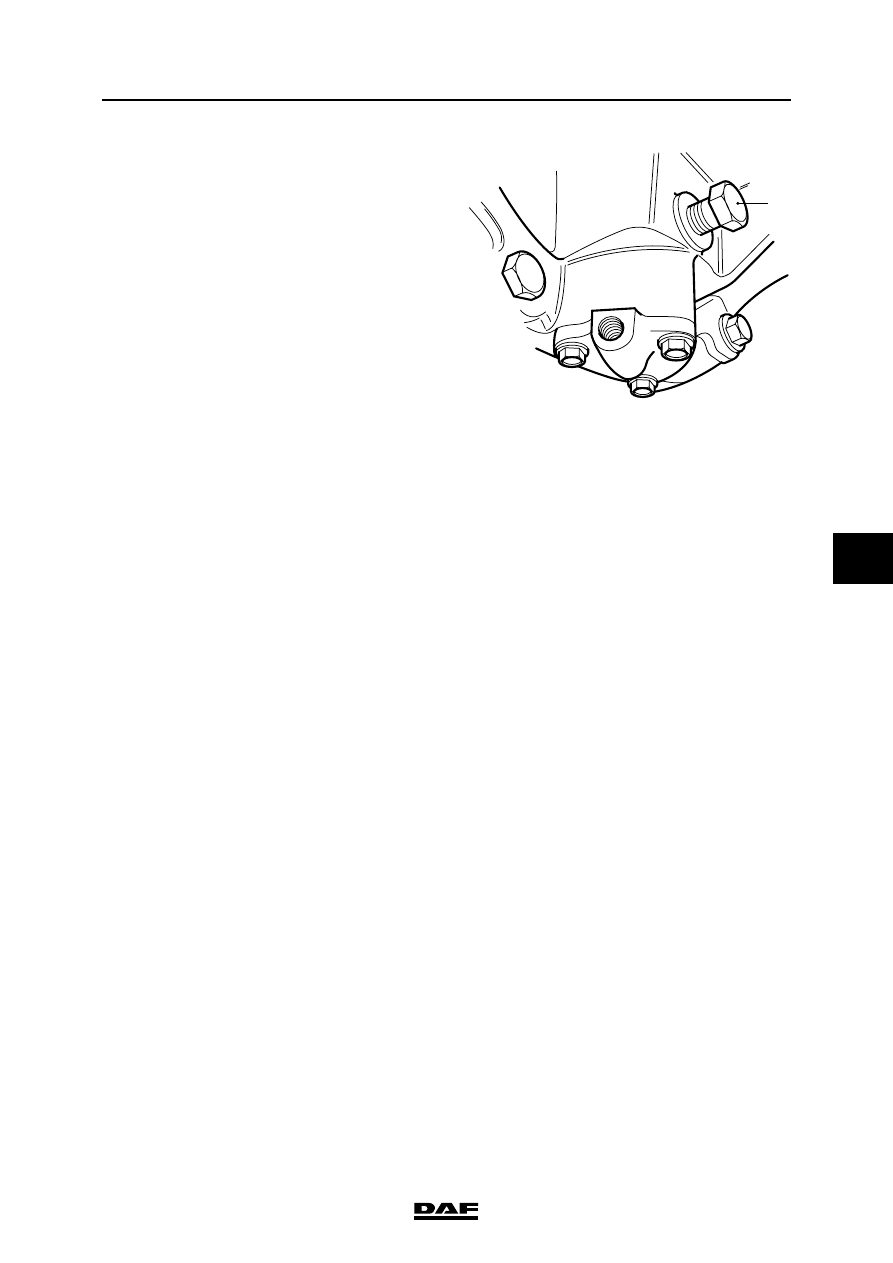

5.

Pressurise the air connection of the

differential lock. Fit special tool (A)

(DAF no. 1329447), so that the differential

lock is blocked.

6.

Install the differential.

A8 00 346

A

}

TANDEM REAR AXLE 1132T

3-14

©

 200424

Removal and installation

6

ΧΦ65/75/85 series

8

©

 200424

4-1

Draining and filling

TANDEM REAR AXLE 1132T

ΧΦ65/75/85 series

8

6

4. DRAINING AND FILLING

4.1 DRAINING AND FILLING, HUB

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

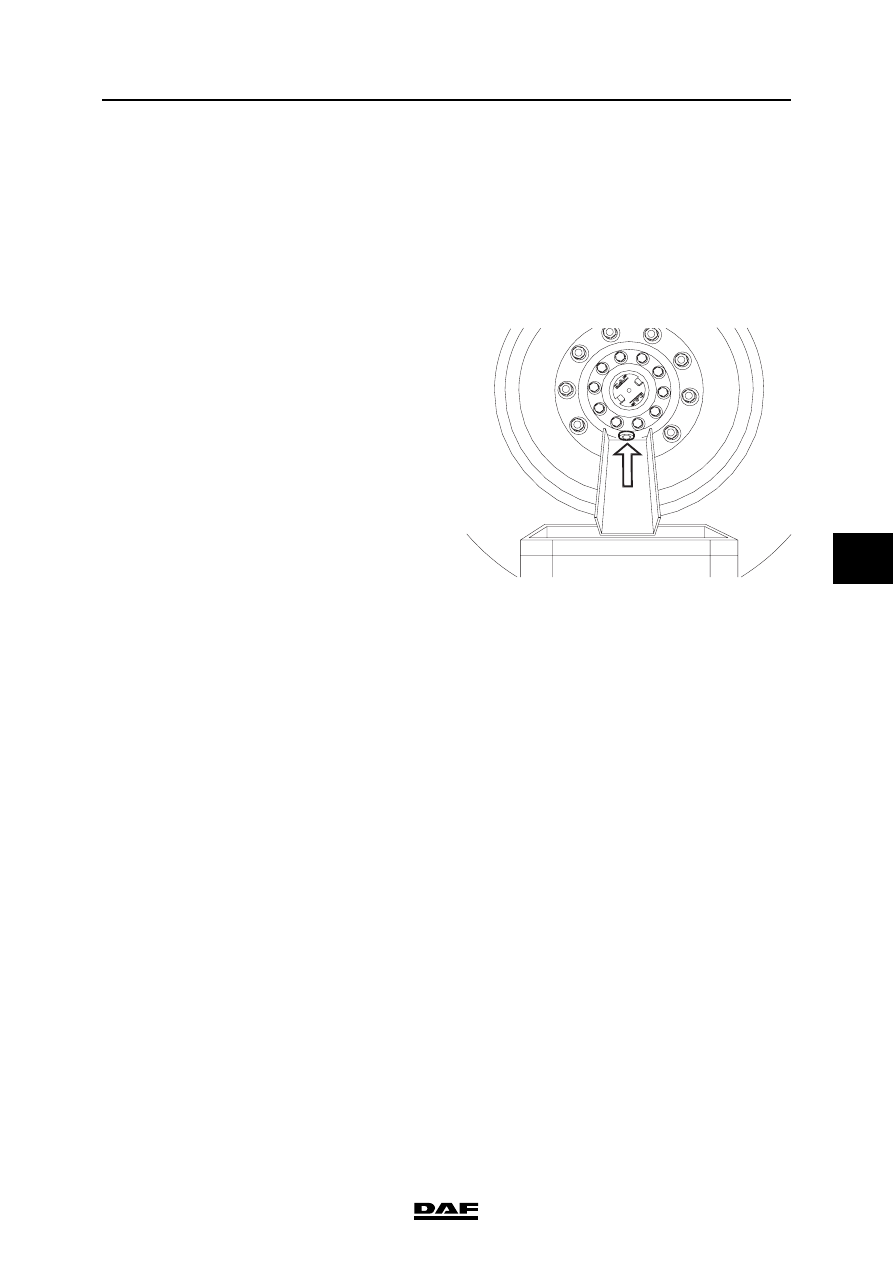

Draining the hub
1.

Position the vehicle on a level surface.

2.

Position the wheels so that the level check/

filler plug (A) is at the underside.

3.

Remove the level check/filler plug (A) and

drain the oil.

Filling the hub
1.

Position the vehicle on a level surface.

2.

Position the wheels so that the level check/

filler plug (A) is on the top.

3.

Fill the hub with the specified quantity of oil.

See "Technical data".

4.

Check the oil level after approximately

5 minutes. See "Inspection and adjustment".

5.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

}

M8010

A

TANDEM REAR AXLE 1132T

4-2

©

 200424

Draining and filling

6

ΧΦ65/75/85 series

8

4.2 DRAINING AND FILLING, DIFFERENTIAL

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

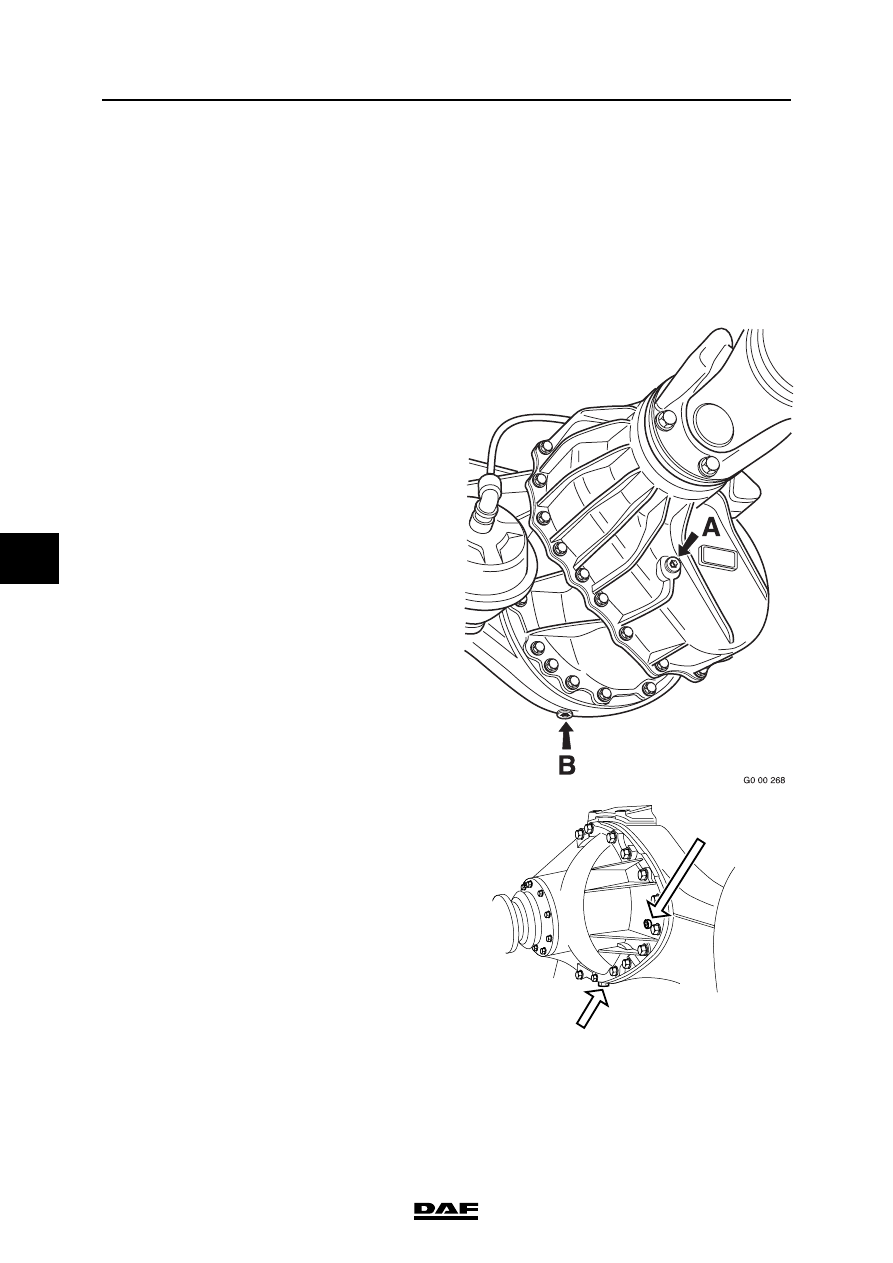

Draining the differential, first axle
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and

drain plug (B). Drain the oil.

3.

Fit the drain plug (B) using the special Torx

wrench (DAF no. 1329493) and tighten to

the specified torque; see "Technical data".

Filling the differential
1.

Fill the differential via the level check/filler

plug (A) with the specified quantity of oil, see

"Technical data".

2.

Check the oil level after approx. 5 minutes.

The oil level should now have reached the

level check/filler opening. See 'Inspection

and adjustment".

3.

Fit the level check/filler plug (A) using the

special Torx wrench (DAF no. 1329493) and

tighten to the specified torque; see

"Technical data".

Draining the differential, second axle
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and

drain plug (B). Drain the oil.

3.

Fit the drain plug (B) using the special Torx

wrench (DAF no. 1329493) and tighten to

the specified torque; see "Technical data".

Filling the differential
1.

Fill the differential via the level check/filler

plug (A) with the specified quantity of oil, see

"Technical data".

2.

Check the oil level after approx. 5 minutes.

The oil level should now have reached the

level check/filler opening. See 'Inspection

and adjustment".

3.

Fit the level check/filler plug (A) using the

special Torx wrench (DAF no. 1329493) and

tighten to the specified torque; see

"Technical data".

}

M8013

A

B
