 200424

3-5

Removal and installation

TANDEM REAR AXLE 1132T

ΧΦ65/75/85 series

8

6

4.

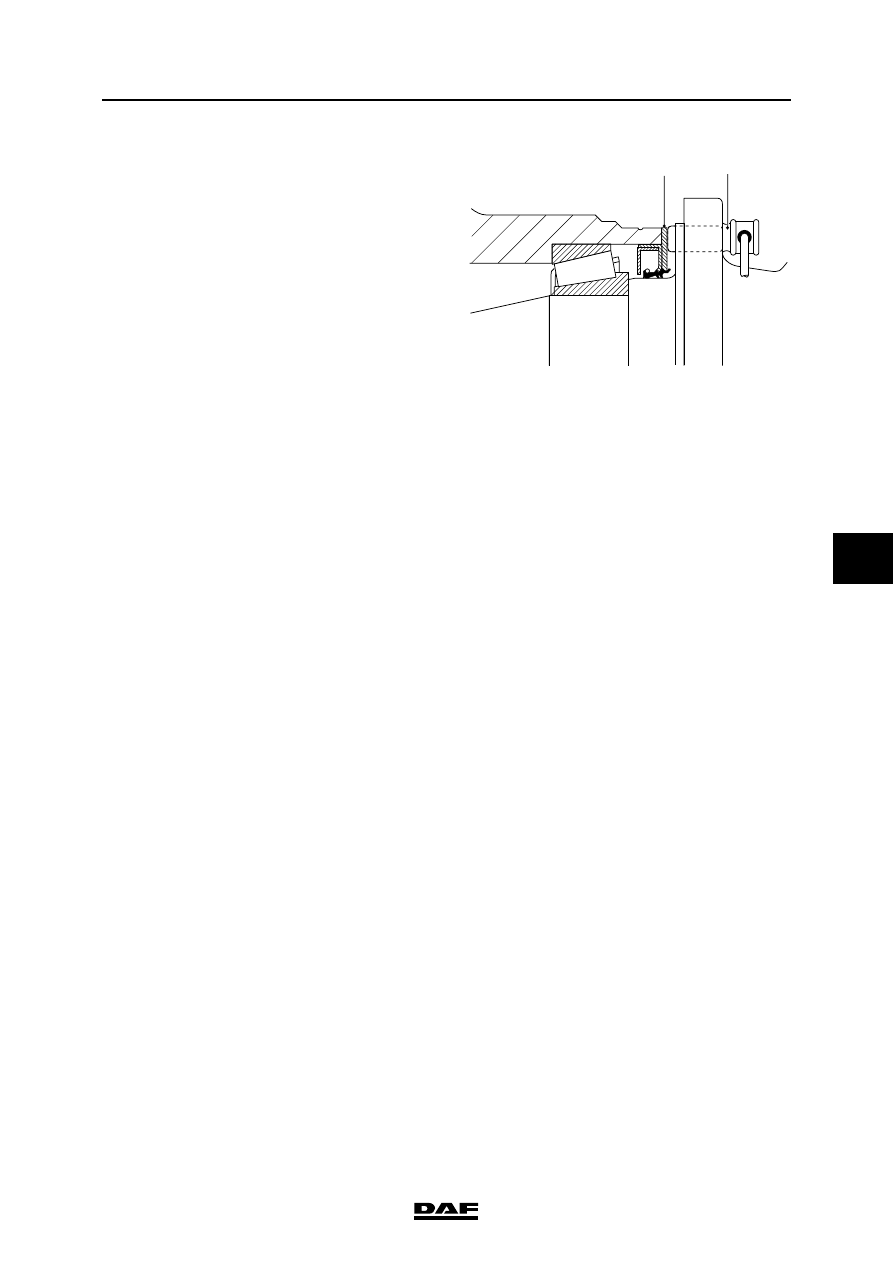

Press the wheel speed sensor (2) up against

the sensor ring (1).

While the vehicle is being driven, the air gap

between the sensor and the sensor ring is

adjusted automatically.

5.

Fit the axle shaft.

6.

Fit the brake drum.

7.

Put the wheels back on.

8.

Adjust the brakes.

2

1

A8 00 347

TANDEM REAR AXLE 1132T

3-6

©

 200424

Removal and installation

6

ΧΦ65/75/85 series

8

3.4 REMOVAL AND INSTALLATION, HUB SEAL/WHEEL SPEED SENSOR RING

UNIT

Removing the hub seal/wheel speed sensor
ring

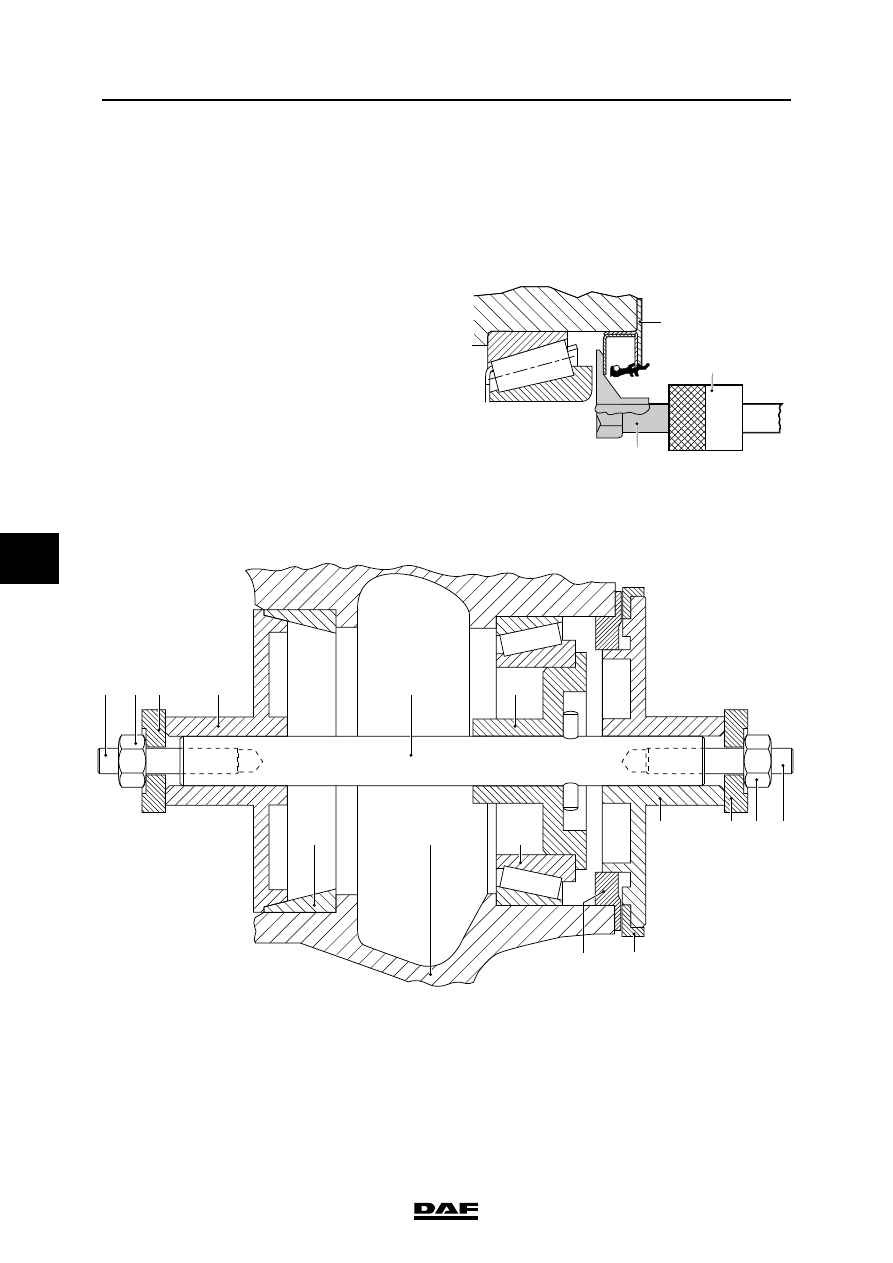

1.

Remove the hub from the axle journal.

2.

Fit special tool (3) (DAF no. 1329411) to

the impact puller (2), special tool

(DAF no. 0694928).

Fit the special tool (3) behind the seal/sensor

ring (1).

Use the impact puller (2) to pull the seal/

sensor ring (1) evenly from the hub.

Once removed, the seal/sensor ring cannot

be reused.

Installing the hub seal/wheel speed sensor
ring

1.

Check the recess for the seal/sensor ring (4)

in the hub (2) for damage.

2.

Use the special tool (DAF no. 1240036) to

install the seal/sensor ring (4).

1

2

3

S7 00 424

A

B C

D

E

1

2

3

F

H

G

4

I

K L

S7 00 405

©

 200424

3-7

Removal and installation

TANDEM REAR AXLE 1132T

ΧΦ65/75/85 series

8

6

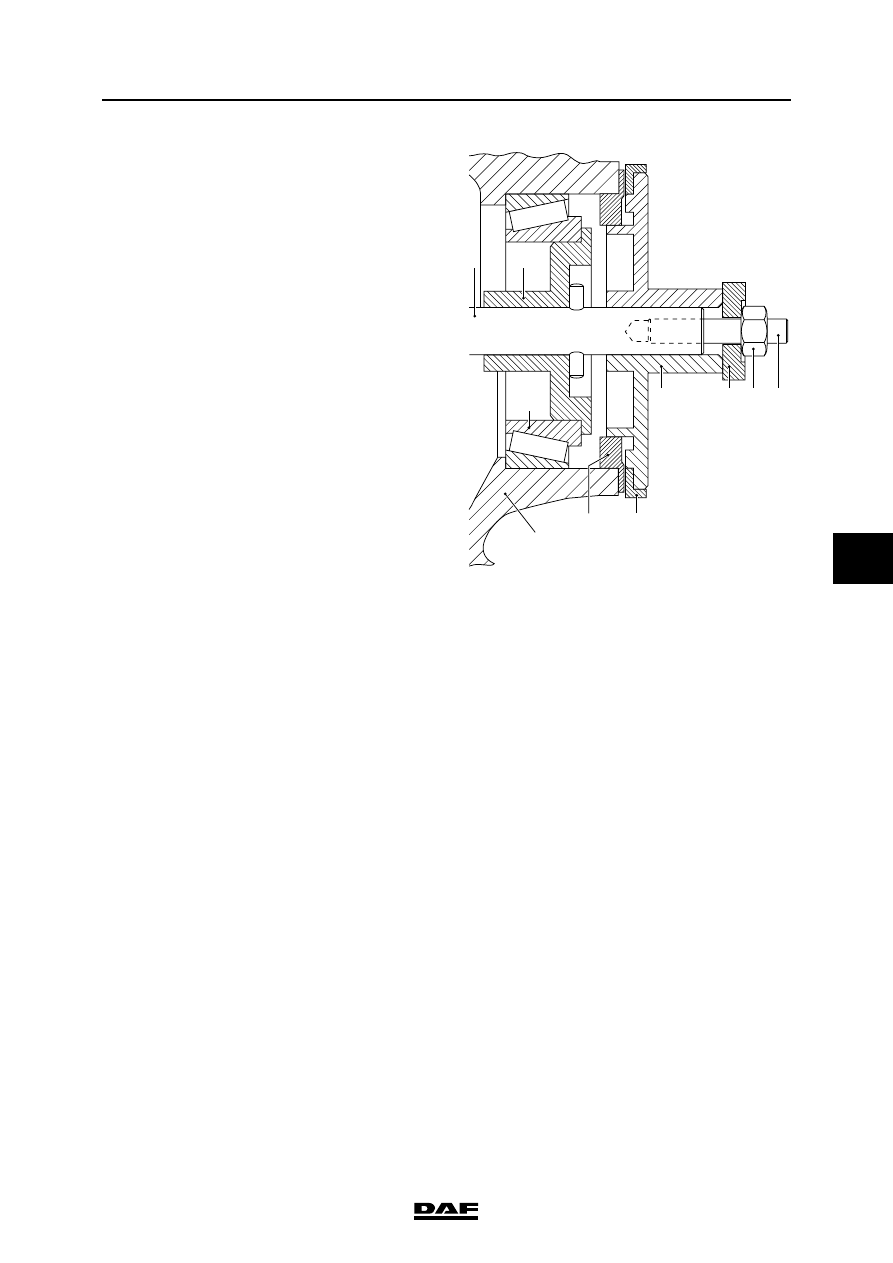

3.

Assemble the special tool: turn the threaded

ends (A) and (L) into the centring spindle (E).

Assemble the short stud (L) on the side

where the pin has been fitted into the

centring spindle (E).

4.

Slide the appropriate centring flange (F) over

the centring spindle (E).

5.

Install the inner wheel bearing (3).

Insert the centring spindle (E) together with

the centring flange (F) into the hub (2).

6.

Press the centring flange (F) into the inner

wheel bearing (3).

7.

Slide the appropriate centring flange (D) on

the centring spindle (E).

8.

Fit the retaining plate (C) and the nut (B) on

the centring spindle (E).

9.

Align the centring flange (D) on the outer

race of the outer wheel bearing and hand-

tighten nut (B) (max. 20 Nm). The centring

spindle (E) must be installed in the hub (2)

free of play.

10. Fit the ring (G) on the draw-in flange (H).

11. Position the seal/sensor ring (4) in front of

the hub (2).

Slide the draw-in flange (H) with the washer

(G) over the centring spindle (E) against the

seal/sensor ring (4).

12. Fit the retaining plate (I) and the nut (K).

13. Press the seal/sensor ring (4) evenly into the

hub (2) using nut (K), until the sensor ring

abuts the hub (2).

14. Remove the special tool.

15. Apply grease to the sealing lips of the seal/

sensor ring (4).

16. Fit the hub on the axle journal.

3

F

E

H

G

4

I

K L

2

S7 00 411

TANDEM REAR AXLE 1132T

3-8

©

 200424

Removal and installation

6

ΧΦ65/75/85 series

8

3.5 REMOVAL AND INSTALLATION, WHEEL BEARINGS

Removing wheel bearings
1.

Remove the wheel hub.

2.

Remove the hub seal.

3.

Remove the bearing cages.

4.

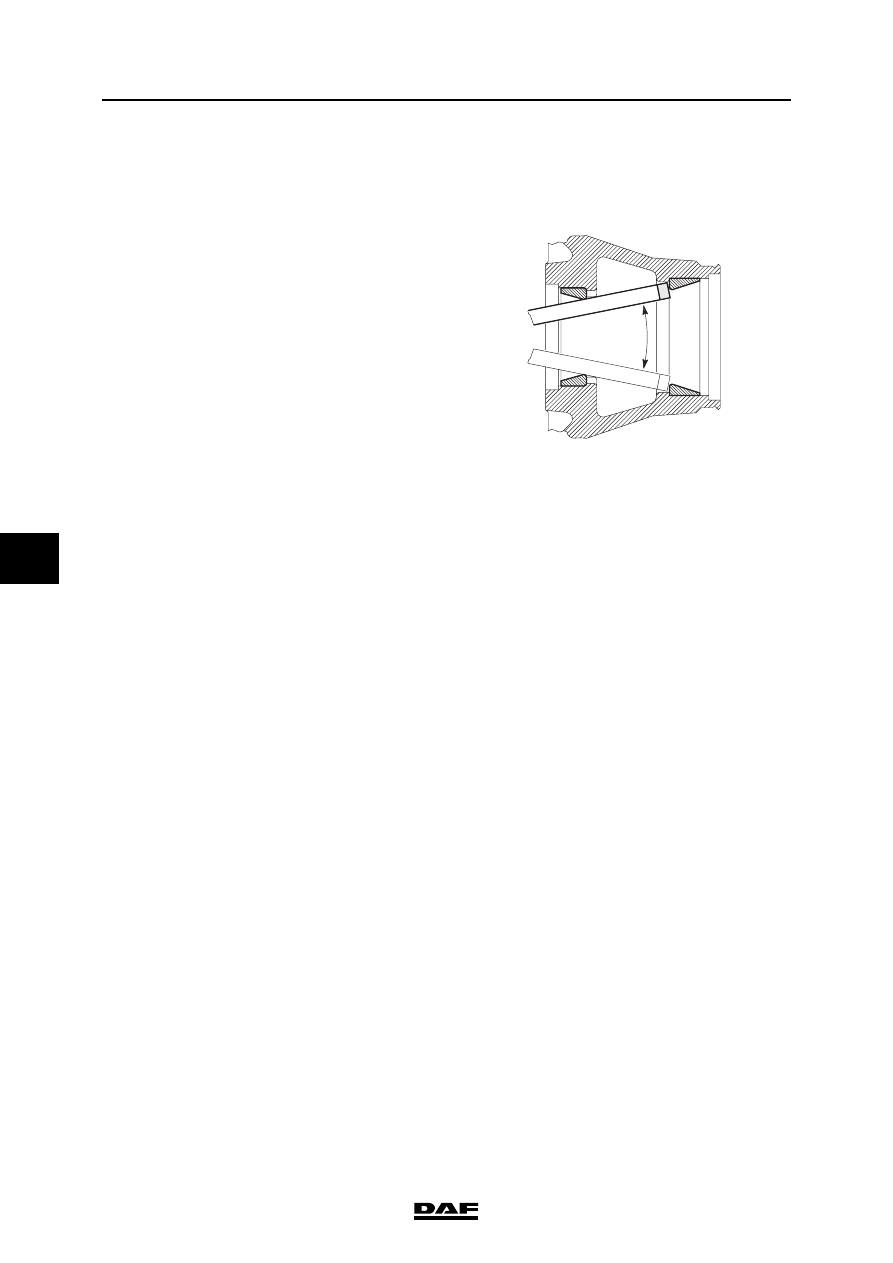

If the wheel bearings should be replaced, the

outer bearing races can be tapped from the

hub using a driving tool. For this purpose, the

hub has been fitted with two recesses (A)

and (B).

Installing wheel bearings
1.

Clean the bearings and check them for signs

of damage.

2.

Use a driving tool and a hydraulic press to

install the outer races into the hub. You can

also tap the outer races evenly into the hub

using a driver.

3.

Fit the wheel hub.

4.

Tighten the adjusting nut to a torque of 100

Nm and turn the hub a few revolutions so that

the wheel bearings can set.

5.

Retighten the adjusting nut to a torque of 100

Nm and adjust the wheel bearing play, see

"Inspection and adjustment, wheel

bearings".

B

A

M8120
